Products Description
General information

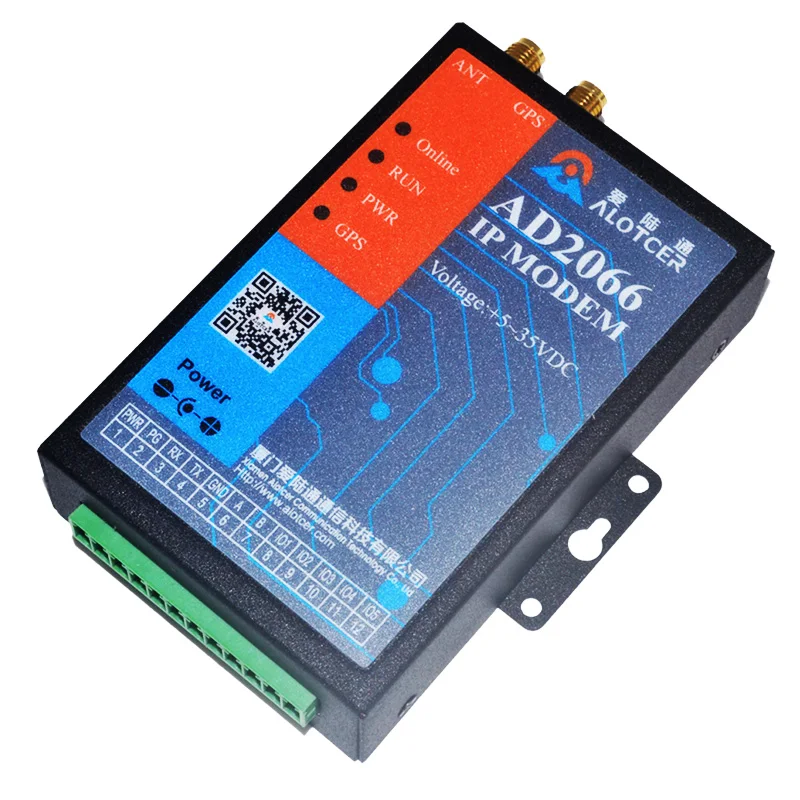

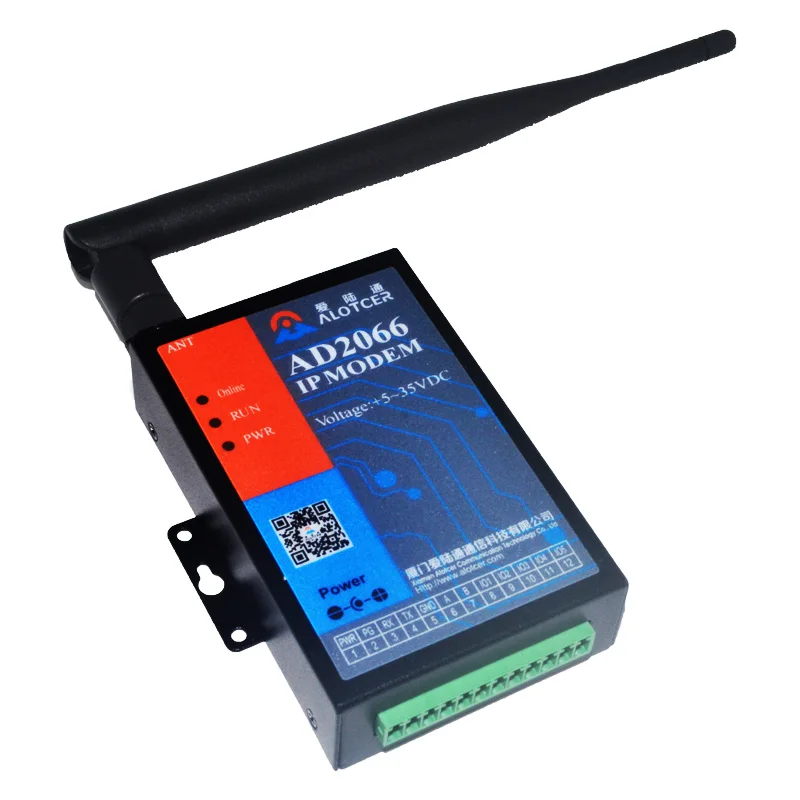

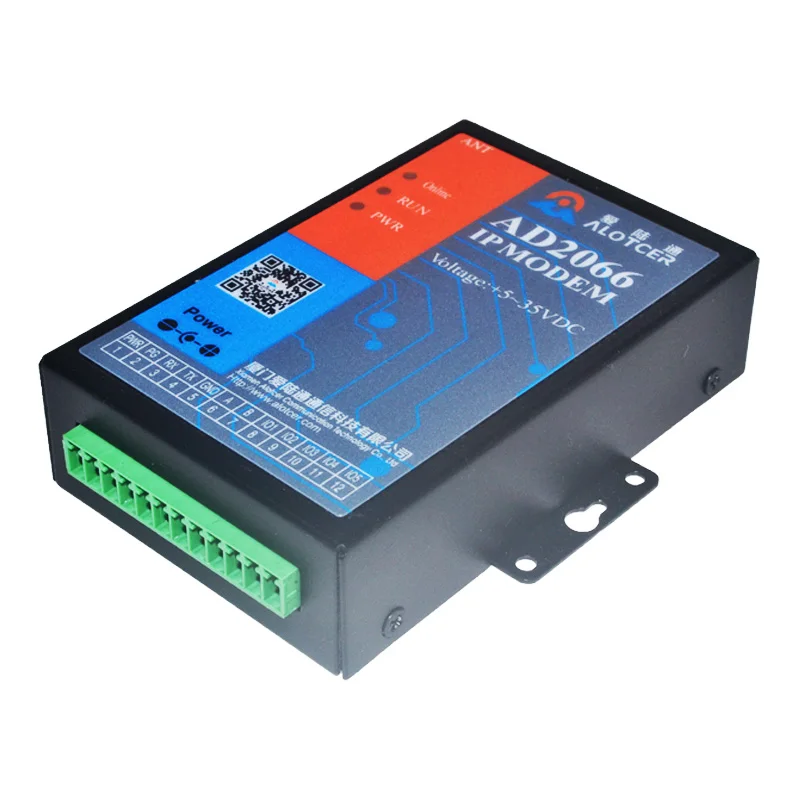

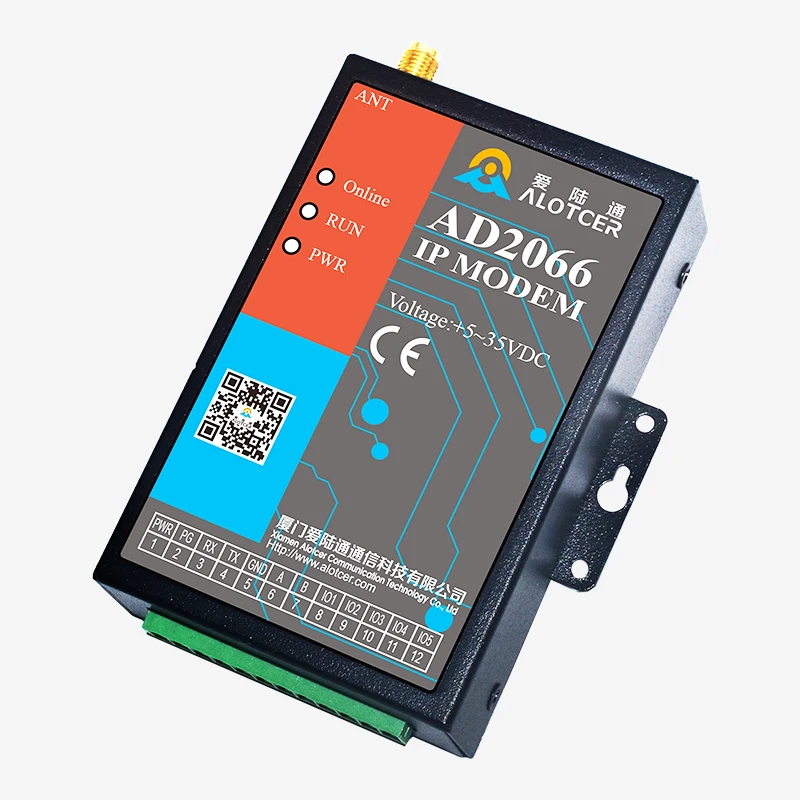

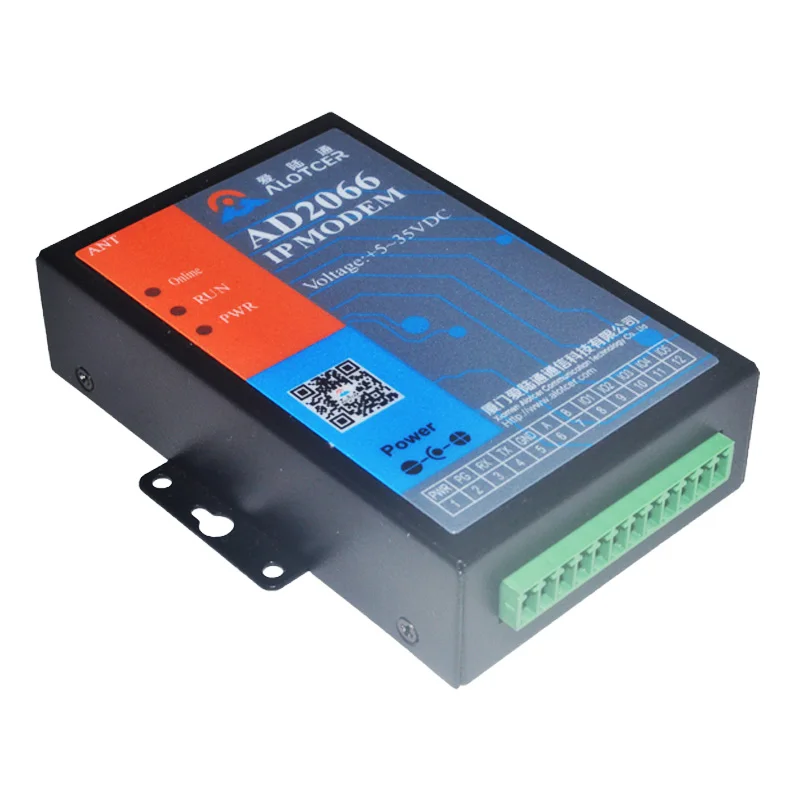

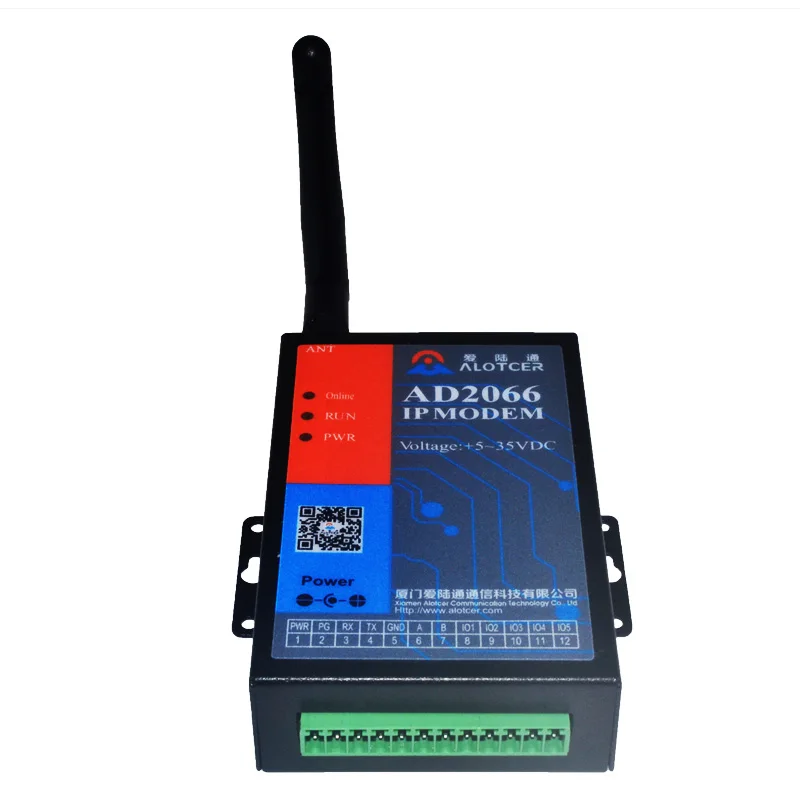

AD2066L IP MODEM is a kind of cellular terminal device that developed based on2G/3G/4G technology.It adopts high-powered industrial 32 bits CPU and embedded real time operating system. It supports RS232 and RS485 (or RS422) port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial devices with only basic configuration. It has compatible digital I/O channel, ADC and pulse wave output function. It adopts low-power consumption design, operating current <10mA (@12VDC) in sleep state, intelligent sleep control, and still maintains link in sleep state, ensuring stable transmission and no data loss, meeting the needs of industrial field communication.
It has been widely used on M2M fields, such as intelligent transportation, smart grid, postal services,industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.
It has been widely used on M2M fields, such as intelligent transportation, smart grid, postal services,industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.
Item | Contents | ||
Hardware System | CPU | Industrial 32 bits CPU | |
FLASH | 16MB (Extendable to 64MB) | ||
SDRAM | 128MB | ||
Interface | Serial | 2 RS232 port and 1 RS485(or RS422) port, 15KV ESD protection Data bits: 5, 6, 7, 8 Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd, space, mark Baud rate: 1200~256000bits/s | |
Antenna | Cellular: Standard SMA female interface, 50 ohm GPS(optional):Standard SMA female interface, 50 ohm | ||

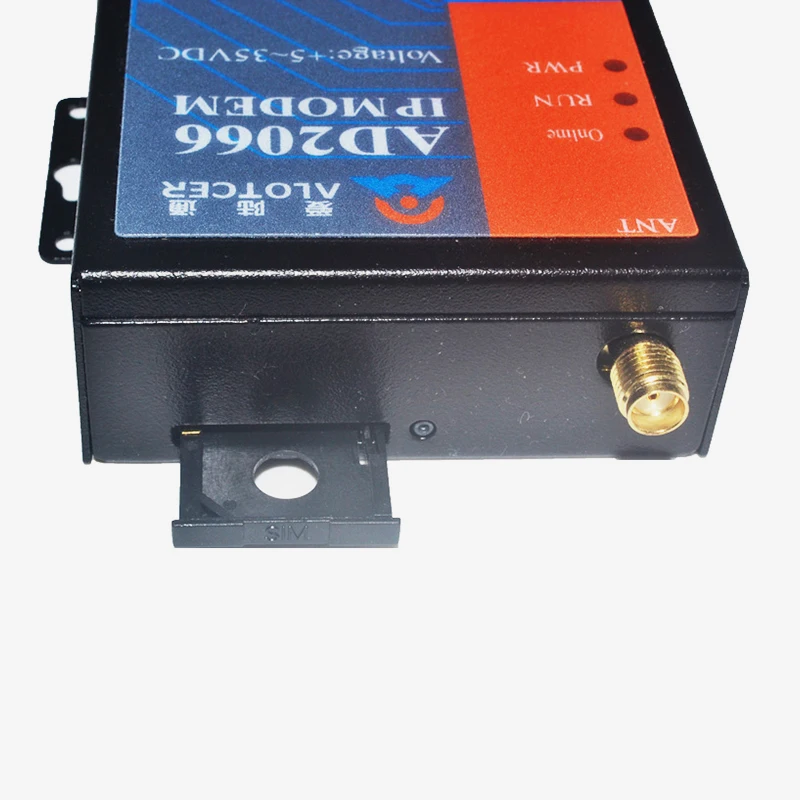

SIM/UIM | Standard 3V/1.8V user card interface, 15KV ESD protection | ||
Power | Terminal block interface, reverse-voltage and overvoltage protection | ||
Power | Press this key for 8 seconds to restore the Router to its original factory default settings | ||
Indicator | “PWR”、”RUN”、”Online”、”GPS”(optional) | ||
Network | GSM/GPRS/EDGE: 850/900/1800/1900MHz CDMA: 800/1900MHz WCDMA/HSUPA/HSPA+: 850/900/1900/2100MHz CDMA2000 1x/ EVDO Rev. A:800/1900MHz TD-SCDMA: 1880-1920/2010-2025MHz(A/F) TDD-LTE: Band 38/39/40/41& Band 61/62 FDD-LTE: Band 1/2/3/4/5/7/8/13/17/20/25/28 | ||
PPP Protocol | Support PPP Protocol | ||
PPP Heartbeat | Maintaining links with the cellular network to prevent forced sleep, to ensure the stability of dial-up link. | ||
Network Authentication | Support CHAP/PAP Authentication | ||
TCP Heartbeat | Monitor the server connection | ||
GPS (Optional) | Receiver type | 50 channels GPS L1 (1575.42MHz) C / A code Support WAAS, EGNOS, MSAS, GAGAN | |
Maximum update rate | 5 Hz | ||
Accuracy | Positioning: 2.5m CPE SBAS: 2.0m CPE | ||
Acquisition | Cold starts: 32S Warm starts: 32S Aided starts:<1s Hot starts:<3s | ||
Sensitivity | Tracking: -160dBm Recapture: -160dBm Cold start: -146dBm | ||
Timing accuracy | RMS: 30ns 99%:<60ns Granularity: 21ns | ||
Time pulse | Configurable, 0.25 to 1000Hz | ||
Power supply | Power range | DC 5~35V | |
Communication Current | <100MA(@12VDC) | ||
Standby Current | <DC 12V/1.5A | ||
Sleep current(online) | <10MA(@12VDC) | ||
Physical | Dimensions | 91x59x23mm | |
Weight | 175g | ||
Environmental Limits | Operating Temperature | -35~+75ºC (-31~+167℉) | |
Storage Temperature | -40~+85ºC (-40~+185℉) | ||
Operating Humidity | 95% ( unfreezing) | ||
Details Images
Certifications
Product packaging
Our Company
Xiamen Alotcer Communication Technology Co., Ltd. is a leading provider of M2M, IOT communication products and solutions.vDeeprooted in Networking Wireless Communications for 5 years, both from the product quality and the company's scale are in theindustry-leading level. We have obtained SGS certification and are ISO9001 certified, along with CE, FCC, EMC, ROHS, RED NationalNetwork Center certifications. There are more than 200 employers in Alotcer, R & D personnel is about 30%, and with 3000 squaremeters of office space. Because focused, so specialized. Our products are sold all over the world and well received by customers.
