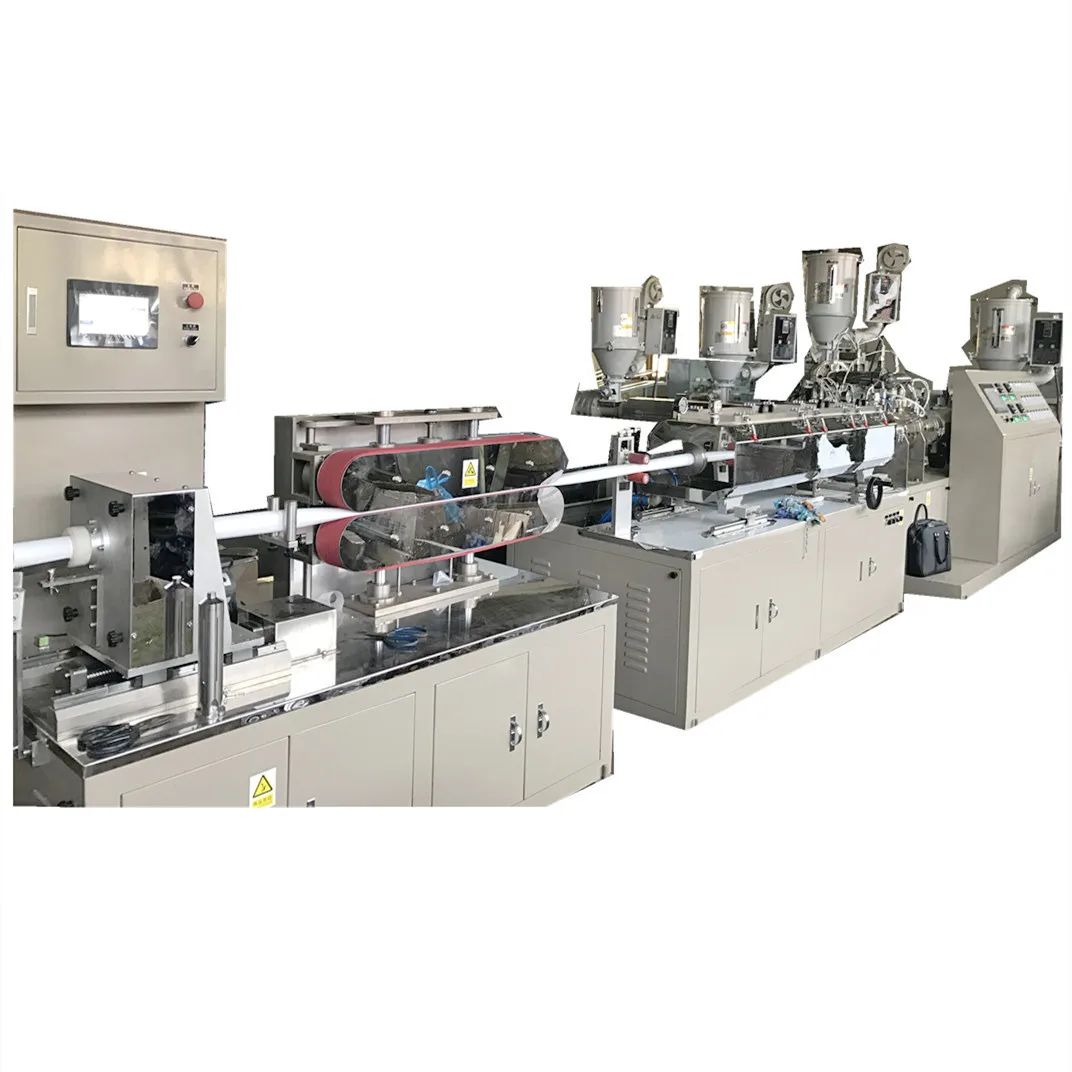

Multiple layer PE Tube Extrusion Cutting Machine for cosmetics
- Category: >>>
- Supplier: Shanghai Sunway International Trade Co. Ltd.
Share on (62515985409):
Product Overview
Description
Product Description
Multiple Layer Seamless PE Tube Extrusion Cutting Machine, Multiple layer tube extruder cutting machine, five layer extruder cutting machine, PE seamless tube making machine, plastic tube extruder cutting machine.
Extruder 1 (LDPE material extruded)
Feeding system and dry system: None (according to customer requirements optional)
Screw diameter: ∅50
L/D: 1:30
Screw speed: ≤14rpm (frequency control)
Screw and barrel material: 38CrMoAlA
Motor power: 7.5kW
Inverter brand: Panasonic
5 zone heating, heating power: 12.2 kW, stainless steel heating coil
Cooling fan power: 0.54 kW; 3 zone cooling
Extruder 2 (LDPE material extruded)
Feeding system and dry system: None (according to customer requirements optional)
Screw diameter: ∅45
L/D : 1:32
Screw speed: ≤14rpm (frequency control)
Screw and barrel material: 38CrMoAlA
Motor power: 7.5kW
Inverter brand: Panasonic
5 zone heating, heating power: 9.8kW, stainless steel heating coil
Cooling fan power: 0.54 kW; 3 district cooling
Extruder 3 (BA material extrusion)
Feeding system and dry system: None (according to customer requirements optional)
Screw diameter: ∅35
L/D: 1:26
Screw speed: ≤14rpm (frequency control)
Screw and barrel material: 38CrMoAlA
Motor power: 4kW
Inverter brand: Panasonic
4 zone heating, heating power: 8.8kW, stainless steel heating coil
Cooling fan power: 0.36 kW; 2 district cooling
Extruder 4 (EVDH material extrusion)
Feeding system and dry system: None (according to customer requirements optional)
Screw diameter: ∅40
L/D: 1:28
Screw speed: ≤14rpm (frequency control)
Screw and barrel material: 38CrMoAlA
Motor power: 5.5kW
Inverter brand: Panasonic
5 zone heating, heating power: 11.4kW, stainless steel heating coil
Cooling fan power: 0.36 kW; 2 district cooling
Co-extrusion die area
Heating power: 6.7 kW
District heating: 2 District
Heater Material: Stainless steel heating coil

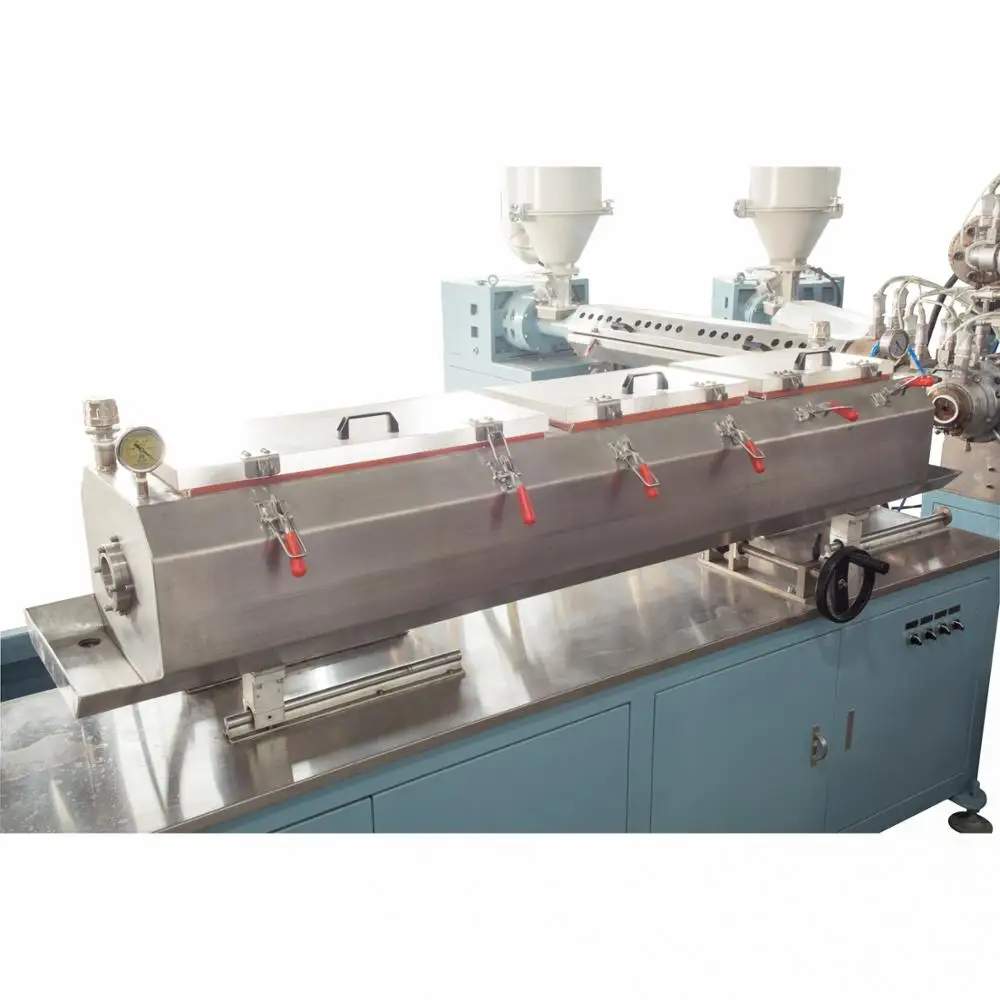

Vacuum sizing tank
Tank Material: SUS304
Tank length: 2100mm
Vacuum pump power: 0.81 kW; Germany's Siemens
Pump power: 0.75 kW
Number of nozzles: 14
Front and rear upper and lower adjustable: Adjustable
Tractor
Frequency Control, Panasonic Inverter, Xiamen East calendar geared motor
Traction speed: 12 / min
Track length: 750mm
Traction motor power: 0.75 kW
Track Material: Silicone
Cutting Machine
Cutting precision: ± 1.5mm
Cutting Frequency: according to production needs to be set
Motor power of Cut off the servo motor : 1.5 kW
Motor power of Tracking servo motor : 1.0 kW
Servo motor: Panasonic
Touch screen: Hitec
Feeding system and dry system: None (according to customer requirements optional)
Screw diameter: ∅50
L/D: 1:30
Screw speed: ≤14rpm (frequency control)
Screw and barrel material: 38CrMoAlA
Motor power: 7.5kW
Inverter brand: Panasonic
5 zone heating, heating power: 12.2 kW, stainless steel heating coil
Cooling fan power: 0.54 kW; 3 zone cooling
Extruder 2 (LDPE material extruded)
Feeding system and dry system: None (according to customer requirements optional)
Screw diameter: ∅45
L/D : 1:32
Screw speed: ≤14rpm (frequency control)
Screw and barrel material: 38CrMoAlA
Motor power: 7.5kW
Inverter brand: Panasonic
5 zone heating, heating power: 9.8kW, stainless steel heating coil
Cooling fan power: 0.54 kW; 3 district cooling
Extruder 3 (BA material extrusion)
Feeding system and dry system: None (according to customer requirements optional)
Screw diameter: ∅35
L/D: 1:26
Screw speed: ≤14rpm (frequency control)
Screw and barrel material: 38CrMoAlA
Motor power: 4kW
Inverter brand: Panasonic
4 zone heating, heating power: 8.8kW, stainless steel heating coil
Cooling fan power: 0.36 kW; 2 district cooling
Extruder 4 (EVDH material extrusion)
Feeding system and dry system: None (according to customer requirements optional)
Screw diameter: ∅40
L/D: 1:28
Screw speed: ≤14rpm (frequency control)
Screw and barrel material: 38CrMoAlA
Motor power: 5.5kW
Inverter brand: Panasonic
5 zone heating, heating power: 11.4kW, stainless steel heating coil
Cooling fan power: 0.36 kW; 2 district cooling
Co-extrusion die area
Heating power: 6.7 kW
District heating: 2 District
Heater Material: Stainless steel heating coil
Vacuum sizing tank
Tank Material: SUS304
Tank length: 2100mm
Vacuum pump power: 0.81 kW; Germany's Siemens
Pump power: 0.75 kW
Number of nozzles: 14
Front and rear upper and lower adjustable: Adjustable
Tractor
Frequency Control, Panasonic Inverter, Xiamen East calendar geared motor
Traction speed: 12 / min
Track length: 750mm
Traction motor power: 0.75 kW
Track Material: Silicone
Cutting Machine
Cutting precision: ± 1.5mm
Cutting Frequency: according to production needs to be set
Motor power of Cut off the servo motor : 1.5 kW
Motor power of Tracking servo motor : 1.0 kW
Servo motor: Panasonic
Touch screen: Hitec
Parameter | ||
Raw Material | LDPE / BA / EVOH / BA / LDPE | |
Capacity | 60pcs / min | |
Speed | 12m/min | |
Tube Diameter | 19-60mm | |
Installed power | 75kw | |
Operating power | 50kw | |
Power consumption | 66kw | |
Dimension | 6.5*3.5*2.1m | |
Direction for use
Multiple Layer Seamless PE Tube Extrusion Cutting Machine, Multiple layer tube extruder cutting machine, five layer extruder cutting machine, PE seamless tube making machine, plastic tube extruder cutting machine used for produce cosmetic seamless PE tubes to package cosmetics like cleanser, hand cream, shampoo, lotion, etc. For high-end market cosmetics and good tightness products.

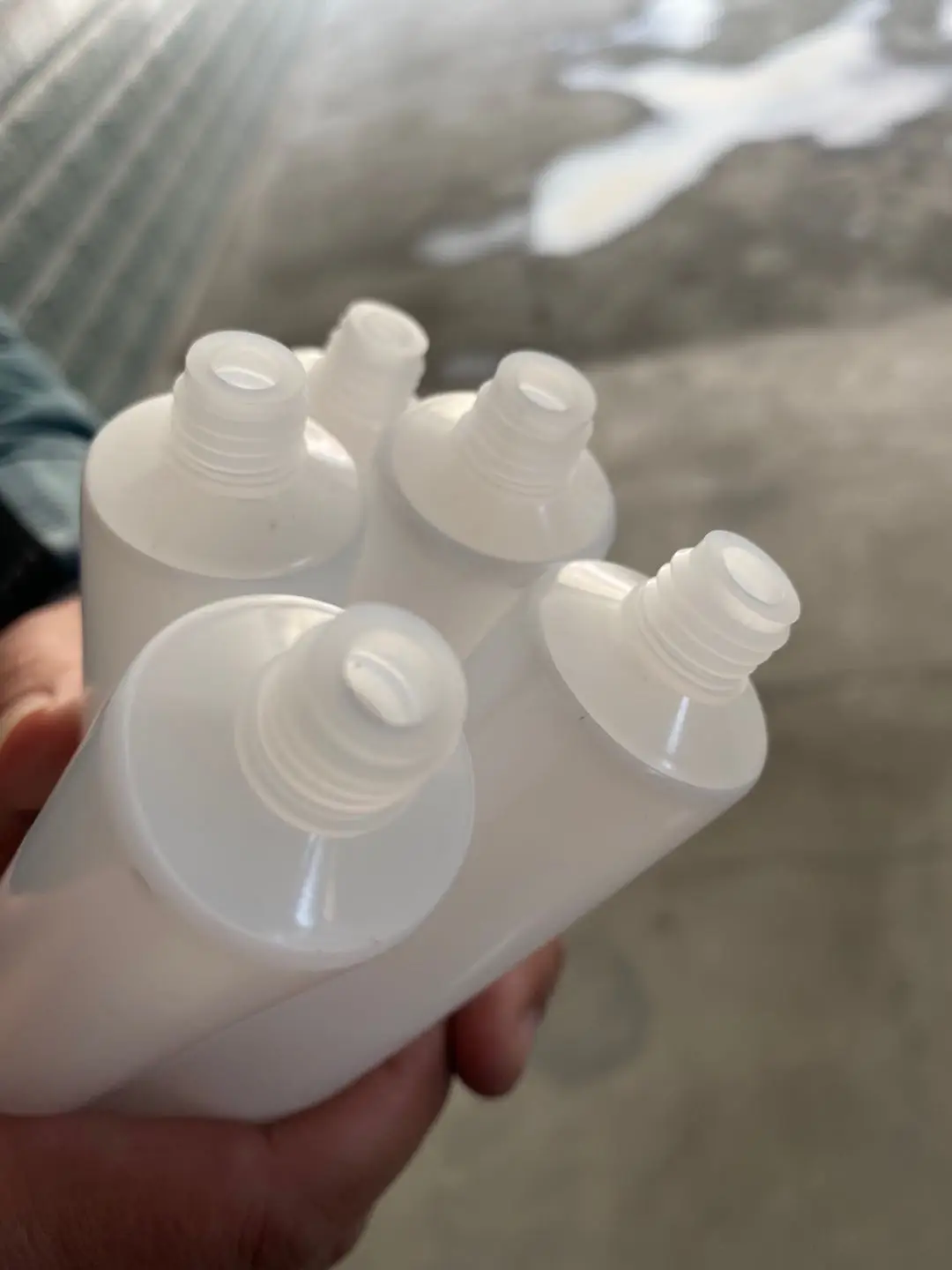

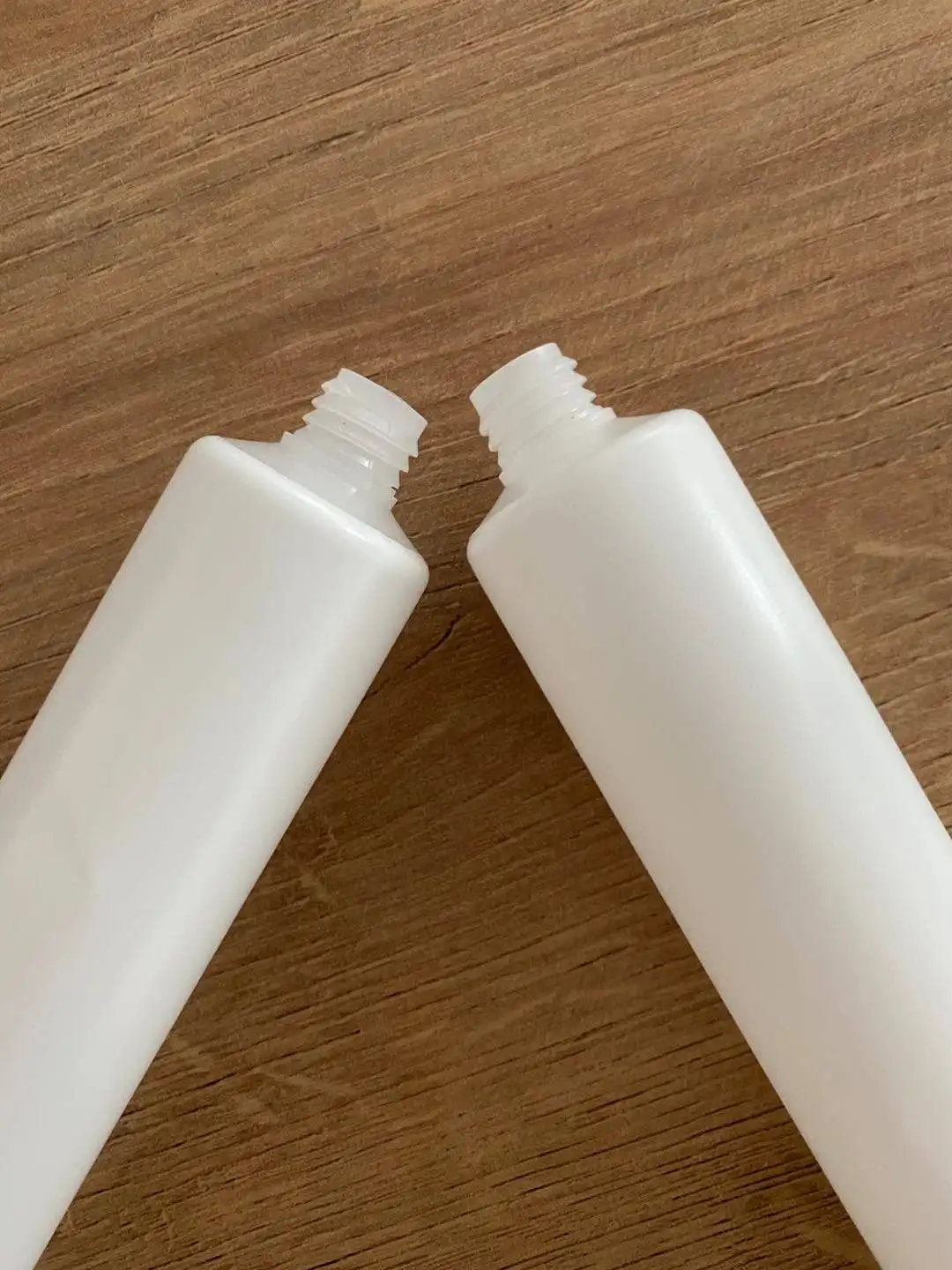

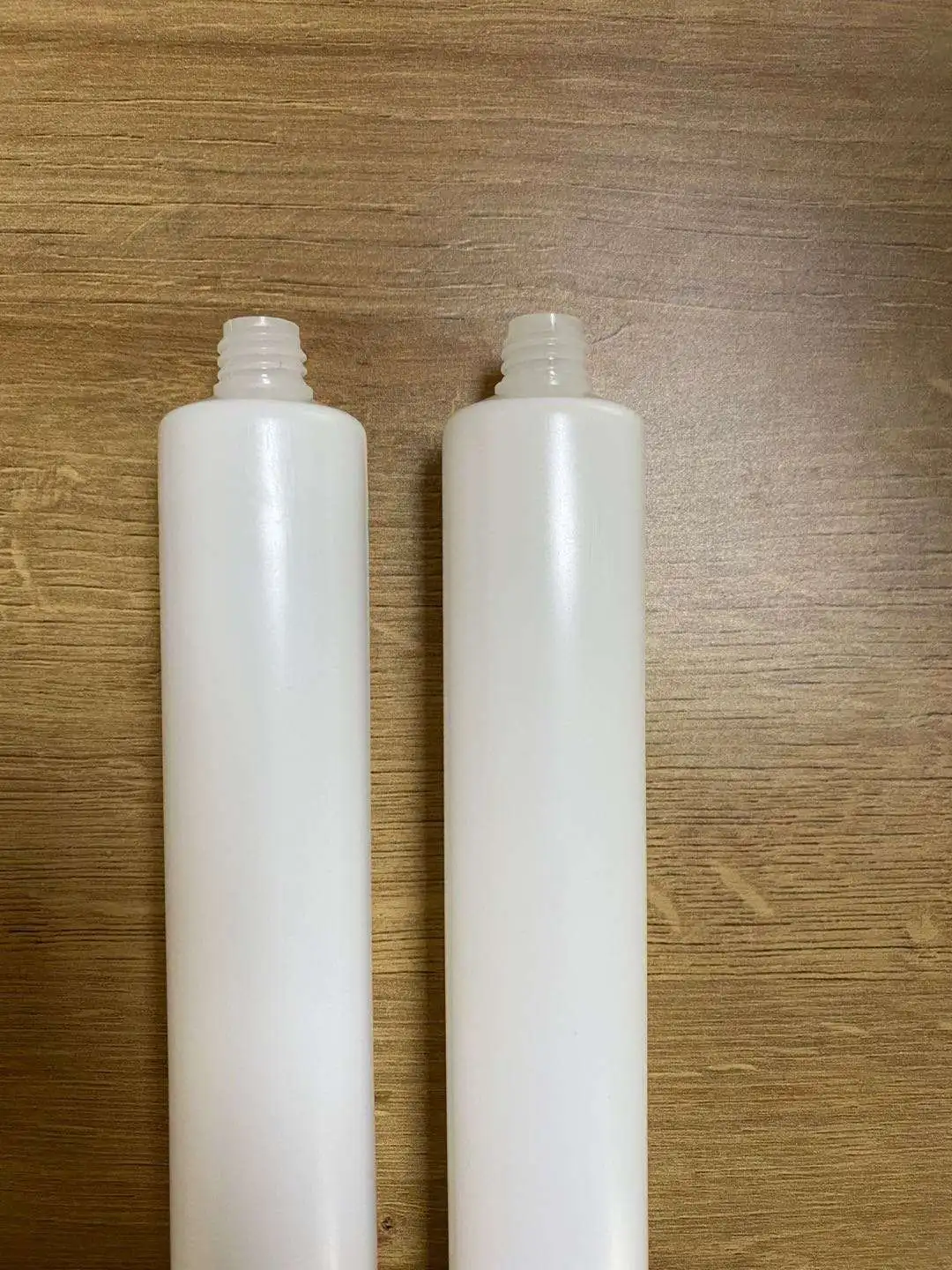

Description of application effect
Multiple Layer Seamless PE Tube Extrusion Cutting Machine, Multiple layer tube extruder cutting machine, five layer extruder cutting machine, PE seamless tube making machine, plastic tube extruder cutting machine can produce perfect seamless tubes with different colors also can produce transparent tubes. Multiple layer PE seamless tube diameter from 19mm to 60mm, and tube body can be produced different colors when put color masterbatch with plastic granules.

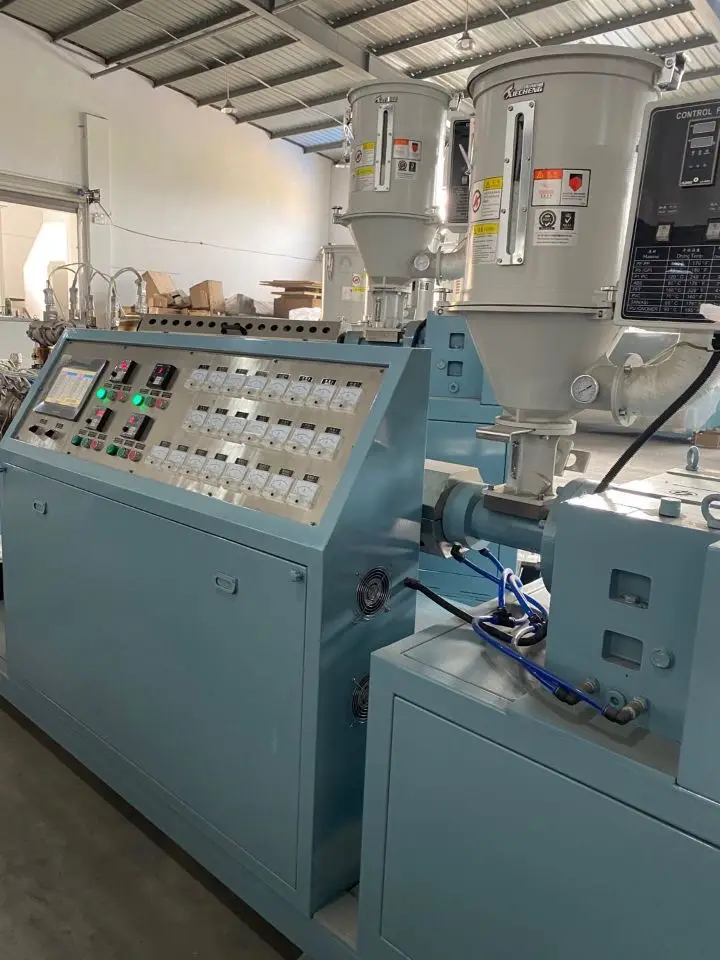

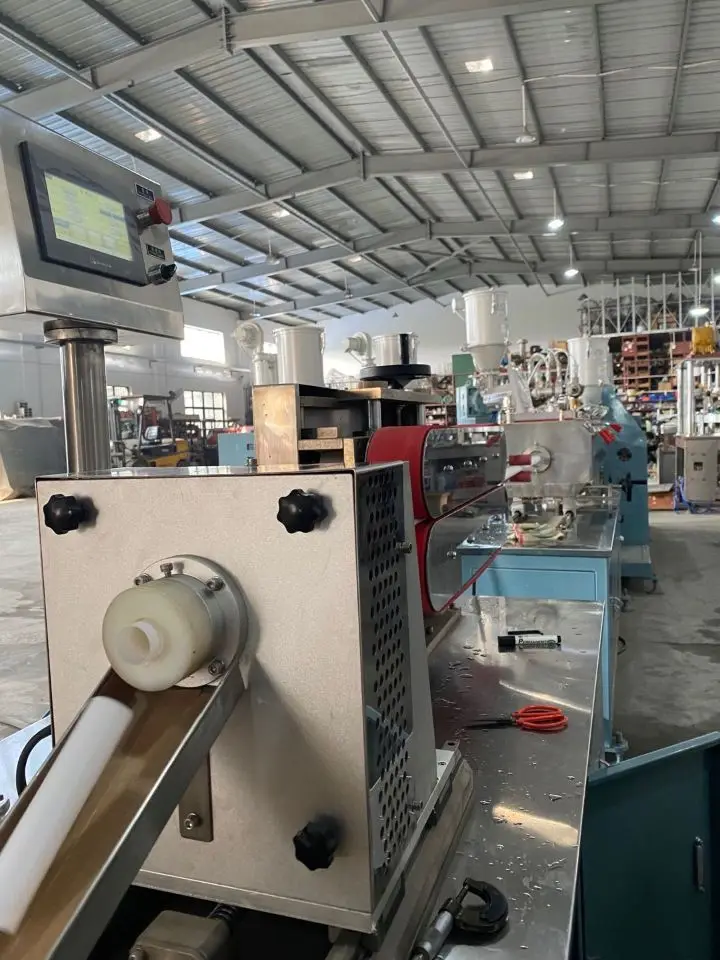

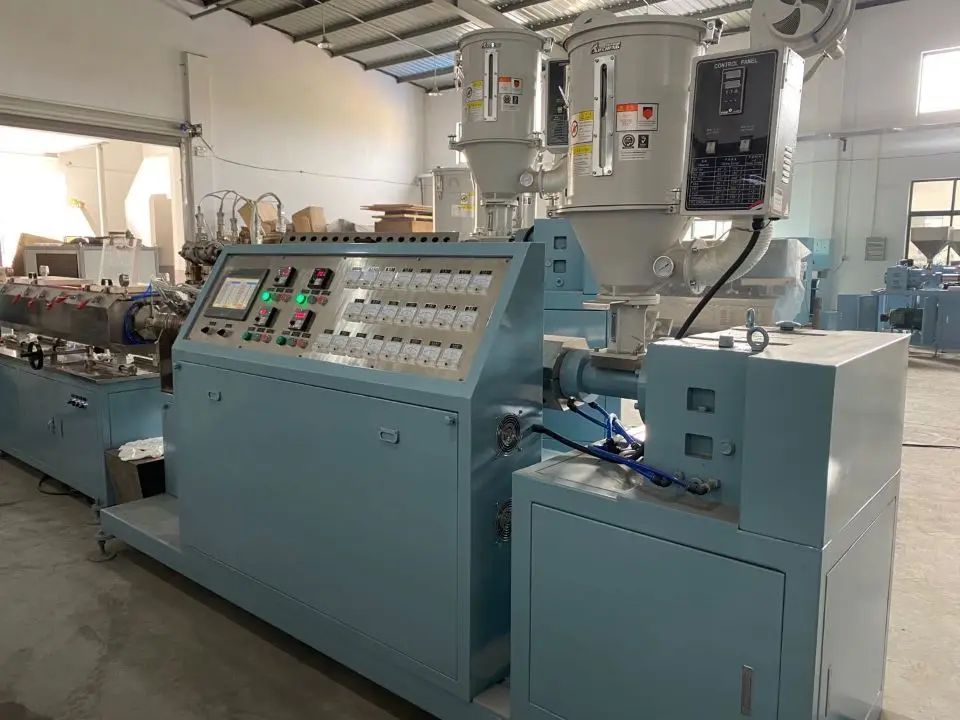

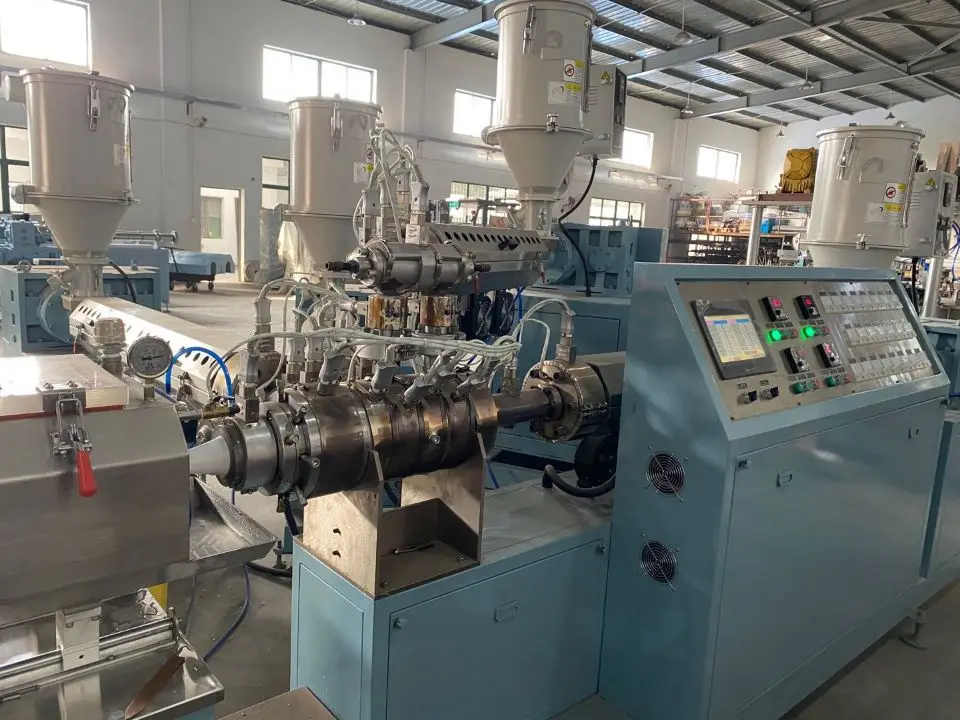

Detailed Images
Multiple Layer Seamless PE Tube Extrusion Cutting Machine, Multiple layer tube extruder cutting machine, five layer extruder
cutting machine, PE seamless tube making machine, plastic tube extruder cutting machine details like belowing picture.
cutting machine, PE seamless tube making machine, plastic tube extruder cutting machine details like belowing picture.
Related Products

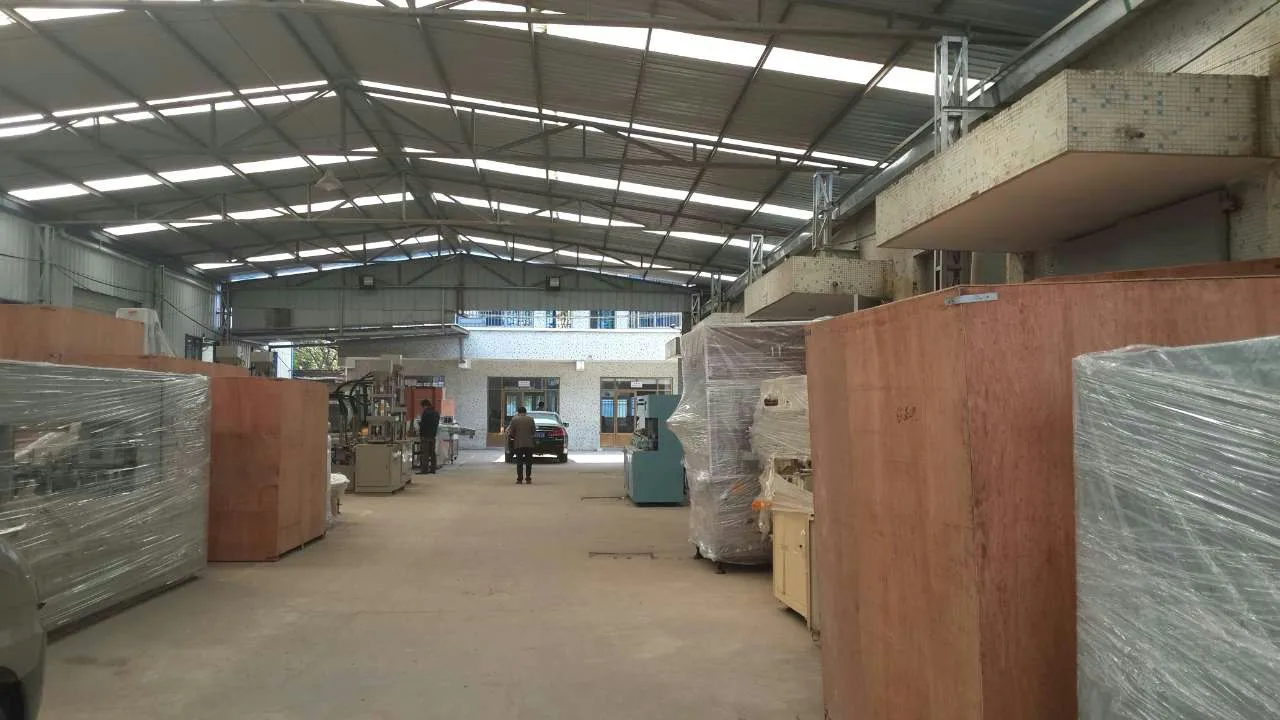

Packing&Shipping
Two Layer Cosmetic PE Tube Extrusion Machine, Plastic Cosmetic Tube Extrusion Machine, Cosmetic PE Tube Extrusion Machine is suitable packaged in standard exporting wooden cases which can protect the goods in a safe way during the long time sea shipping.
After Sales Service
Pre-sales services
* Inquiry and consulting support.
* Video conference to see our products
* View our Factory.
After-sales Services
* Free parts in warranty
* Video support and 24*7 hours services online* Installation, training and machine maintenance

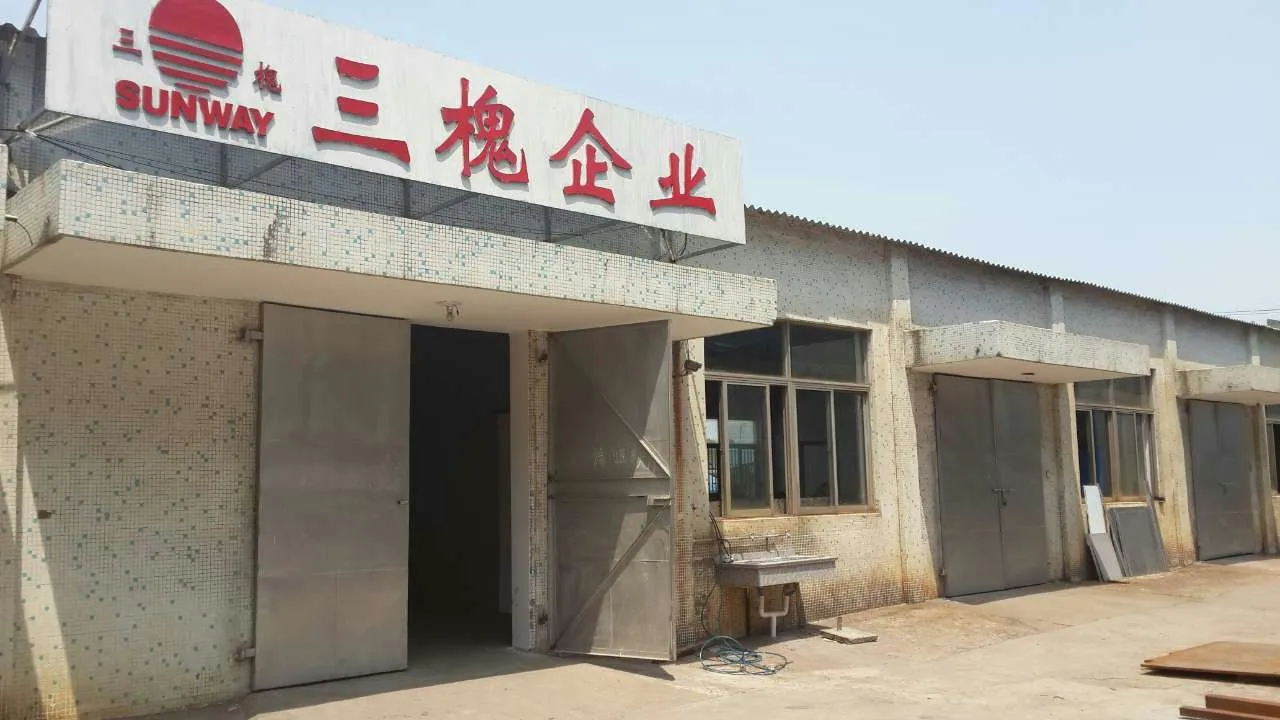

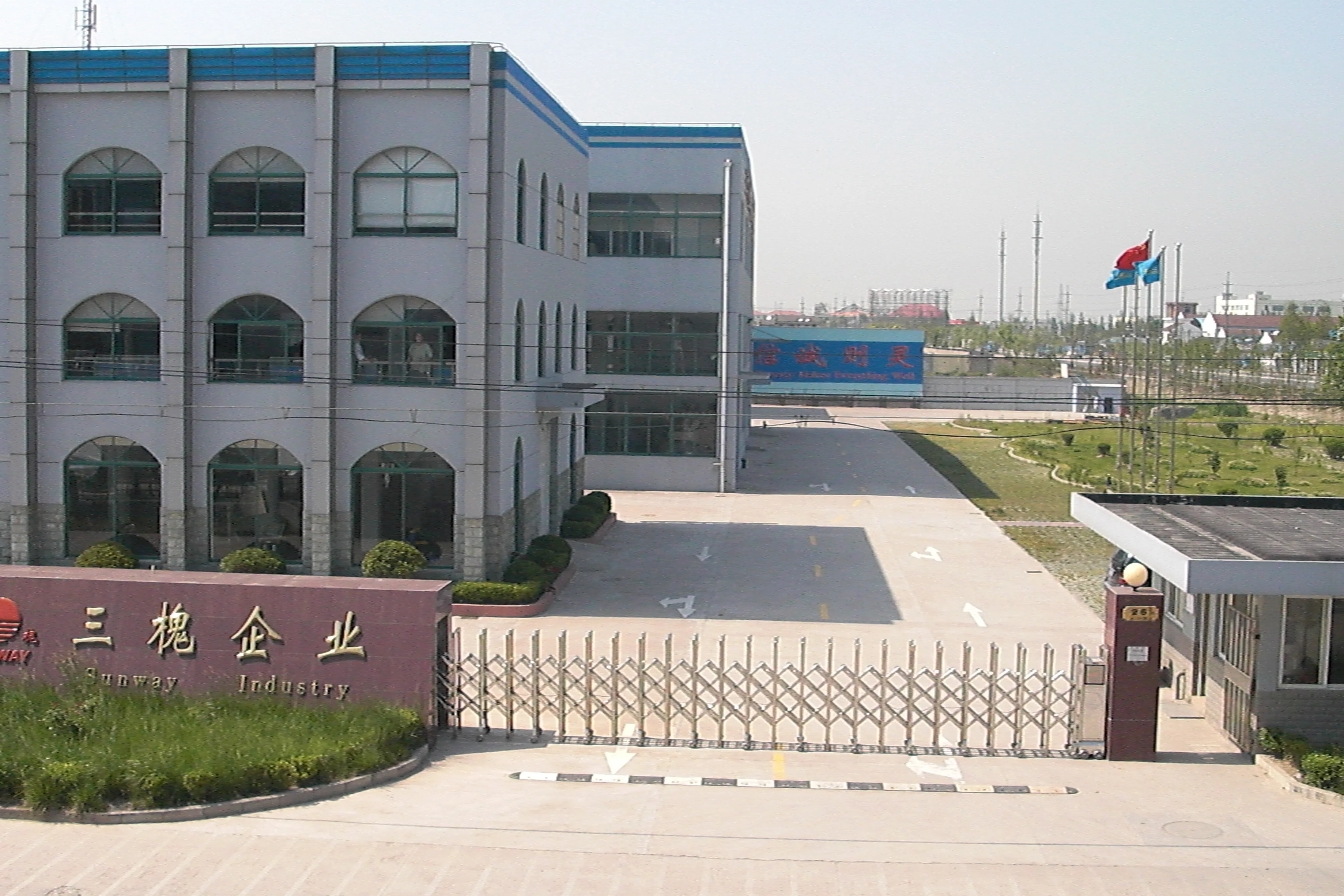

Company Introduction
Sunway, composed of Shanghai Sunway Technology Co., Ltd., Shanghai Sunway Packaging Machinery Co., Ltd., Shanghai Sunway Industry and Trading Co., Ltd., Tongzhou Sunway Machinery Manufacturing Co., Ltd. Sunway sales agent in Jakarta, Indonesia, Sunway sales agent in New Delhi, is a complex enterprise integrating research and development, design and manufacture and trade.
We have a staff of three hundred of which two are professors, five are research workers who possess the senior professional title, over ten are technologists who possess the middle professional title, over fifty are supervisors, and two hundred are technicians.It is a team of high quality in regard to the development of manufacturing technologies and the enterprise management.
The factory covers an area of over 15,000 square metres. It has a property of RMB 25 million and its annual sales reach RMB 50 million.Our main products: daily chemical and pharmacy machinery series including Cream-like, detergent-like and seasoning producing device such as vacuum paste machines, homogenizing and emulsifying machines, stirring machine and reaction caldron;Device for producing tube such as auto paste production line of plastic and aluminum-plastic tube, filling and sealing machine of tubes in various specification, color filling and sealing machine, tube printing machine; bottle-like packing machine such as filling & screwing(capping) machine of liquid, filling & screwing (capping) machine with inner cork of eye drop and oral liquid;small bag packing machine for packing liquid , paste, power and granule; all kinds of stainless conveyor; water disposing device;various specification mould of tube line; stainless steel super –clean operator, tank, post; toilet soap line, etc..
Taking Better Product, Lower Price, More Satisfactory Service, and More Satisfied Customer as our guiding principle, and with the spirits of Conscientiousness, Steadiness, Pioneering and Innovation, our enterprise finds favour in the eyes of our customers home and abroad. Besides the home market, our products enjoy a big foreign market, which are exported to America, Japan, Russia, India,Burma, Italy, France, Nigeria, Vic tram, etc.
In 1996, our Filling & Sealing Machine was awarded the gold medal in the China Patent & New Product Fair. From 2002 until now, we were granted the title of prestigious enterprise from our municipal government. In 2003, our enterprise got the ISO 9001:2000. Multiple Layer Seamless PE Tube Extrusion Cutting Machine, Multiple layer tube extruder cutting machine, five layer extrudercutting machine, PE seamless tube making machine, plastic tube extruder cutting machine.
We have a staff of three hundred of which two are professors, five are research workers who possess the senior professional title, over ten are technologists who possess the middle professional title, over fifty are supervisors, and two hundred are technicians.It is a team of high quality in regard to the development of manufacturing technologies and the enterprise management.
The factory covers an area of over 15,000 square metres. It has a property of RMB 25 million and its annual sales reach RMB 50 million.Our main products: daily chemical and pharmacy machinery series including Cream-like, detergent-like and seasoning producing device such as vacuum paste machines, homogenizing and emulsifying machines, stirring machine and reaction caldron;Device for producing tube such as auto paste production line of plastic and aluminum-plastic tube, filling and sealing machine of tubes in various specification, color filling and sealing machine, tube printing machine; bottle-like packing machine such as filling & screwing(capping) machine of liquid, filling & screwing (capping) machine with inner cork of eye drop and oral liquid;small bag packing machine for packing liquid , paste, power and granule; all kinds of stainless conveyor; water disposing device;various specification mould of tube line; stainless steel super –clean operator, tank, post; toilet soap line, etc..
Taking Better Product, Lower Price, More Satisfactory Service, and More Satisfied Customer as our guiding principle, and with the spirits of Conscientiousness, Steadiness, Pioneering and Innovation, our enterprise finds favour in the eyes of our customers home and abroad. Besides the home market, our products enjoy a big foreign market, which are exported to America, Japan, Russia, India,Burma, Italy, France, Nigeria, Vic tram, etc.
In 1996, our Filling & Sealing Machine was awarded the gold medal in the China Patent & New Product Fair. From 2002 until now, we were granted the title of prestigious enterprise from our municipal government. In 2003, our enterprise got the ISO 9001:2000. Multiple Layer Seamless PE Tube Extrusion Cutting Machine, Multiple layer tube extruder cutting machine, five layer extrudercutting machine, PE seamless tube making machine, plastic tube extruder cutting machine.
Our Services & Strength
Multiple Layer Seamless PE Tube Extrusion Cutting Machine, Multiple layer tube extruder cutting machine, five layer extruder cutting machine, PE seamless tube making machine, plastic tube extruder cutting machine can make differet diameters and colos tube.
FAQ
Multiple Layer Seamless PE Tube Extrusion Cutting Machine, Multiple layer tube extruder cutting machine, five layer extruder
cutting machine, PE seamless tube making machine, plastic tube extruder cutting machine.
cutting machine, PE seamless tube making machine, plastic tube extruder cutting machine.
Answer: Yes, we are a manufacture, and we have an international trading center in Shanghai. And of course welcome to our factory.
Q2: How about your prices?
Answer: Our prices are competitive in our field and also negotiable according to your order quantity.
Q3: How's your products?
Answer: Parts of named-brand, best metals of machine boy are used to assure you of the best quality.
Q4: What's your advantage?
Answer: Compared with our competitors, we can offer you one-step service.The whole production line including machines, rawmaterial, even toothpaste, cosmetic formulas for free are available.
And more? Please feel free to contact us..
