Product Overview

Description



Product Description




Product Paramenters


1. Time and Material Saving and Operator Satisfaction
McLantis new innovative plate pre-register punch will pre-register and punch the offset plates, as well as bending them for ease of the press operator. Time saved on press and operator satisfaction gained. This saves your skilled press operator line-up and register, job after job, on the expensive multi-unit press; avoid causing damage to your heavy investment.

2. Precise Register and Easy Operation
Two CCD lens enabling 40X magnification of print register marks for easy visual inspection. Vertical and lateral micro-adjustments can then be easily performed by dial operation, assuring accurate plate punching on McLantis plate pre-register punch.

3. Stable Performance in Punching
Pneumatic system for plate punching, easy and fast.

4. Multifunctional and Economical
McLantis plate pre-register punch can handle punching and bending of plates for different press models in one punch.
Optional parts:

1.Plate bending system, right angle and arcing angle.
2.Desktop aspirator which enhances the stability of bending plate.
3.Various register bars (film mounting and plate exposure)



Model
PUNCHMAC
66P
66PW
80P
80PW
125P
125PW
Plate Size(mm)
750x660
1030x800
1630x1250
Bending System
no
yes
no
yes
no
yes
Press
pneumatic press
Zoom
40x
Compatible hole size(mm)
550,425,400
830,780,700
1200
Compatible Press
Komori, Heidelberg, Man Roland, Mitsubishi
Komori, Heidelberg, Man Roland, KBA, Mitsubishi, Akiyama
Komori, Heidelberg, Man Roland, KBA, Mitsubishi, Akiyama
Power Supply
220V single phase 50/60Hz 5A
Mechanical Size (mm)
1070x1040
x1065
1355x980
x1263
1355x1170
x1263
1955x1540
x1263
1955x1670
x1263
Packing Size (mm)
1165x1220
x1350
1450x1150
x1350
1450x1350
x1350
2050x1720
x1350
2050x1850
x1350
Net Weight (kg)
200
170
280
300
360
Gross Weight(kg)
245
230
330
400
470

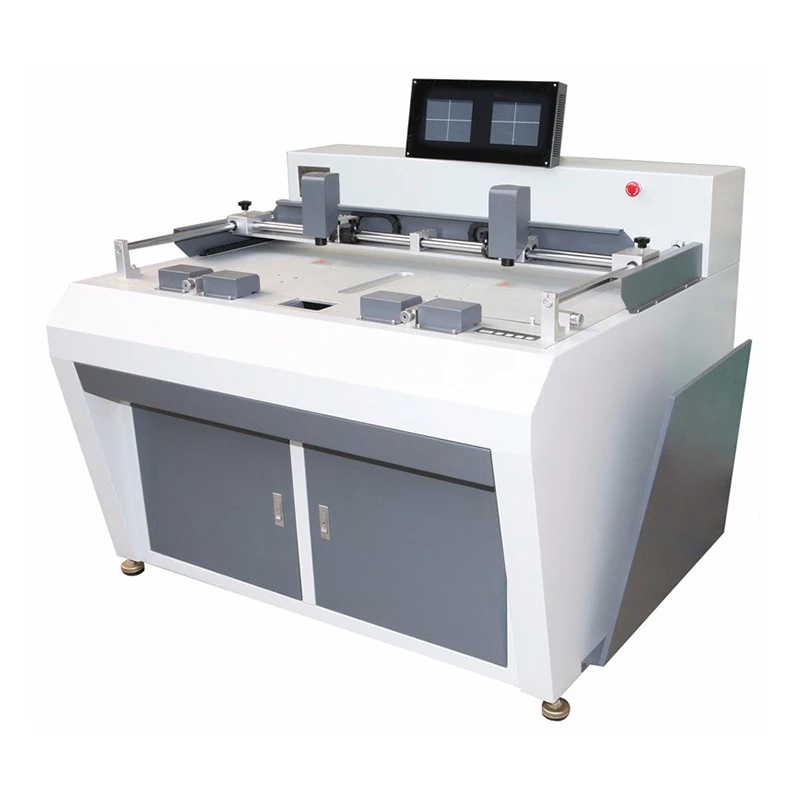

Detailed Images

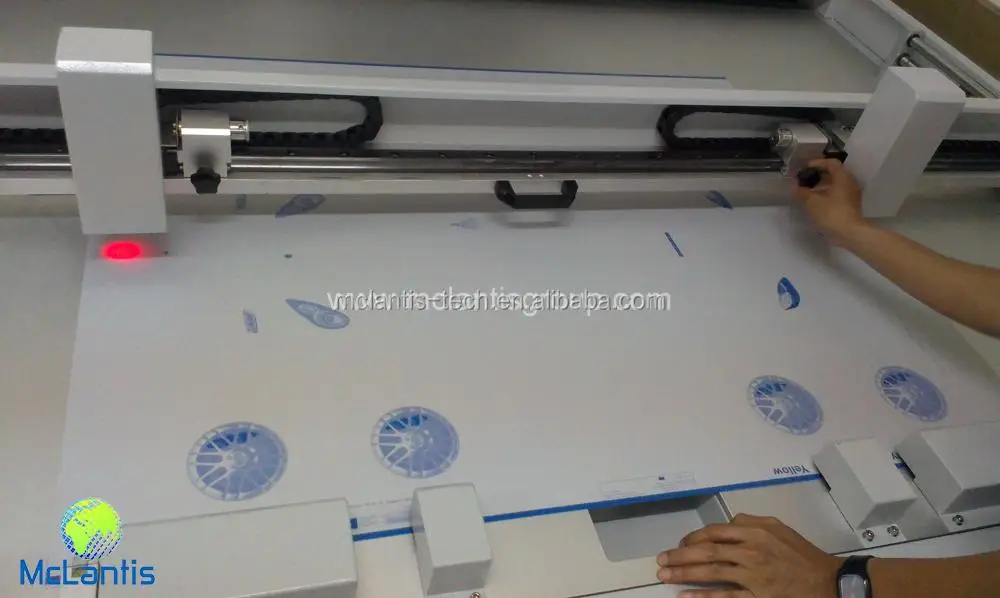

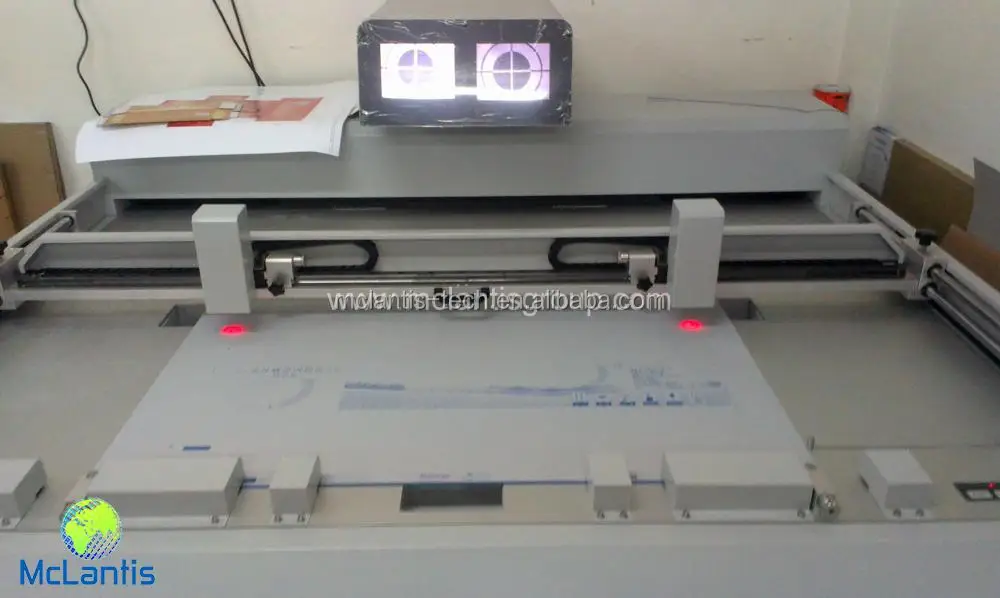

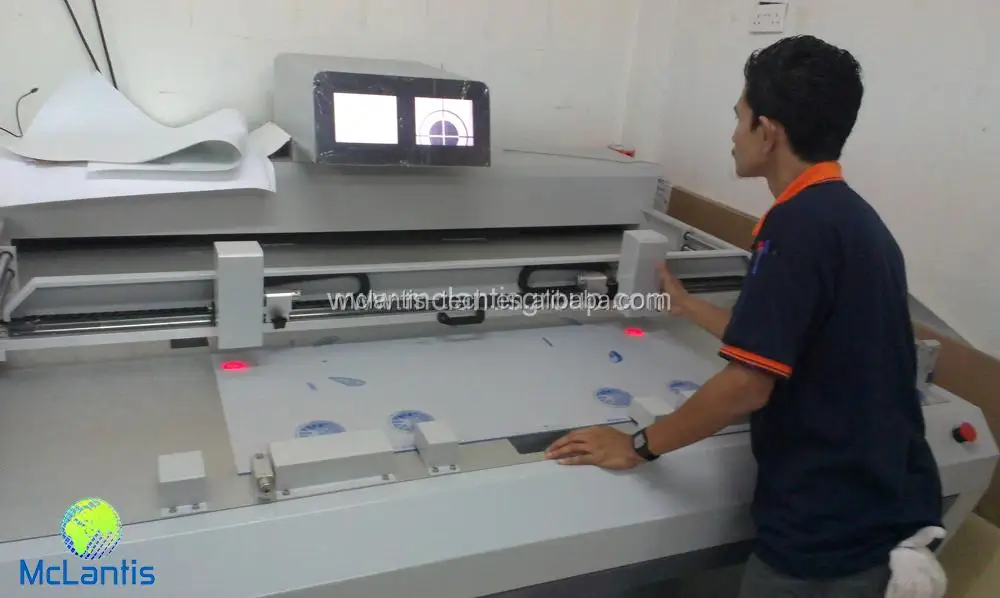

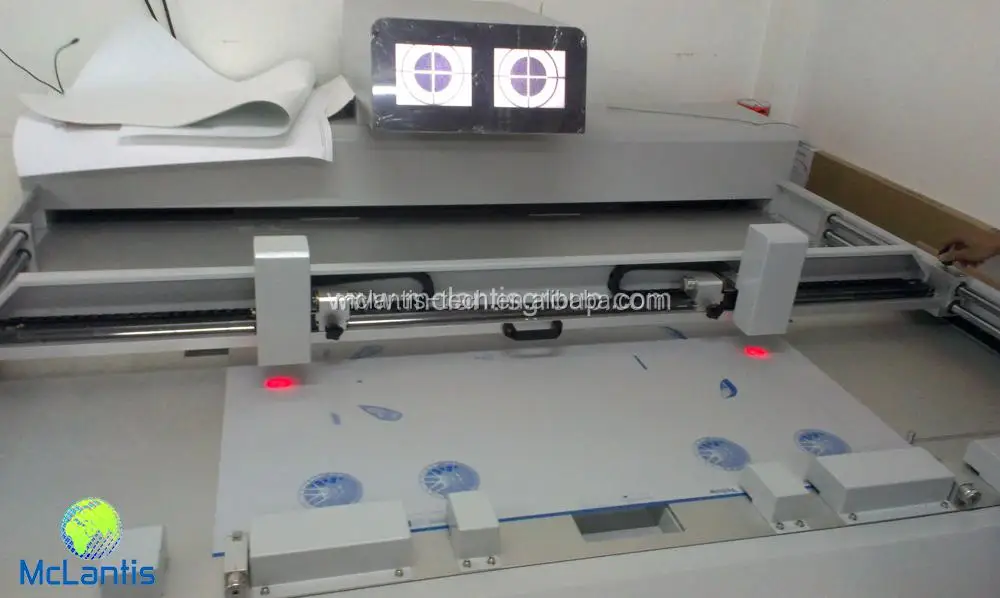

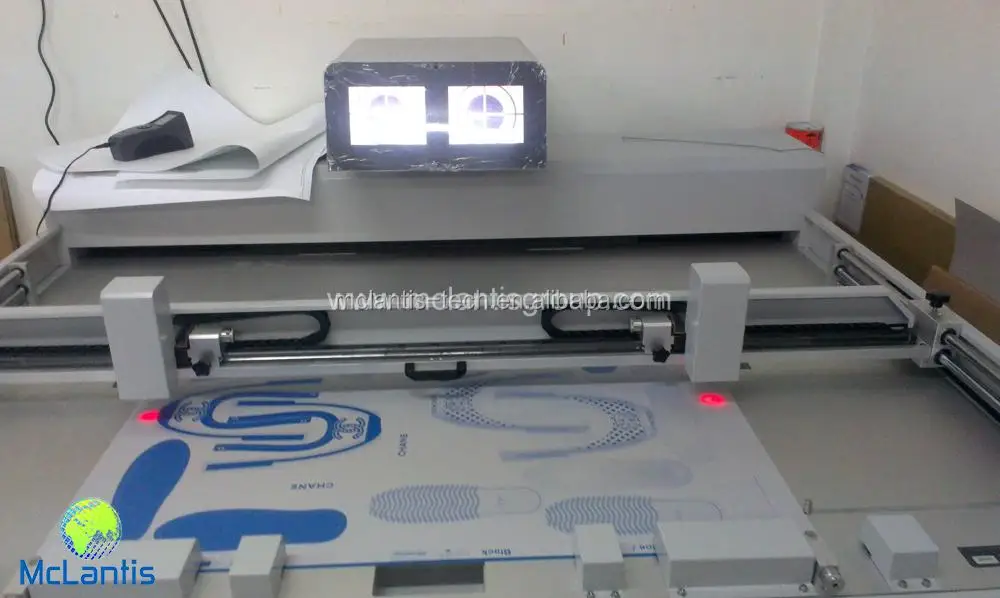

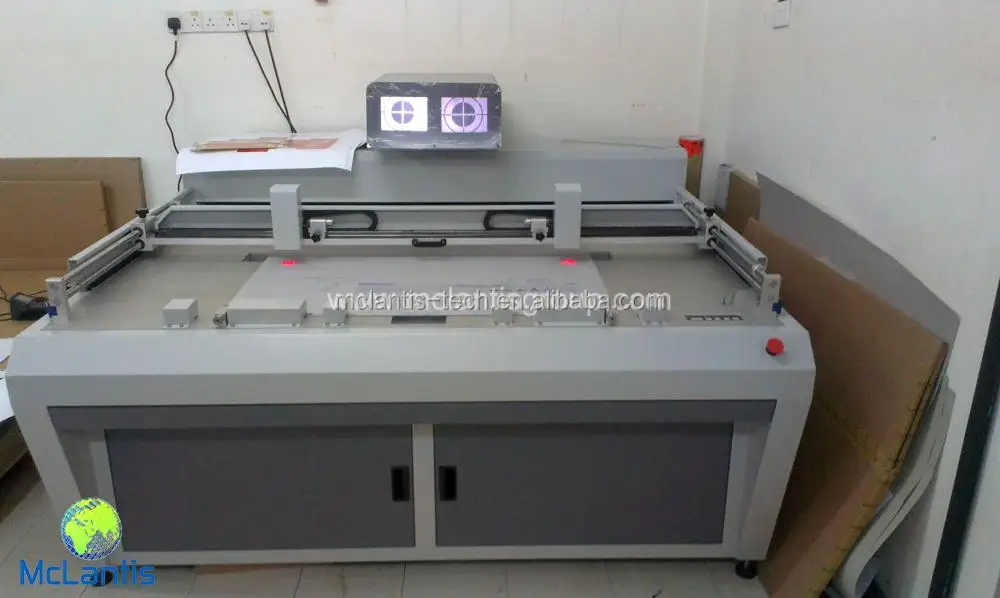

Customer Photos






Packing & Delivery


3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
