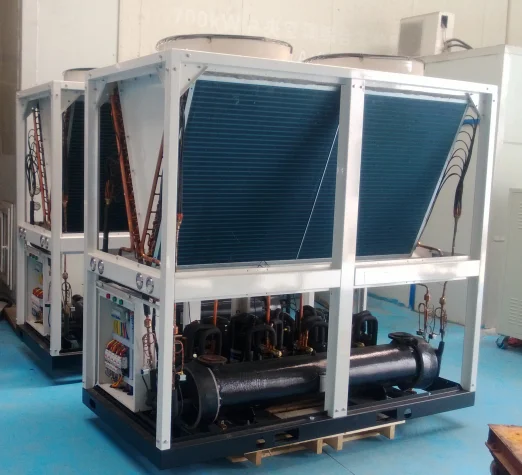

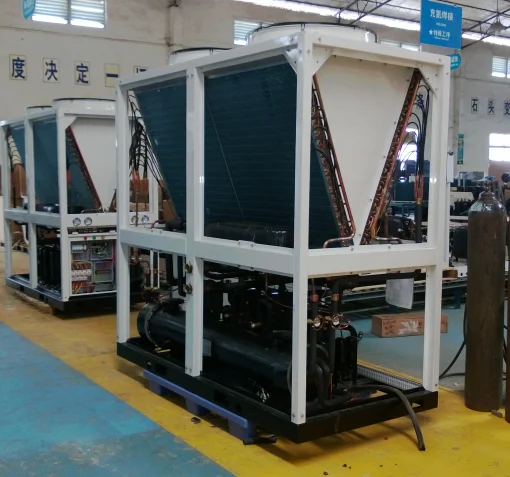

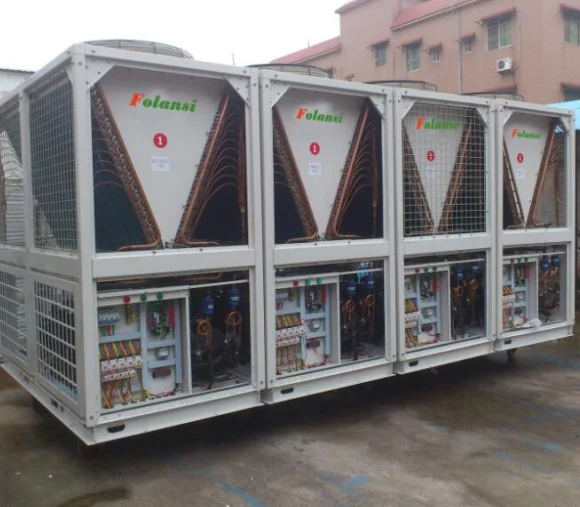

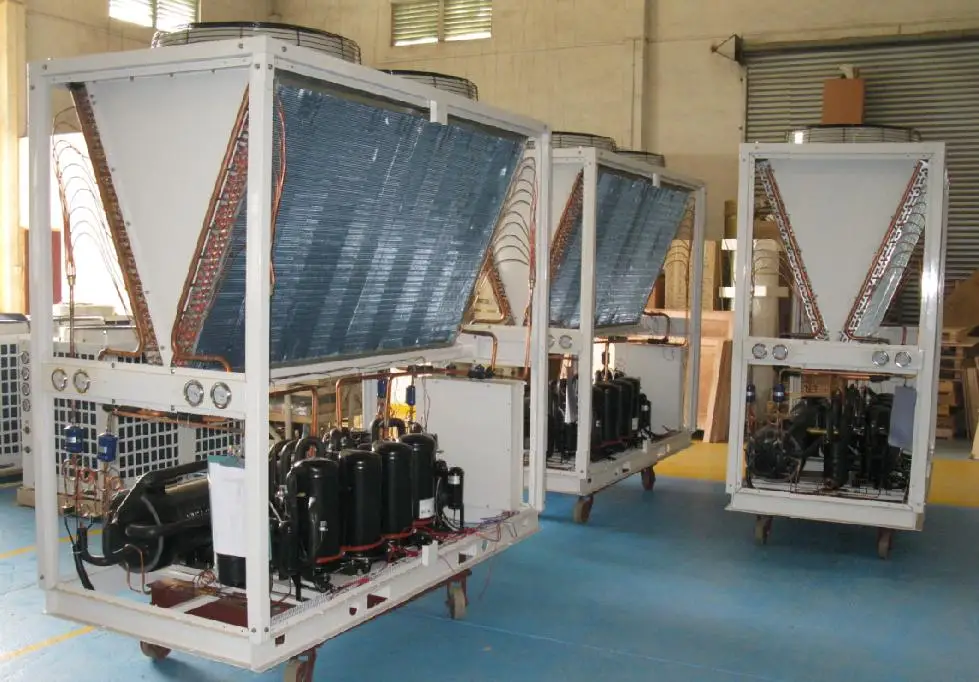

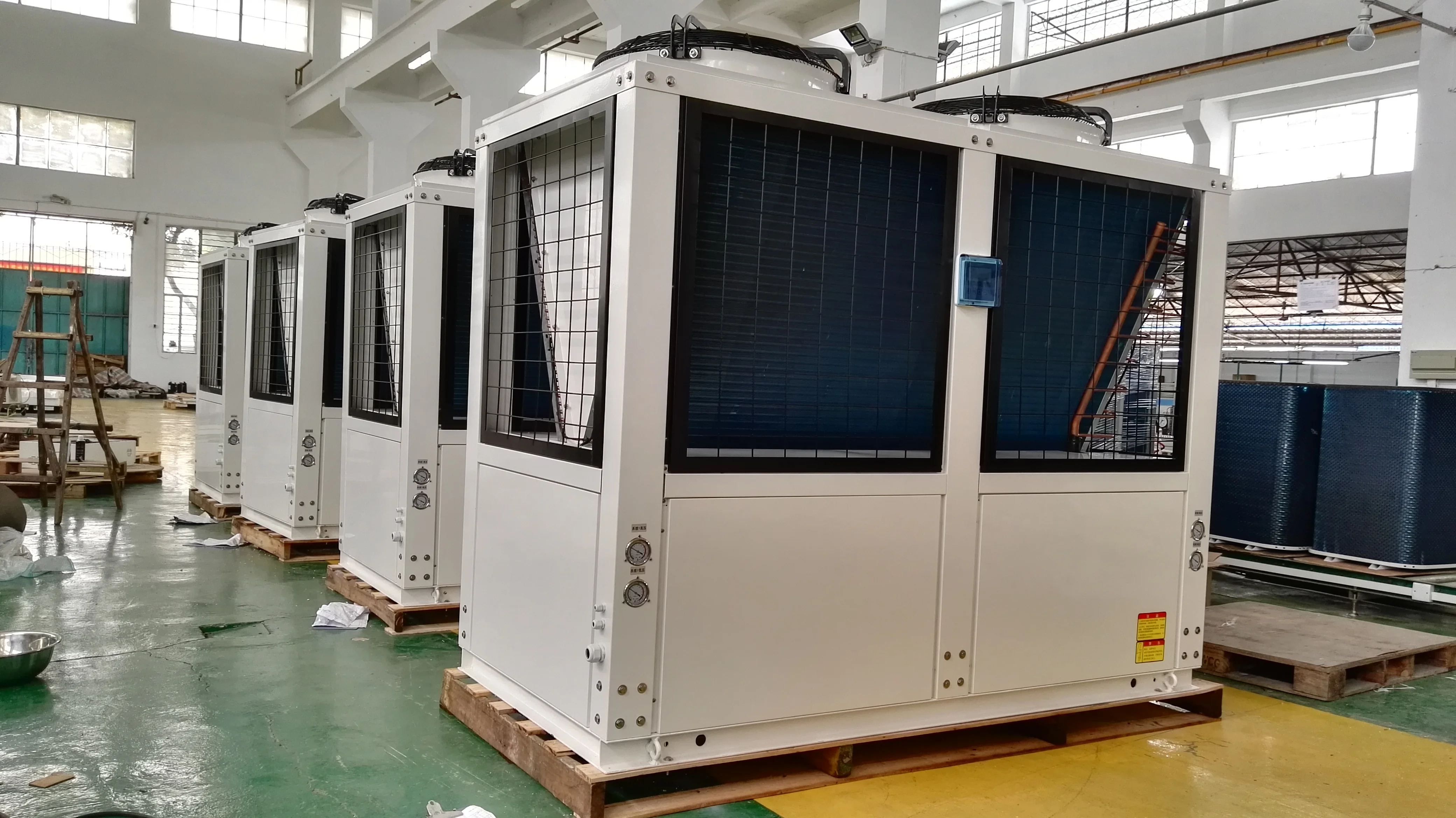

66.2kw Modular Air cooling modular chiller Modular air source heat pump air to water heat pump heat pump water chiller

Product Overview

Description

Model				heatpump		FAC-25
unit functions	rated coolig	rated cooling capacity		kW		66.2
				Btu/h		225939
		Rated cooling input power		kW		22.4
		rated cooling input current		A		41
	rated heating	heating capacity		kW		70.8
				Btu/h		241638
		input power		kW		22
		input current		A		40
	max ruuning current			A		54
	power			V/Ph/Hz		380V/3N/50Hz
	noise			dB(A)		68
	size		L(A)	mm		2205
			w(B)	mm		1110
			H(C)	mm		2090
	WEIGHT			kg		920
operating control	precision temp precision			℃		±1℃
	operation range			℃		—20℃~45℃
	operation panel	type				LCD
		main functions				operating mode,temperature seting,operating condition,timing
number of compressor				pc		4
range of capacity regulation				%		multilevel
Throttling						Electronic expansion valves/thermostatic expansion valve
refrigerate	type					R407C,R417A,R410A
	refrigerant charge			kg		4.5*4
Compressor	type					sanyo,copeland,Danfoss
	security function					Built-in protection device overheating protection, sequence protection, undervoltage protection, delay protect
air side heat exchange	type					finned heat exchange
	fan type					axial big twist angle fan
use side heat exchange	type					shell and tube heat exchanger
	water flow(summer)			m3/h		11.38
	water flow(winter)			m3/h		12.18
	water pressure down			kpa		30-70
	connection dimension			Inch		4
	water side max working pressure			KPA		1200







Rated cooling working conditions: air side return air temp 35℃, use side input water temp is 12℃, outlet water temp is 7℃
Rated heating working conditions: air side return air dry ball temp is 7℃, wet ball temp is 6℃, use side input water temp 40℃, outlet water temp is 45℃
