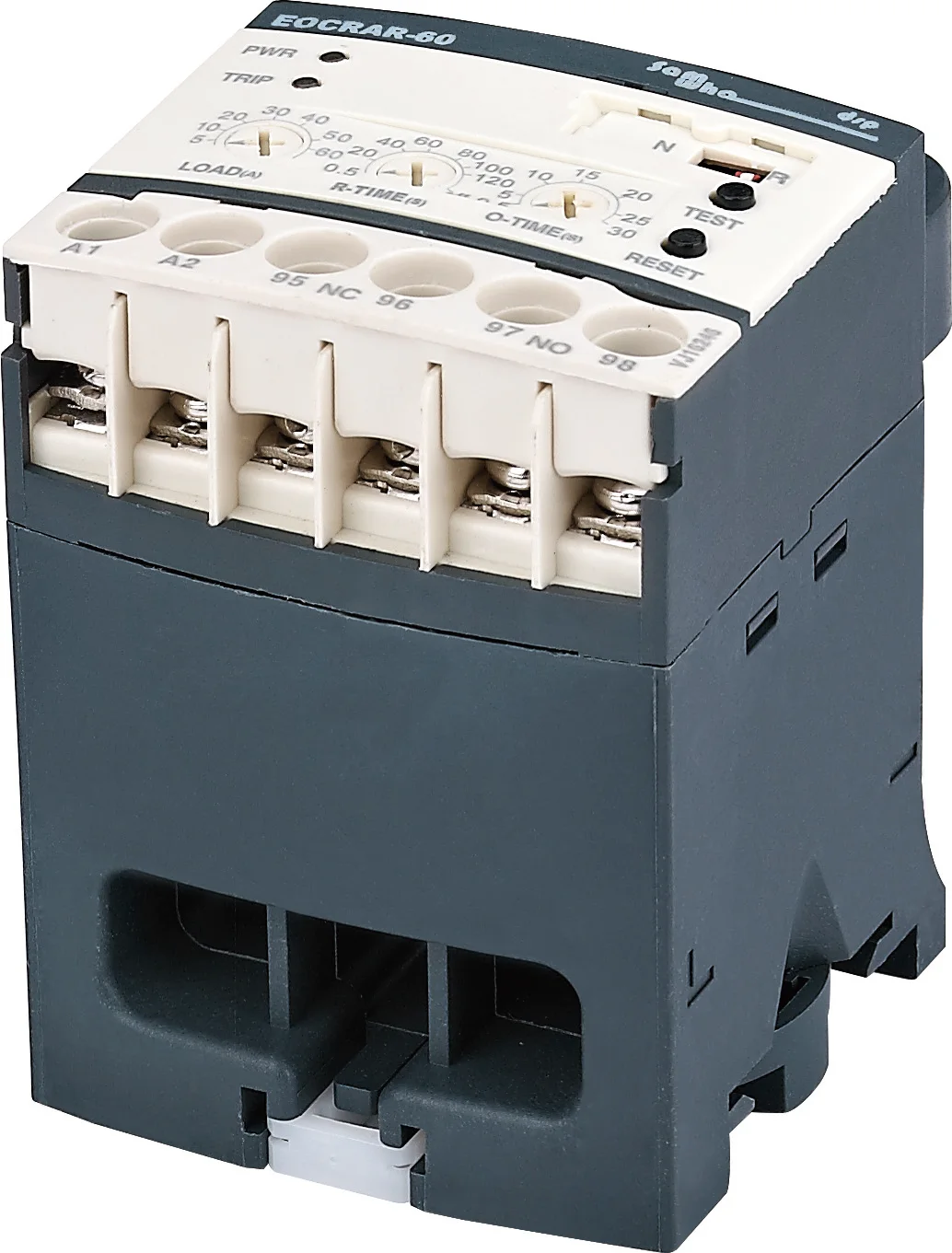

Product Overview
Description
Product Description
Features
■ Compact Design
■ Overload / Phase Loss / Locked Rotor protection
■ Independently Adjustable Starting Trip Delay & Operating Time
■ Wide Current Range:0.1~600A
■ AC / DC Power Supply Universal
■ PWR & Trip Indication LED
■ Low Energy Consumption
■ Manual / Electric / Automatic Reset
■ (No Volt Release / Fail-safe Operation)→N Type
■ Overload / Phase Loss / Locked Rotor protection
■ Independently Adjustable Starting Trip Delay & Operating Time
■ Wide Current Range:0.1~600A
■ AC / DC Power Supply Universal
■ PWR & Trip Indication LED
■ Low Energy Consumption
■ Manual / Electric / Automatic Reset
■ (No Volt Release / Fail-safe Operation)→N Type
Used for
- Low Voltage Induced Electromotor (600V Level)
Protective Relay
- Break-Down Watch Current Relay
- Alternative Replacement for the Existing Relay
Protective Relay
- Break-Down Watch Current Relay
- Alternative Replacement for the Existing Relay
Protetcion | ||
Protective Item | Operating (Trip) Time | |
Automatic Reset | R-TIME | |
Over-Current | O-TIME | |
Phase Loss | O-TIME | |
Locked Rotor | O-TIME | |
LED
Ammeter Function:
After the motor runs smoothly, turn the overcurrent setting knob slowly counter clockwise to the red indicator light, which is 100% of the actual running current. And then turn the knob clockwise to just turn off the red light at this point for the actual running current value of about 103%.
After the motor runs smoothly, turn the overcurrent setting knob slowly counter clockwise to the red indicator light, which is 100% of the actual running current. And then turn the knob clockwise to just turn off the red light at this point for the actual running current value of about 103%.
Run / Operation Indicator:
Relay Trip: Red LED
Power / normal operating status: Green LED
Relay Trip: Red LED
Power / normal operating status: Green LED

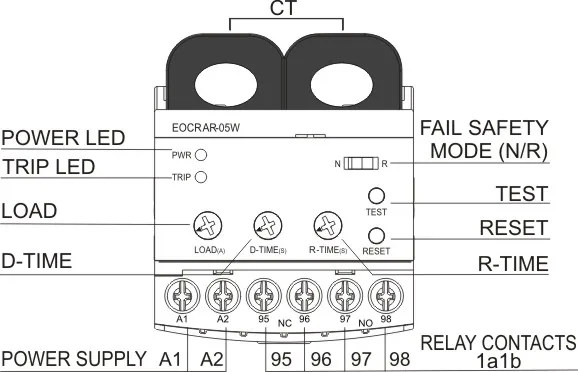

Set
After the installation is complete the settings as follows.
Set knob: R-TIME(Reset Time) Set two or three seconds longer than the motor to return to normal temperature. / Can be OFF
Set knob: O-TIME(Over-current run time) Set less than the motor's endurance time with over-current.
Set knob: Load(Rated Current) Set over 110% of the motor's rated current of under 120% of its operating current
Set knob: R-TIME(Reset Time) Set two or three seconds longer than the motor to return to normal temperature. / Can be OFF
Set knob: O-TIME(Over-current run time) Set less than the motor's endurance time with over-current.
Set knob: Load(Rated Current) Set over 110% of the motor's rated current of under 120% of its operating current
TEST Instruction
With test button ehld down,the red LED is on and the product will trip after O-TIME.
The relay will be de-energized when RESET button is pushed or the control power is disconnected.
The relay will be de-energized when RESET button is pushed or the control power is disconnected.
LED Indication | ||||
Item | PWR(Green)LED | Trip(Red)LED | ||
Power | ○ | × | ||
Normal Running | ○ | × | ||
Trip | × | ○ | ||
Automatic Reset | Blink | × | ||
Specifications | ||
Current Range | Type06) 0.5-6A | |
Type30) 3-30A | ||
Type60) 5-60A | ||
Type600) Use an external CT(secondary 5A)over 60A with 05 type | ||
Operating Voltage(Un) | Tpye220)24-260VAC/DC | |
Tpye440)180-460VAC | ||
Operating Frequency | 50/60Hz | |
Operating Power | <2W | |
Operating Temperature | -20℃·····+55℃ | |
Waiting(t) | R-Time 0.2-120s(Off) | |
O-Time 0.2-12s | ||
Asymmetry Set | %±10 | |
Contact | 5A 250VAC Resistive Load | |
Mounting | 35mm Din Rail(D) or Pane(P) | |

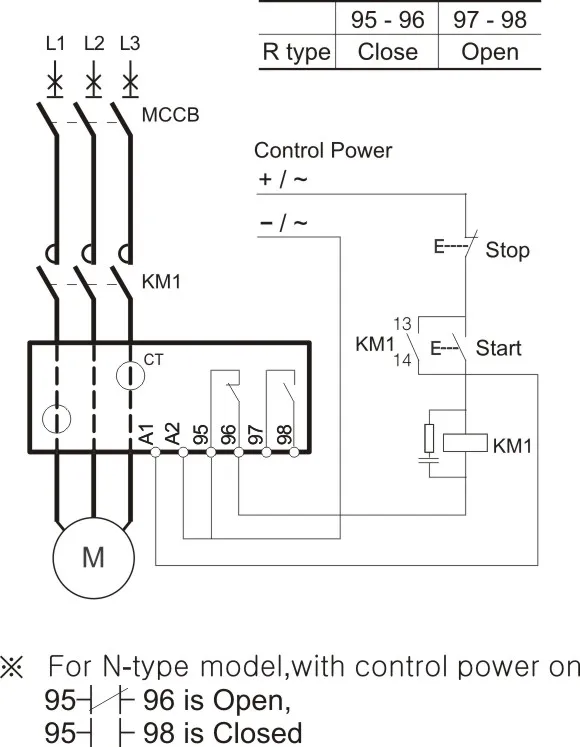

Connection Diagram

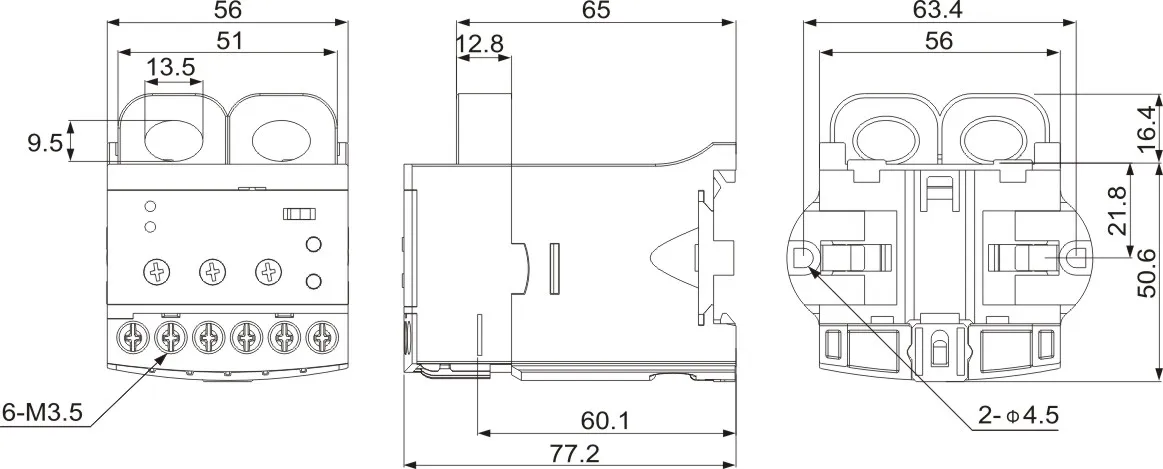

Dimensions
Related Products
Company Information
Certifications
Packing and shipping
FAQ
