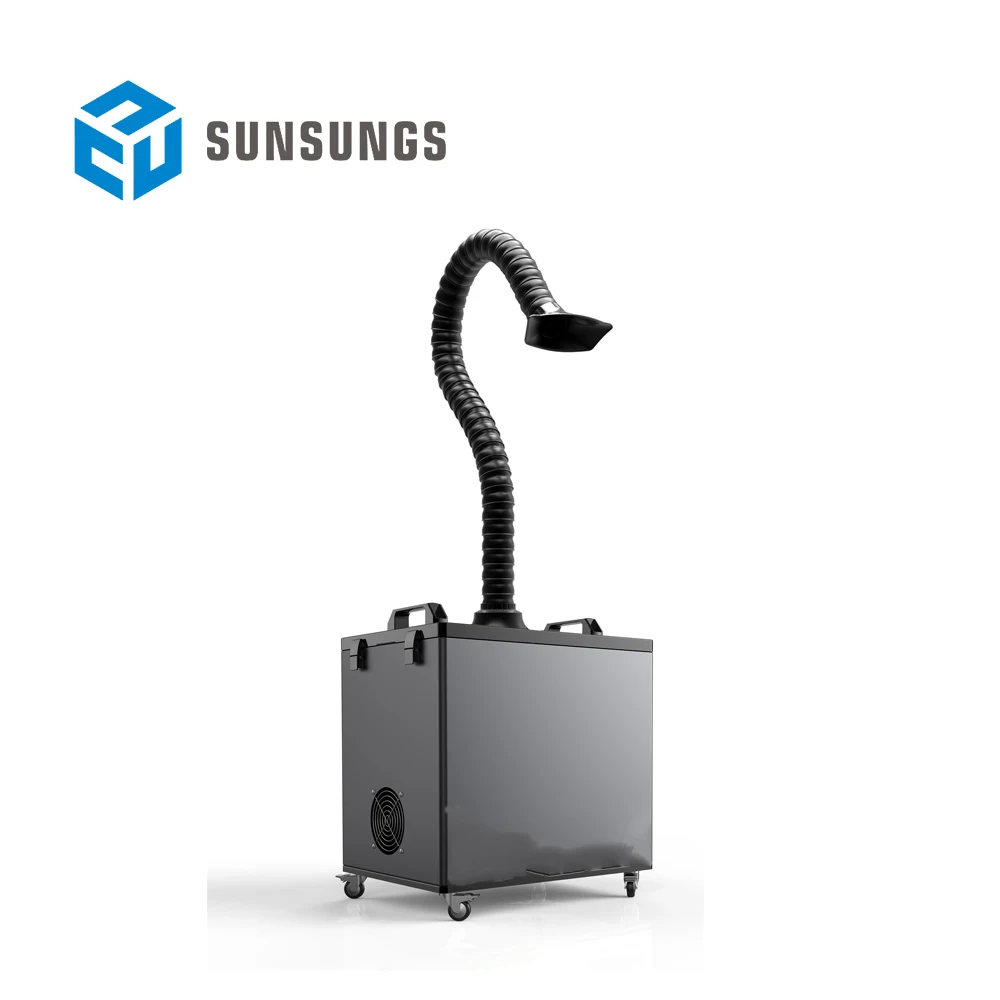

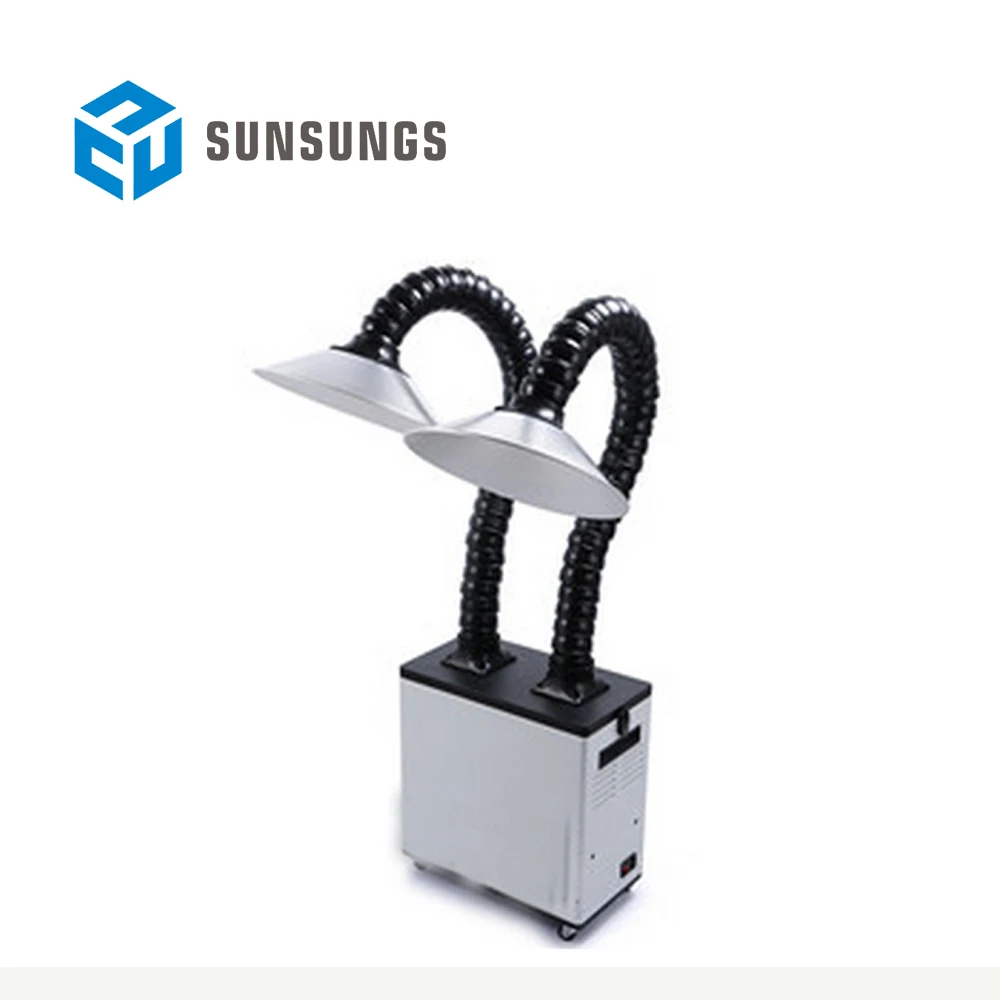

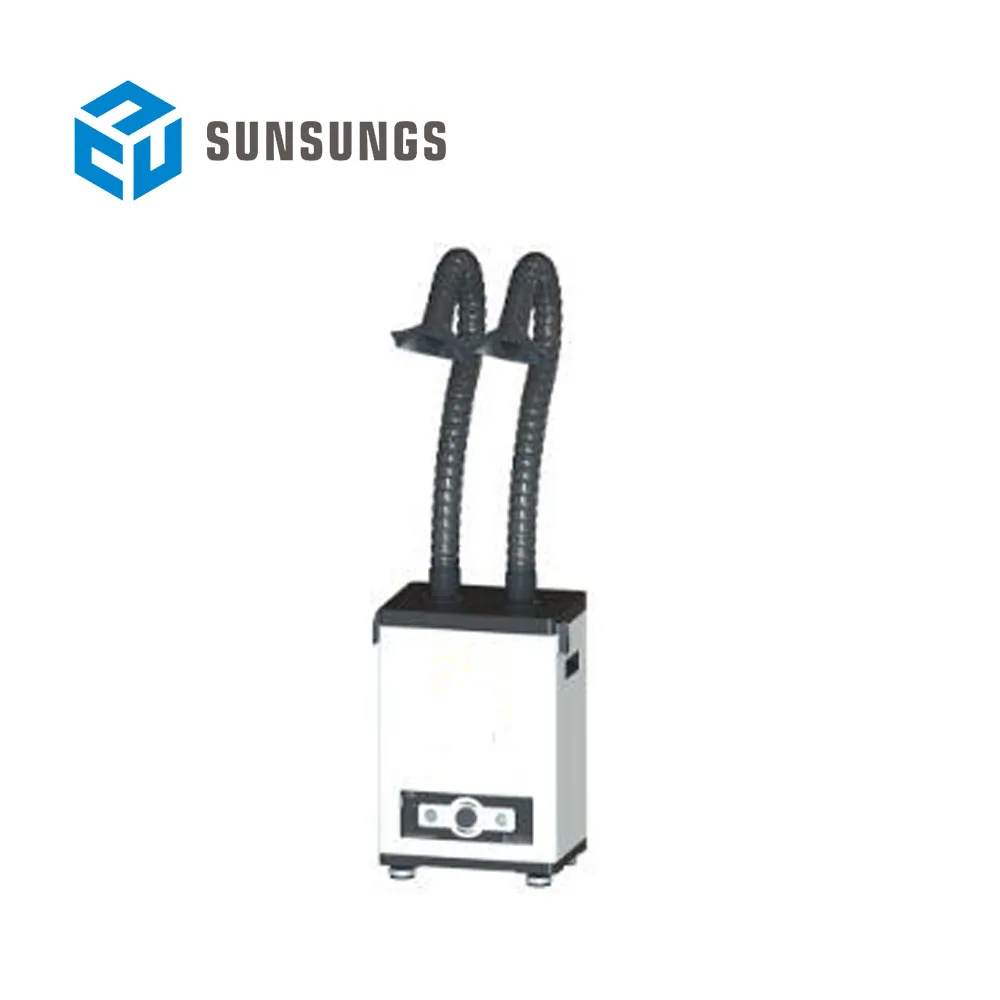

HJ-X type products are characterized by beauty, safety and quiet, specially designed for solder smoke, laser marking smoke purifier, equipped with brushless electric motor, steel shell, independent switch control, and equipped with primary, middle and high efficiency activated carbon integrated filter, effectively filter oil smoke, eliminate odor.Is a super cost-effective treatment of electronic tin welding, laser marking, engraving of non-metallic material smoke and dust equipment.
Detailed Images
Brushless fan, low noise operation
In terms of power system, single-phase brushless motor is adopted with strong suction, 220V power supply is conveniently connected, and stepless speed regulation can be realized to select air volume according to working conditions.
Brushless fan one of the biggest advantages is low noise operation, the machine runs smoothly, low noise.Through our special design, the air pressure and air volume parameters are maintained at a high level, and the maximum negative pressure can reach 10kpa.
Alloy material wind wheel, unique dynamic balance correction technology, so that the wind wheel running more stable and reliable, suction more air.
Control circuit, safe and reliable
The electrical system adopts the advanced modular circuit board specially designed by our company, which can realize the PWM stepless speed regulation function.The key components adopt imported brands and materials to fully guarantee the safety and reliability of operation.
In addition, there is a sound alarm function when the filter blockage is detected.Remind the user to clean the ash or change the filter.

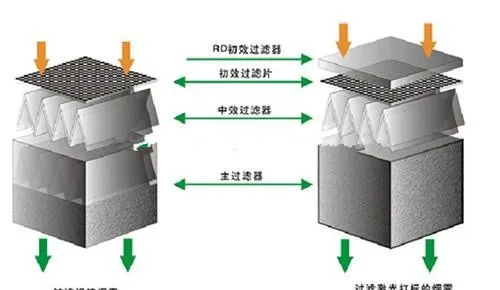

Combined filtration and purification thoroughly
The filtration system USES four levels of purification.Modular design, layer upon layer protection.Primary, middle and high efficiency activated carbon can be replaced separately, with longer service life of filter element and lower cost.
Filter layer by layer to ensure that the harmful smoke and dust is purified more thoroughly.For equivalent diameter 0.3 micron of smoke and dust purification rate as high as 99.9%.
Activated carbon filter element with catalyst can absorb and purify a variety of odors and toxic and harmful substances in the air.

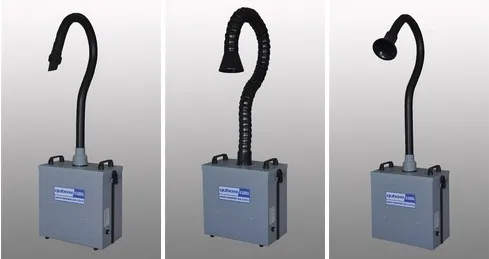

Universal suction arm, efficient and reliable
The suction system is equipped with a machine equipped with 1.4 meters universal smoking arm, which can change direction and position at will (the length can be adjusted according to customer requirements, without external support).

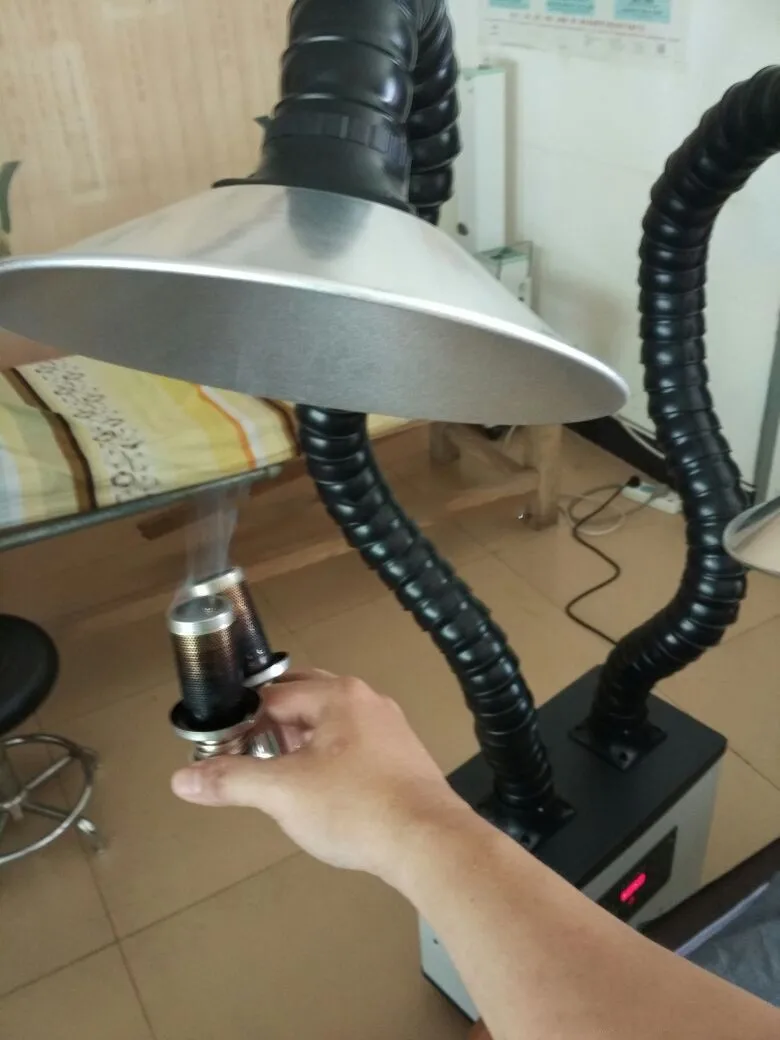

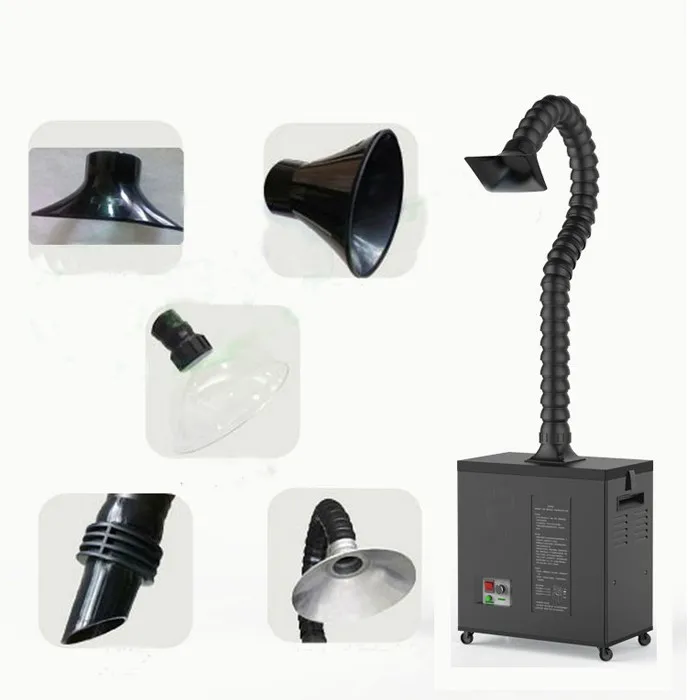

The square smoking hood is adopted, and the shape conforms to the aerodynamic principle. The smoking area is larger and the efficiency is higher.
Equipment Feature
1. The installation is simple and convenient, no need to arrange another pipe, which is conducive to the clean and beautiful working space.
2. The triple filtration design ensures that harmful substances in the smoke are filtered out to protect the human body. The primary and intermediate filters can be replaced individually, extending the life of the main filter.
3. Built-in circulating air filtration method avoids indoor air-conditioning/heating to the outside, which means energy saving and meets national environmental protection requirements.
4. High-power DC brushless motor with large air volume and long life.
5. Low noise design.
6. Adjustable air volume, directional duct adjustment and positioning
Product Structure
Application Scope

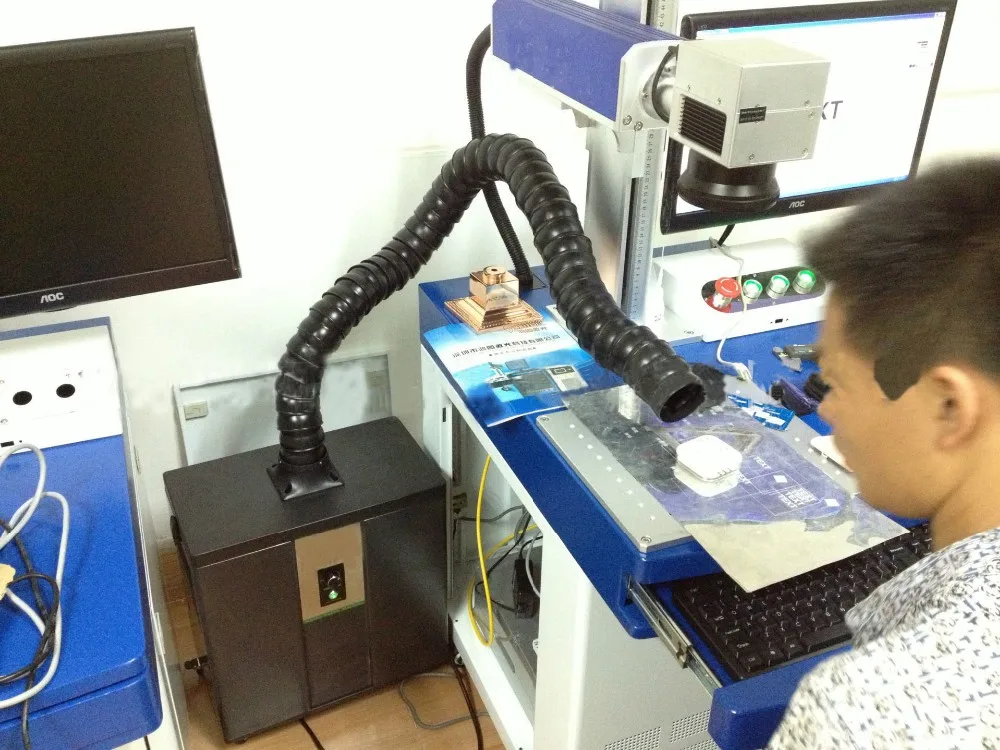

Toxic and harmful gas occasions; soldering iron soldering; grinding; laser marking; laser cutting; ink printing;
