1080P 960P 720P 480P 2MP 1.3MP 1MP 0.3MP high quality digital micro mini pinhole 3.6mm board ATM KIOSK Industrial usb camera
- Category: >>>
- Supplier: Shenzhen Kingspy Technology Co. Ltd.
Share on (62516277693):
Product Overview
Description
Certifications
Product Description
1080P 960P 720P 480P 2MP 1.3MP 1MP 0.3MP high quality digital micro mini pinhole 3.6mm board ATM KIOSK Industrial usb camera
Introducting:
USB Mini colour camera
Color CMOS CCD sensor
USB Format
Support Linux operation system
Main Features:
· Image sensor 1/2.7" CMOS, 0.1Lux, 2.0MP imag
· Free Driver USB 2.0 (UVC)
· USB2.0 HIGH SPEED, compression USB 1.1
· Default setting (30fps@1920*1080p)
· Manual focus lens
· Angle of view around 90 degrees (without any distortion)
· Compression YUY2 & MJPEG
· Support Windows 2000; Windows XP; Windows VISTA; Windows 7 and later;
· Linux(In 2.6.18 above the kernel version);Mac ps3; Android system
· Standard 1.5m cable, Can be connected through 10 meters USB cable

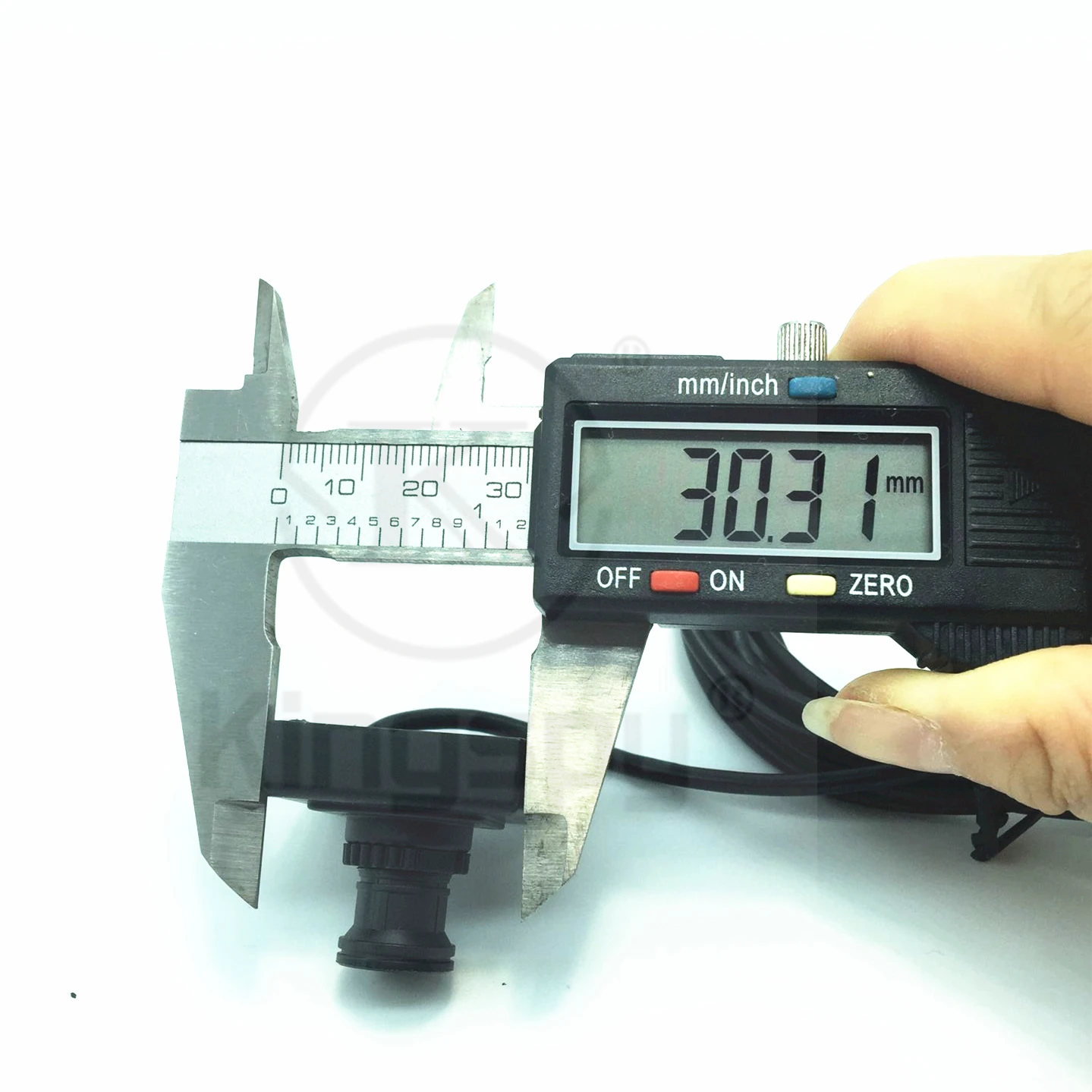

· Dimension: 30mm Diamater
· USB Power: 5V±10%DC,50mA
· Used:intelligent machine,especially Banks'ATM
· Can be customized by your requirements
Detailed Specifications Of The Parameters:
Image sensor | 1/2.7" Color CMOS | |
Effective Pixels | 1920(H)x1080P(v)1280(H)x720(V), 640(H)x480(V), 352(H)x288(V), 320(H)x240(V) resolutions | |
Synchronizing system | Internal | |
Scanning system | Progressive Scan | |
Video output | VGA(640X480), CiF(352X288), SiF(320X240), QSiF(176X144, ),C iF(160x120) | |
S/N ratio | More then 48 dB (AGC Off) | |
Min. Illumination | 0.1 Lux @ F1.2 | |
Exposure | Auto / Manual(Shutter Speed & AGC Control) | |
White Balance | Auto / Fixed / Indoor / Initial / Outdoor | |
Gamma Characteristic | Auto r=0.45 | |
Picture | Brightness / Contrast / Gamma / Saturation | |
Miscellaneous | BW Image / Mirror / Flip / Back Light / Flickerless | |
Power source | 5V DC / 400mA | |
Operating current | 125mA / regulated 5.7VC in | |
Lens | Standard | 3.7mm default around 92degree |
Operating Temperature | 0°C∼ 40°C (Humidity : 0% RH∼ 80% RH) | |
Interface Type | USB format(Complies with USB 2.0) | |
Measurement (mm) | 30*30mm | |
Weight (Approx. G) | 50g | |
Packaging & Shipping
![`VGY_6]5K7ZEA)3M6{T5S`C.jpg](http://sc02.alicdn.com/kf/H04e47fc666644d3b9287ea90a97d5819I/239129465/H04e47fc666644d3b9287ea90a97d5819I.jpg)
Our Services
1) Guarantee We promise 1 year warranty from Shipping date,
once there's a problem which users can't fix themselves,
we'll sent accessories or a new IP camera as replacement to you.
2) Authorisation We will sent you authorization as business partner / distributor.
3) MOQ 1pcs
For big order, I suggest order by standard carton,
4) OEM/ODM order are also most welcomed.
5) Why us? Reply < 10 hours, Delivery time > 99%, Quality Control > 99%, After-sales Service > 99%
100% QC inspection Before the timely delivery of the goods.
And we have more than 6 new models released each year!
POSITIVE REVIEWS FROM OTHERS CUSTOMERS :
About us
FAQ
1.Are you manufacturer?
Yes, we are designer and manufacturer for CCTV camera for more than 15 years!
2.What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, wide angle fisheye lens and varifocal lens etc
can according customer's requirement use different lens !
3.What certificate your products have?
CE, FCC, partial have RoHS and UL
4. Do you accept small order?
A: Yes, Sample order available. we can also provide drop ship service.
5.What's your Trade Terms and Payment?
Ex-work Shenzhen as our standard trade terms, CIF, FOB is available. Payment by L/C, T/T, Western Union,Paypal, Escrow are accepted.recommend use alibaba trade assurance !
6.what’s your warranty policy?
A: All of our products has 2 year warranty. we are supplying free spare part for customer repair if quality issue.
7..Are OEM & ODM available?
Yes, The lens, cable, panel. chips, gift box, carton, mould, screen logo is available.
8. What's the delivery date for my order ?
Most of item have stock. Bulk order 10-15 days.
9.How could I get samples?
For New Customer ,We can provide samples if you have a Fedex or DHL account or other courier freight collectable account and agree to pay the courier freight.or, you send us the samples charge together with the courier cost by T/T. For Old customer ,we offer free charger samples for testing!
Yes, we are designer and manufacturer for CCTV camera for more than 15 years!
2.What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, wide angle fisheye lens and varifocal lens etc
can according customer's requirement use different lens !
3.What certificate your products have?
CE, FCC, partial have RoHS and UL
4. Do you accept small order?
A: Yes, Sample order available. we can also provide drop ship service.
5.What's your Trade Terms and Payment?
Ex-work Shenzhen as our standard trade terms, CIF, FOB is available. Payment by L/C, T/T, Western Union,Paypal, Escrow are accepted.recommend use alibaba trade assurance !
6.what’s your warranty policy?
A: All of our products has 2 year warranty. we are supplying free spare part for customer repair if quality issue.
7..Are OEM & ODM available?
Yes, The lens, cable, panel. chips, gift box, carton, mould, screen logo is available.
8. What's the delivery date for my order ?
Most of item have stock. Bulk order 10-15 days.
9.How could I get samples?
For New Customer ,We can provide samples if you have a Fedex or DHL account or other courier freight collectable account and agree to pay the courier freight.or, you send us the samples charge together with the courier cost by T/T. For Old customer ,we offer free charger samples for testing!
