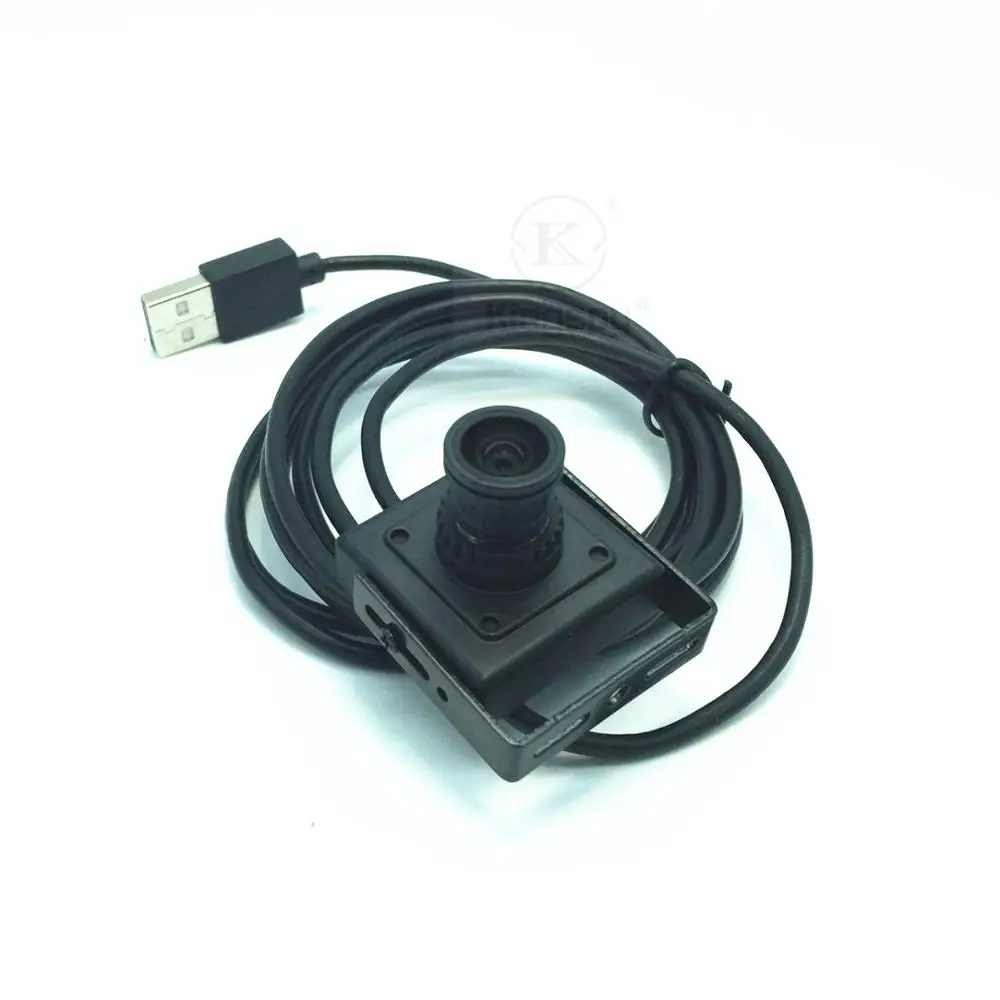

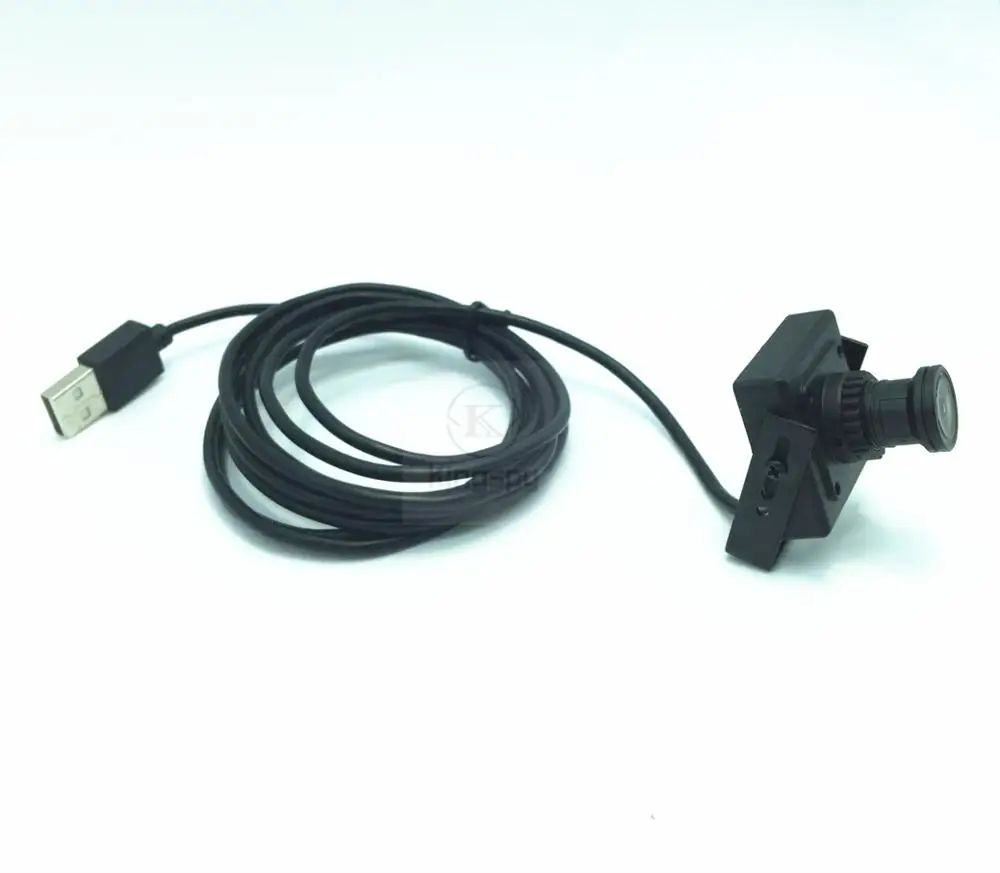

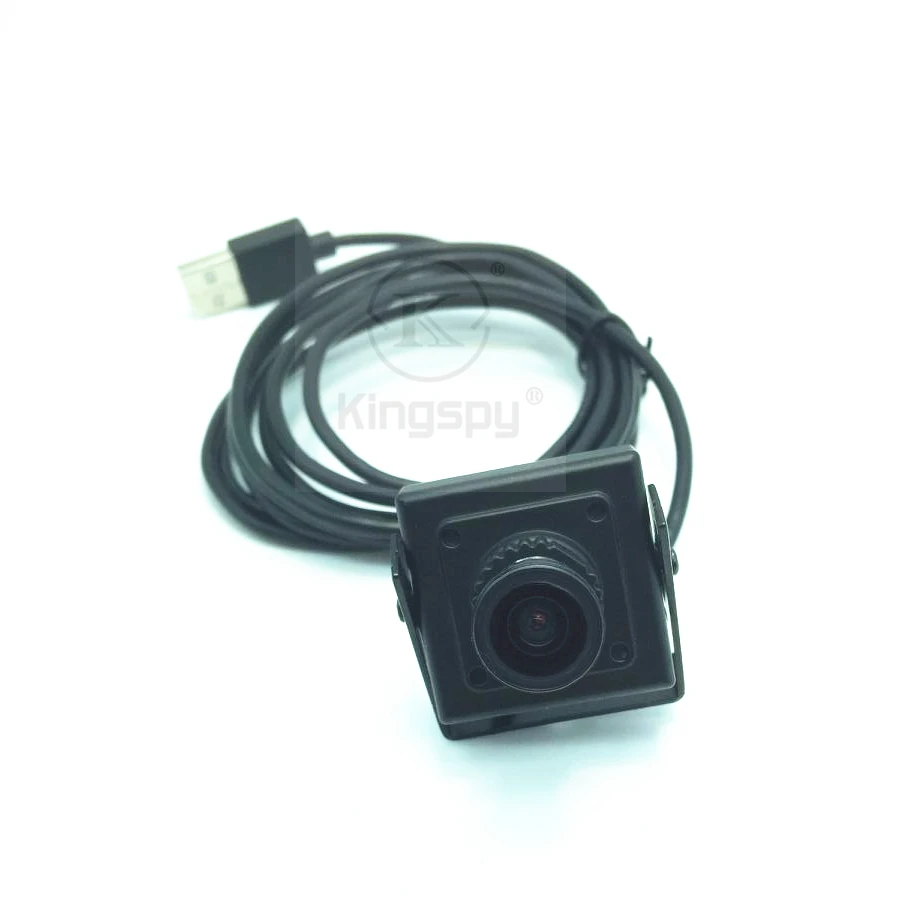

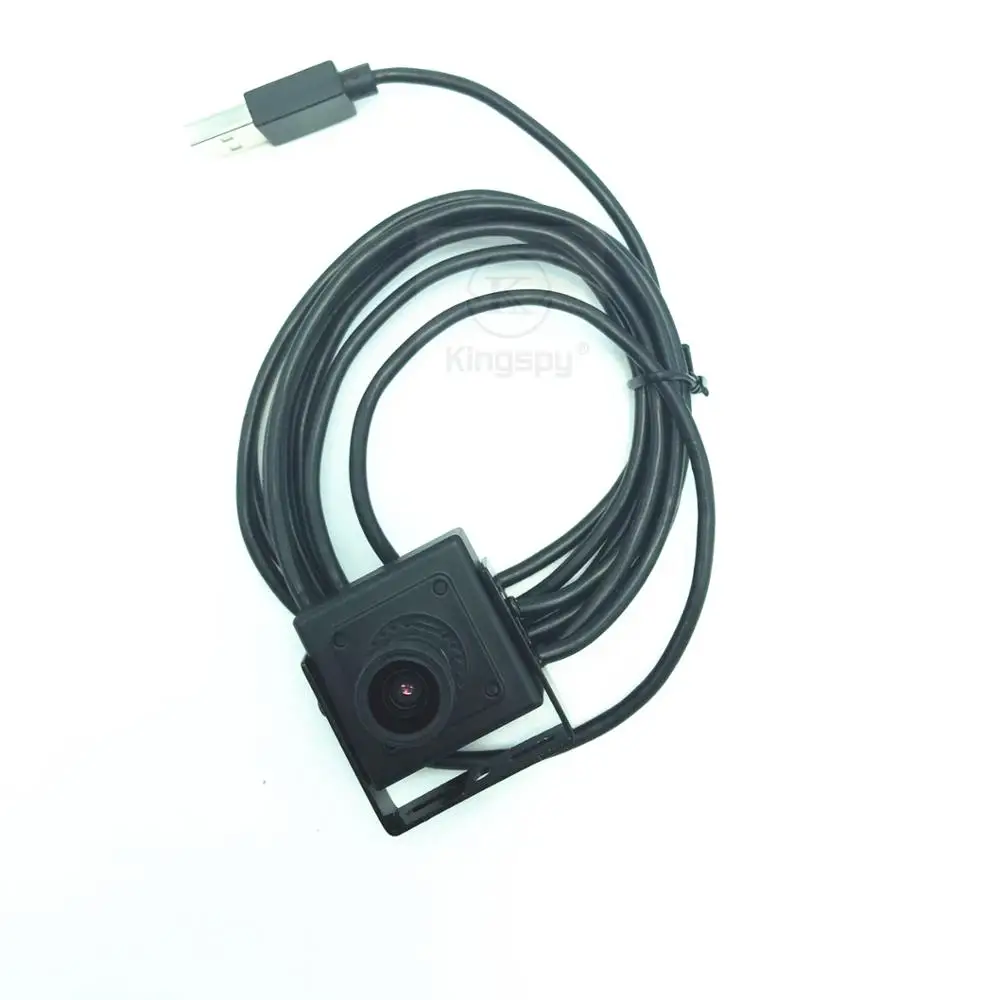

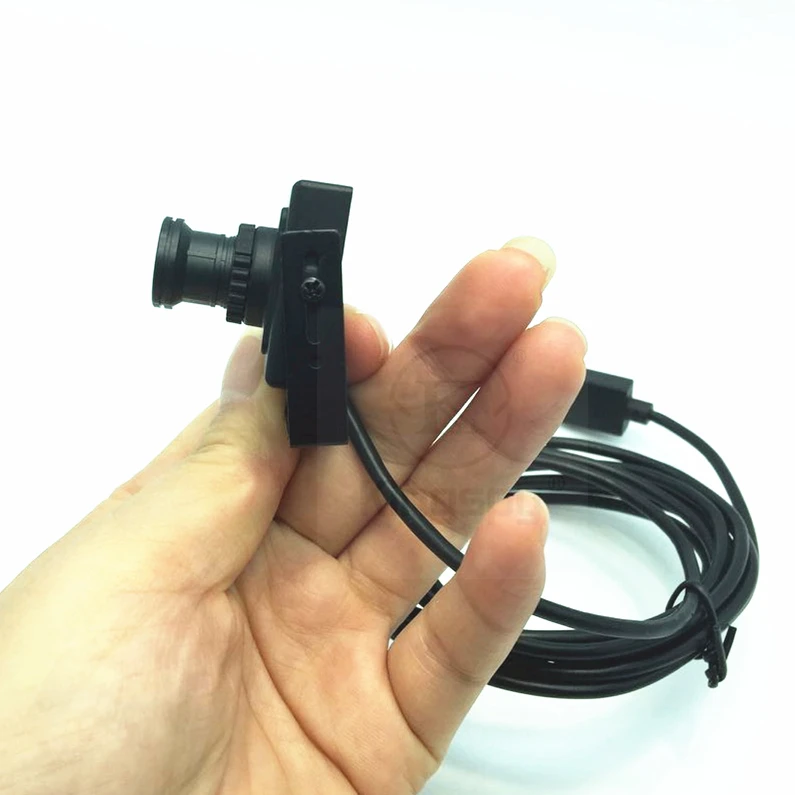

1080P ATM Machine Pinhole 3.6MM 3.7MM BOARD LENS Industrial UVC Micro USB Camera from shenzhen factory
Introducting:
USB Mini colour camera
Color CMOS CCD sensor
USB Format
Support Linux operation system
Main Features:
· Image sensor 1/2.7" CMOS, 0.1Lux, 2.0MP imag
· Free Driver USB 2.0 (UVC)
· USB2.0 HIGH SPEED, compression USB 1.1
· Default setting (30fps@1920*1080p)
· Manual focus lens
· Angle of view around 90 degrees (without any distortion)
· Compression YUY2 & MJPEG
· Support Windows 2000; Windows XP; Windows VISTA; Windows 7 and later;
· Linux(In 2.6.18 above the kernel version);Mac ps3; Android system
· Standard 1.5m cable, Can be connected through 10 meters USB cable
· Dimension: 30mm Diamater
· USB Power: 5V±10%DC,50mA
· Used:intelligent machine,especially Banks'ATM
· Can be customized by your requirements
Detailed Specifications Of The Parameters:
Image sensor | 1/2.7" Color CMOS | |
Effective Pixels | 1920(H)x1080P(v)1280(H)x720(V), 640(H)x480(V), 352(H)x288(V), 320(H)x240(V) resolutions | |
Synchronizing system | Internal | |
Scanning system | Progressive Scan | |
Video output | VGA(640X480), CiF(352X288), SiF(320X240), QSiF(176X144, ),C iF(160x120) | |
S/N ratio | More then 48 dB (AGC Off) | |
Min. Illumination | 0.1 Lux @ F1.2 | |
Exposure | Auto / Manual(Shutter Speed & AGC Control) | |
White Balance | Auto / Fixed / Indoor / Initial / Outdoor | |
Gamma Characteristic | Auto r=0.45 | |
Picture | Brightness / Contrast / Gamma / Saturation | |
Miscellaneous | BW Image / Mirror / Flip / Back Light / Flickerless | |
Power source | 5V DC / 400mA | |
Operating current | 125mA / regulated 5.7VC in | |
Lens | Standard | 3.7mm default around 92degree |
Operating Temperature | 0°C∼ 40°C (Humidity : 0% RH∼ 80% RH) | |
Interface Type | USB format(Complies with USB 2.0) | |
Measurement (mm) | 39*30mm | |
Weight (Approx. G) | 50g | |
Packaging & Shipping
![`VGY_6]5K7ZEA)3M6{T5S`C.jpg](http://sc02.alicdn.com/kf/H04e47fc666644d3b9287ea90a97d5819I/239129465/H04e47fc666644d3b9287ea90a97d5819I.jpg)
Our Services
1) Guarantee We promise 1 year warranty from Shipping date,
once there's a problem which users can't fix themselves,
we'll sent accessories or a new IP camera as replacement to you.
2) Authorisation We will sent you authorization as business partner / distributor.
3) MOQ 1pcs
For big order, I suggest order by standard carton,
4) OEM/ODM order are also most welcomed.
5) Why us? Reply < 10 hours, Delivery time > 99%, Quality Control > 99%, After-sales Service > 99%
100% QC inspection Before the timely delivery of the goods.
And we have more than 6 new models released each year!
