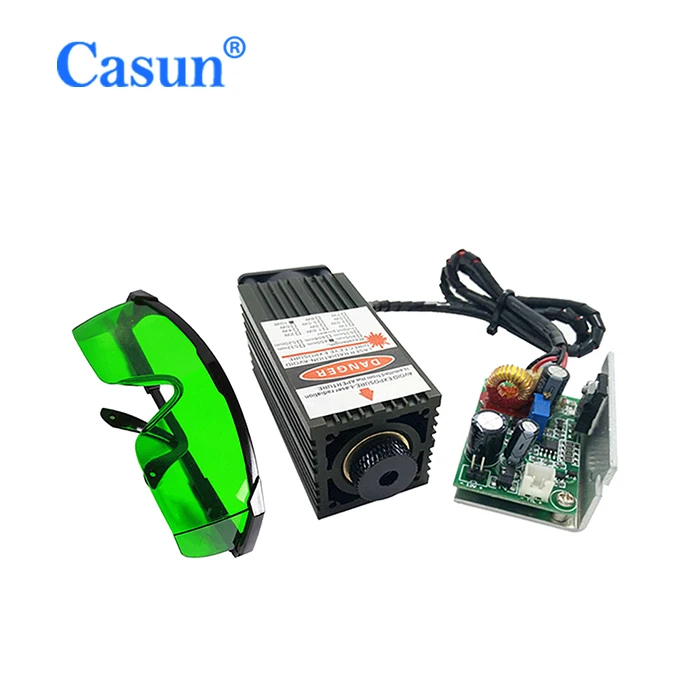

Equipment Parts 5500mW 450nm12V High Power TTL Adjustable Blue Laser Module DIY Engraving Machine Accessories 5.5W
- Category: >>>
- Supplier: Guangzhou Fude Electronic Technology Co. Ltd.
Share on (62516383960):
Product Overview
Description
Goggles by default! Send power!
Wavelength: 450 NM
Power: 5.5W
Current: 3A input
Voltage: DC 12V
Operating temperature: -10 to +40
Drive module: TTL (control laser switch)
Can be used for engraving and cutting. Can cut light wood board 3 mm
Transparent white material cannot be cut.
Laser focal length adjustable
Size: 33 * 33 * 75 mm
Cable length 40cm
Specifications:
| General Specification | |
| Model | LA03-5000 |
| Heatsink Material | Aircraft Aluminum + Brass Shell |
| Luminous Color | Blue |
| Section Size | 33mm x 33mm |
| Cooling Mode | Heat Sink Groove, Cooling Fan |
| Dimension | 85 * 33 * 33mm |
| Adapter Plug | US Plug |
| Adapter Input Voltage | AC 100-240V |
| Adapter Output Voltage | DC 12V 5A |
| Can Engrave | MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum |
| Can Not Engrave | Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material |
| Technical Parameters | |
| Laser Power | 5W (5000mW) |
| Wavelength | 445-450nm |
| Beam Shape | Dot (Focusable) |
| Working Voltage | DC 12V |
| TTL&PWM Modulation | YES, Compatible with Both TTL & PWM Modulation |
| Input Voltage | DC12V (+,-, PWM/TTL) + DC5V (PWM/TTL,-) |
| Input Interface | XH2.54-3P (+,-, PWM/TTL) + XH2.54-2P (PWM/TTL,-) |
| Drive Mode | External ACC |
| Life Time | >10,000 hours |
Features:
1. Can be used for laser cutting machine, laser engraving machine, CNC, DIY laser.
2. Make of Aluminum material,durable and solid,Adjustable focal length.
3. Aircraft aluminum TTL driver board with cooling fan ensure long working time continuously.
4. Can carving MDF, balsa, paper, wood, fabric, plastic, leather, plywood, foam paper, anodized aluminum, etc.(Not suitable for iron or other metal)
Note(Please pay attention):
1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!
2. The warranty period of laser module is one month. If you have any quality problem(Except individual situation like using the laser module more than 30 minutes per time and casue the damage ), please feel free to ask our customer service for a help.
3. If your laser module has any problem, please DO NOT dismantle it without our permission. It will destroy the laser module.
4. If you have any quality problem about the machine, please feel free to contact us. Many operative problem can be solved according to your video and problem description. Thank you in advance.
5. This laser module is compatible with our EleksMaker machine.
Package Included:
1 x 5W Laser Engraving Module
1 x Power Adapter
