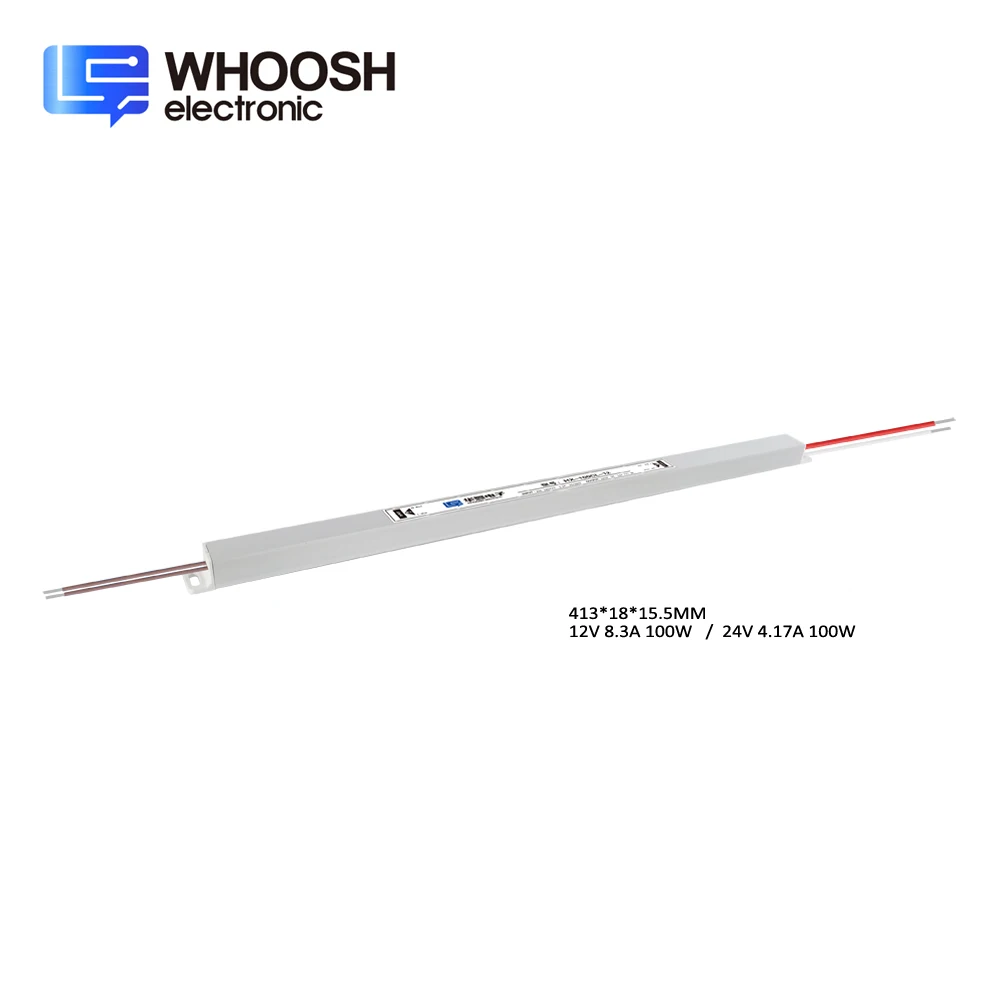

New Quality Ultra Slim 100W Switching Power Supply DC 12V 8.3A for LED Light Box 15mm thick 3 Years Warranty

Product Overview

Description



* New Quality Ultra Slim 100W Switching Power Supply,

* DC 12V 8.3A for LED Light Box 15mm thick,

* 3 Years Warranty , High efficiency, High Stability

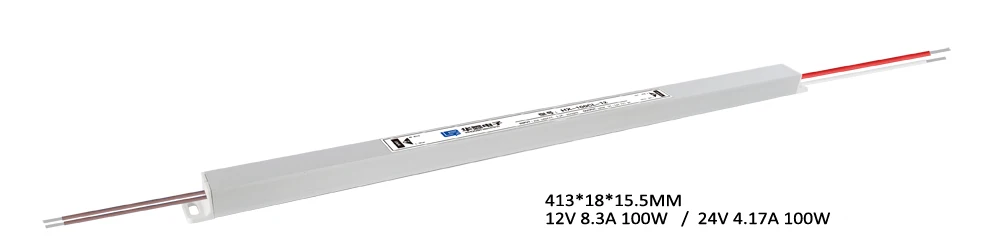

Model: HX-100CL-12

1. High quality series with 3 year warranty ;

2. Input: 220-240VAC,  output: 12V/8.3A, efficiency>88%, power 100W

3. Size: 413*18*15.5mm

4. Protection for: short circuit, overload, over-currrent,

5. Application to: Security systems, monitoring systems, Advertising board, Equipment, Automation systems etc.









Lighting Box Power Supply Series--Main New Products
Model	Size(mm)	Input	Output	Power
HX-60CBL-12	207*36*21	200~220VAC	12V/5A	60W
HX-60CBL-24	207*36*21	200~220VAC	24V/2.5A	60W
HX-150CBL-12	356*36*21	200~220VAC	12V/12.5A	150W
HX-150CBL-24	356*36*21	200~220VAC	24V/6.25A	150W
HX-200CBL-12	356*36*21	200~220VAC	12V/16.7A	200W
HX-200CBL-24	356*36*21	200~220VAC	24V/8.33A	200W
HX-250CBL-12	356*36*21	200~220VAC	12V/20.8A	250W
HX-250CBL-24	356*36*21	200~220VAC	24V/10.4A	250W
HX-24GC-12	271*18*15.5	200~220VAC	12V/2A	24W
HX-24GC-24	271*18*15.5	200~220VAC	24V/1A	24W
HX-36GC-12	293*18*15.5	200~220VAC	24V/3A	36W
HX-36GC-24	293*18*15.5	200~220VAC	12V/1.5A	36W
HX-48GC-12	293*18*15.5	200~220VAC	24V/4A	48W
HX-48GC-24	293*18*15.5	200~220VAC	12V/2A	48W
HX-72CL-12	413*18*15.5	200~220VAC	12V/6A	72W
HX-72CL-12	413*18*15.5	200~220VAC	24V/3A	72W
HX-100CL-12	413*18*15.5	200~220VAC	12V/8.3A	100W
HX-100CL-24	413*18*15.5	200~220VAC	24V/4.17A	100W
HX-60GC-12	182*46.5*30	200~220VAC	12V/5A	60W
HX-60GC-24	182*46.5*30	200~220VAC	24V/2.5A	60W
HX-100GC-12	219*46.5*30	200~220VAC	12V/8.33A	100W
HX-100GC-24	219*46.5*30	200~220VAC	24V/4.17A	100W
HX-150GC-12	251.5*46.5*30	200~220VAC	5V/12.5A	150W
HX-150GC-24	251.5*46.5*30	200~220VAC	12V/6.25A	150W
HX-200GC-12	329*46.5*30	200~220VAC	12V/16.7A	200W
HX-200GC-24	329*46.5*30	200~220VAC	24V/8.33A	200W
HX-250GC-12	329*46.5*30	200~220VAC	12V/20.8A	250W
HX-250GC-24	329*46.5*30	200~220VAC	24V/10.4A	250W
HX-400GC-12	320*60*30	200~220VAC	5V/33A	400W
HX-400GC-24	320*60*30	200~220VAC	12V/16.7A	400W



Product Advantages

• Dual transistor forward circuit plan, more stable, more reliable
• Built-in EMI filter circuit, no interference, no blink or slash  phenomenon
• Short circuit, over load & over current protection, safe and secure
• Unique slice built-in transformer technology, low temperature & good EMC performance
• The output inductance using alsifer sendust material (Fe-Si-Al Alloy Core), high output efficiency
• Sufficient power output, 100% full load burning test





We are a power supply manufacturer, specialized in these products series:

1. INDOOR SWITCHING POWER SUPPLY 5V/12V/24V

2. OUTDOOR WATERPROOF SWITCHING POWER SUPPLY 5V/12V/24V

3. LED BOX/ADVERTISYING LED BOX POWER SUPPLY

4. ALUMINUM HOUSING OUTDOOR SWITCHING POWER SUPPLY

5. AC AD ADAPTER SERIES



 Feel Free To Contact me for a professional answers to your queries:
