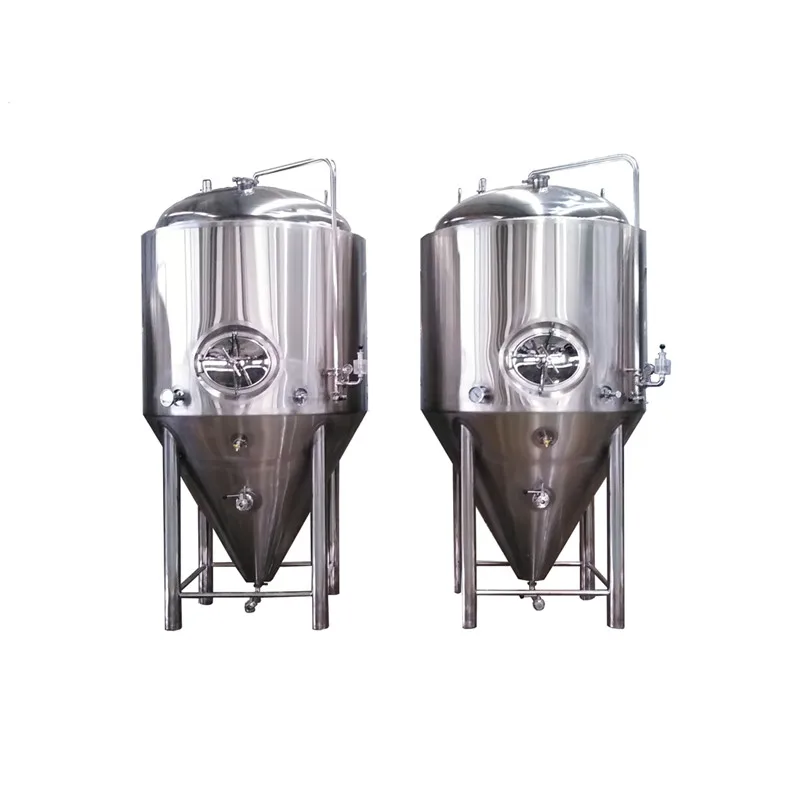

Stainless steel 2000L home brewhouse beer brewing machine brewery system Beer Equipment for micro brewery Food Beverage plant
- Category: Fermenting Equipment >>>
- Supplier: Jinan Rainbow Machinery Co. Ltd.
Share on (62516714458):
Product Overview
Description
Product Description
Stainless steel 2000L home brewhouse beer brewing machine brewery system Beer Equipment for micro brewery Food Beverage plant
Full Brewery System Configurations
I Malt Miller
II Brewhouse
III Fermentation
IV Cooling System
V CIP
VI Controller
II Brewhouse
III Fermentation
IV Cooling System
V CIP
VI Controller
VII Others
Rainbow Beer Equipment | ||||||
System | Equipments | Specifications | Quantity | |||
Malt Miller | Stainless Steel Malt Miller Auger System Grist Case Hydrator | 500Kg/H | 1 | |||
Brewhouse | Mash/ Lauter Tun | 2000L | 1 | |||
Brew Kettle & Whirlpool | 2000L | 1 | ||||
Hot Liquid Tank | 2000L or 4000L | 1 | ||||
Plate Heat Exchanger | 20M2 | 1 | ||||
Wort Pump | 5T/H | 1 | ||||
HLT Pump | 5T/H | 2 | ||||
Brewhouse Pipeline and Valves | 1 | |||||
Work Platform | 1 | |||||
Fermentation | Fermenters | 2000l/4000L | 6 | |||
Brite Tanks | ||||||
Yeast Tank | 50L | 1 | ||||
Wort Oxygenator | 1 | |||||
Cooling System | Glycol Water Tank | 3000L | 1 | |||
Chiller | 8Hp | 2 | ||||
Glycol Water Pump | 3T/H | 1 | ||||
CIP | Alkali tank | 200L | 1 | |||
Sterilization tank | 200L | 1 | ||||
CIP Pump | 3T/H | 1 | ||||
Controller | Control box | 1 | ||||
Spare parts | Valves, Fittings, Gaskets... | |||||
Malt Miller
-Stainless Steel
-Capacity: 500kg/h
-Type: double roller, alloy rollers
-Rollers distance adjustable
-Power: 1.5kw
-Rollers distance adjustable
-Power: 1.5kw
-Motor: CE/UL Listed
-Optional:Conveyor

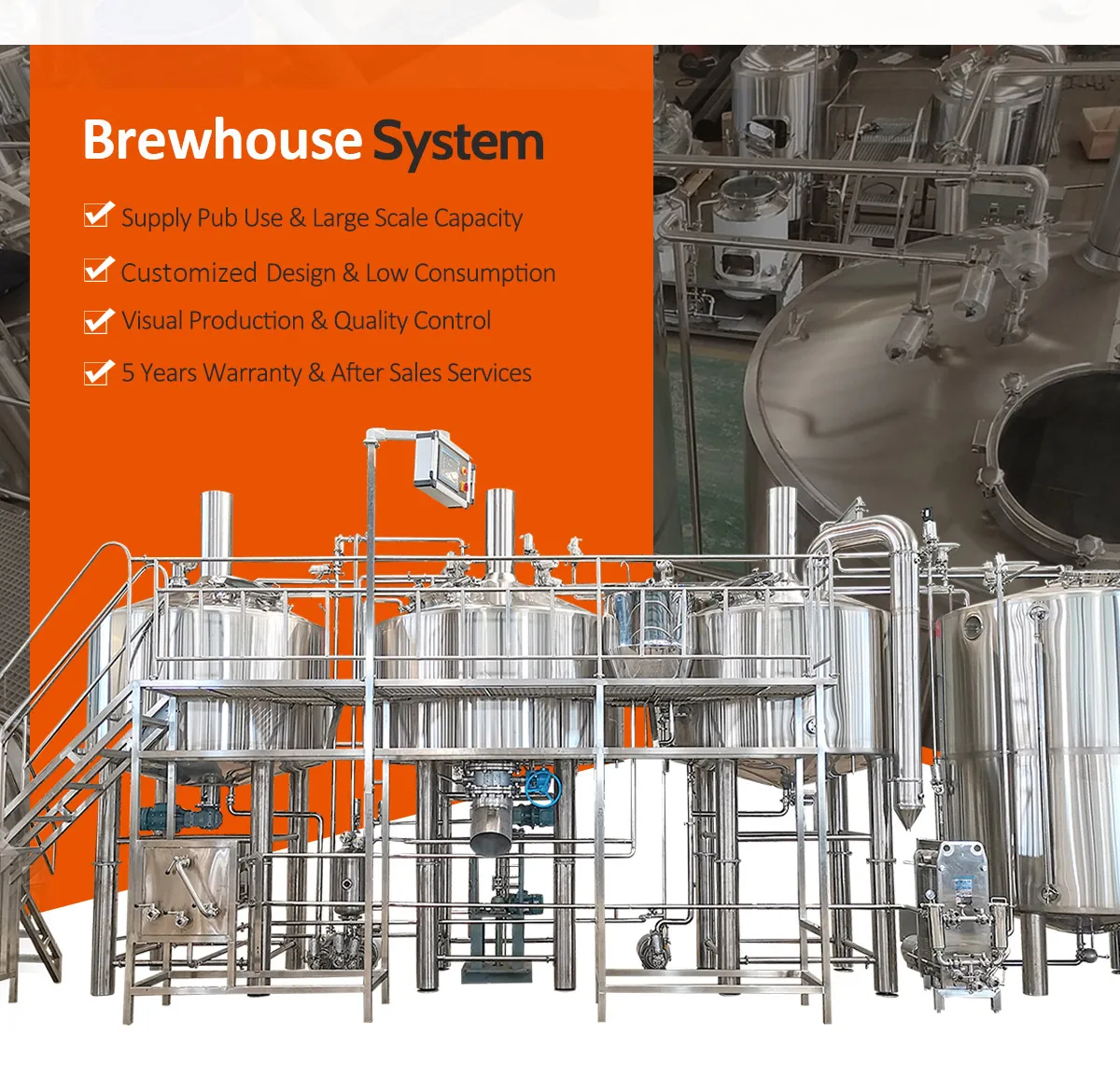

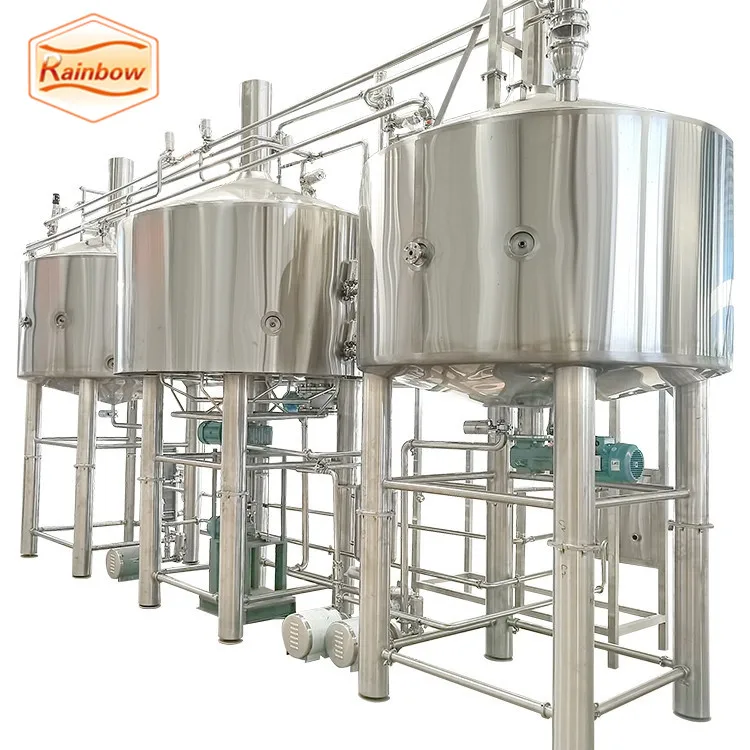

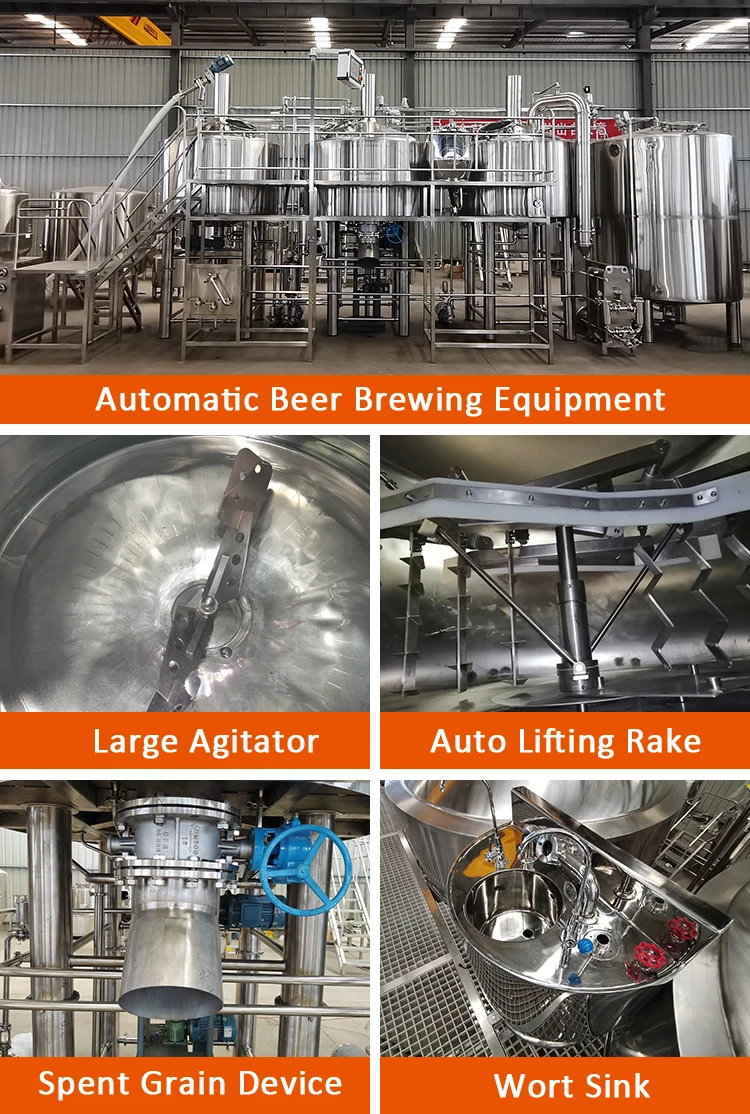

Brewhouse System
-Heating Methods: Electric, Steam, Gas fired
-Vessels: 2/3/4/5 Vessels;
-Vessels: 2/3/4/5 Vessels;
Regular: MLT+BKW+HLT
-Plate Heat Exchanger: 20M2
-Motor: CE/UL Listed
-Pumps: CE/UL Listed
-Oxygenator
-Working Platform
-Brewhouse Pipelines and Valves
Optional:
-Grist Case
-Wort Buffer Tank
-Hop Back
-Platform with Sink
-Flowmeter
-Plate Heat Exchanger: 20M2
-Motor: CE/UL Listed
-Pumps: CE/UL Listed
-Oxygenator
-Working Platform
-Brewhouse Pipelines and Valves
Optional:
-Grist Case
-Wort Buffer Tank
-Hop Back
-Platform with Sink
-Flowmeter

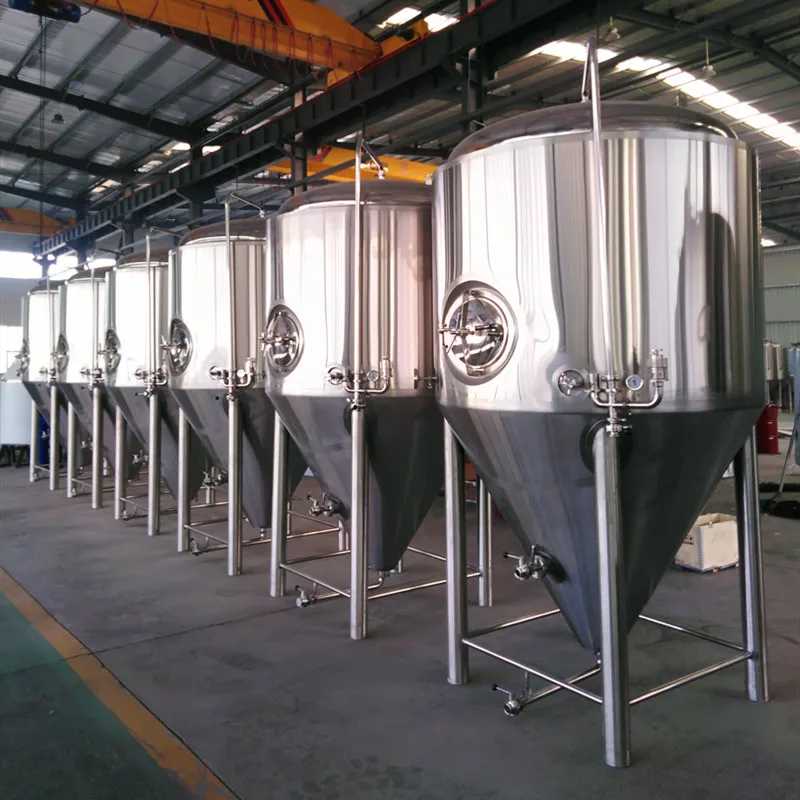

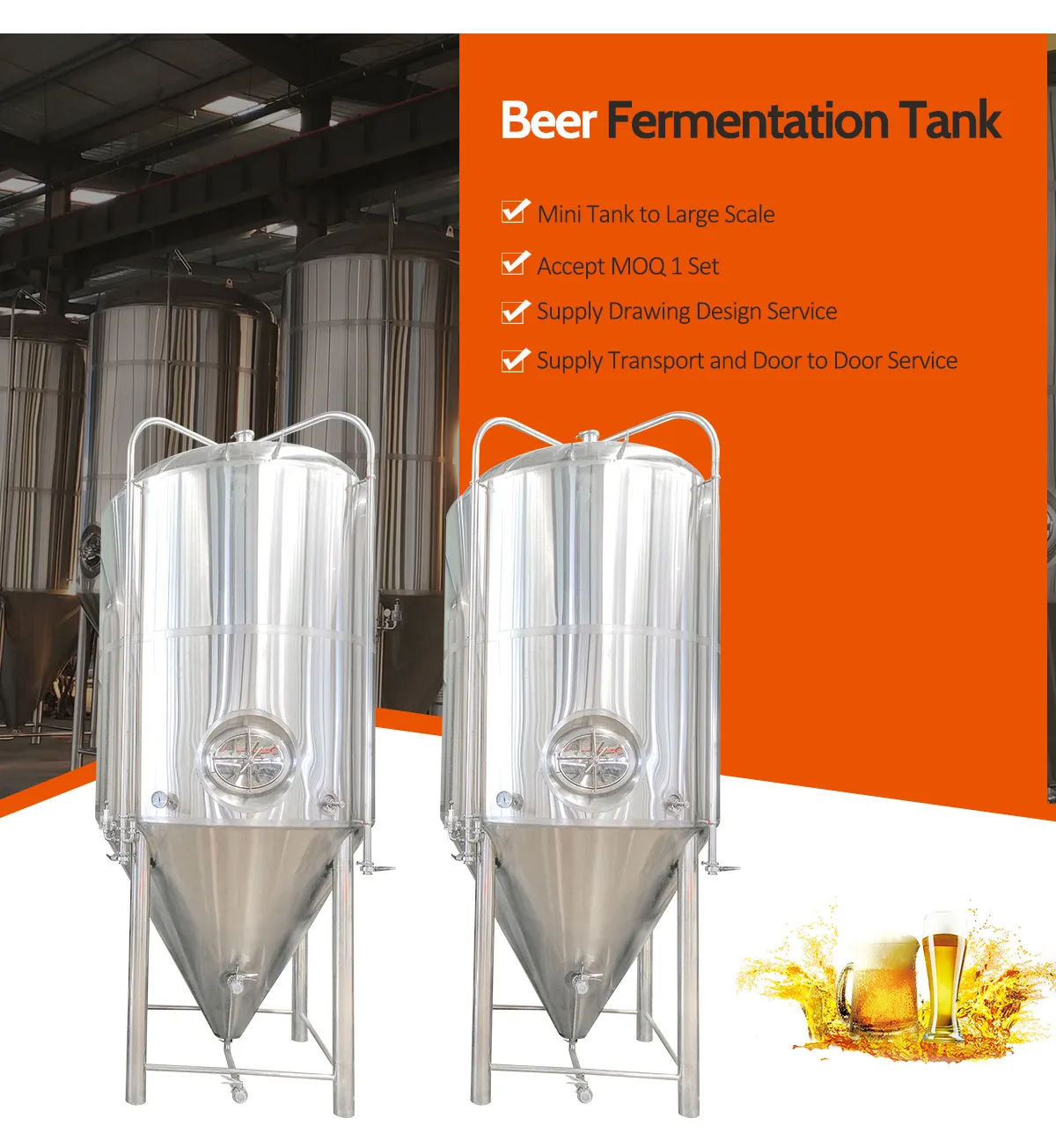

Fermentation System

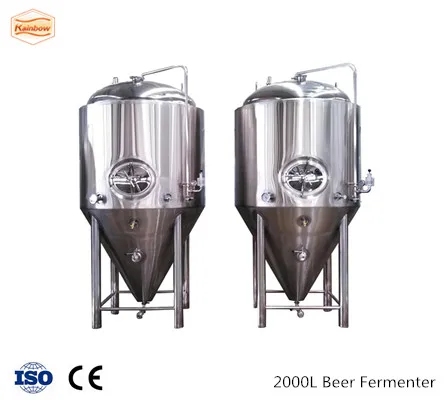

2000L or 4000L Fermenters
-Cooling Jacketed Conical
-Insulated PU 100mm
-Working Pressure: 0.15-0.2Mpa
Optional
-Carbonation Stone
-Level meter
-Side Manway
-Red copper Layer
-Dry Hop Dose Device
-Others
Cooling System
Glycol Water Tank 3000L
Insulated with PT-100
8HP Chiller*2: ChinaTop Brand
Cooling Pump: 3T/H, CE/UL Listed
Brewery CIP Station
Alkali Tank 200L
Sterilization Tank 200L
Interior Finish Polish: 0.4~0.6μm
Sterilization Tank 200L
Interior Finish Polish: 0.4~0.6μm
pipelines and Valves
CIP Pump: 3T/H CE/UL Listed
CIP Hose 1PC
Optional
Heating Element
Controller
CIP Pump: 3T/H CE/UL Listed
CIP Hose 1PC
Optional
Heating Element
Controller
Controller Box
PID Type: Digital Display
PLC Type: With Siemens Touch Screen
Basic
-MLT Temperature Setting
-BKW Temperature Setting
-HLT Temperature Setting
-Fermentor Temperature Setting
-Gly Water Tank Temperature Setting
-Pump Speed Control by VFD, DANFOSS
-Agitator Speed Control by VFD, DANFOSS
-Pump Speed Control by VFD, DANFOSS
-Agitator Speed Control by VFD, DANFOSS
Others
Pneumatic Valves Controller
Flowmeter
Company Introduction
Established in 2011, Jinan Rainbow Machinery Co., Ltd., is a professional manufacturer and leading exporter of beer brewery equipment. Its products ranging from 50L to 30,000L. No matter you are home hobby brewer, brew pub or micro brewery, you will find out a perfect brewing system here from Rainbow Machinery.
Rainbow Machinery is exporting brewing tanks to many countries like Germany, France, Finland, Norway, Czech Republic,Switzerland, USA, Canada, Paraguay, Ecuador, Autarilia and so on.
Rainbow Machinery is exporting brewing tanks to many countries like Germany, France, Finland, Norway, Czech Republic,Switzerland, USA, Canada, Paraguay, Ecuador, Autarilia and so on.
Our Services & Strength
Space Planning; Customization; Installation; Commissioning; Maintenance
According to customer requirements to provide one-stop brewing beer project solution: process flow chart; site layout; cost-benefit analysis.with Rainbow advanced experience
According to customer requirements to provide one-stop brewing beer project solution: process flow chart; site layout; cost-benefit analysis.with Rainbow advanced experience
Exhibition
Packing&Shipping
For Less Container Loading:
Carbon steel with PLY wooden package suitable for long marine transport
For Full Container Loading
PE Stretch film with soft material outside protecting
PE Stretch film with soft material outside protecting
