Product Overview
Description
Company Profile
About the company.
Shanghai Orisen New Material Technology Co., Ltd is established as a trading company of Deyang Kingoda Fiberglass Co., Ltd., with same shareholder of both companies.
Our factory is located in Yuying town, Luojiang county, Sichuan province. It is 80 kilometers away from Chengdu Shuangliu Airport and connected with Chengmian expressway and Chengmian high-speed railway. We strictly abide by standards, with great innovation culture, ensure the best quality of products!
Our factory is located in Yuying town, Luojiang county, Sichuan province. It is 80 kilometers away from Chengdu Shuangliu Airport and connected with Chengmian expressway and Chengmian high-speed railway. We strictly abide by standards, with great innovation culture, ensure the best quality of products!
Shanghai Orisen New Material Technology Co., Ltd is established as a trading company of Deyang Kingoda Fiberglass Co., Ltd., with same shareholder of both companies. Our factory is located in Yuying town, Luojiang county, Sichuan province. It is 80 kilometers away from Chengdu Shuangliu Airport and connected with Chengmian expressway and Chengmian high-speed railway. We strictly abide by standards, with great innovation culture, ensure the best quality of products!
Product Description

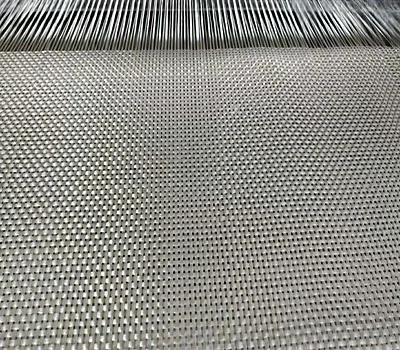

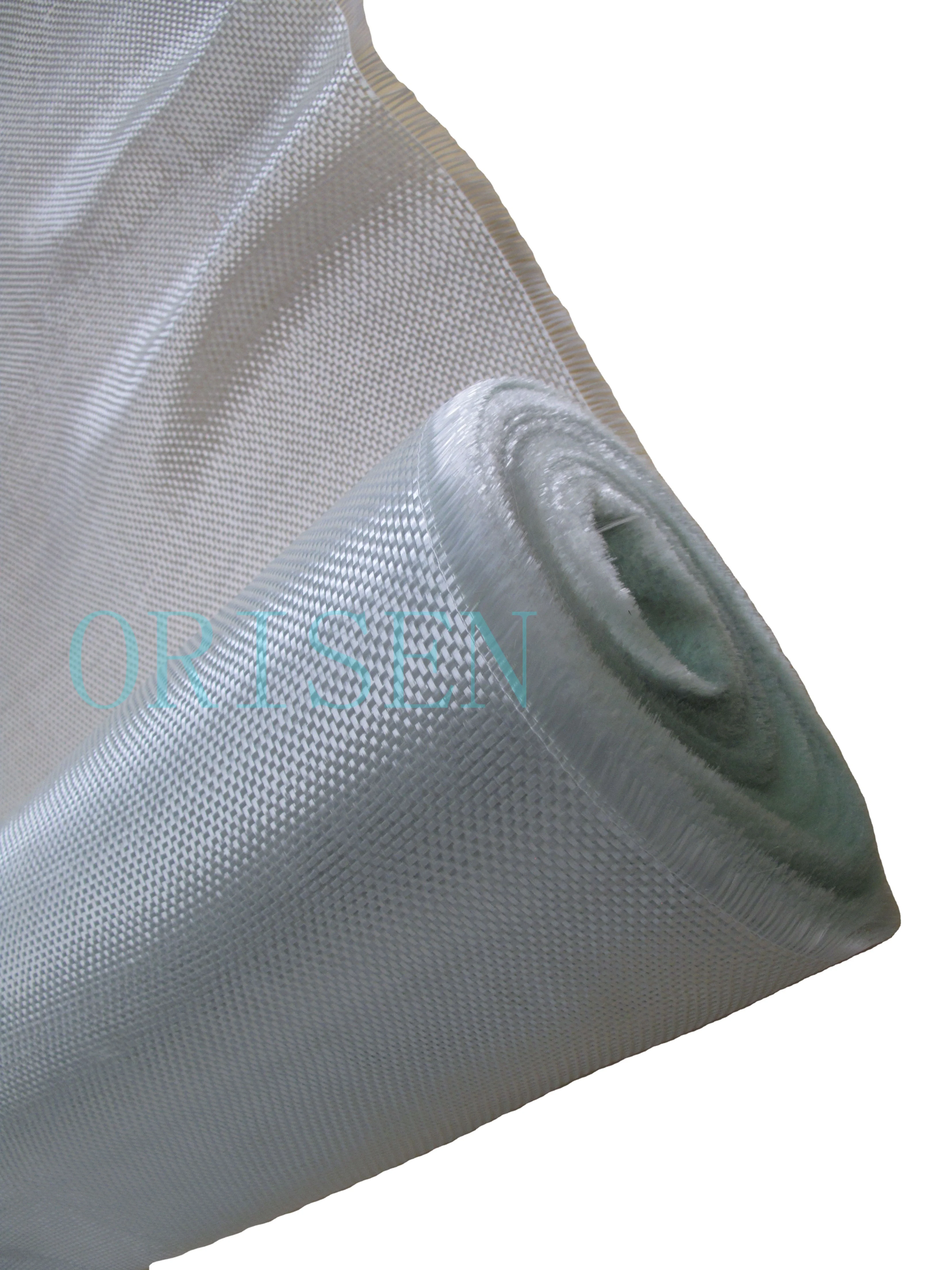

Glass fiber woven roving is plain weave cloth from roving, is important base materials of hand lay-up FRP. The strength of the woven roving, mainly on warp/weft direction of the fabric..
1.Well-distributed, even tensile strength, good vertical performance.
2.Fast impregnation, good moulding property, easily removing air bubbles.
3.High mechanical strength, less strength loss in wet condition.
2.Fast impregnation, good moulding property, easily removing air bubbles.
3.High mechanical strength, less strength loss in wet condition.
Product Characterization:
1. Warp and weft roving aligned in a parallel and flat manner, resulting in uniform tension.
2. Densely aligned fibers, resulting in high dimensional stability and making handing easy.
3. Good mold ability, fast and complete wet in resins, resulting in high productivity.
4. Good transparency and high strength of composite products.
2. Densely aligned fibers, resulting in high dimensional stability and making handing easy.
3. Good mold ability, fast and complete wet in resins, resulting in high productivity.
4. Good transparency and high strength of composite products.
Item | Tex | Count of cloth （root/cm） | Unit area mass （g/m） | Breaking strength（N） | Width （mm） | ||||||
Wrap yarn | Wrap yarn | Wrap yarn | Warp yarn | Wrap yarn | Wrap yarn | ||||||
JHWR200 | 180 | 180 | 6.0 | 5.0 | 200±15 | 1300 | 1100 | 30-3000 | |||
JHWR300 | 300 | 300 | 5.0 | 4.0 | 300±15 | 1800 | 1700 | 30-3000 | |||
JHWR400 | 576 | 576 | 3.6 | 3.2 | 400±20 | 2500 | 2200 | 30-3000 | |||
JHWR500 | 900 | 900 | 2.9 | 2.7 | 500±25 | 3000 | 2750 | 30-3000 | |||
JHWR600 | 1200 | 1200 | 2.6 | 2.5 | 600±30 | 4000 | 3850 | 30-3000 | |||
JHWR800 | 2400 | 2400 | 1.8 | 1.8 | 800±40 | 4600 | 4400 | 30-3000 | |||
product packing

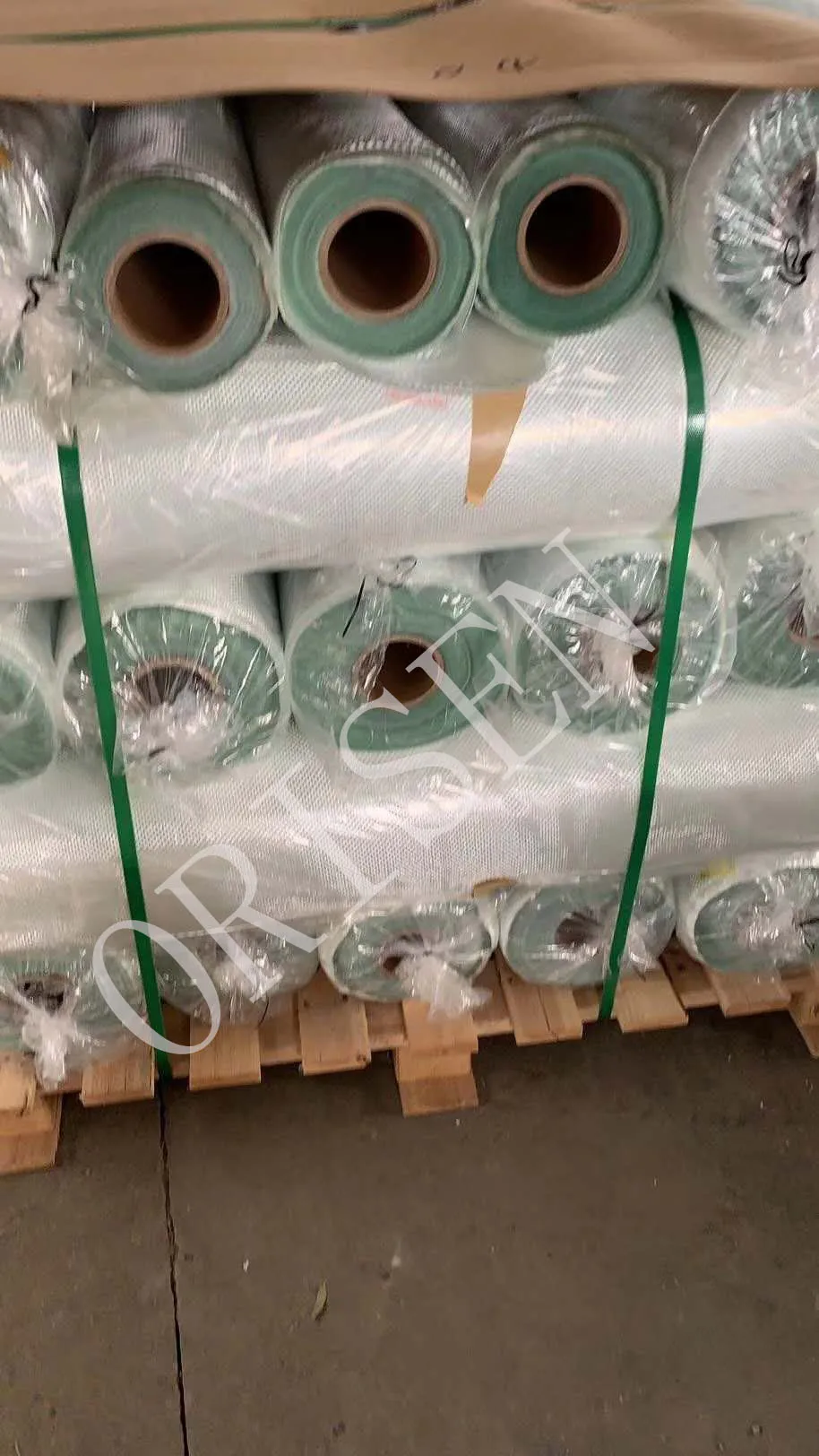

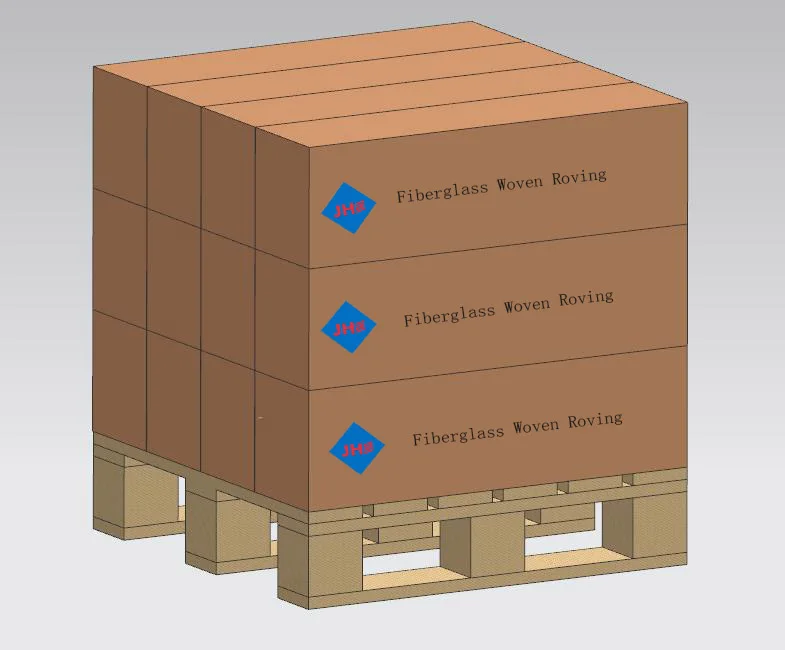

In order to ensure the product safety and integrity during the process of transportation, and make sure that the fabric is without indentation, deformation or damage,each roll of the fabric will be wrapped in a PE and placed into a carton or iron frame.
sales market
logistics mode
FAQ
Q：Are you a factory or a trading company？
A：We have our own factory.
Q：Why did you choose us?
A：Our products are of good quality and favorable price, and have won many awards.
Q：What's your delivery time?
A：About 15 days.
Q：What are your main products？
A：Our products include various specifications of oil pipeline insulation layer, FPR based fiberglass cloth, waterproof roll based GF cloth, anticorrosive GF cloth, GF roving, short cut GF and other composite materials.
