LCD display full body temperature scanner door frame metal detector JZD 1

Product Overview

Description

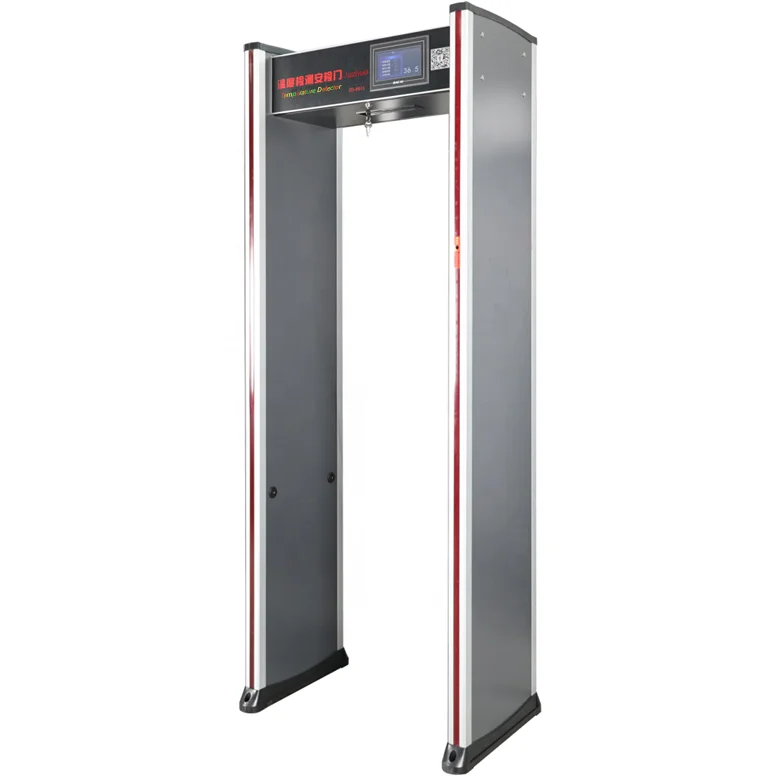

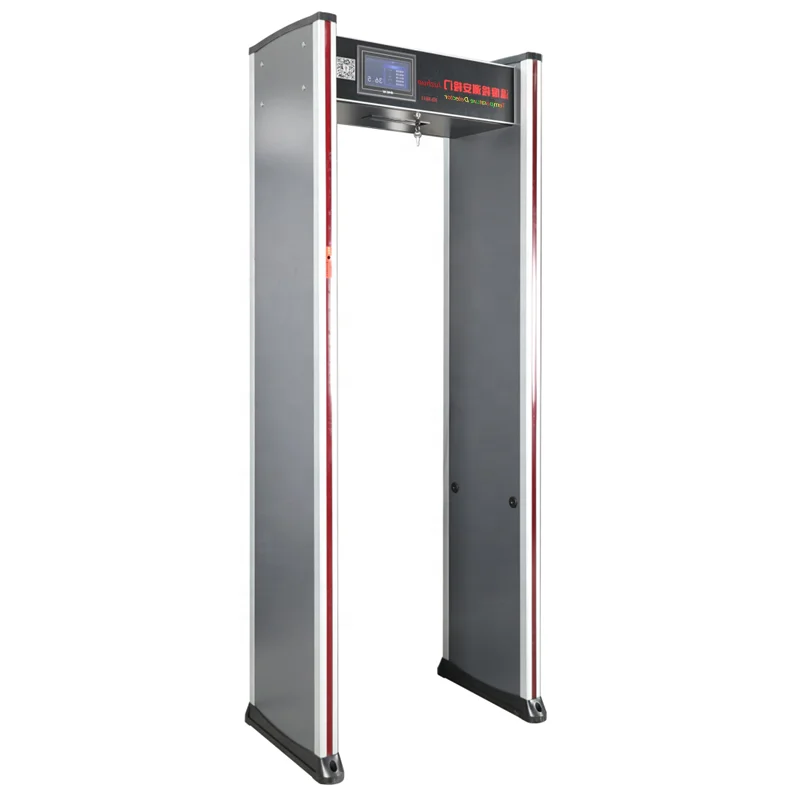

LCD display full body temperature scanner door frame metal detector JZD-1



Introduction:

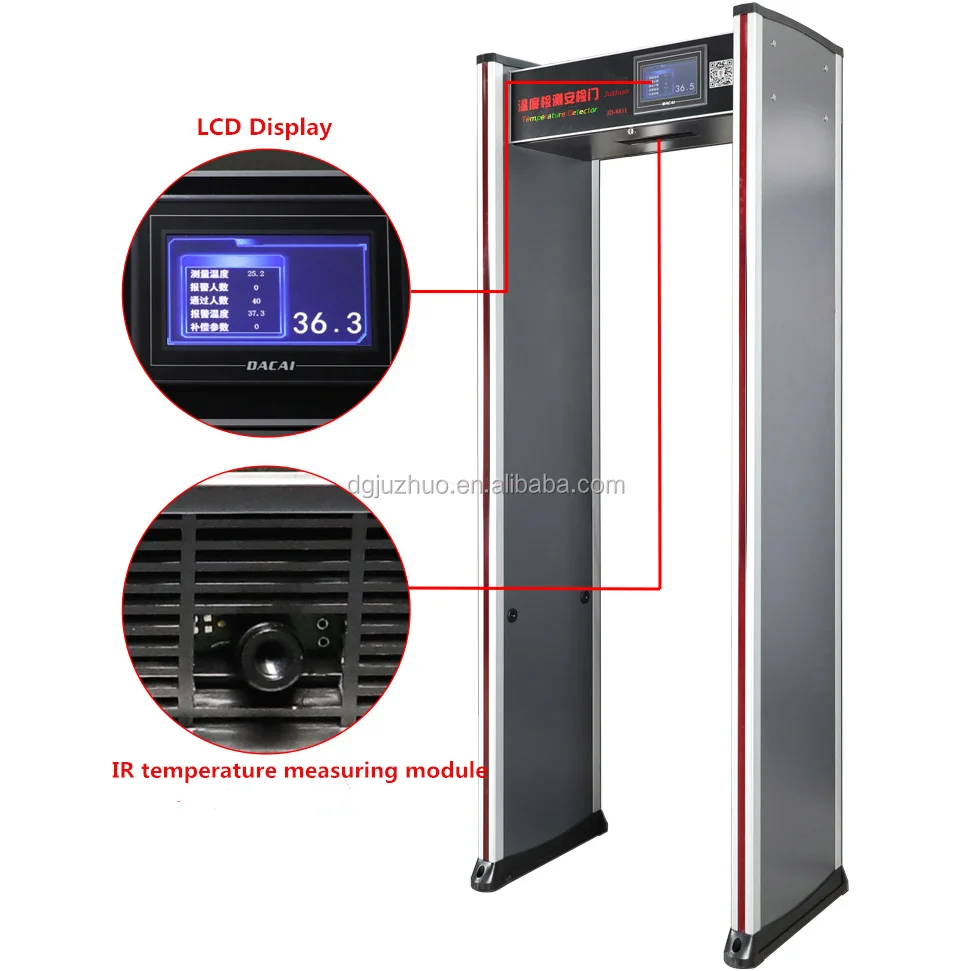

Metal and temperature detection integrated security gate is an accurate and convenient detection device for detecting human body temperature and whether it can carry metal. It uses a non-contact abnormal body temperature preliminary screening method, which has a fast detection speed and can prevent personnel from being exposed to cross infection. At the same time, the common 7-inch LCD screen can display the measured temperature, the temperature of the alarm, the number of alarms, the number of people passing through, and the number of compensations. When a person passes through the security inspection channel, if the person's body temperature exceeds a preset temperature or metal is trapped, the system will automatically alarm. If the body temperature is normal, the normal body temperature value will be displayed, and the body temperature will be displayed on the screen in real time

Feature:

1,When measuring, the person to be measured can place the forehead close to the position of the probe, about 10-15 cm away from the probe, and the forehead temperature can be detected.

2,If it is not convenient to measure the forehead, you can also lift the wrist clothes, and bring the exposed wrist position close to the probe, and the distance from the probe is 5-10 cm.

3,Compensation parameters can be adjusted from 0-9, 0 is suitable for relatively low temperature environment, and 5 is suitable for relatively warm environment. Users can adjust according to the use environment. (The smallest the number, the greater the compensation)

4,The product is divided into six defense zones, and suspicious objects can be accurately displayed in correspondence.

5,Sensitivity can be adjusted as needed, with a total of one hundred levels of sensitivity.

6,LED doorpost light can display alarm zone visually and sound and light alarm at the same time.

7, High sensitivity: In the middle of the door, a piece of coin metal can be detected, and the influence of belt buckles, leather shoes, bras can be ruled out, and more than 200 grams of copper, aluminum, zinc and other metals or controlled knives and guns can be detected.

8, Password protection: The parameters can be password protected to prevent unauthorized personnel from operating.

9,Additional functions: optional remote control can be used to control parameters, reserve switching signals, and can be connected to computers, cameras, three rollers, etc.

10,Harmless: Harmless to cardiac pacemaker wearers, pregnant women, and magnetic media.

Applications:

Government departments: including courts,  hospitals, subways, high-speed rail, prisons, detention centers, labor camps, drug treatment centers, and public security bureaus.

Public places: including schools, gymnasiums, entertainment venues (disc halls, dance halls, etc.), airports, railway stations, bus stations, ports, exhibition halls, museums, banks, oil depots, power stations, etc.

Parameter:

                                                                      Temperature Detection

Detection distance	Forehead, wrist5-15CM	Temperature measurement range	30℃~42℃
Minimum resolution	0.1℃	Temperature measurement module	MELEXIS
Temperature measurement accuracy	±0.5℃(indoor temperature)	Repeat accuracy	±0.2℃
Response time	0.1S	measure time	0.5S-1.5S

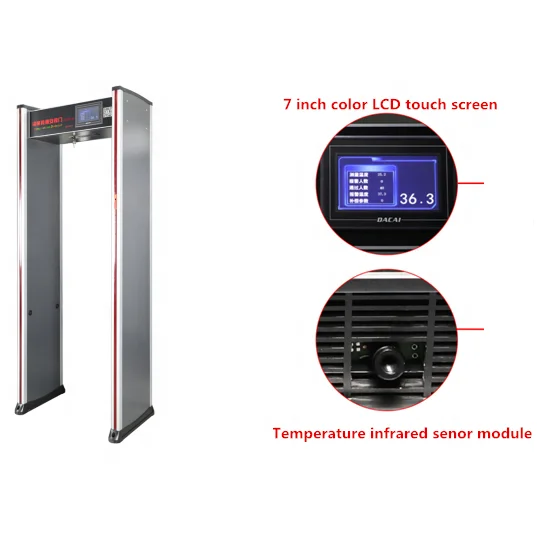

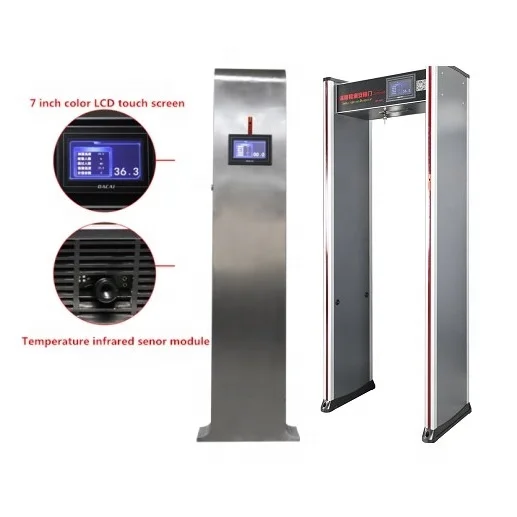

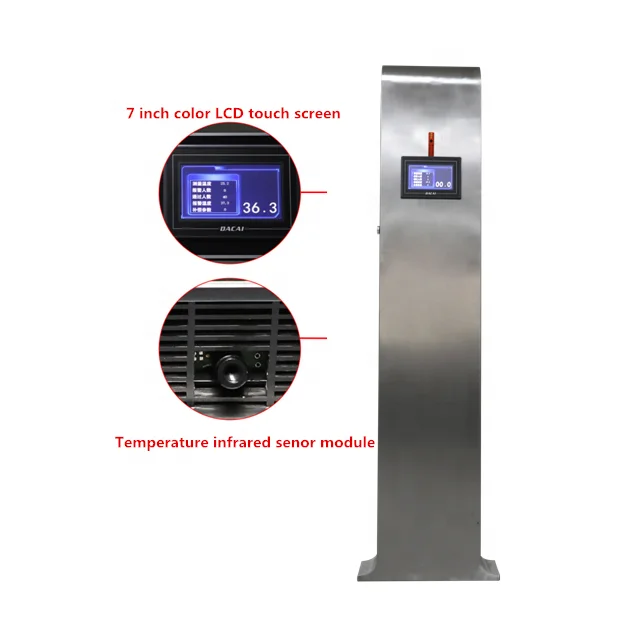

Display	7 inch color touch screen	Power consumption	≤50W
External power	220V  50Hz	working environment	-10℃~35℃
(mm) Dimension	2202(H) x 820(W) x 550(D)	(mm)Tunnel Dimension	2000(H) x 700(W) x 550(D)





                                                                                  Metal Detection

working frequency	7.8~8.2KHz,40 frequency optional	Detection sensitivity	Φ20MM Iron Ball
Detection location	Left and right six detecting  zones	Alarm area	6 zones
