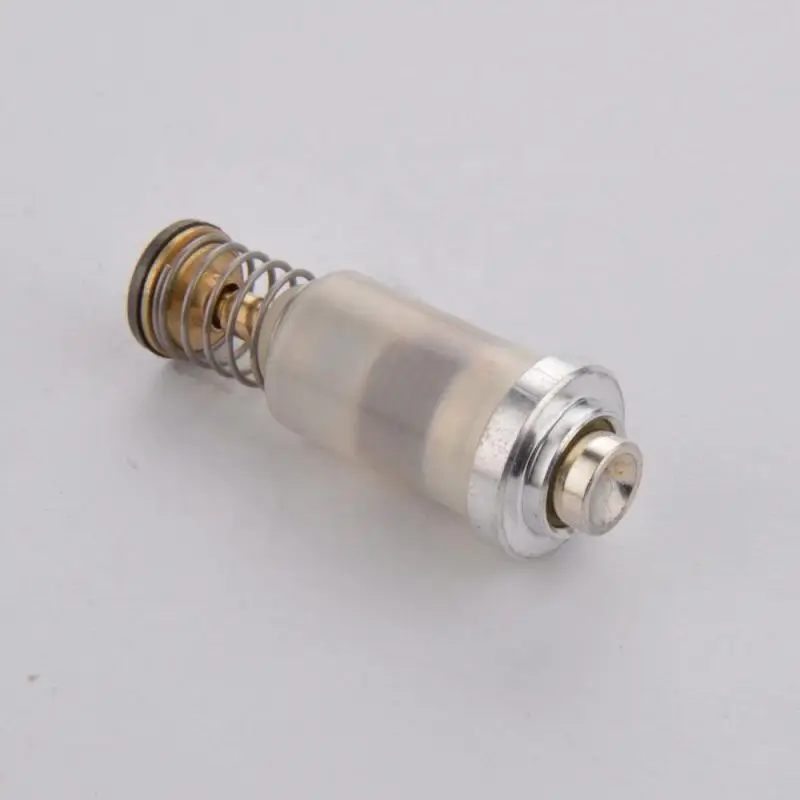

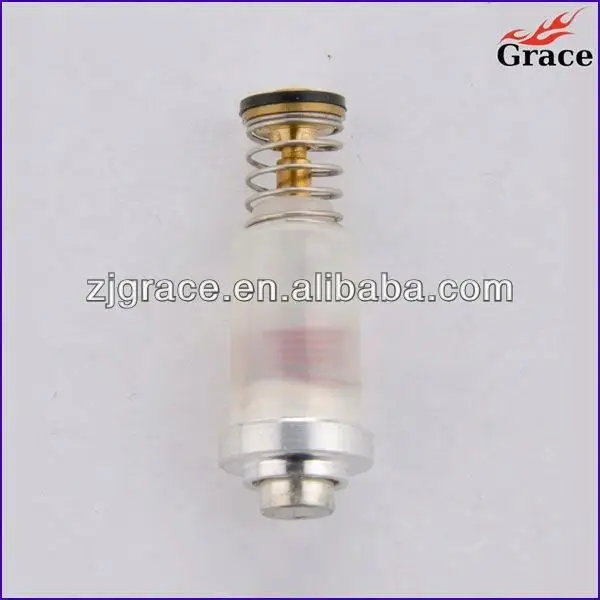

Mini cheap solenoid valve/magnet valve/magnetic valve

Product Overview

Description

Mini cheap solenoid valve/magnet valve/magnetic valve

Our company manufactures thermocouple and magnet valve for many years.

Thermocouple and magnet valve compose a flameout safety protector which widely used in gas

appliance, such as gas cooker, gas oven, gas stove, gas heater and so on.

There are different styles and sizes. We also can make according to drawings and requests of

customers.





Working principle:

Thermocouple and magnetic valve composegas safety protection devices, thermocouple is a

transducercan provide the power, magnetic valve is a controller.

When thermocouple tips is heated by fire, cold and heat generate thermoelectric power due to

temperature difference, to form closed loop current and make magneticvalve actuation,opening

gas path.

When the flame is out owing to unexpected reasons, thermocouple rapidly lose potential, magnet

valve lose suction under the action of spring, so close gas path, and play a safety protection role.





Technical Data
Opening electrical current	≤60mA~200mA	Can according to request of customers
Closing electrical current	≥15mA~110mA
Resistance	designed value(±10%)mΩ
Pressurization	the highest leaking value it allowed should be≤0.5mL/min
Size	according to request of customers
