Контрольно измерительная одноплатная компьютерная система мониторинга i.MX8Mplus linux, макетная плата, замена наборов i.mx6 dev kit
- Category: >>>
- Supplier: Zhejiang Qiyang Intelligent Technology Co. Ltd.
Share on (62516918610):
Product Overview
Description
Products Description

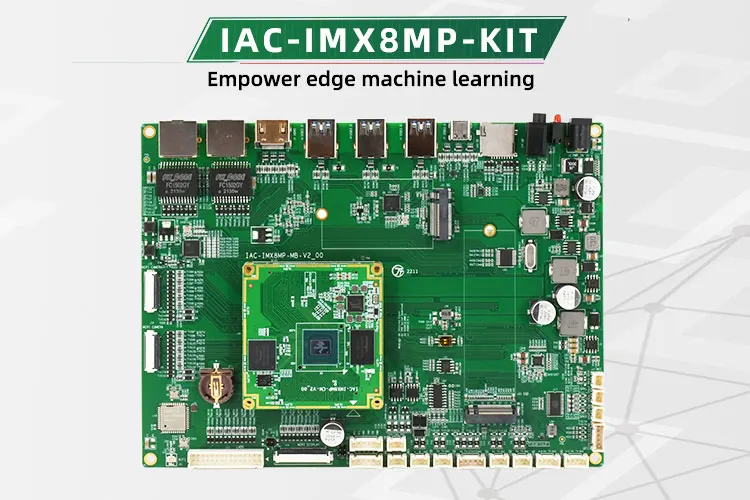

IAC-IMX8MP-KIT Development Board
Qiyang IAC-IMX8MP-KIT Development Board adopts NXP IMX8MPlus series processor. The i.MX 8M Plus is a powerful quad Arm Cortex-A53 processor with speed 1.6 GHZ and one ArmeCortex-M7 processor. Integrated with a NPU of 2.3 TOPS,inbuilt with Image Signal Processor (ISP). It shows advantages of the edge intelligence, AI and machine learning (ML). Inbuilt with high precision Graphics Processing Units(GPU),it has advanced multimedia video & audio; The development kit educed two Gigabit Ethernet, USB3.0,Type-c, M.2,CAN-FD etc; Onboard with Wl-Fl Module,RS232,RS485,12C,GPIO etc; With ECC protection and industrial grade temperate range,it meets the industrial applications and reliability test.lt expedite the development on IOT,Vision,Smart City,Smart Home,Smart Medical etc.
Product Paramenters
Hardware Resources | CPU | NXP i.MX8M Plus ，Quad ARM® Cortex™-A53@1.6 GHz + Cortex-M7@800MHz |
NPU | 2.3TOPS | |
GPU | GC7000UL with OpenCL and Vulkan support 16 GFLOPS OpenGL ES 3.0/3.1、 Vulkan、 Open CL 1.2FP、 OpenVG1.1 | |
VPU | Support 1080p60, H.265/4, VP8, VP9 video decoding; support 1080P60, H.265/4 video codes | |
ISP | Dual Camera ISP (12MP) | |
RAM | 2GB LPDDR4 | |
Flash | 16GB eMMC | |
Network | 2 * Gbit/s Ethernet (1x TSN); On board WIFI Module, support 2.4GHz/5GHz Dual -frequency wifi, 802.11a/b/g/b/ac protocol | |
UART | 1 * Cortex-A53 Debug UART; 1 * Cortex-M7 Debug UART; 4 x RS232(3 * Three-line RS232、 1 * Five-line RS232); 1 * RS485 | |
USB | 3*USB3.0 HOST; 1*USB Type-C | |
CAN | 2 * CAN-FD | |
Display | 1*MIPI-DSI(4 line),with resolution of 1920x1080@60; 1*LVDS(2 line)， with resolution of 1920x1080@60; 1*HDMI(eARC)，with resolution of 1920x1080@60; | |
Audio | 2 Speaker power amplifier output; dual -channel audio output (headset socket); MIC audio input | |
Camera | 2*MIPI-CSI(4 line)，support two camera input at the same time | |
Expansion Interface | M.2 M-KEY（To connect SSD）; M.2 B-KEY(To connect 5G module); SIM Card; 3*GPIO(1.8V) | |
Input Interface | I2C | |
Other | Reservation circuit, Watching dog circuit, Real time clock | |
Power Input | +12V power supply | |
Resource | Development Tools | Development environment: Virtual Machine VM15.5.0+ubuntu14.04 or Ubuntu 16.04 |
Application layer development debug tool | ||
Cross-compiler | ||
Common terminal development debugging tool | ||
Image File | ISO of matched operating system | |
Test Program | Interface using demo test program and test program source code | |
Source Code | Bootloader, kernel, system source code | |
Manual | Mainboard User manual,Hardware Manual, Device Manual | |
Mechanical Chart | Back Plane’s Structure & Size | |
Electrical Specification | Size | Core board:Core board:60mm*63mm(8 floors PCB); Carrier board:200mm*150mm(4 floor PCB) |
Power Consumption | ≤5W | |
Operation Temperature | -40℃ ~ +85℃ | |
Operation Humidity | 5% ~ 95%, Non-Condensing | |
Operate System | Linux, Android |

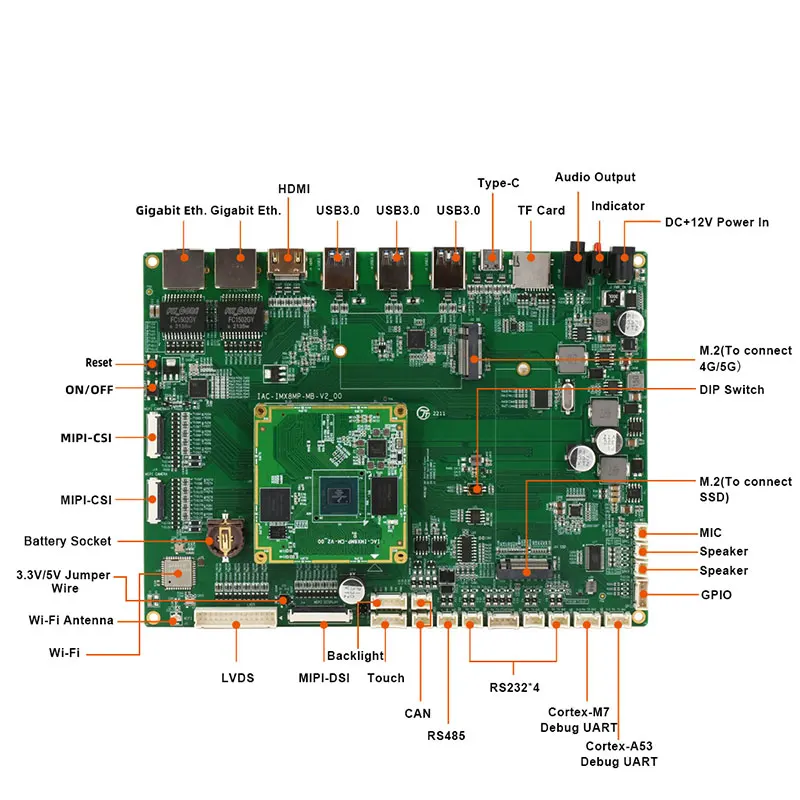

Product Feature

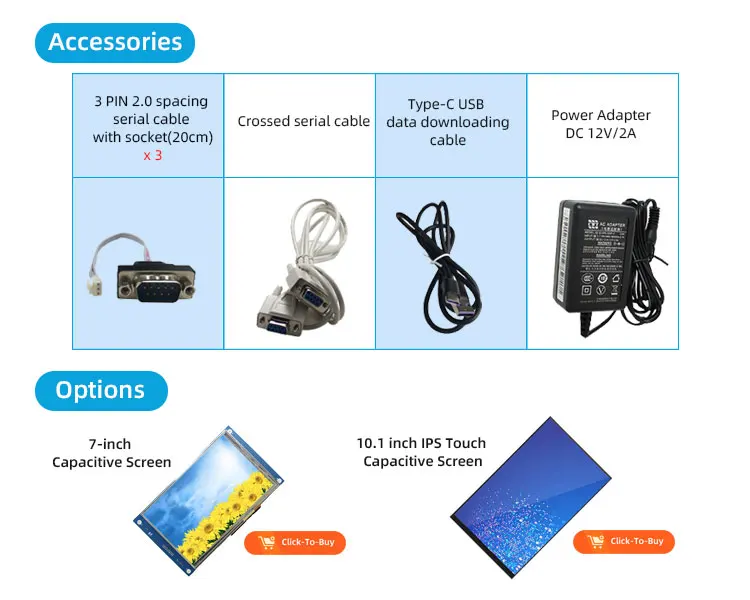

Accessories
Company Profile
FAQ
Q1. What is your terms of delivery?
A: FOB
Q2. How about your delivery time?
A: Generally, it will take 5 to 7 working days after receiving your payment. The specific delivery time depends
on the items and the quantity of your order.
Q3. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q5: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We provide the unlimited technical support to help our clients testing and developing their project more efficiently.
