FPL450 2 Narrow Web Horizontal Online Flexo Printer Die Cutting Stamping Printing Machine Flexographic Printer
- Category: >>>
- Supplier: Jinhua Ziye Technology Co. Ltd.
Share on (62517429845):
Product Overview
Description
Product Description

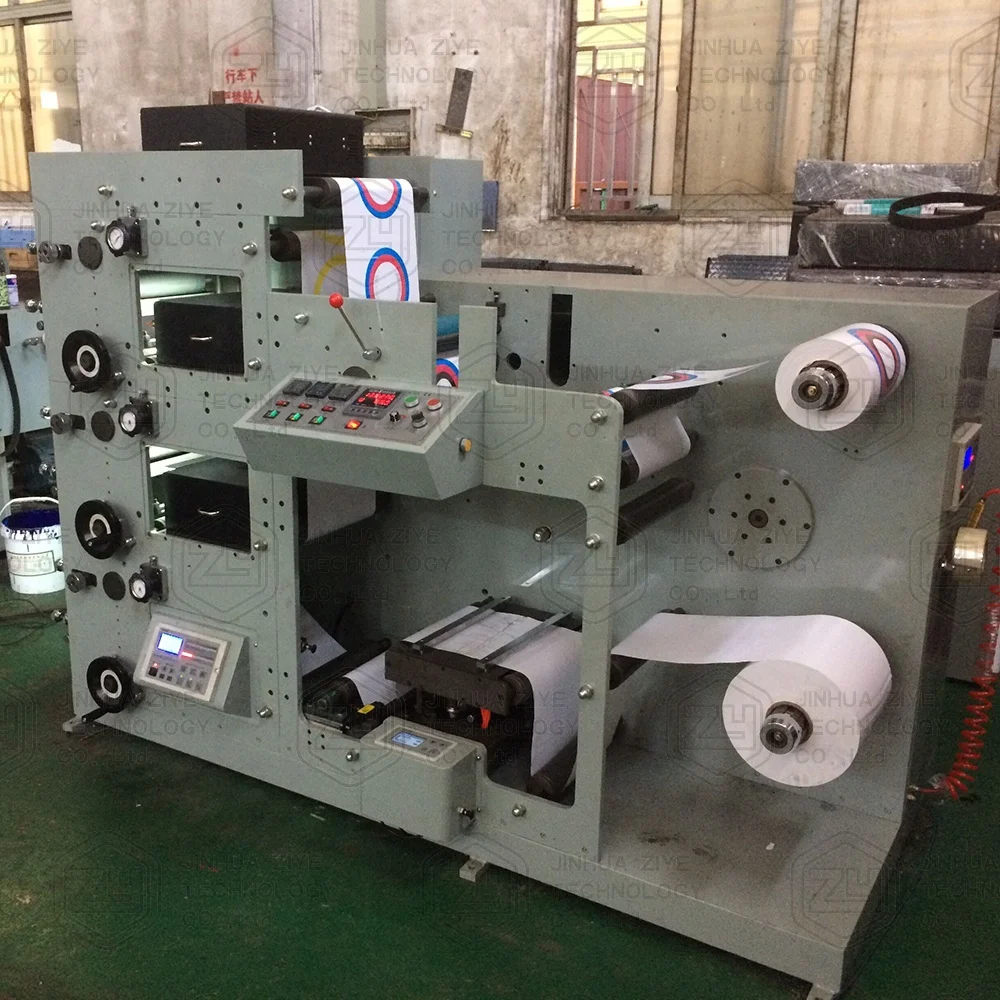

FPL450-2 Narrow Web Horizontal Online Flexo Printer Die Cutting Stamping Printing Machine Flexographic Printer
The machine can finish material-feeding,printing, varnish, drying, laminating, rewinding and die-cutting in one process is an
ideal machine for printing note and top-grade adhesive label.
ideal machine for printing note and top-grade adhesive label.
1. The flexo printing machine adopts the anilox rollers to spread ink. which is characterized by wearable, rust-resistant and long using life, etc. It can improve the printing efficiency.
2. Unwinding and rewinding of the flexo printing machine is controlled by magnetism power brake and clutch. Tension controller is automatic constant type.
3. Printing unit of the flexo printing machine adopt 360º to regulate for registration.
4. Each printing unit of the flexo printing machine has one IR drier. UV dryer can be optional.
5. The rubber roller of the flexo printing machine can break away automatically while parking, and running at a low speed, in order to avoid water being dried.
6. The main motor of the flexo printing machine is adopted the import stepless regulation of frequency conversion.
7. Unwinding and rewinding shaft adopt air shaft, it's convenient to change load and unload the material.
8. Unwinding, printing, varnishing, IR drying, laminating and rewinding of the flexo printing machine can be finished in one process, this kind of printing machine is best for each printing companies to print on adhesive-paper labels and other commercial label.
2. Unwinding and rewinding of the flexo printing machine is controlled by magnetism power brake and clutch. Tension controller is automatic constant type.
3. Printing unit of the flexo printing machine adopt 360º to regulate for registration.
4. Each printing unit of the flexo printing machine has one IR drier. UV dryer can be optional.
5. The rubber roller of the flexo printing machine can break away automatically while parking, and running at a low speed, in order to avoid water being dried.
6. The main motor of the flexo printing machine is adopted the import stepless regulation of frequency conversion.
7. Unwinding and rewinding shaft adopt air shaft, it's convenient to change load and unload the material.
8. Unwinding, printing, varnishing, IR drying, laminating and rewinding of the flexo printing machine can be finished in one process, this kind of printing machine is best for each printing companies to print on adhesive-paper labels and other commercial label.
Samples
All Kinds Of Labels
Plastic Films (PVC, PET...)
All kinds of Paper (below 250gsm)
Aluminum Foils
Product Paramenters
Machine Model | FPL450-2 |
Printing speed | 60m/min |
Max. Web Width | 450mm |
Max. Unwinding/Rewind Diameter | 600mm |
Printing Length | 170-450mm |
Color Quantity | 2 colors |
Dimensions | 3000*1500*1800mm |
Main motor | 15 KW |
Voltage | 220V/380V |
Gear | Helical Gear |
Machine weight | 3000kgs |
Details Images

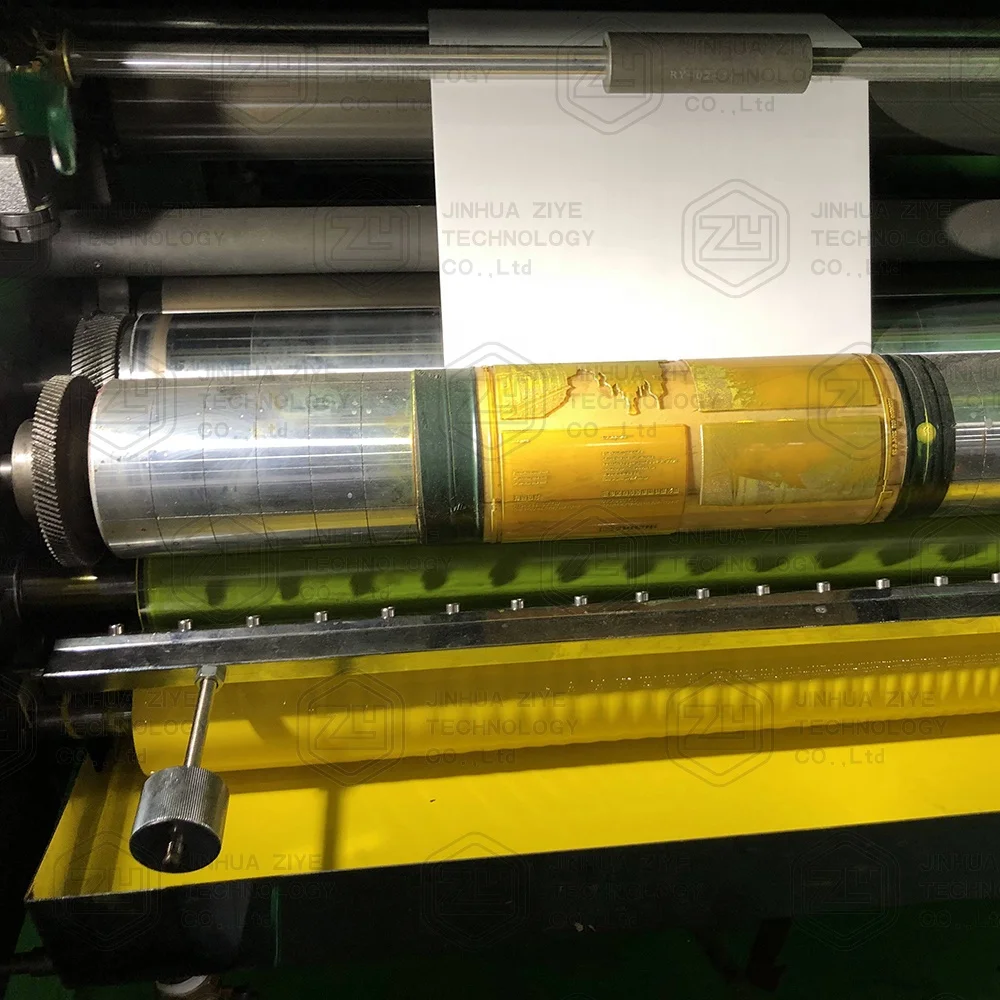

Flexo Printing Unit
Printing Station Comes with Ink Rubber Roller, Ceramic Anilox Cylinder, Printing Plate Cylinder, Scrapper Blade and Ink Container. Helical Gear
Web Guide System
Control paper move straightly.
Unwind Unit
With 1 pc 3" Air Expanding Shaft, Can accept max diameter 600mm material jumbo roll. (can be customized)
Rewind
With 1 pc 3" Air Expanding Shaft, Can accept max diameter 600mm material jumbo roll. (can be customized)
Magnetic Brake and Clutch
1).With One 50 N.M Magnetic Brake, Two 50 N.M Magnetic Clutch
2).Machine Drive By Synchronous Belt. Low Noise and Stable Operation
Auto Constant Tension Controller
With 2 Set ZXT-600 Auto Constant Tension Controller For Unwind and Rewind
IR Drying Unit
1).Each Printing Unit comes with 1 Unit Infrared Heating Drying Oven.
2).Infrared Heating Drying Oven is placed on material and after each printing station.
2).Infrared Heating Drying Oven is placed on material and after each printing station.
Control Panel
1).Power Supply, Stop Button, Start Button and Emergency Stop.
2).Temperature Controller for each Heating Oven.
3).Anilox Roller Rotation Button for each Printing Station.
Length Counter and Speed Controller
2).Temperature Controller for each Heating Oven.
3).Anilox Roller Rotation Button for each Printing Station.
Length Counter and Speed Controller
