9984 Tomato Planting Tempered Glass Greenhouse With Complete System
- Category: >>>
- Supplier: Shandong Bs-Villa Construction Engineering Co. Ltd.
Share on (62517523720):
Product Overview
Description
9984 Tomato Planting Tempered Glass Greenhouse With Complete System
Product Description

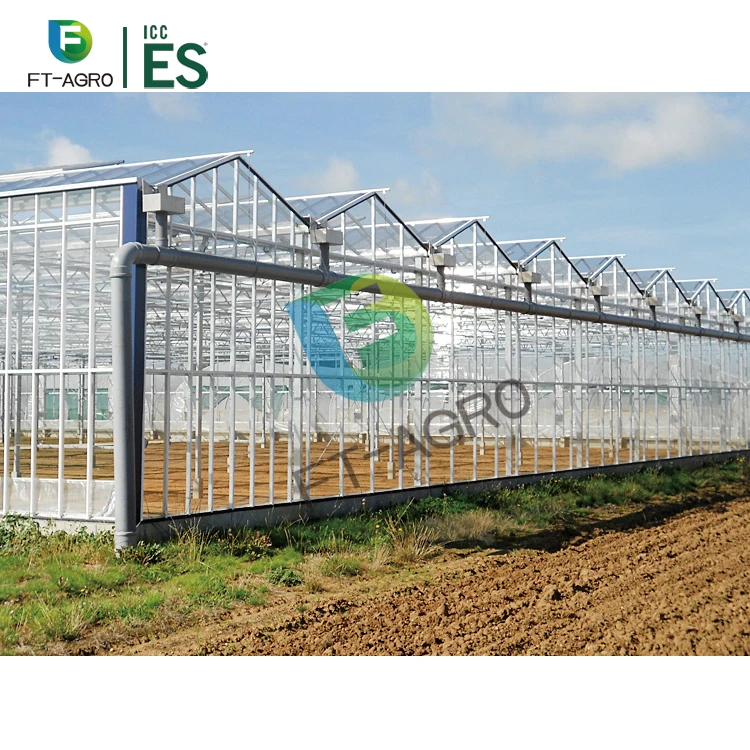

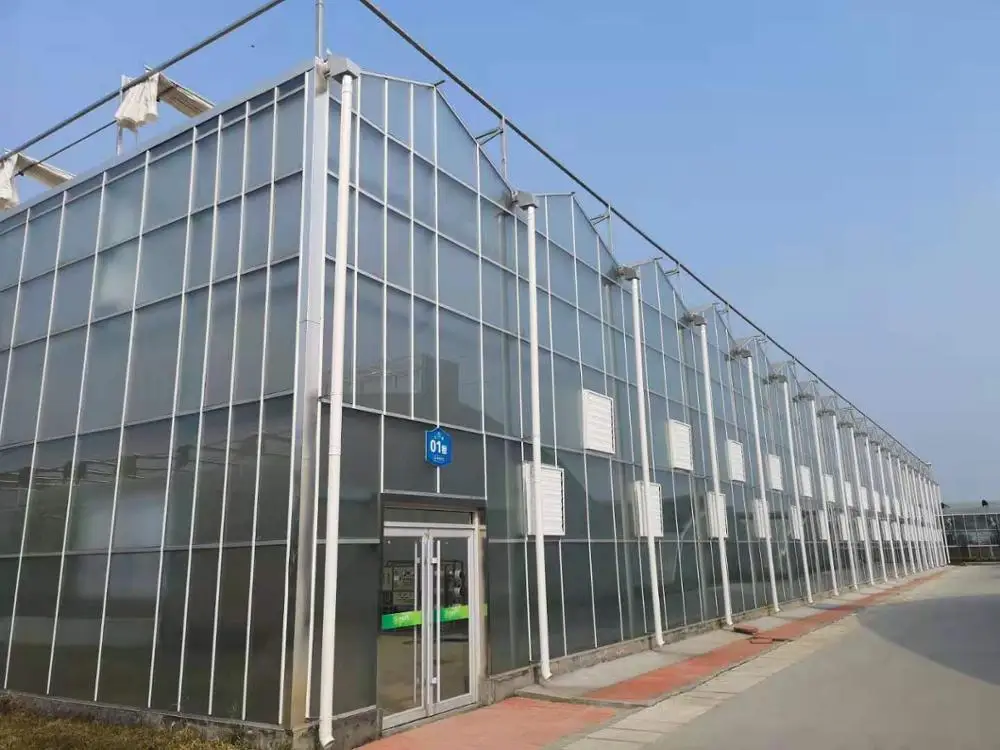

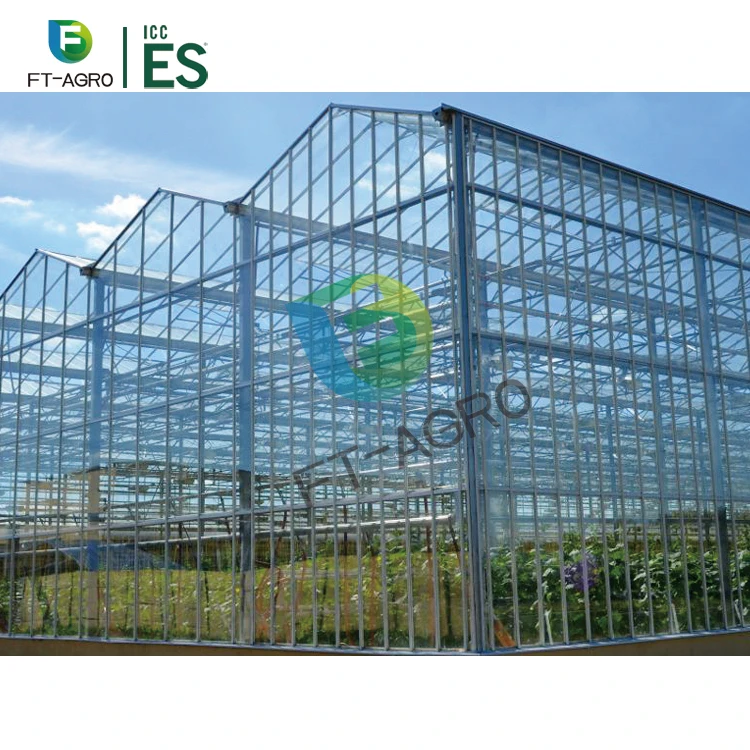

Glass Greenhouse:
Glass greenhouse has a beautiful appearance, high transmittance and stability, large ventilation area and excellent sealing performance, high drainage capacity. However, its insulation ability is not as good as PC sheet greenhouse and double layers film greenhouse. Also, glass greenhouse energy consumption is relatively high. To enhance the insulation, we recommend using double glass. It is suitable for flower cultivation, seed breeding, flower market, eco-hotel, scientific research and other purposes.
Size Information
Parameter
Tempered Glass Greenhouse | ||||
Main Frame | Hot Galvanized Steel Pipe | |||
Covering Material | Tempered Glass | |||
Covering Material Lifetime | >10 years | |||
Column Shape | Rectangular | |||
Columns | Size | Thickness | ||
100*100mm | 3.0mm | |||
Span | 12m | |||
Width Between Columns | 4m | |||
Height | 5m | |||
Gutter Height | 4m | |||
Wind Load | 0.5KN/m² | |||
Snow Load | 0.3KN/m² | |||
Product Details
Main Structure | ||
Size | 156 m x 64 m=9984 ㎡ | |
Span&Bay | 12m&4m | |
Main Column | Hot-dip galvanized rectangular pipe 100*100 | |
Wind-proof Column | Hot-dip galvanized rectangular pipe | |
Connector&Gutter | Hot-dip galvanized plate 2.0 | |
Purlin | Hot-dip galvanized pipe 50*50 | |
Covering Material
1, Four sides covering material: 5+6+5mm tempered glass.
2, Roof covering material: PC sheet 8mm
3, Others: Greenhouse aluminium profile
Valgus Window System | ||
Motor | 0.75KW | |
Drive Shaft | 32*2.5mm | |
Roof Window Open System | ||
Motor | Dedicated self-contained stroke power 0.75 | |
Drive Shaft | Hot-dip galvanized round pipe 32*2.5 | |
Push Rod | Hot-dip galvanized round pipe 32*2.0 | |
External Shading System
1, Covering 75% shading rate round silk net.
2, Drive shaft: Ф32*2.0mm
3, Push-pull rod: Ф32*1.5mm
4, Motor:dedicated self-contained stroke power 0.75kw.

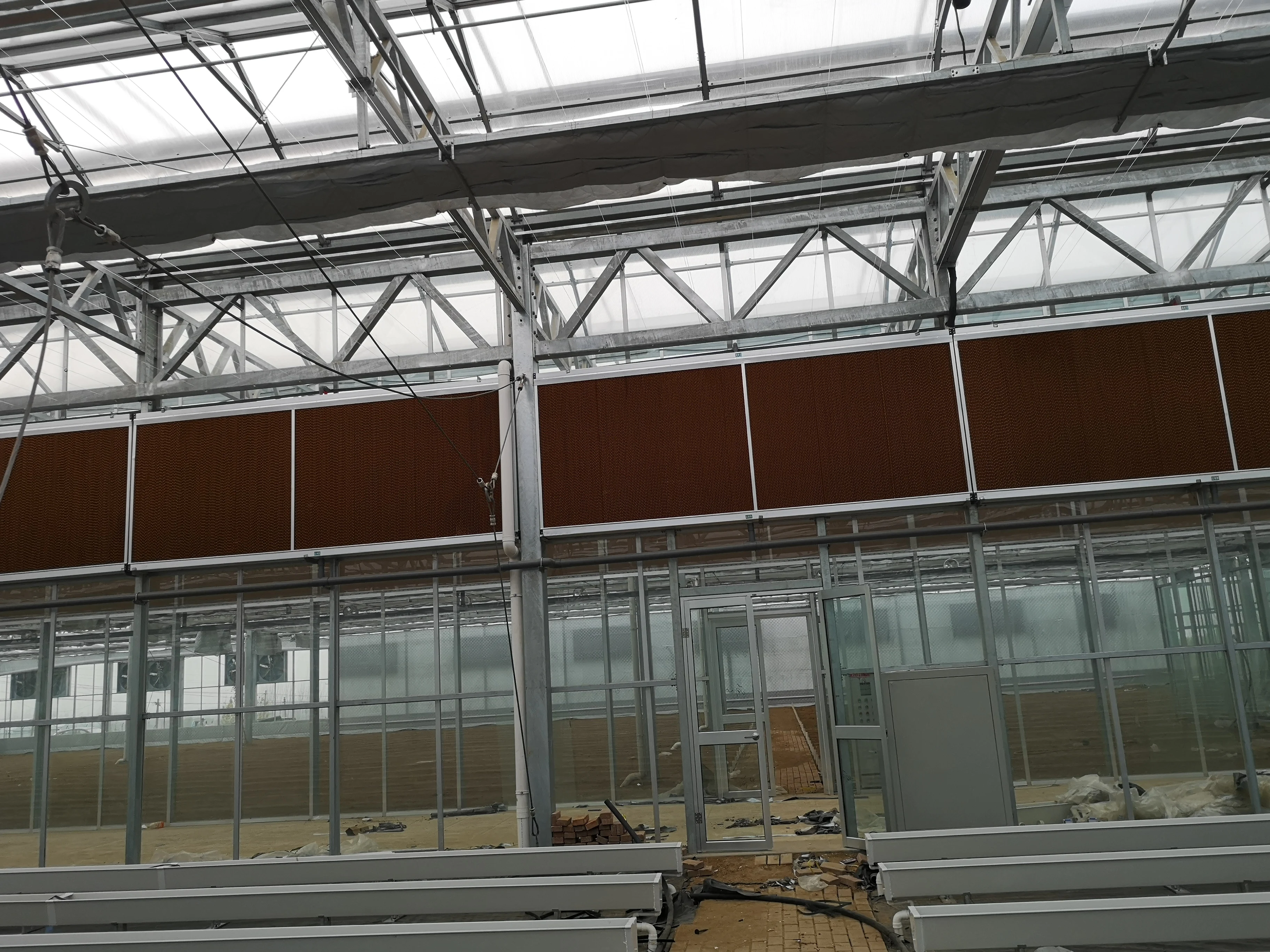

Cooling System
1, Cooling fan: 1380*1380.
2, Cooling pad: the thickness of galvanized frame 15cm.
3, The feeding water system,water pump system for cooling pad.
Door&Power Distribution System
1, Door: KFC door, 4 set.
2, The complete one-button control cabinet,wire,cable.
A Frame Planting Pipes
1, Lettuce&small root leafy vegetable.
2, Length 6m/pipe, 15 pipes/group.
A Frame Planting Grooves
1, Strawberry, Vegetable Marrow, Cabbage,etc.2, Length 6m/planting grooves,7 planting grooves/groud.
Cultivation Grooves
1, Tomato, cucumber, pepper, eggplant,etc.2, Length 6 meter.
Water&Fertilizer Integrated Machine
EC/PH online monitoring, automatic water and fertilizer integrated machine.
Pictures Show
Related Products
Packing&Shipping
Company Introduction
SHANDONG BS-VILLA construction engineering CO.,LTD.(refer as BS-VILLA) is a professional greenhouse manufacturer which focus on development, manufacture, sale of agriculture greenhouse, garden greenhouse, dome house, hydroponics system products etc. BS-VILLA is started in 1992, which is one of the earliest research and development greenhouse companies in China. Our research and
development team to continuously develop new kinds of science and technology products, to meet the needs of modern greenhouse development.We take customer-friendly, quality-oriented, integrative, innovative as objectives. Truth and honesty is our management concept. The customer satisfaction is our primary goal. We uphold a consistent level of professionalism, quality, credibility and services,
therefore we are always ready for cooperation and gladly welcome new clients and business partners.
development team to continuously develop new kinds of science and technology products, to meet the needs of modern greenhouse development.We take customer-friendly, quality-oriented, integrative, innovative as objectives. Truth and honesty is our management concept. The customer satisfaction is our primary goal. We uphold a consistent level of professionalism, quality, credibility and services,
therefore we are always ready for cooperation and gladly welcome new clients and business partners.
FAQ
1. How long is the delivery time?
According to your greenhouse size and system, the delivery time is usually 10-60 days.
2.How long is the warranty period?
Different parts have different warranty, usually the electric machine guarantee 1 year, the steel structure 5 years, glass 1 year,sunshade net 2-3 years, etc.
3. Is your company foreign trade company or manufacturer?
We are manufacturer.
4. Can you supply sample?
Small parts can be supplied, but you should pay the express.
5. Can your company supply greenhouse design?
Our company can give greenhouse design according to your land and plan after deposit. And we can give simple drawing before signing contract.
6. How to install greenhouse?
First we prepare the material and export.
After your customs clearing, we send 2-4 engineers or all workers to guide to install.
If you want to save money, we only send engineers, and you match local workers. If you think it is hard to do, we also can send engineers and workers to install for you.
7. When installing, what cost should we pay?
Our engineers and workers visas and round-trip tickets, their foods and accommodation, their communication.
8. What is the payment terms?
Usually the deposit is 30%-50% of total value. Before loading, all the balance should be paid off. Or you can give your own payment terms, then we can negotiate it.
According to your greenhouse size and system, the delivery time is usually 10-60 days.
2.How long is the warranty period?
Different parts have different warranty, usually the electric machine guarantee 1 year, the steel structure 5 years, glass 1 year,sunshade net 2-3 years, etc.
3. Is your company foreign trade company or manufacturer?
We are manufacturer.
4. Can you supply sample?
Small parts can be supplied, but you should pay the express.
5. Can your company supply greenhouse design?
Our company can give greenhouse design according to your land and plan after deposit. And we can give simple drawing before signing contract.
6. How to install greenhouse?
First we prepare the material and export.
After your customs clearing, we send 2-4 engineers or all workers to guide to install.
If you want to save money, we only send engineers, and you match local workers. If you think it is hard to do, we also can send engineers and workers to install for you.
7. When installing, what cost should we pay?
Our engineers and workers visas and round-trip tickets, their foods and accommodation, their communication.
8. What is the payment terms?
Usually the deposit is 30%-50% of total value. Before loading, all the balance should be paid off. Or you can give your own payment terms, then we can negotiate it.
