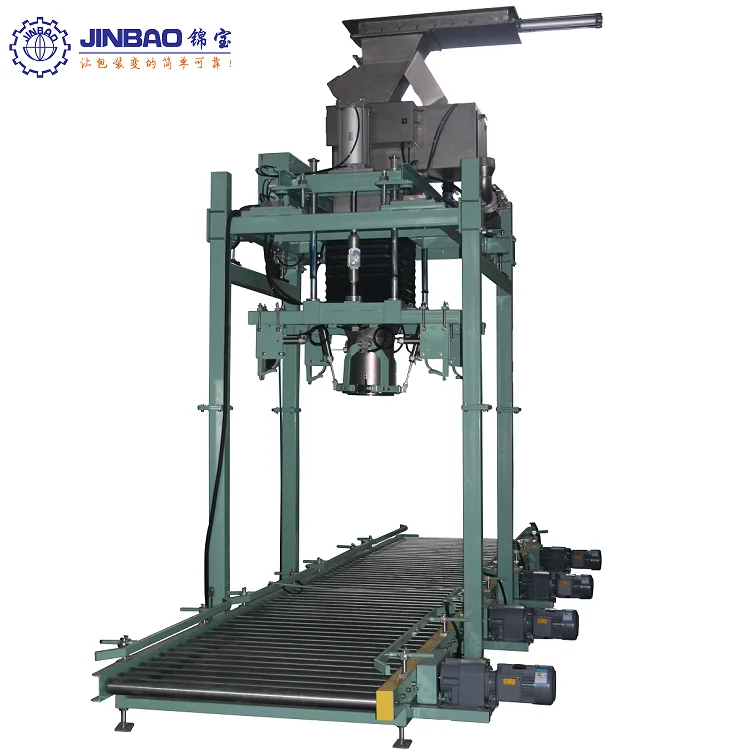

Big ton bag sodium chloride filling machine packing station
Product Description
Brief description

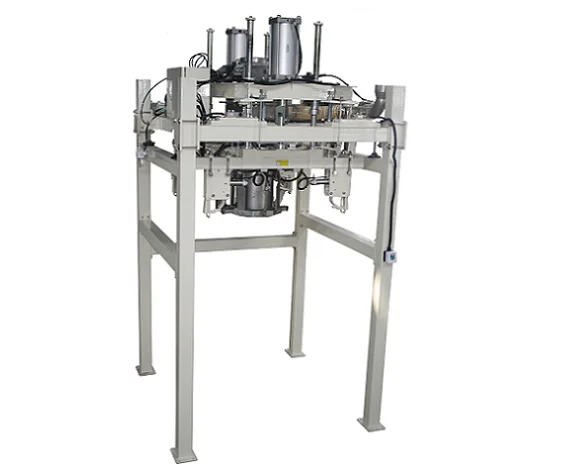

The Big / Jumbo Bag Filling Machine can be used to fill big bags ranging from 300 kg to 1000 kg. The operator simply has to place the bag on bag hooks and clamp the mouth of the bag.Options to seal the mouth of the bag with an inflatable gasket can be provided. The operation of filling the bag is done in two stages i.e. coarse feed and fine feed. Once the target weight is achieved a weight achieve signal is shown. Periodic consolidation of the material will be done to ensure that the product is compacted.
All contact parts of the machine can be done in S.S. 304 / 316 / 316L depending in the products characteristics. Custom designs are done for each machine to meet the site conditions and product characteristics.
The machine's controller has an integrated HMI which allows easy changes to performance parameters and observation of machine functions.
SPECIFICATIONS
Technical Parameters
Model
DCS-1000-ZL-DG
DCS-1000-PD-DG
DCS-1000-JL-DG
Packing range(KG)
500-1000
500-1000
500-1000
Packing accurate
≤±0.1%
≤±0.1%
≤±0.1%
Packing speed(bags/hr)
20-50
20-50
20-35
Voltage
AC380V 50Hz
Power(KW)
1.25
2.45
4.55
Machine weight(KG)
800
836
886
Machine sizes(mm)
1720*1720*3850
1720*2160*3560
1720*2800*3450
Features
1. Rugged heavy duty lift and weighing frame;
2. Four tension load cells with signal combiner;
3. Microcomputer based Weight Controller provides accurate set points;
4. PLC controls allow up to four “Intermediate” settling cycles of bag during filling;
5. Dual-wall filling spout with inflatable sealer and dust collection port;
6. Air filter/regulator with lockable shutoff valve;
7. Powered jogger settler;
8. Hi-amplitude low frequency pneumatic settling.
Applications

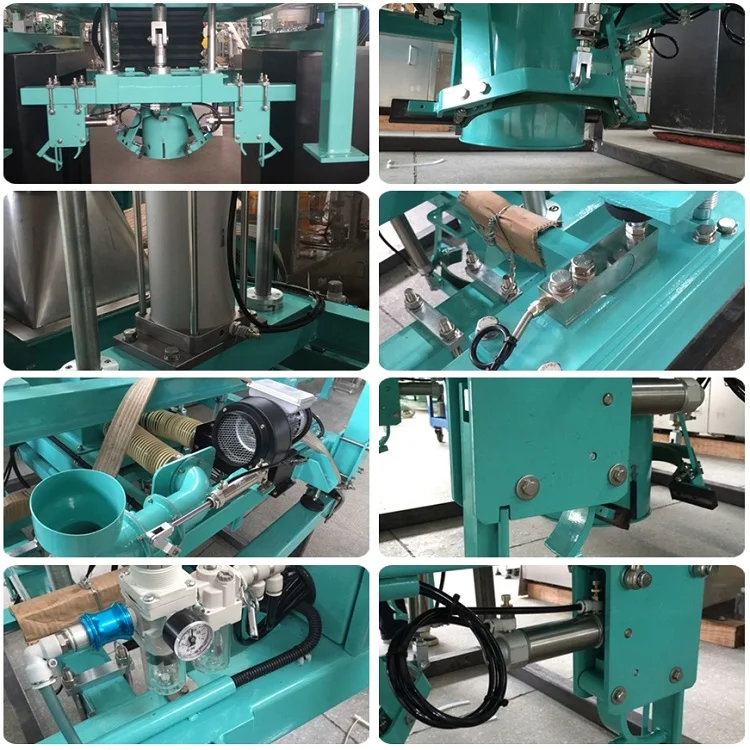

Detail images
