Heat Insulation Colorful Red Silicone Rubber foam for heater machine
Excellent Heat Resistance Red Silicone Rubber Sheeting Foam Sheet

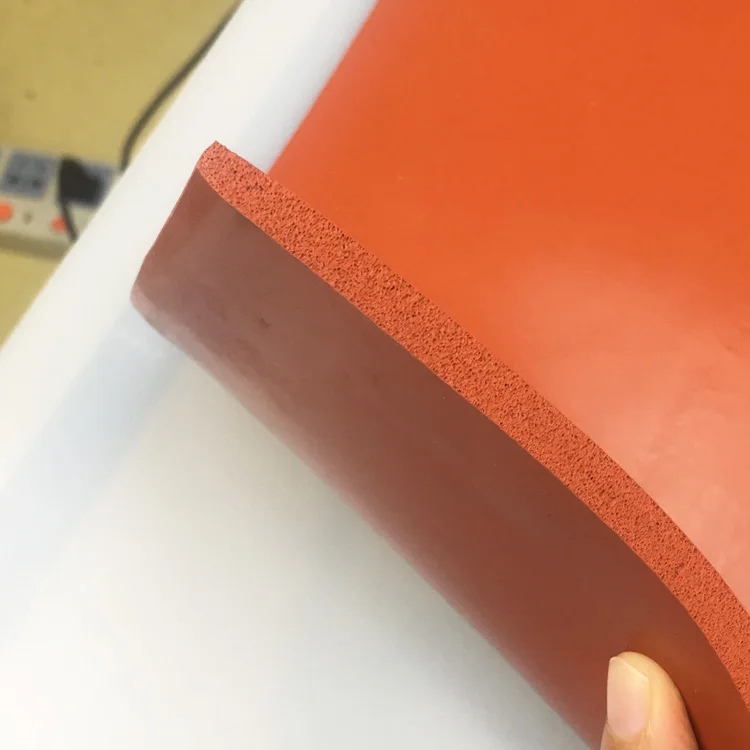

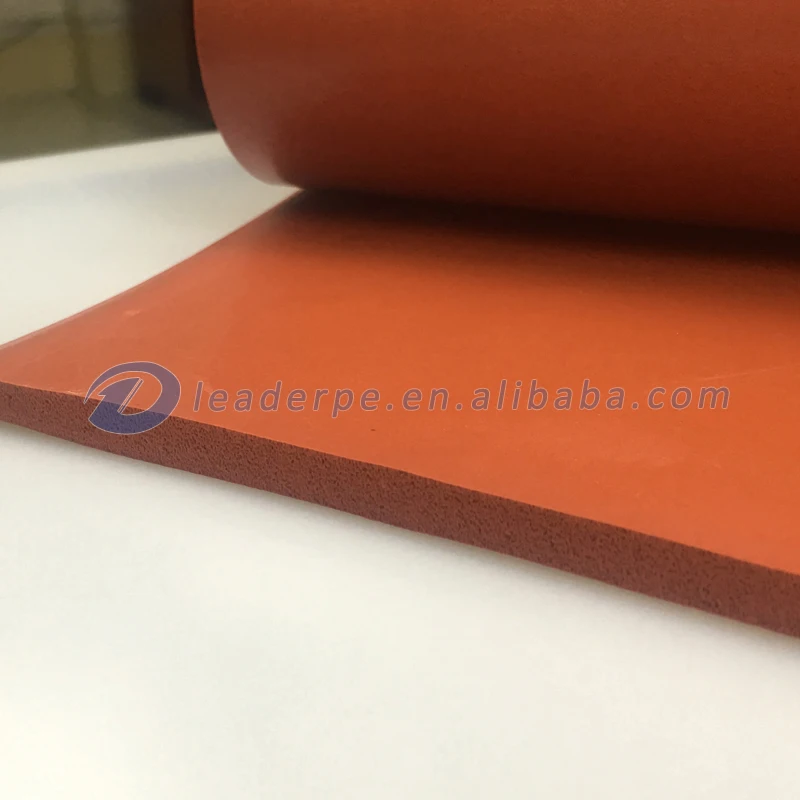

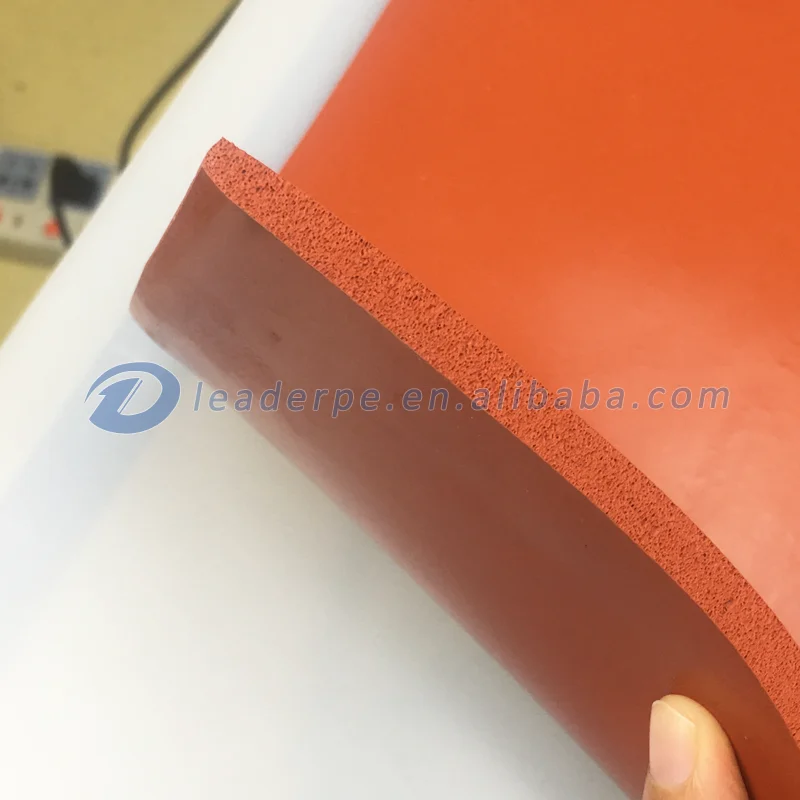

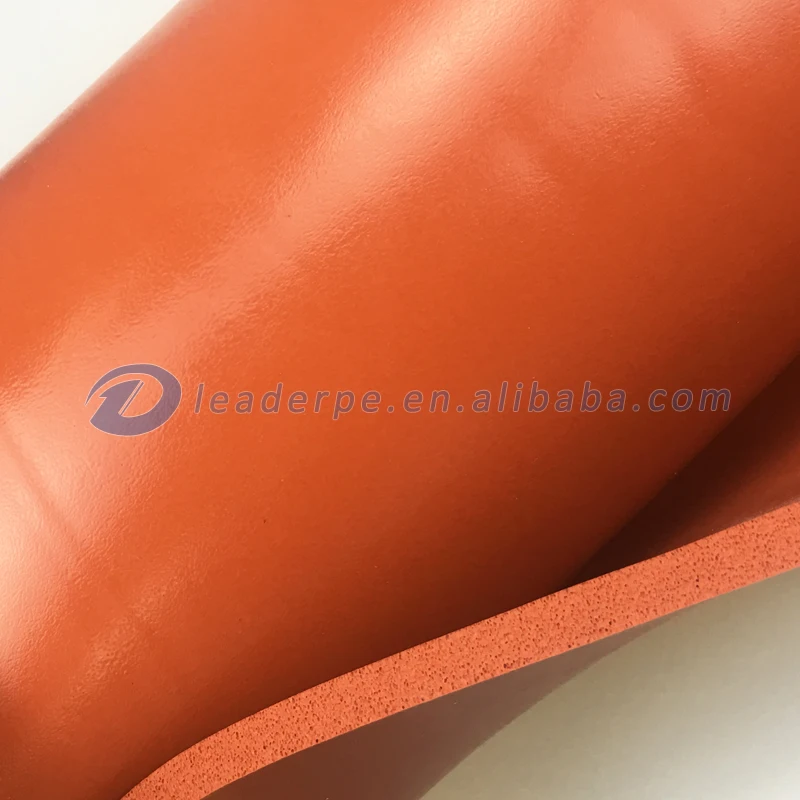

Red Silicone Rubber Sheeting Foam Sheet 200323 Red Silicone Rubber Sheeting Foam Sheet is a highly versatile, middle and upper firmness cellular silicone that offers the lightness of a foam, with the enhanced sealing capabilities of a traditional sponge rubber. It is used to seal and protect various outdoor communication, electronics, and lighting enclosures, while providing protection against wind driven rain and fire. The material is also used to reduce shock or isolate vibration.
Technical Sheet of Red Silicone Rubber Sheeting Foam Sheet
Property
Test Method
Typical Value
Color
~
Black/Gray/Orange

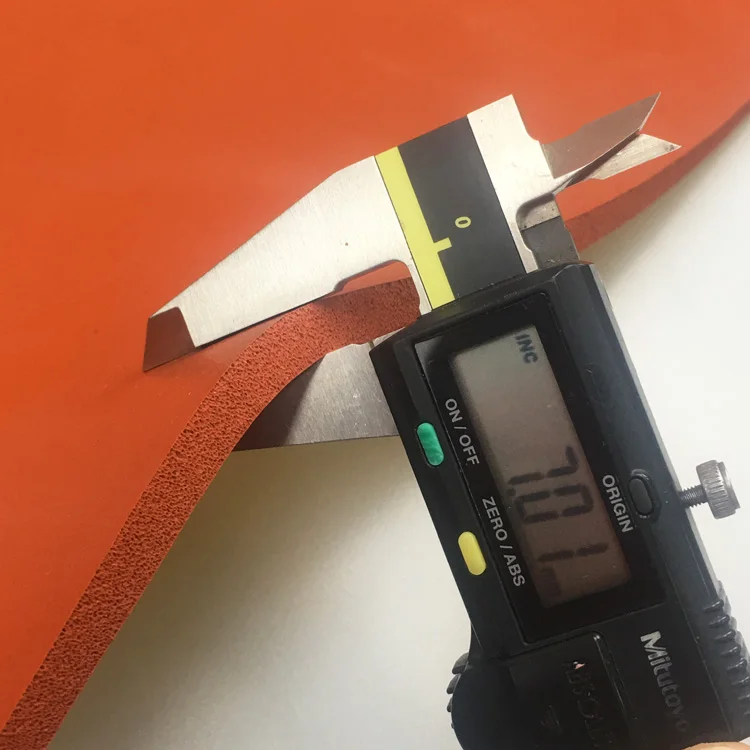

Thickness, Millimeter (mm) Tolerance
1-25mm
Density (kg/m3)
ASTM D 1056
500 kg/m3
Compression ForceDeflection, (Kpa)
Force measureed@25% Deflection ASTM D 1056
110.0(±15)Kpa
Compression Set % max
ASTM D 1056 Test @ 70℃ / 158 ℉
<1
ASTM D 1056 Test @ 100℃ / 212 ℉
<4
Tensile Strength, (kPa)
ASTM 412
≥300
Elongation, %
ASTM 412
≥80
Water Absorption
Internal:24h@25℃
<1.5%
Dielectric Constant
ASTM D 150
1.42
Volume Resistivity, Ohm-mm
ASTM D 257
1013
Low Temperature Flex at 67 ℉ (-55℃)
ASTM C 518
PASS
Recommended use Temperature ℉ (℃)
SAE J-2236
-67 to 500 (-55 to 260)
Recommended Intermittent High Temperature Use ℉ (℃)
482(250)
Toxic Gas Emissions Rating
SMP-800-C
PASS
Flammability
UL 94
V0

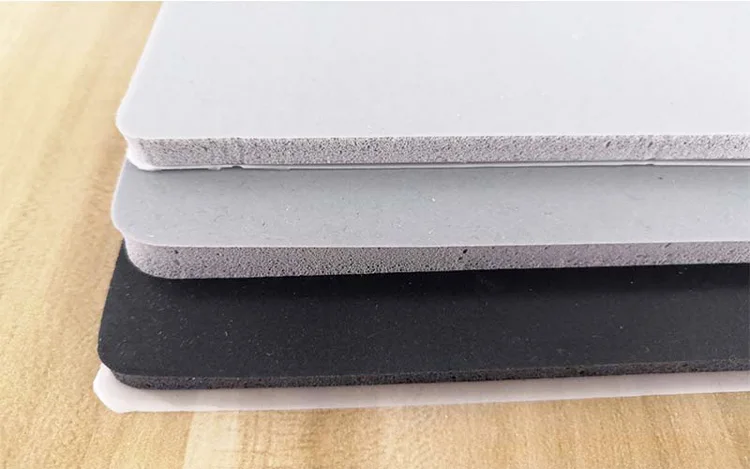

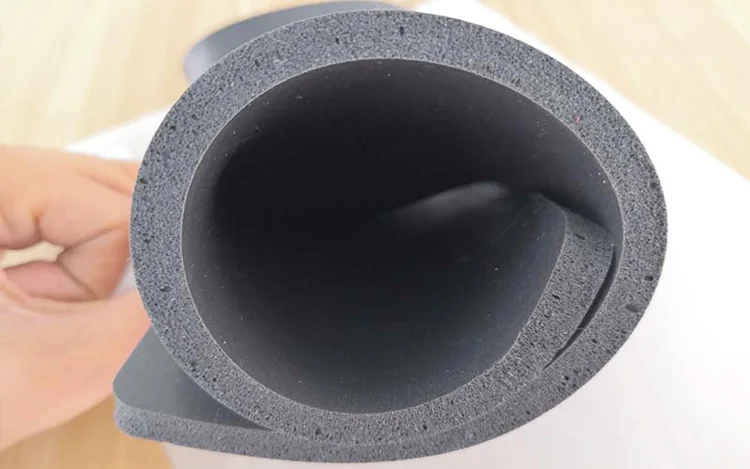

REMARK * Red Silicone Rubber Sheeting Foam Sheet 200323 cellular silicone is available: black, gray and orange, width is available from 460mm to 960mm, thickness is available from 1mm to 25mm. * Storage Time: 5-8 years in a normal temperature and humidity environment. * Data for design engineer spec. reference only. Engineers are reminded to test the material in application.
Features of Red Silicone Rubber Sheeting Foam Sheet
Excellent memory and low stress relaxation reduces maintenance costs associated with gasket failures due to compression set and softening.
Resistance to ultraviolet light, ozone, extreme temperatures, and flame enables consist performance in all environments.
Compact cell structure and unique formulation provides enhanced sealing performance to resist penetration of fine particles and wind-driven rain.
Excellent electric insulation
Steady-going storage.
Applicaton of Red Silicone Rubber Sheeting Foam Sheet
Environmental seals to protect against penetration of dust, moisture, air, or light within outdoor enclosures such as lighting fixtures, High Voltage Alternating Current units, and electronic cabinets.
Vibration isolators in electronic components and transportation vehicles.
Shock absorbing cushions and gaskets.
Why Choose Our Red Silicone Rubber Sheeting Foam Sheet
Silicone foam sheet is a medium stress silicone foam material, which has excellent compression resistance and permanent deformation, compared with the traditional carbon foam material. Our silicone foam sheet has excellent resistance to high and low temperature (-60-200℃), high flame retardant (v-0) very low smoke concentration, excellent weather resistance and aging resistance. It is the great material for shock absorption, buffer, sound insulation, protection and insulation, etc.
BEST Red Silicone Rubber Sheeting Foam Sheet Manufacturer

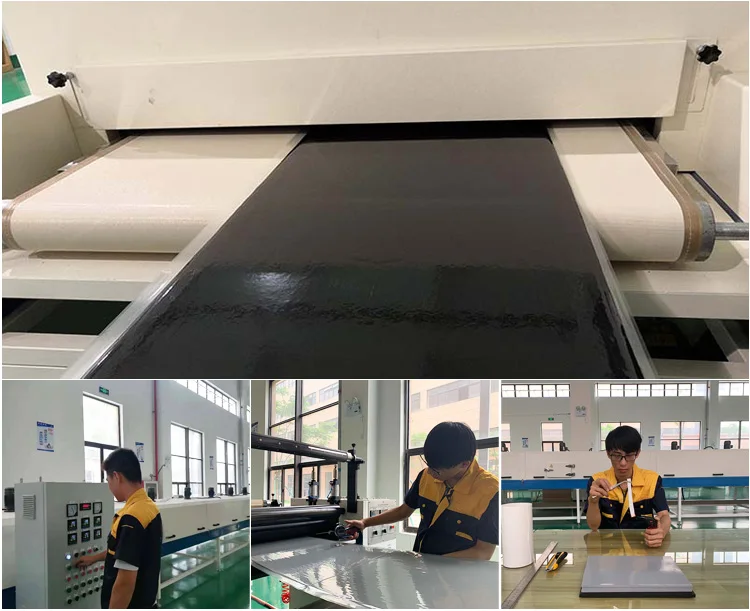

Leader OPUS a scientific and technological enterprise specialized in the research and development, production and sales of electronics materials and other high technolgical material. We also provide die cutting service for silicone foam shet.
