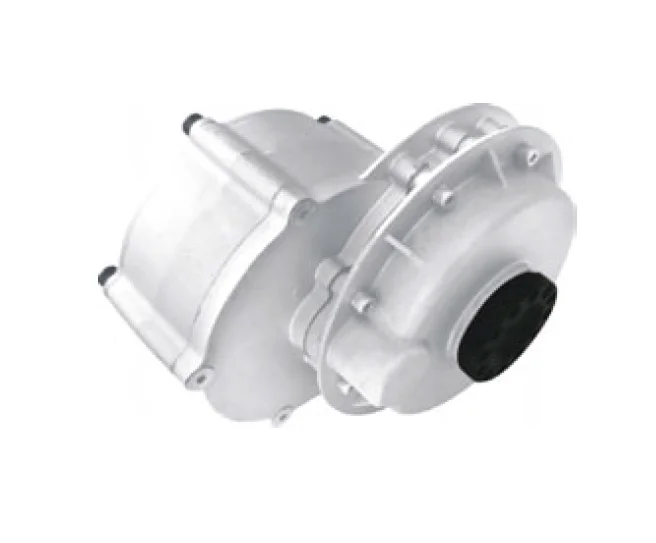

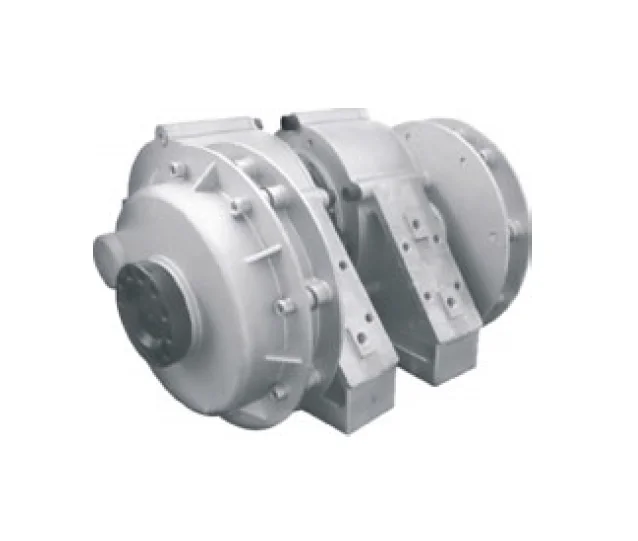

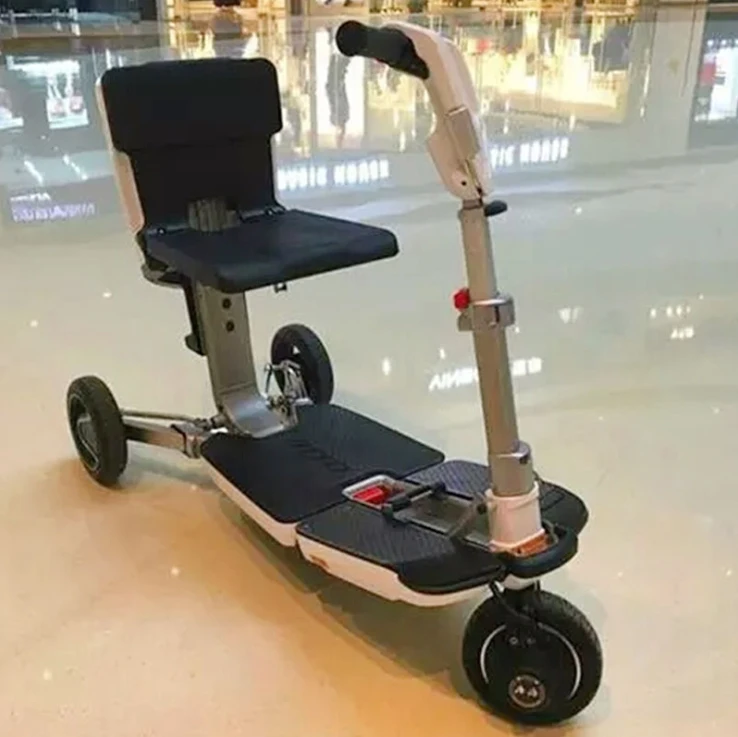

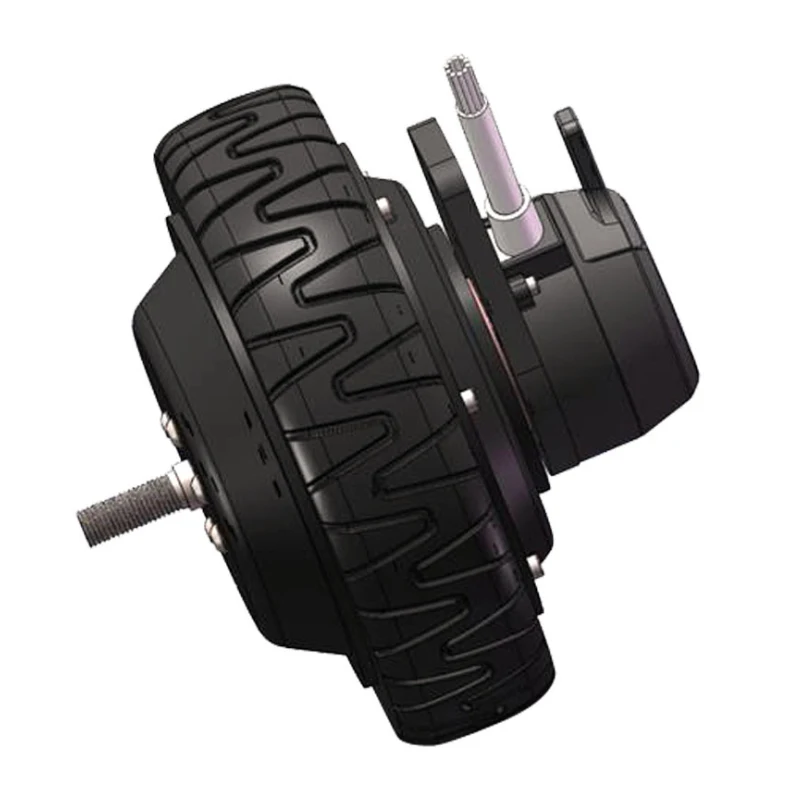

24v 180w wheel hub brushless motor with gearbox for electric wheelchair
- Category: >>>
- Supplier: Ningbo Biote Mechanical Electrical Co. Ltd
Share on (62518018001):
Product Overview
Description
Cooperation products:
△DC Motor with worm for power wheelchair
△BLDC Motor for power wheelchair
△Drive unit for power wheelchair
△Transaxle for the scooter
△Control system
Feature :
Application for Lightweight portable
With two stage gearbox.the max gear ratio to 10:1- 22:1
Type | Voltage (VDC) | Noload speed (r/min) | Power (W) | Brake Voltage (VDC) | Ratio | Braking Torque (N.m) |
110ZW/180 | 48 | 140 | 250 | 48 | 10:1-22:1 | 3 |
Product Description
86JC Series
Gear type: Hybrid Gear
Manual Override: No
Dynamic braking: Yes
Holding brake: Brake
Motor connection: Connector
87JC Series
Gear type: Hybrid Gear
Manual Override: No
Dynamic braking: Yes
Holding brake: Brake
Motor connection: Connector
86 series Type | Voltage (VDC) | Noload speed (r/min) | Rated torque (N.m) | Rated speed (r/min) | Noload current (≤A) | Brake voltage (VDC) | Ratio | Braking torque (N.m) | Clutch Type |
68ZY24-86JC01 | 24 | 138 | 16.5 | 118 | 20 | 24 | 32:1 | 3 | Brake |
68ZY24-86JC02 | 24 | 138 | 16.5 | 118 | 20 | 24 | 32:1 | 3 | Brake |
87 Series Type | Voltage (VDC) | Noload speed (r/min) | Rated torque (N.m) | Rated speed (r/min) | Noload current (≤A) | Brake voltage (VDC) | Ratio | Braking torque (N.m) | Clutch Type |
80ZY24-300-87JC01 | 24 | 132 | 16 | 120 | 17 | 12 | 26：1 | 3 | Brake |
80ZY24-300-87JC02 | 24 | 132 | 16 | 120 | 17 | 12 | 26：1 | 3 | Brake |
80ZY24-350-87JC01 | 24 | 188 | 12 | 178 | 18 | 12 | 26：1 | 3 | Brake |
80ZY24-350-87JC02 | 24 | 188 | 12 | 178 | 18 | 12 | 26：1 | 3 | Brake |
88JC Series
Gear type: Hybrid Gear
Manual Override: Yes
Dynamic braking: Yes
Holding brake: Brake
Motor connection: Connector
89JC Series
Gear type: Hybrid Gear
Manual Override: No
Dynamic braking: Yes
Holding brake: Brake
Motor connection: Connector
88 series Type | Voltage (VDC) | Noload speed (r/min) | Rated torque (N.m) | Rated speed (r/min) | Rated current (≤A) | Brake voltage (VDC) | Ratio | Braking torque (N.m) | Clutch Type |
80ZY24-340-88JC01 | 24 | 138 | 12 | 130 | 14.5 | 24 | 32:1 | 3 | gearbox |
80ZY24-340-88JC02 | 24 | 138 | 12 | 130 | 14.5 | 24 | 32:1 | 3 | gearbox |
80ZY24-180-88JC01 | 24 | 92 | 12 | 84 | 10.5 | 24 | 32:1 | 3 | gearbox |
80ZY24-180-88JC02 | 24 | 92 | 12 | 84 | 10.5 | 24 | 32:1 | 3 | gearbox |
89 series Type | Voltage (VDC) | Noload speed (r/min) | Rated torque (N.m) | Rated speed (r/min) | Noload current (≤A) | Brake voltage (VDC) | Ratio | Braking torque (N.m) | Clutch Type |
90ZY24-450-89JC01 | 24 | 168 | 12 | 156 | 16 | 12 | 20:1 | 3 | Brake |
90ZY24-450-89JC02 | 24 | 168 | 12 | 156 | 16 | 12 | 20:1 | 3 | Brake |
90ZY24-500-89JC01 | 24 | 132 | 16 | 118 | 16 | 12 | 20:1 | 3 | Brake |
90ZY24-500-89JC02 | 24 | 132 | 16 | 118 | 16 | 12 | 20:1 | 3 | Brake |
90ZY24-550-89JC01 | 24 | 236 | 12 | 222 | 22.5 | 12 | 20:1 | 3 | Brake |
90ZY24-550-89JC02 | 24 | 236 | 12 | 222 | 22.5 | 12 | 20:1 | 3 | Brake |
91JC Series
Gear type: Hybrid Gear
Manual Override: No
Dynamic braking: Yes
Holding brake: Brake
Motor connection: Connector
126 Series
Gear type: Hybrid Gear
Manual Override: Yes
Dynamic braking: Yes
Holding brake: Brake
Motor connection: Connector
91 series Type | Voltage (VDC) | Noload speed (r/min) | Rated torque (N.m) | Rated speed (r/min) | Noload current (≤A) | Brake voltage (VDC) | Ratio | Braking torque (N.m) | Clutch Type |
68ZY24-91WJ01 | 24 | 130 | 12 | 85 | 20 | 24 | 28:1 | 3 | Brake |
68ZY24-91WJ02 | 24 | 130 | 12 | 85 | 20 | 24 | 28:1 | 3 | Brake |
126 series Type | Voltage (VDC) | Noload speed (r/min) | Rated torque (N.m) | Rated speed (r/min) | Noload current (≤A) | Brake voltage (VDC) | Ratio | Braking torque (N.m) | Clutch Type |
90ZY24-126WJ01 | 24 | 185 | 17 | 170 | 20 | 24 | 25:1 | 3 | Brake |
90ZY24-126WJ02 | 24 | 185 | 17 | 170 | 20 | 24 | 25:1 | 3 | Brake |
Standard Feqtures and benefits:
1 Worm & parallel gear hybrid structure
2 Economical and powerful DC Motor
3 Special gear materials ensure long life
4 Easy assembly
5 Low noise
6 Powerful torque and running blance
7 Cluth in side easy to change manual model

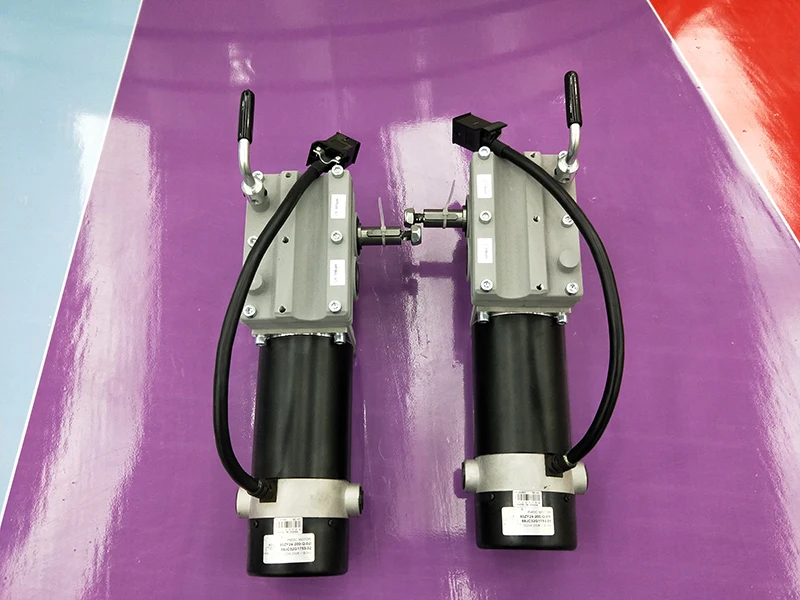

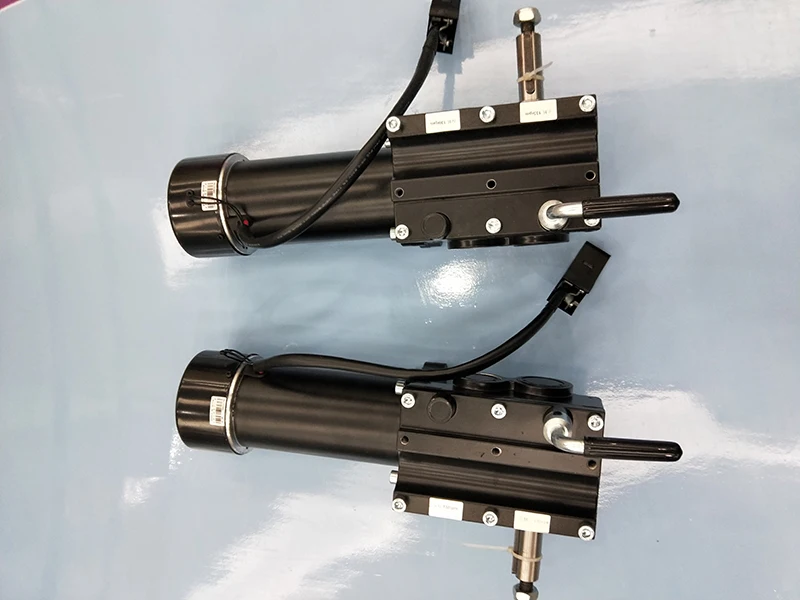

Detailed Images
