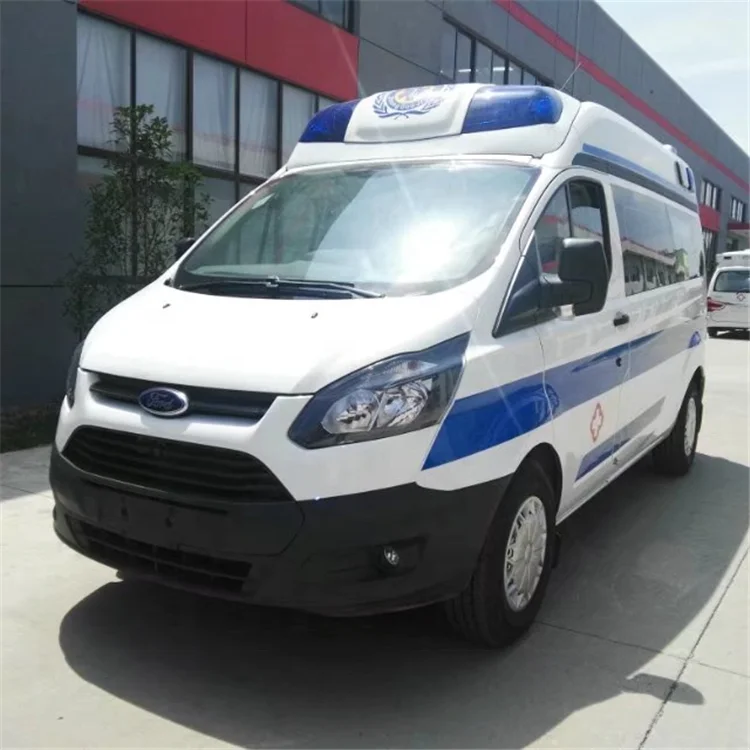

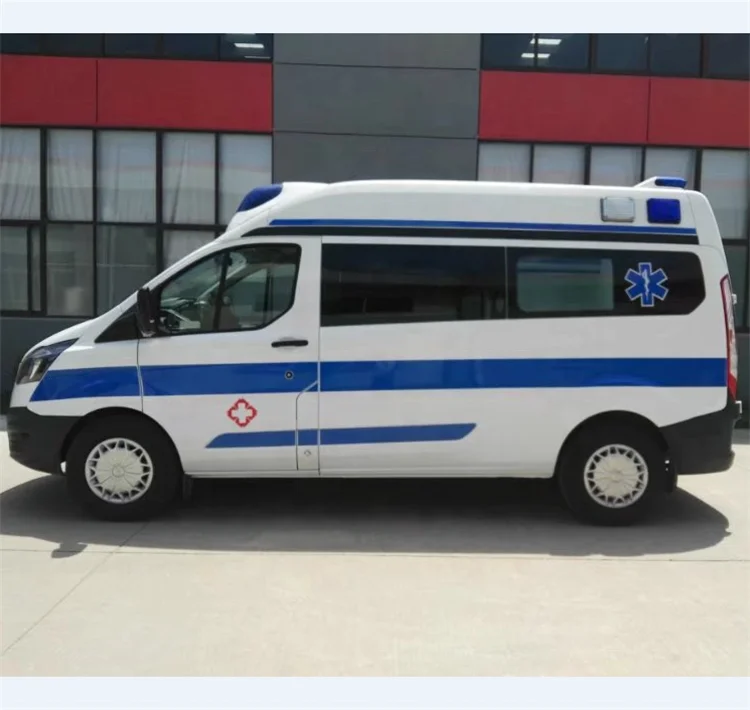

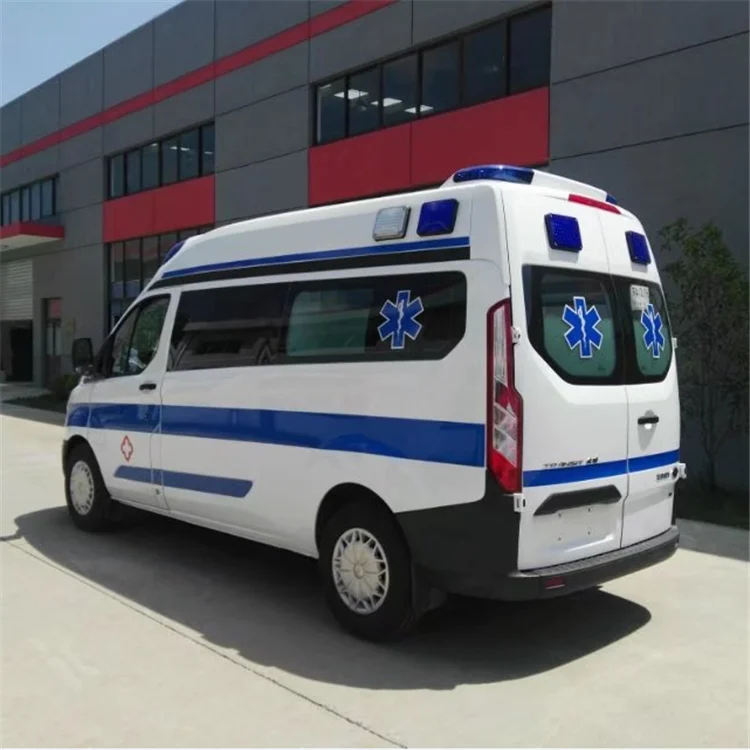

American Brand Latest Emergency Vehicles Cheap Ambulance

A

Technical specs of American ICU ambulance

Dimensions and masses

Wheelbase (mm):3750

Wheel tread (mm): 1740/ 1704  (front/rear)

Minimum ground clearance (mm):195

Turning diameter(m):13.3

Overall dimensions (mm):5780×2000×2680

Dimension of Patient's compartment  (mm):3200×1700×1830

Complete vehicle curb mass:(kg):2760

GVW (kg):3700

Number of crew:  7 persons

Engine:DURATORQ4D225H

Fuel type:  diesel

Fuel consumption:10L/100km

Working manner: in-line ,4 cylinders, Turbocharged inter-cooled, high pressure common rail diesel engine

Displacement (ml.):2198

Emission standard:GB17691-2005 China V, GB3847-2005

Maximum power:100kw

Max. torque: 350N.m

Gearbox:MT-82  6 speed, mechanical

Chassis :JX6581TA-M5

Front overhang:933/1097 (mm)

Brake: four wheels disc brake, power-assisted brake

Max. speed (Km/h):145

Steering system: gear, rack power-assisted steering

Tire:215/75R16LT

Fuel tank capacity(L):70

B

Standard configuration of vehicle

1

Manual side mirror

2

Power window

3

CD player

4

Hand-free Intercom system between driver's cab and Patient's compartment

5

3 seats in driver's cab

6

Double open rear door

7

Foot pedal in rear door

Air conditioner and lighting system

1

the original air conditioning is installed in driver's cab

2

the original air conditioning is installed in Patient's compartment

3

Exhaust system is installed on Patient's compartment roof

2

2 illumination lights for right side and left side of vehicle outside

3

1 illumination light rear side of vehicle outside

4

illumination light front side of vehicle outside

5

LED illumination light in Patient's compartment

6

spotlight lights inner roof of Patient's compartment

7

Ultraviolet radiation disinfector light

Central power supply distribution system

1

Automatic charging system

2

10m mobile cable

3

12V outlets in Patient's compartment

4

220V outlets in Patient's compartment

5

230V/16A waterproof outside outlet with protection cover

6

12V DC power-supply system

7

Intelligent inverted power supply system(12V -220V)

8

Multi-function control system

Emergency alarm system

1

Control plate of siren and alarm lamp mounted in driver's cab

2

Adjustable volume alarm apparatus

3

100W loud speaker

4

Blue Flashing alarm light bar mounted on the front roof of vehicle

5

blue flashing alarm lamps four sides of vehicle outside roof

 F

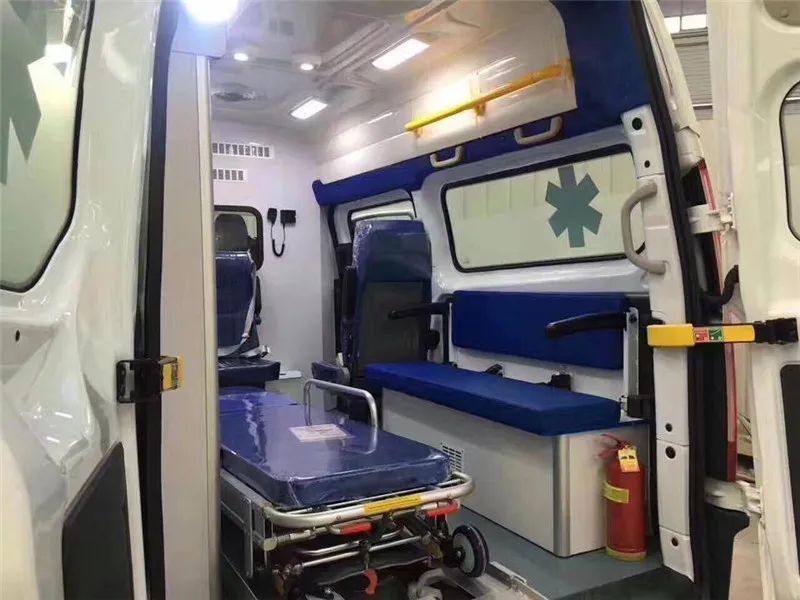

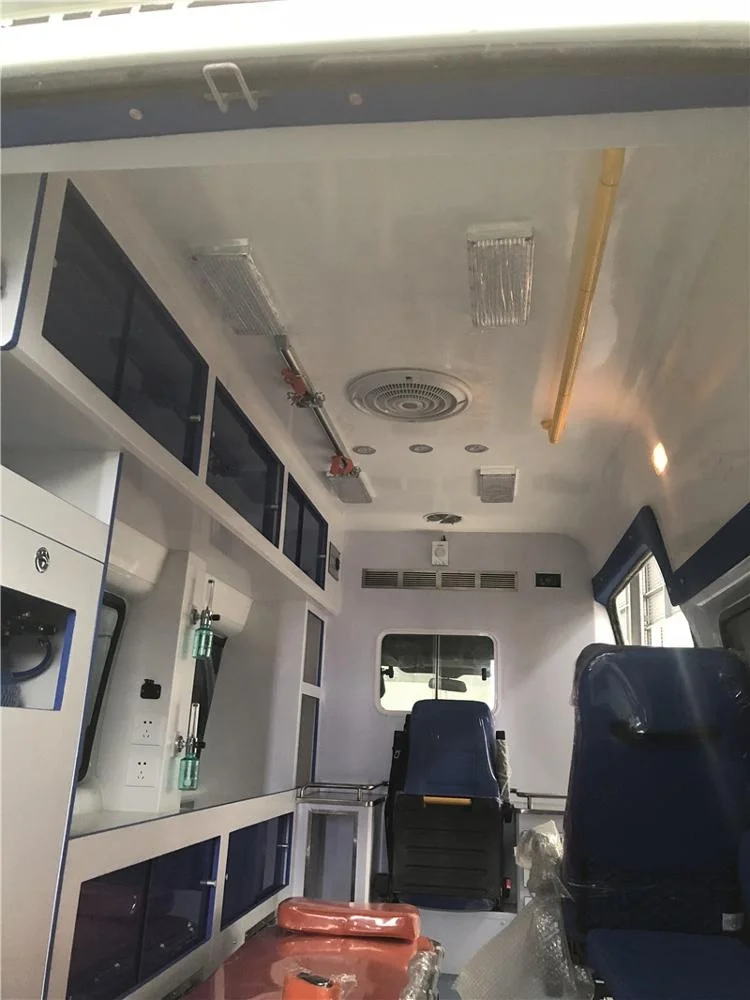

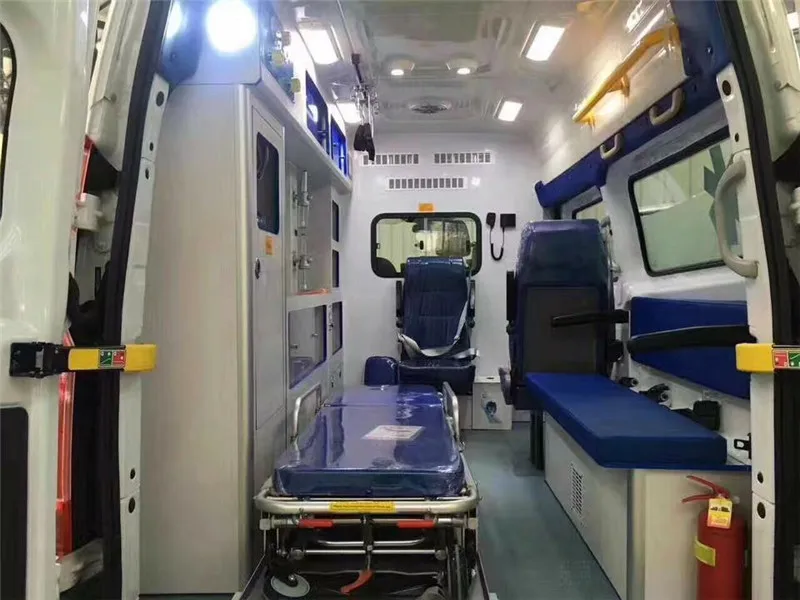

 Patient's compartment

1.

Partition wall between driver's cab and Patient's compartment , a glass window in wall to make observation

2.

A foldable doctor seat (with safe belt) mounted to floor near to compartment wall

3.

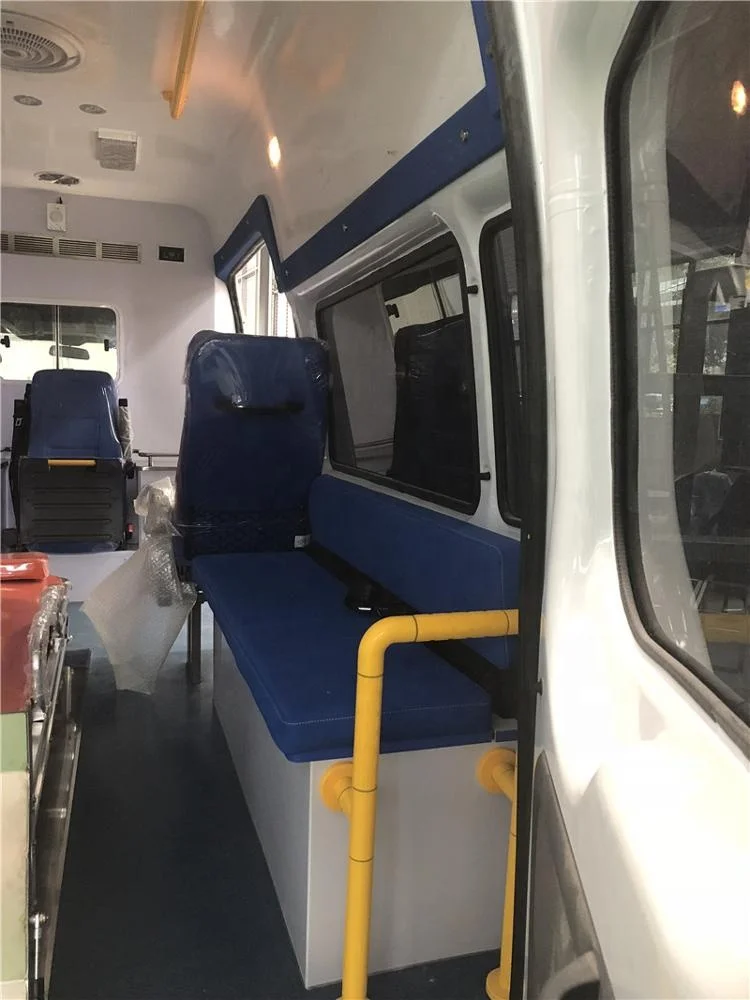

Long bench one piece (suitable for 3 people) with safe belts, mounted in right side of Patient's compartment

4.

Scoop stretcher storage cabinet under bench bed

5.

Oxygen bottle in steel, 3 cubic meters (10L×2) ,mounted in left side of vehicle

6.

Oxygen terminal (with oxygen interface and humidification bottle)

7.

Oxygen reducing valve

8.

composite material interior decoration in patient compartment

9.

Medicine cabinet one piece made of high polymer material, mounted in left side of Patient's compartment

10.

Imported Interior medical floor, acid & alkali resistance, fire prevention, anti-skid, anti-static.

11.

perimeter embossing edge wrapping of Patient's compartment , dust-proof, anti-skidding, washable

12.

Multi-functional interior roof in Patient's compartment , with handrail, transfusion hanging bracket

13.

Ventilation fan mounted in the interior roof of Patient's compartment

14.

Medicine and equipments storage cabinet under partition wall

15.

Strong blue or red reflective strip in waist of body

16.

Storage cabinet mounted in left front side of patient compartment

17.

Medical equipment cabinet in left side of Patient's compartment

18.

220V outside power supply

19.

Collision avoidance head restraint mounted in Patient's compartment

20.

Mobile Self-lifting stretcher

21.

Adjustable shovel Stretcher
