New design weaving yarn mesh silk scarf for dyeing machine
- Category: >>>
- Supplier: Nantong East Heptanoic Machinery Co. Ltd.
Share on (62518382563):
Product Overview
Description
Products Description

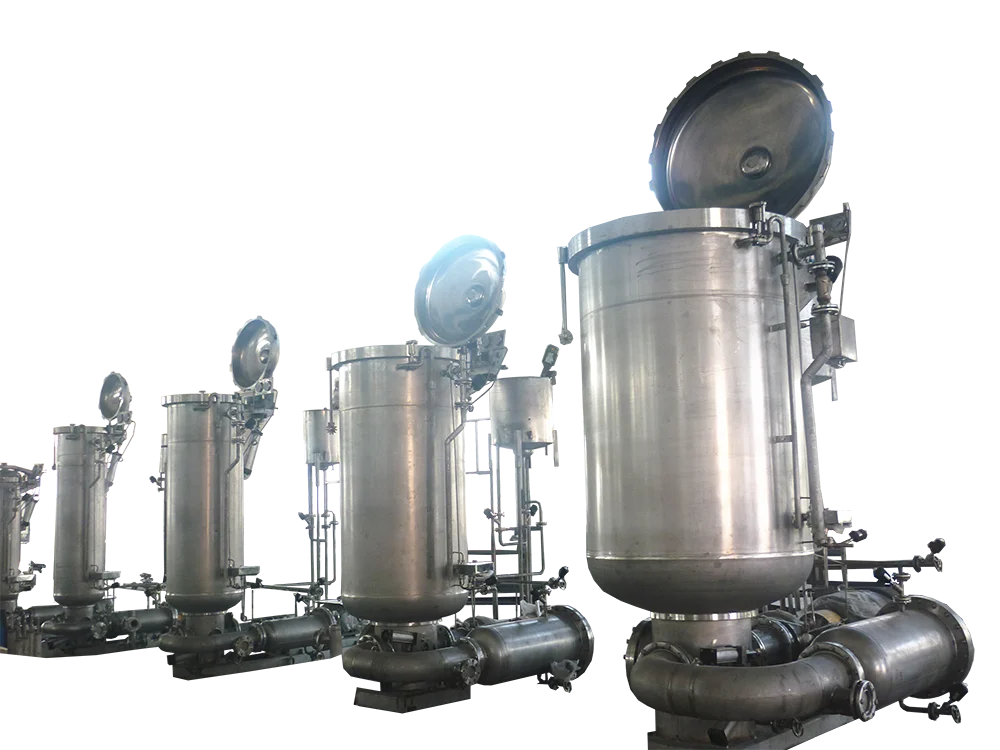

DONGGENG High Temperature High Pressure Jet Dyeing Machine
Modern dyeing factory in the 21st century must have efficient energy-saving low bath ratio at room temperature and pressure hank yarn jet dyeing machine. Based on the consideration of environmental protection and energy conservation, Our company has developed a unique double transmission system dyeing machine based on the existing dyeing technology. Its bath ratio is reduced by 35% on the traditional basis. With the precise intelligent control, the stainless steel 316 is adopted. By the way, you have a durable and advanced equipment experience, but also to make your production process of cutting-edge world.
Technical Data
1) Design pressure: 0.44Mpa
2) Maximum working pressure: 0.4Mpa
3) Design temperature: 140 ℃
4) Maximum operating temperature: 135 ℃
5) Effective length of hanging yarn: 1200-1500mm
6) Suitable length of hank: 820mm
7) Bath ratio: 1: 8-12
8) Heating rate: 20 ℃ ~ 130 ℃ for about 30 minutes (saturated steam pressure value of 0.7Mpa)
9) Cooling rate: 130 ° C to 80 ° C for about 20 minutes
2) Maximum working pressure: 0.4Mpa
3) Design temperature: 140 ℃
4) Maximum operating temperature: 135 ℃
5) Effective length of hanging yarn: 1200-1500mm
6) Suitable length of hank: 820mm
7) Bath ratio: 1: 8-12
8) Heating rate: 20 ℃ ~ 130 ℃ for about 30 minutes (saturated steam pressure value of 0.7Mpa)
9) Cooling rate: 130 ° C to 80 ° C for about 20 minutes
Standard Structure
1) Body: high-quality high-corrosion-resistant stainless steel
2) Spray tube: high corrosion-resistant stainless steel plate manufacturing
3) High-performance stainless steel axial flow pump
4) Reliable PLC program controller
5) Automatic opening system
6) Machine design of multiple sets of security operating system
7) Easy to install yarn, yarn, cleaning nozzle tools
2) Spray tube: high corrosion-resistant stainless steel plate manufacturing
3) High-performance stainless steel axial flow pump
4) Reliable PLC program controller
5) Automatic opening system
6) Machine design of multiple sets of security operating system
7) Easy to install yarn, yarn, cleaning nozzle tools
Our Advantages
●This model is suitable for the dyeing of cotton, polyester, acrylic, nylon, wool, hemp yarn.
●This series of models of innovative design, compact and energy efficient Cheese dyeing machine, under the conditions of the same heating area, the unique design of heat exchangers heating and cooling can achieve the best results.
●The main pump and heat exchanger compact, heat loss, can improve the efficiency of dye flow.
●Compared with conventional dyeing machine, the overall circuit arrangement is simple, effective space-saving area
●Precise flow control so that the yarn ito the dyeing of the roving can achieve Jligh quality results.
●The inverter control of the main pumpmotor, stepless flow control,saving start and load shedding to run the energy consumption.
