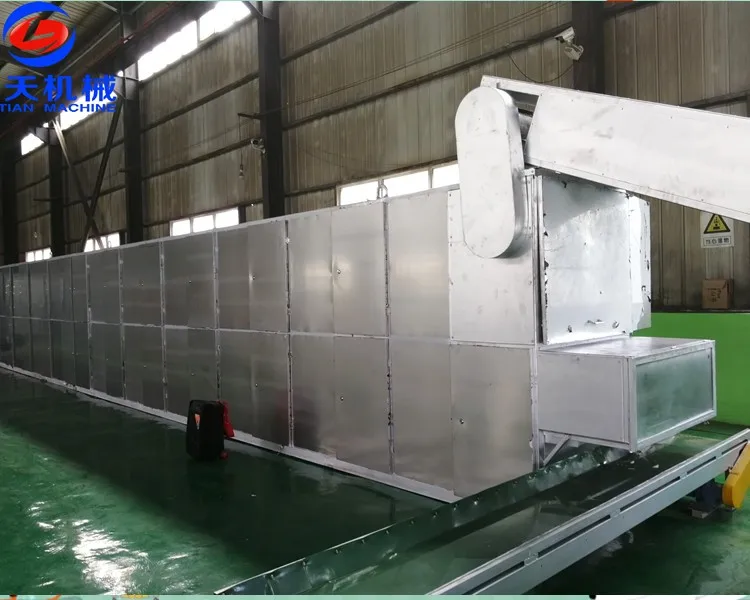

Continuous Hemp Seed And Flower Stainless Steel Mesh Belt Dryer
Based on the characteristics of material and practical experience, our factory products the hemp drying machine, improve the drying efficiency, to solve the requirements of weather and site area; at the same time to solve the drying cost of labor, the quality of instability ,thus greatly reducing the cost of material drying, to achieve a large quantity material production.hemp drying machine is the continuous drying equipment in large quantities dehydrated production. The hemp drying machine running speed, drying temperature and humidity can be adjusted to meet the different water content, different varieties of materials.
Specification
Model
Power
Dimension
Weight
Capacity
LT-12
19.75KW
12*1.5*2.2m
7000kg
300-500kg/h
LT-16
26.75KW
16*2*2.2m
9000kg
500-1000kg/h

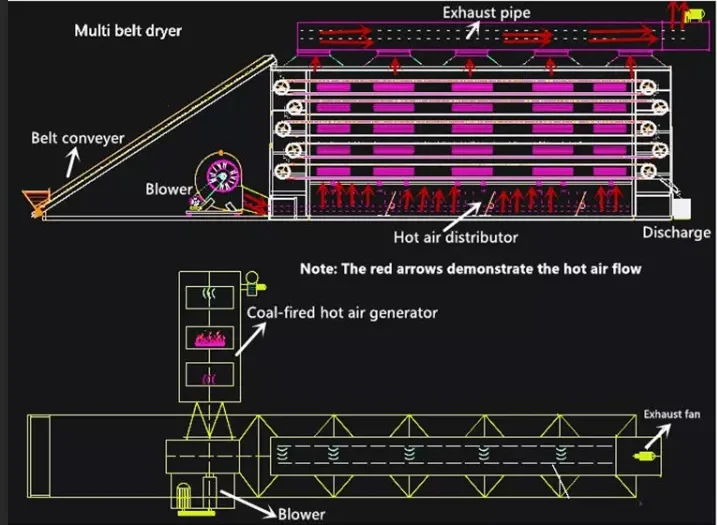

Operating Principle for Mesh Blet Dryer Machine :

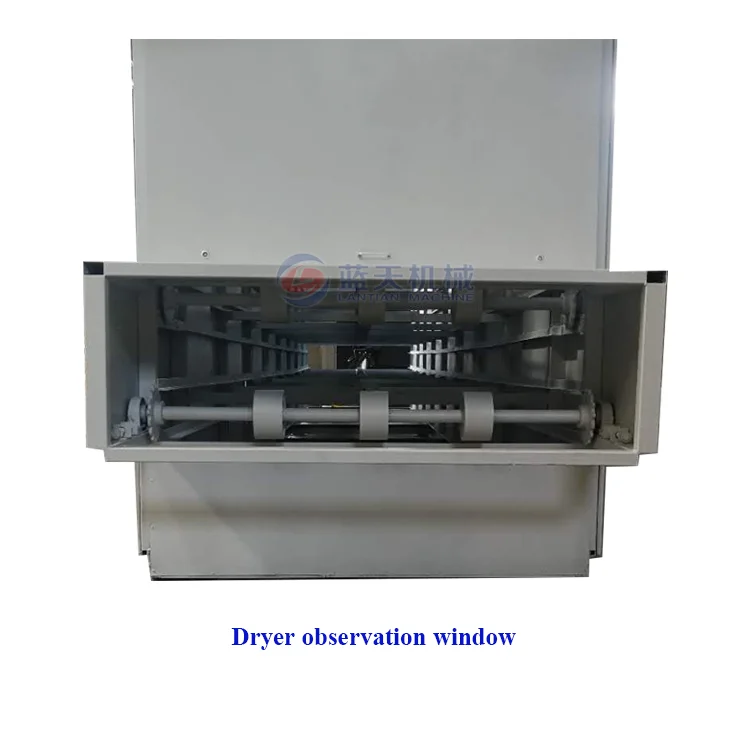

The utility model is provided with a door on both sides of the baking room to facilitate the installation and maintenance of the equipment in the baking room and the troubleshooting of the equipment;An observation hole is set on the door to observe the baking condition in real time.The baking tray is arranged on the chain. Driven by the chain, continuous baking can be realized.The chain and the baking sheet are connected by a movable matching connection, which can quickly remove the baking sheet and put the baking sheet on the baking sheet;The driving device is driven by a frequency conversion motor, which can adjust the running speed of the chain according to the required baking time.The utility model USES electric heating elements to heat and the temperature of the baking room can be adjusted by a temperature control device.The utility model can realize continuous baking operation with high thermal efficiency and baking efficiency.The utility model has simple structure, reliable operation and is suitable for drying the flower and leaf of industrial hemp.

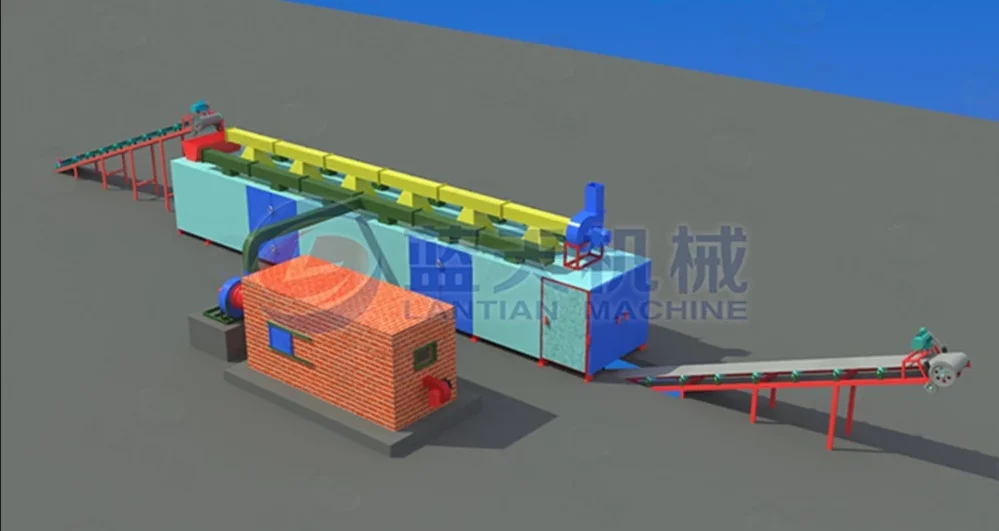

Details Images
Item1:
Parameter
Feeder conveyor
Feeding and conveying with laying plate, can make the material uniform into the dryer box, drying more uniform.

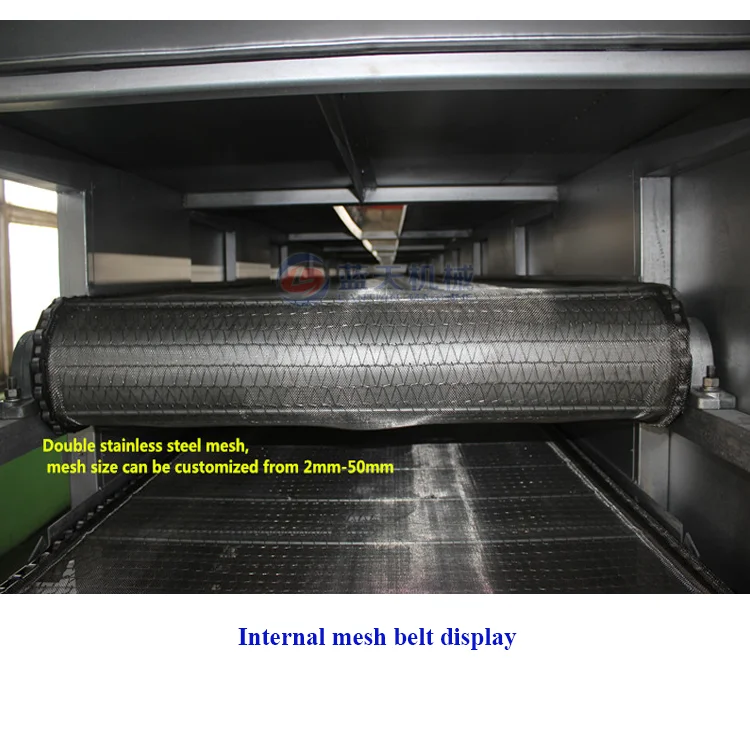

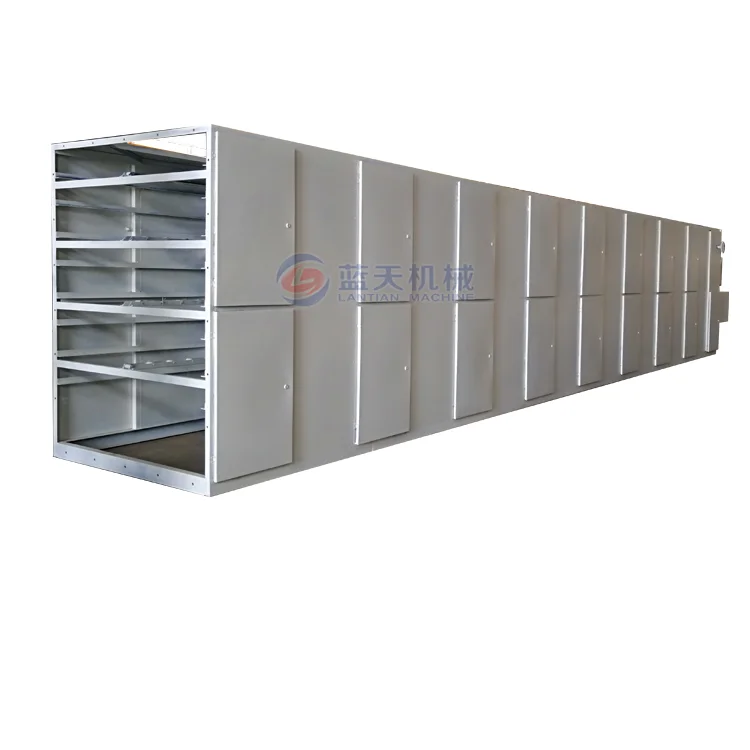

Item2: Belt dryer chamber
The dryer chamber size can be support customized. we can make stainless stell material, usual steel .
Item3: Heat exchange furnace
Dimension: 2200*1100 *2200 Weight :800kg Heating fuel: Coal, wood, natural gas, propane, water vapor, electric heating.
Item4: Draft fan
Dimension:2*1*2.2m Power: 22KW Blow hot air into the dryer room.

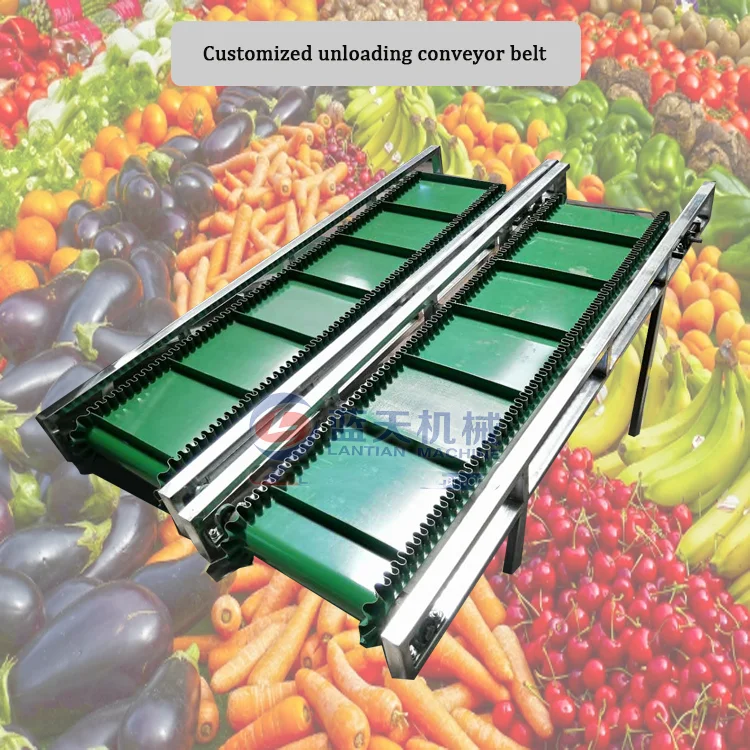

Item5: Discharge conveyor
Weight :100kg Motor: 1.1kw In order to facilitate loading, we support customized conveyor belt to adjust a certain Angle
Item6: PLC control cabinet
Dimension: 4*0.6*0.3 m Equipped with PLC, can be set during drying process, according to the moisture requirements of raw materials, different speeds can be set for drying.
The suitable raw material :
1>Fruit:Almonds, jujube, peanuts, longans, walnut, papaya tablets, apple, lemon, hawthorn pills, bananas, etc.
2>Vegetable:Asparagus, beans, kidney beans, lentils, eggplant, red pepper, Chinese prickly ash, black fungus, tremella, papaya tablets, pills, bitter melon, radish, cucumber slices, mushrooms, mushrooms, ginger, garlic, etc.
3>Medicinal material:Flos lonicerae, radix scutellariae, salvia miltiorrhiza, burdock, fructus schisandrae, codonopsis, radix rehmanniae, prepared rhizome of rehmannia, mulberries, forsythia, Chinese wolfberry, etc.
4>Others:Lily, rose, peony seed,fennel seeds,etc.
The different type dryer

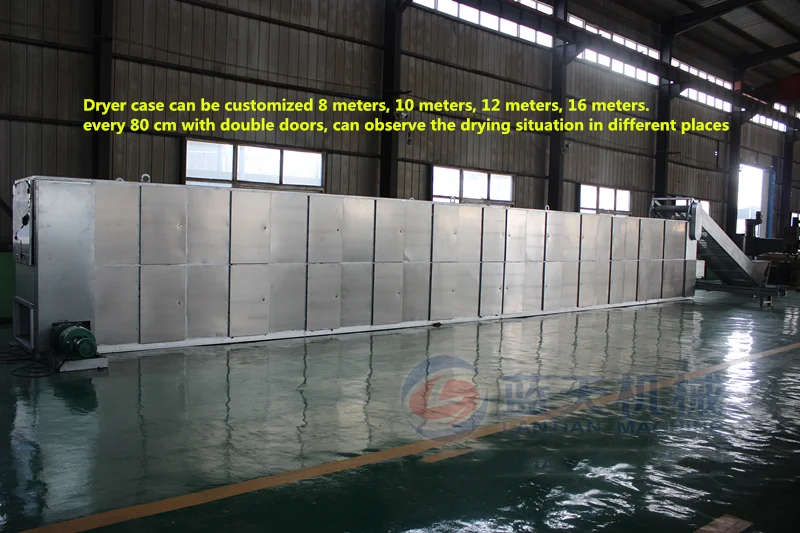

1>Mesh belt dryer:Also known as continuous mesh belt dryer, mainly used for drying solid materials. We can customize different models for customers' requirements. The length can be customized 8 meters, 10 meters, 16 meters. It is characterized by large output, energy saving and environmental protection.It equip with PLC control cabinet
2>Heat pump box dryer: It is used in a wide range of applications, including fruit, vegetables, meat, and other raw materials. But it belongs to static drying and takes a long time.according to different raw material need 5-24 hours.
3>Rotary drum dryer: This is industrial drying and is used for drying raw materials such as grain, sand and sludge.

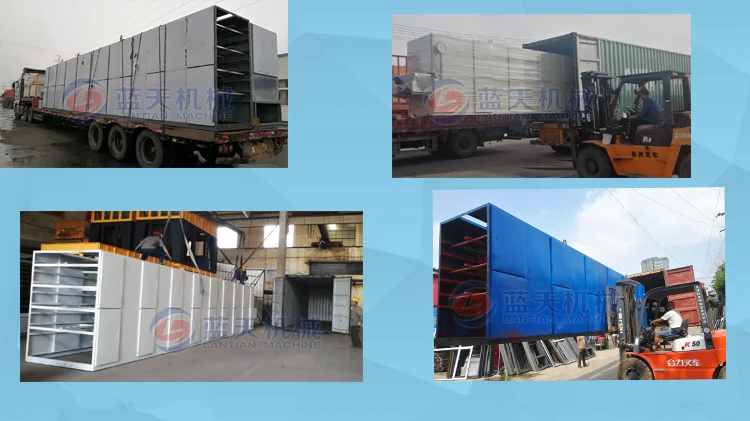

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

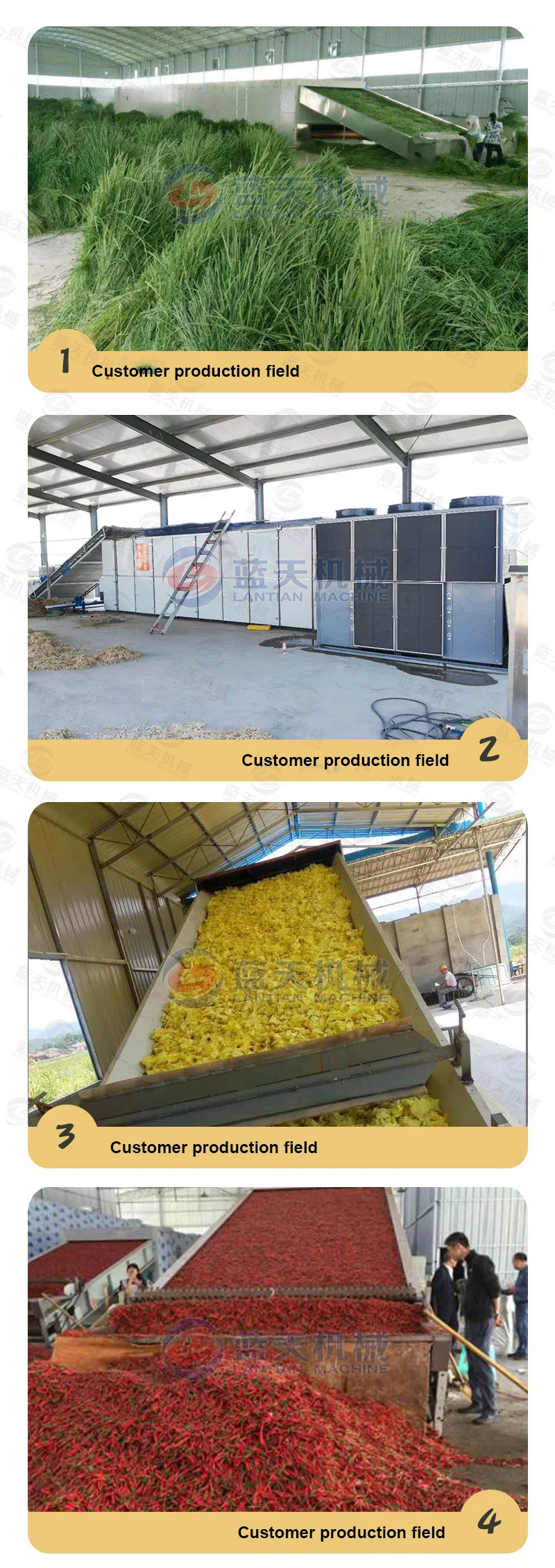

Customer Photos
