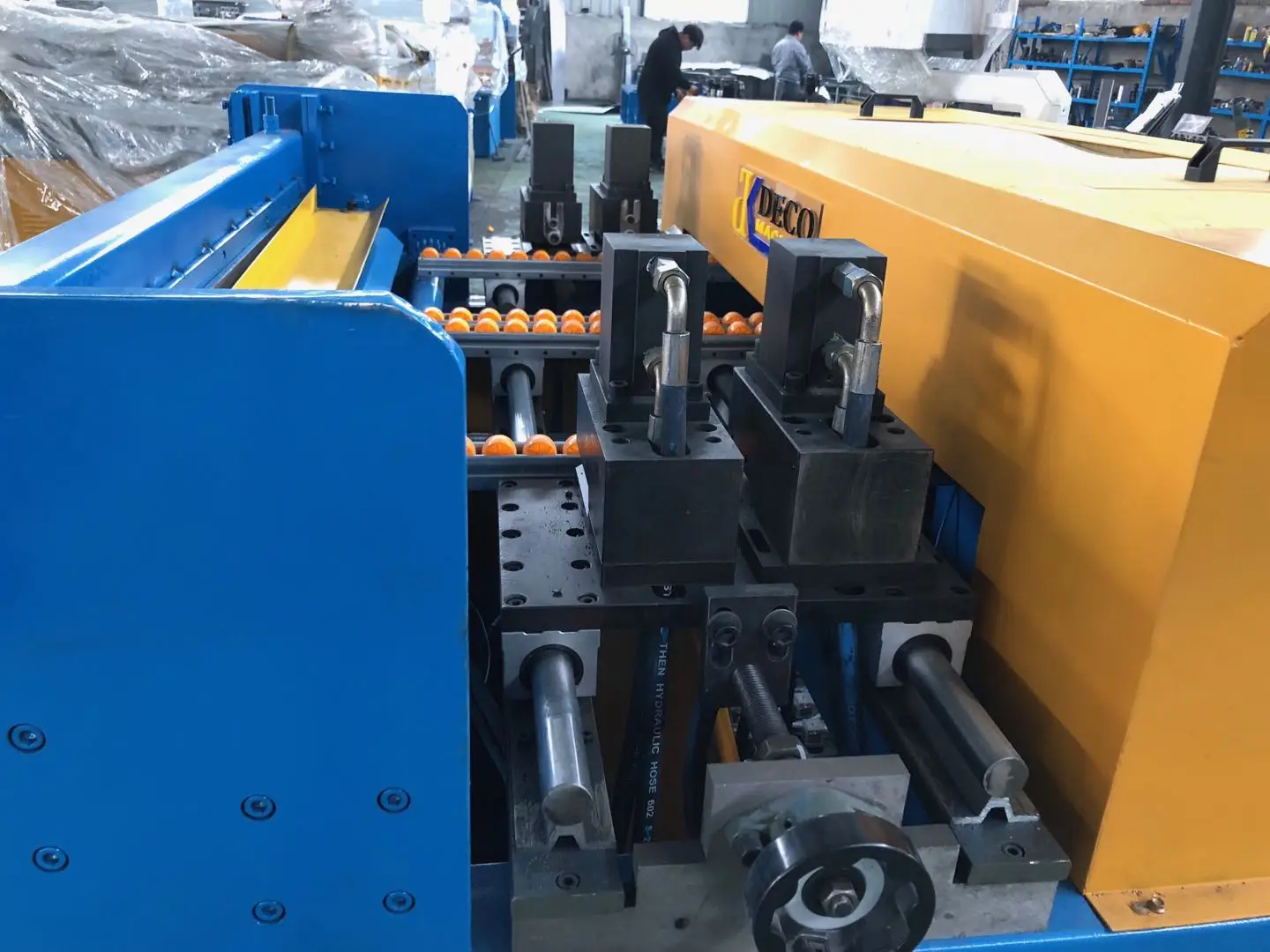

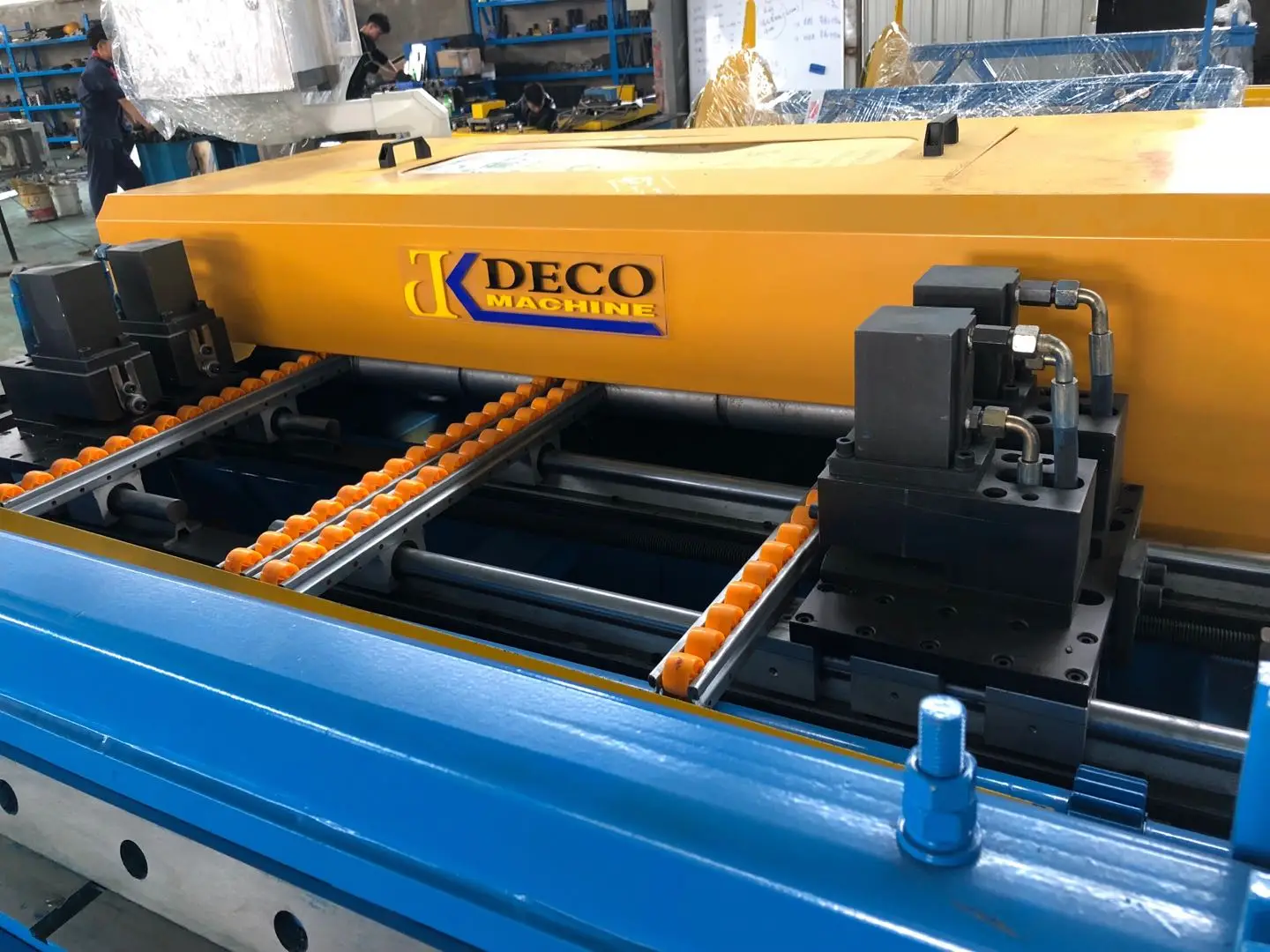

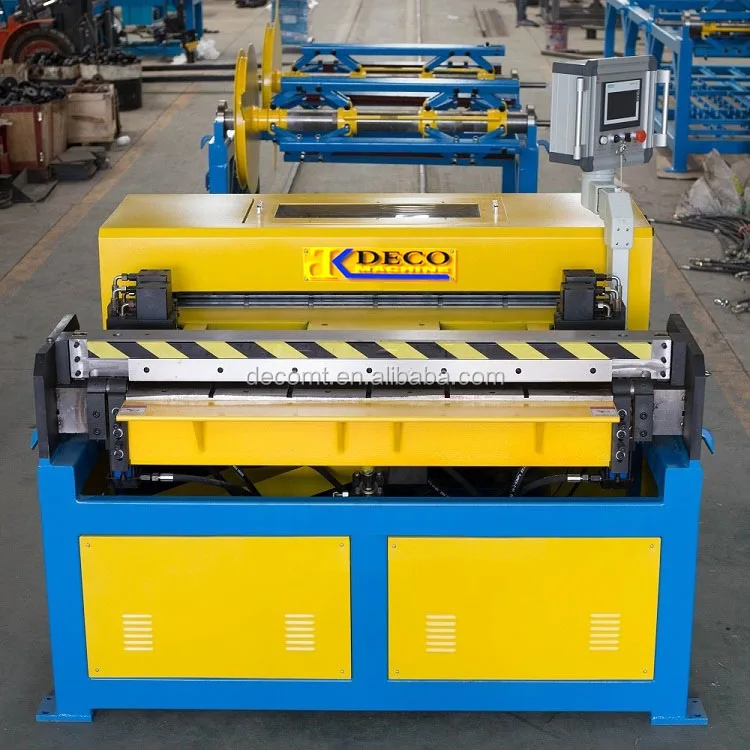

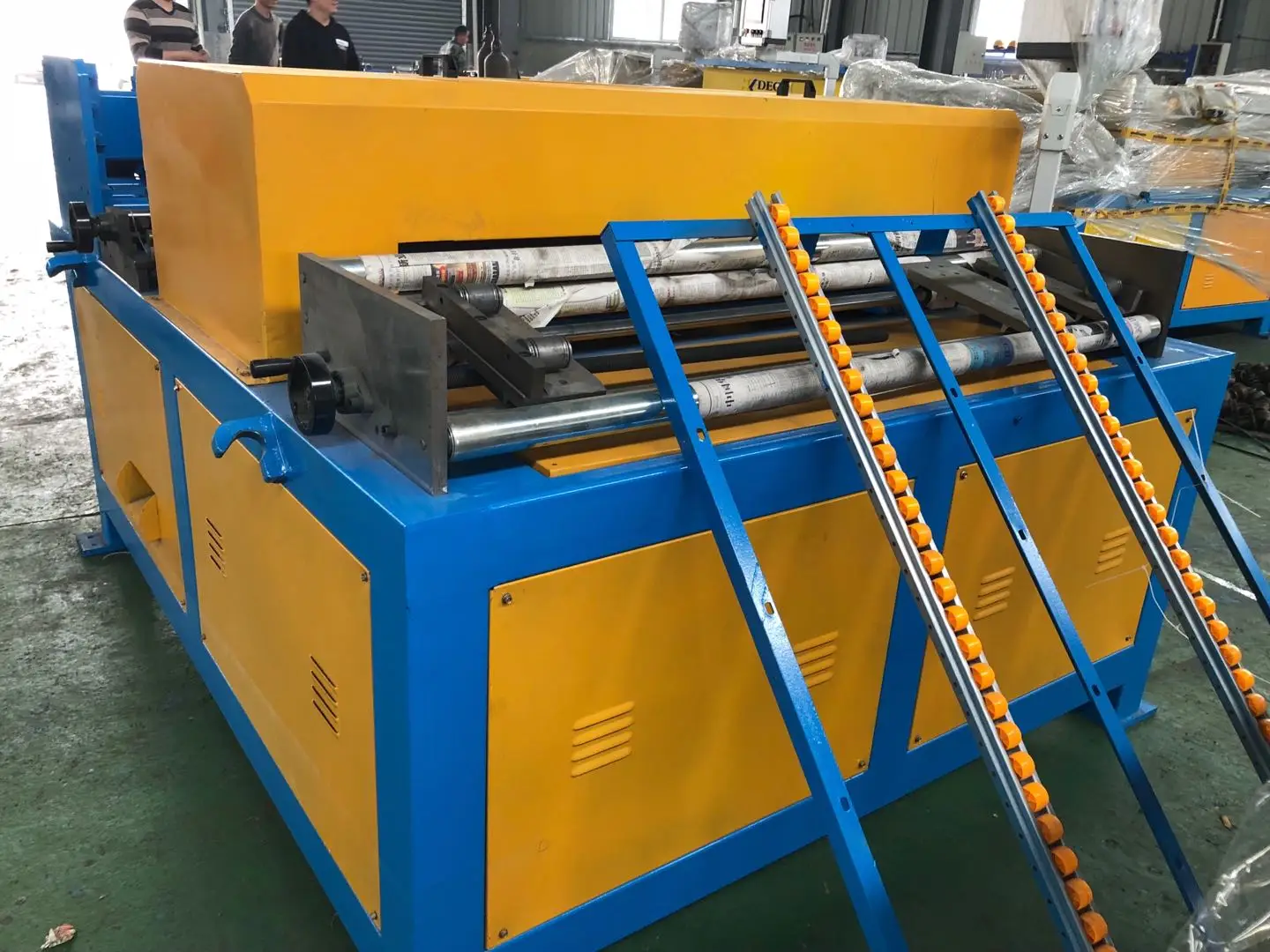

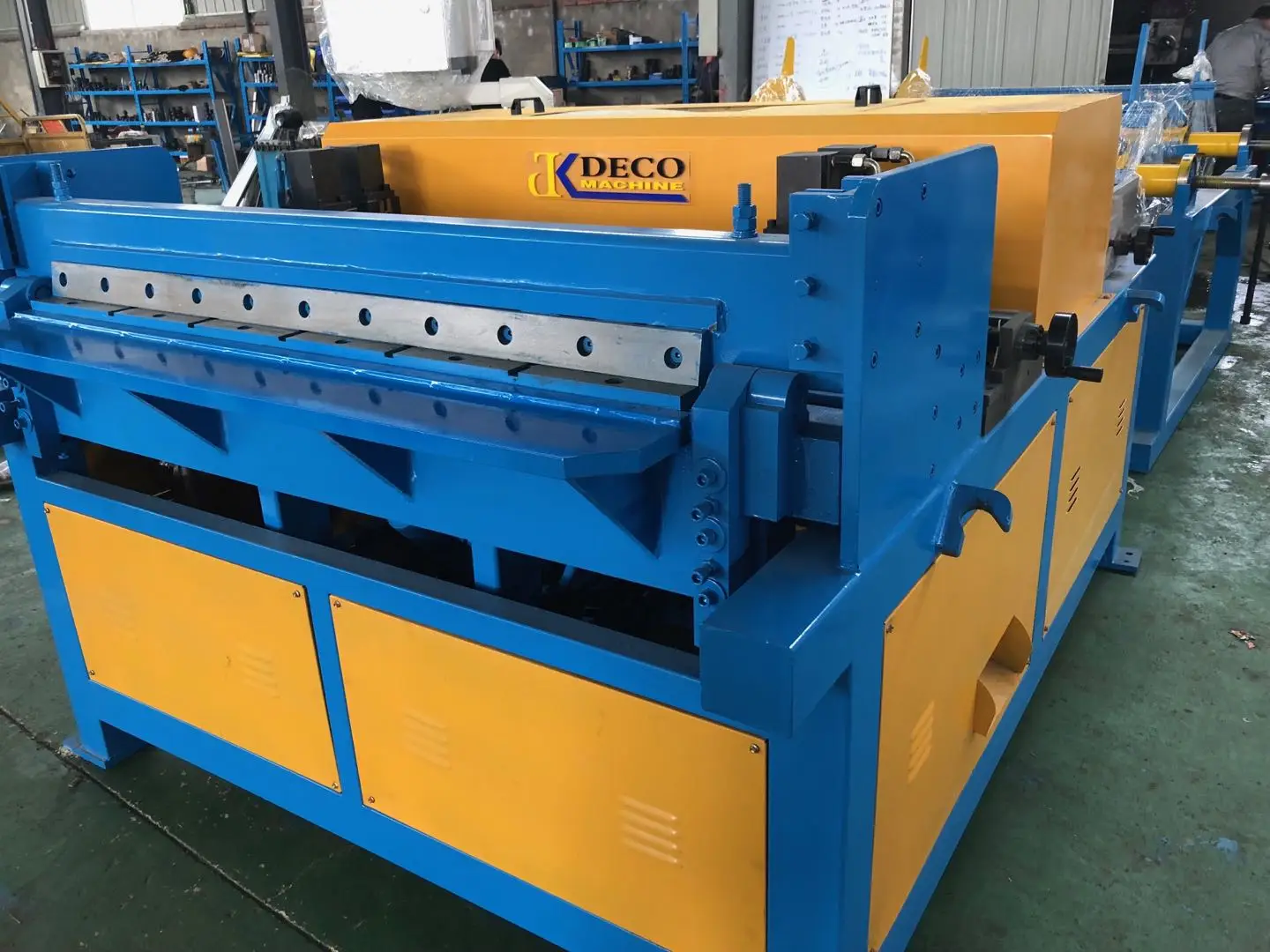

DECO brand Auto Duct Line 3 Ventilation Hvac Air Duct Making Machine

Product Overview

Description

DECO brand Auto Duct Line 3 Ventilation Hvac Air Duct Making Machine



Performance Features:

   ·   All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 times.

   ·  Under the material-saving mode of CNC system,machine can withdraw material automatically afte finishing tasks.

   ·   With production memory functions,the production orders can be tracked and checked

Technical details:

Model No.	Max Coil Width	Thickness Range	Speed	Power	dimensions	Shearing Tolerance	Diagonal Tolerance	Weight
DCL-1.2x1300	1300mm	0.4-1.2mm	0-18m/min	9kw	5500*1950*1600	±0.5mm	±0.5mm	4ton
DCL-1.2x1600	1600mm	0.4-1.2mm	0-18m/min	9kw	5500*2150*1700	±0.5mm	±0.5mm	4.5ton



Function:

It's mainly for uncoiling.leveling,beading,punching,locking,Because of it's small space requirement and easy to install and operate the machine can upgrade to"super line 4".

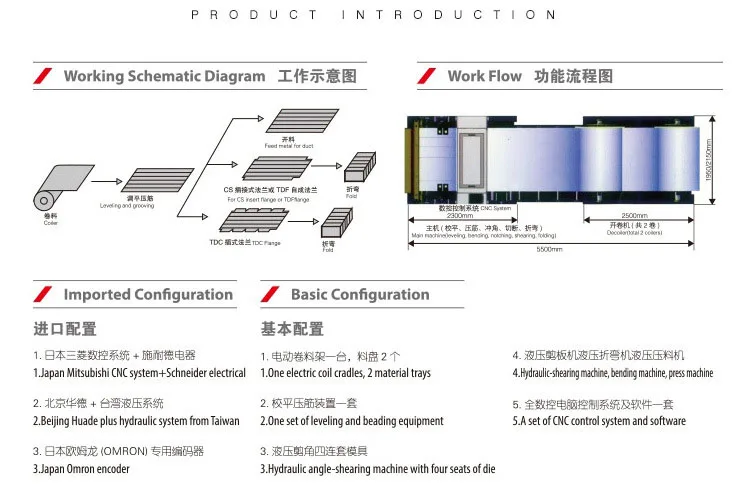

Main import Configuration:

· MITSUBISHI HMI Display And PLC

· MITSUBISHI Frequency Converter

· Japan NEMICON Inverter

· Taiwan Hydromax Pump

· Taiwan High Temperature Resistant Tubing















You may like:





FAQ:

1. Are you manufacturer or trading company?

    We are manufacturer.

2. What shall we do if don't know how to operate your machine?
    We can dispatch our engineers to your country and you can also send your engineers to our

    factory for learning operation. Besides, there are detailed installation and operating instructions

    attached, it is very simple. We have telephone and email support at 24 hours per day.

 3. What are your payment terms?
    We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance

    before the shipment.

 4. OEM is available?

    Yes.
