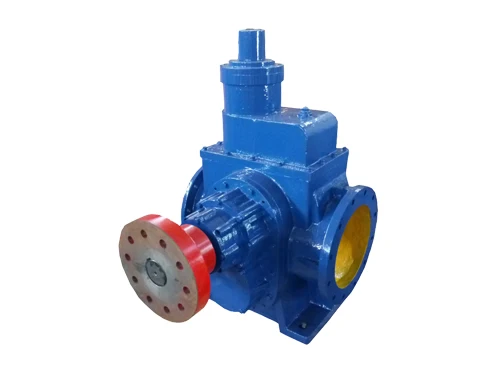

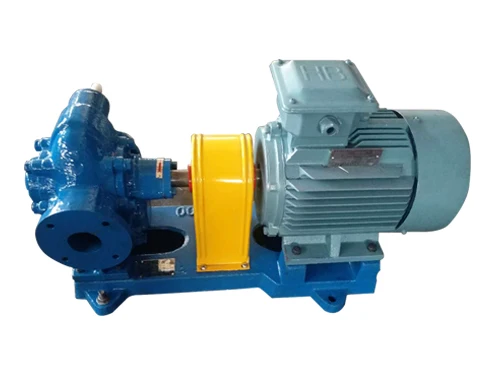

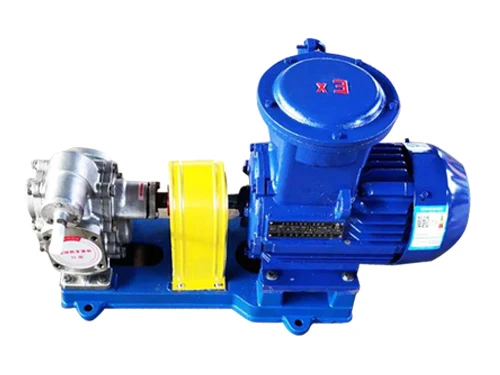

High quality KCB series gear pump / Zero leakage gear pump for Gasoline, kerosene, lubricating oil
- Category: >>>
- Supplier: Cangzhou Tanso Coupling Co. Ltd.
Share on (62518824611):
Product Overview
Description
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Product Description
KCB series gear pump
Introduction
KCB small flow rate gear oil pump
is applies to delivering non-corrosive lubricating oil or equivalent liquid without solid paraticles and fibres at temperature
below 200 C, and with the viscosity of 5-1500 cSt.
Reducing the speed, the pump can delivery the liquid that the viscosity can be up to 50000 cSt.
is applies to delivering non-corrosive lubricating oil or equivalent liquid without solid paraticles and fibres at temperature
below 200 C, and with the viscosity of 5-1500 cSt.
Reducing the speed, the pump can delivery the liquid that the viscosity can be up to 50000 cSt.
Application
KCB series gear pump applies to delivering non-corrosive lubricating-oil or equivalent liquid without solid particles and fibres
at temperature below 80℃ and with the viscosity of 5-1500cSt.
Reducing the speed, the pump can delivery the liquid that the viscosity can be up to 500000cSt.
at temperature below 80℃ and with the viscosity of 5-1500cSt.
Reducing the speed, the pump can delivery the liquid that the viscosity can be up to 500000cSt.
Application Scope
1. Medicine industry;
2. Fine chemical industry;
3. Food industry;
4. Cosmetics industry;
5. Printing and dyeing industry;
6. Brewing industry;
2. Fine chemical industry;
3. Food industry;
4. Cosmetics industry;
5. Printing and dyeing industry;
6. Brewing industry;
Performance scope
1.Capacity:1.1-570m3/h;
2.Pressure: 0.28-1.45mpa;
3.Motor power: 1.5-185kw;
4.Temperature: -20-200degree;
5.Speed: 720-1800rpm;
2.Pressure: 0.28-1.45mpa;
3.Motor power: 1.5-185kw;
4.Temperature: -20-200degree;
5.Speed: 720-1800rpm;
Structure Features
KCB series gear pump are mainly composed of gears, axles, pump cover, safety valve and axle-end seals etc. The heat-treatment
gears have the advantage of higher hardness and intensity, and rotate with the axles inside the replaceable bearing sleeves. All
of pumps’s parts can be lubricated by delivered medium when working.
The pump is properly designed with leakage and return chute, which lets the gears bear the least torque force and reduces load
and wear on bearings in order to raise pumps’ efficiency.
It is also designed with safety valve for protection against overload. The full return flow pressure of the safety valve is higher
than the rated exhaust pressure of the pump. It can be also adjusted within the allowance of exhaust pressure range according to
circumstances. But please note the safety valve can't be applied as pressure reducing valve for long time. You may install
pressure reducing valve separately on pipe-line if needed.
The direction of rotation is clockwise viewed from coupling end.
gears have the advantage of higher hardness and intensity, and rotate with the axles inside the replaceable bearing sleeves. All
of pumps’s parts can be lubricated by delivered medium when working.
The pump is properly designed with leakage and return chute, which lets the gears bear the least torque force and reduces load
and wear on bearings in order to raise pumps’ efficiency.
It is also designed with safety valve for protection against overload. The full return flow pressure of the safety valve is higher
than the rated exhaust pressure of the pump. It can be also adjusted within the allowance of exhaust pressure range according to
circumstances. But please note the safety valve can't be applied as pressure reducing valve for long time. You may install
pressure reducing valve separately on pipe-line if needed.
The direction of rotation is clockwise viewed from coupling end.
Detailed Images

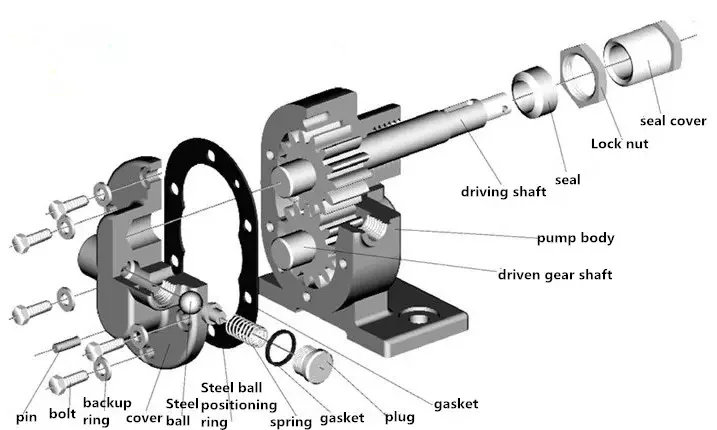

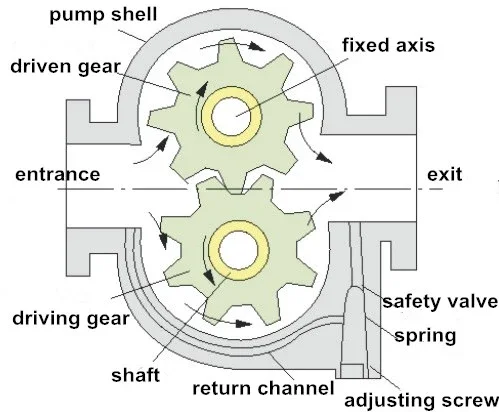

Structural features
KCB small flow rate gear oil pump is mainly composed of gears, axles, pump body, pump cover, safety valve and axle-end seals etc.
The heattreated gears have the advantage of higher hardness and intensity, and rotate with the axles inside the replaceable
bearing sleeves. All of pump's parts can be lubricated by delivered medium when working.
The pump is properly designed with leakage and return chute, which lets the gears bear the least torque force and reduces load and
wear on bearings in order to raise pump' efficiency.
It is also designed with safty valve for protection against overload. The full return flow pressure of the safety valve is 1.5
times higher than the rated exhaust pressure of the pump. It can be also adjusted within the allowance of exhaust pressure range
according to circumstances. But please note the safty valve can't be applied as pressure reducing valve for long time. You may
install pressure reducing valve separately on pipe-line if needed.
The direction of rotation is clockwise viewed from coupling end.
The heattreated gears have the advantage of higher hardness and intensity, and rotate with the axles inside the replaceable
bearing sleeves. All of pump's parts can be lubricated by delivered medium when working.
The pump is properly designed with leakage and return chute, which lets the gears bear the least torque force and reduces load and
wear on bearings in order to raise pump' efficiency.
It is also designed with safty valve for protection against overload. The full return flow pressure of the safety valve is 1.5
times higher than the rated exhaust pressure of the pump. It can be also adjusted within the allowance of exhaust pressure range
according to circumstances. But please note the safty valve can't be applied as pressure reducing valve for long time. You may
install pressure reducing valve separately on pipe-line if needed.
The direction of rotation is clockwise viewed from coupling end.
Size Information
Specification
Model | Capacity Q | Speed | PressureMpa | NPSH M | Efficiency | Model | ||||
m^3/h | L/Min | r/min | % | Power kw | Model | |||||
KCB-18.3 | 1.1 | 18.3 | 1400 | 1.45 | 5 | 44 | 1.5 | Y90L-4 | ||
2CY-1.1/1.45 | ||||||||||
KCB-33.3 | 2 | 33.3 | 1420 | 1.45 | 5 | 44 | 2.2 | Y100L 1-4 | ||
2CY-2/1.45 | ||||||||||
KCB-55 | 3.3 | 55 | 1400 | 0.33 | 7 | 41 | 1.5 | Y90L-4 | ||
2CY-3.3/0.33 | ||||||||||
KCB-83.3 | 5 | 83.3 | 1420 | 0.33 | 7 | 43 | 2.2 | Y100L 1-4 | ||
2CY-5/0.33 | ||||||||||
KCB-135 | 8 | 135 | 940 | 0.33 | 5 | 46 | 2.2 | Y112M-6 | ||
2CY-8/0.33 | ||||||||||
KCB-200 | 12 | 200 | 1440 | 0.33 | 5 | 46 | 4 | Y112M-4 | ||
2CY-12/0.33 | ||||||||||
KCB-300 | 18 | 300 | 960 | 0.36 | 5 | 42 | 5.5 | Y132M2-6 | ||
2CY-18/0.36 | ||||||||||
KCB-483.3 | 29 | 483.3 | 1440 | 0.36 | 5.5 | 42 | 11 | Y160M-4 | ||
2CY-29/0.36 | ||||||||||
KCB-633 | 38 | 633 | 970 | 0.28 | 6 | 43 | 11 | Y160L-6 | ||
2CY-38/0.28 | ||||||||||
KCB-960 | 58 | 960 | 1470 | 0.28 | 6.5 | 43 | 22 | Y180L-4 | ||
2CY-58/0.28 | ||||||||||
KCB-1200 | 72 | 1200 | 740 | 0.6 | 7 | 43 | 37 | Y280S-8 | ||
KCB-1600 | 95 | 1600 | 980 | 0.6 | 7 | 43 | 45 | Y280S-6 | ||
KCB-1800 | 112 | 1800 | 740 | 0.6 | 7.5 | 43 | 55 | Y315S-8 | ||
KCB-2500 | 150 | 2500 | 985 | 0.6 | 7.5 | 43 | 75 | Y315S-6 | ||
KCB-2850 | 170 | 2850 | 740 | 0.6 | 8 | 44 | 90 | Y315L1-8 | ||
KCB-3800 | 230 | 3800 | 989 | 0.6 | 8 | 44 | 110 | Y315L1-6 | ||
KCB-4100 | 245 | 4100 | 743 | 0.6 | 8 | 44 | 132 | Y355M1-8 | ||
KCB-5400 | 325 | 5400 | 989 | 0.6 | 8 | 44 | 160 | Y355M1-6 | ||
KCB-5600 | 330 | 5600 | 744 | 0.6 | 8 | 44 | 160 | Y355M2-8 | ||
KCB-7600 | 460 | 7600 | 989 | 0.6 | 8 | 44 | 200 | Y355M3-6 | ||
KCB-7000 | 420 | 7000 | 744 | 0.6 | 8 | 44 | 185 | Y355L1-8 | ||
KCB-9600 | 570 | 9600 | 989 | 0.6 | 8 | 44 | 250 | Y355L2-6 | ||
It has a design and development team for precision casting, coupling, screw pump and backstop,
and has rich experience in designing, producing and mapping various non-standard mechanical
parts. SolidWorks and UG 3D digital design are all used in product design, which can quickly
complete the design and calculation of various product parameters, 3D modeling, finite element
analysis and 2D engineering drawing production.
The company has a complete range of products, including universal coupling, diaphragm coupling,
drum gear coupling, serpentine spring coupling, expansion sleeve, backstop, screw pump and
precision casting. The company learned from Toyota JIT management experience in Japan, and
the product production period is generally 15-30 days, and small batch products can be
completed in 3-7 days. The company has achieved "one-stop service" from casting and forging
to design, processing and inspection. Tanso Coupling is a qualifed supplier of large state-owned
enterprises such as Sinopec, Dongfang Steam Turbine, ZhuzhouCRRC, Shougang and Nissan Steel.
The company has the right of import and export, and its products are exported to Europe, America,
India, Southeast Asia and other countries and regions.
The company has passed the SGS international quality system certification, ISO9001quality
management system certification, Q/SHS0001.1 health, safety and environmental management
system certification, ISO14001environmental management system certification, and OHSAS18000
occupational health and safety management system certification. In recent years, the company
has introduced OA system, ERP, MES and other management systems to realize the informatization
and intelligent transformation of production management. After nearly 20 years of development,
the company's technical strength and management level are in the forefront of the industry.
Welcome customers to our company for guidance, exchange and business negotiation!
Q:How to ship the goods?
A:We usually ship the goods by ship. We will make the shipment within 30 days after you deposit, and we will track the goods state at any time and inform you at the first time if possible.
Q:Can you customize the products?
A:Yes, but unless buyers provide the drawing or sample of the part first.
Q:How to ensure the product's quality?
A:We promise to use the good quality material and every product is strictly checked
before packing.
Q:Are you a trading company or a manufacturer?
A:We are a professional manufacturer of couplings and universal joints.
Q:What information should I give to you for inquiry?
A:Pls send the detail of the specification and QTY, also special demands etc, and it's better you can send us the detail. lf you don't have the drawing or catalogue, you can send us your sample, so we can make the drawing and sample accordingly.
A:We usually ship the goods by ship. We will make the shipment within 30 days after you deposit, and we will track the goods state at any time and inform you at the first time if possible.
Q:Can you customize the products?
A:Yes, but unless buyers provide the drawing or sample of the part first.
Q:How to ensure the product's quality?
A:We promise to use the good quality material and every product is strictly checked
before packing.
Q:Are you a trading company or a manufacturer?
A:We are a professional manufacturer of couplings and universal joints.
Q:What information should I give to you for inquiry?
A:Pls send the detail of the specification and QTY, also special demands etc, and it's better you can send us the detail. lf you don't have the drawing or catalogue, you can send us your sample, so we can make the drawing and sample accordingly.
