Corrosive Resistance High Insulation 225kgs Capacity Mobile Fiberglass Scaffold for Electric Engineering

Product Overview

Description

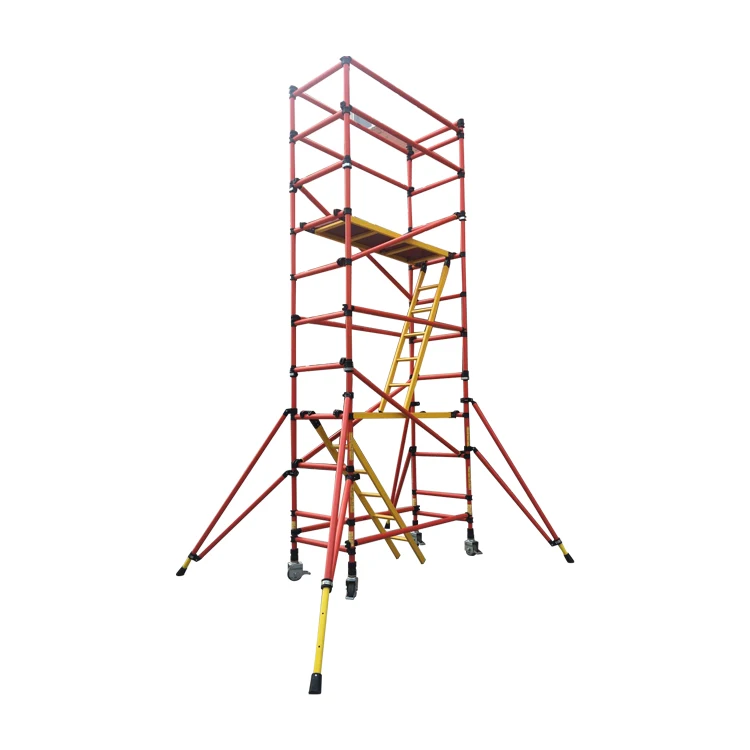

FRP Scaffolding



Best in Structure

♦ Main tube are made by Fiberglass Reinforce Resin material with High Tensile Strength

♦ Structural components are made by Fiberglass Reinforce Nylon material with High Yield Stress and  Strain to resist strong impact force.

♦ Insulated Scaffolding is Easy Operation, Safest and Highest Rigidity. It is widely used in the world.



Features and Areas of Application

♦ Non-Conductive

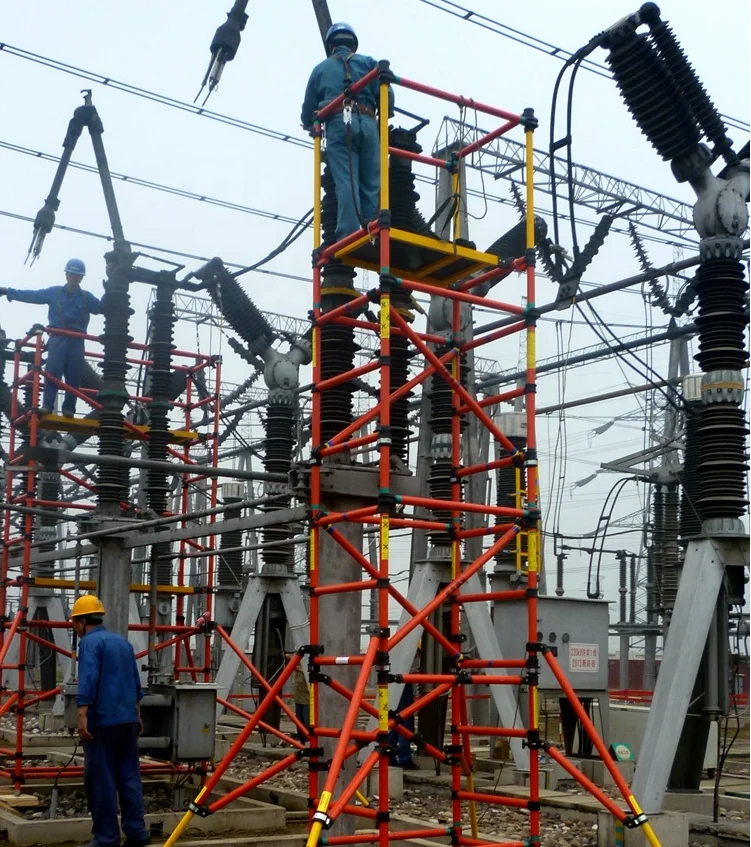

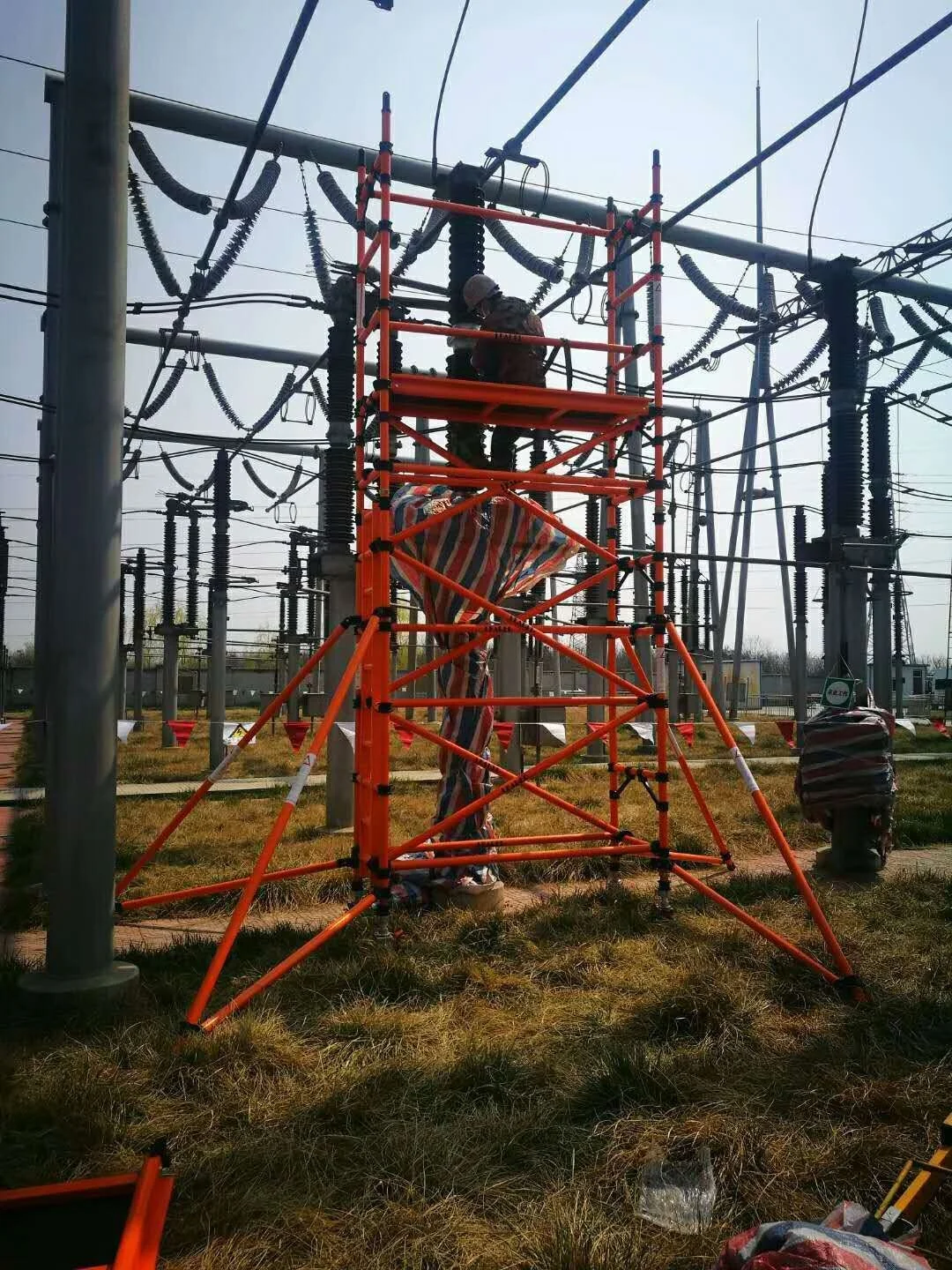

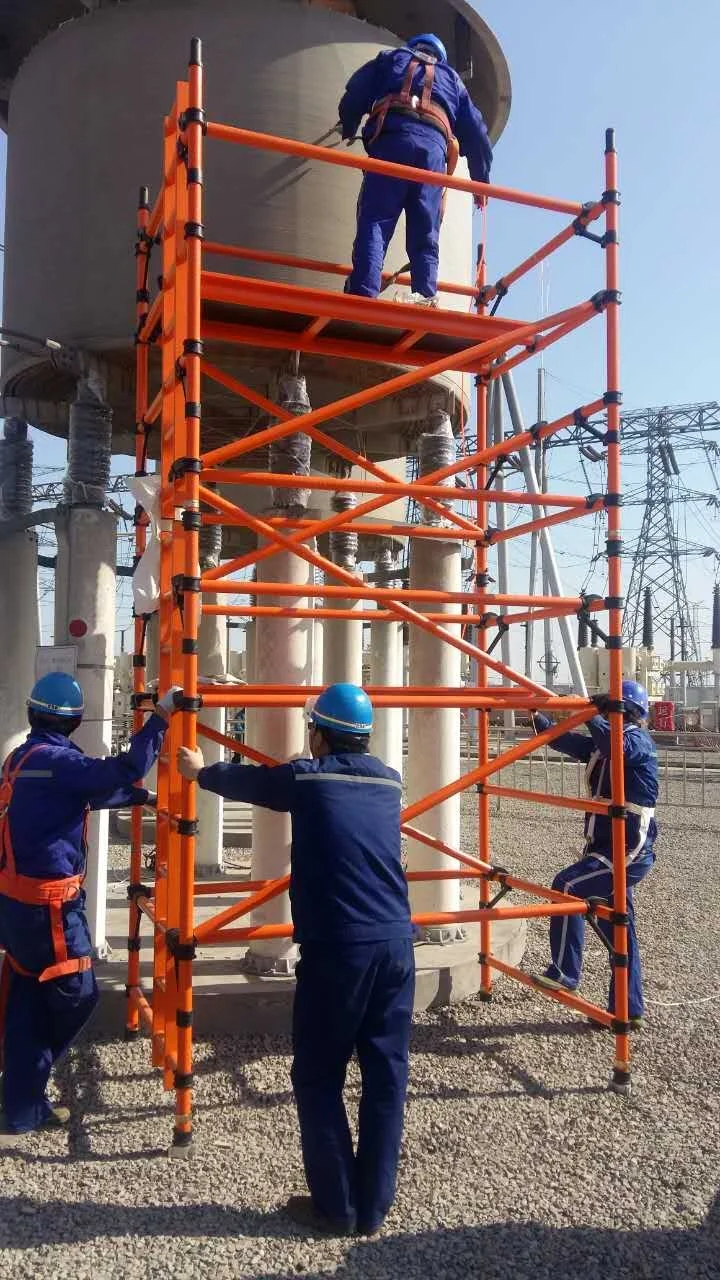

This scaffolding is widely used in power supply installation, maintenance work to ensure safety. Suitable to be used in Electrical Engineering, Railway and Power Generation Engineering Work.

♦ Corrosive Resistance

Suitable to be used in Chemical Industry, Oil Refinery and Offshore Platform.

♦ Anti-Oxidizing

This scaffolding has special insulation and resist to oxidation, users can keep the work surface clean without residue. Suitable to be used in Food, Medical and Drug Manufacturer where Sensitive Hygiene is required.

♦ Non-Sparking

Suitable to be used safely in area where Dust, Vapour, Flammable or Combustible Products exist.



Specification for Single Width Tower

Width x Length		Width x Length
0.85m x 1.8m 0.85m x 2.5m		0.75m x 2.0m 0.75m x 2.5m
Working Height (m)	Platform Height (m)	Working Height (m)	Platform Height  (m)
4.1	2.1	4.34	2.34
4.6	2.6	4.81	2.81
5.1	3.1	5.27	3.27
6.1	4.1	5.73	3.73
6.6	4.6	6.20	4.20
7.1	5.1	6.66	4.66
7.6	5.6	7.13	5.13
8.2	6.2	7.59	5.59
8.7	6.7	8.05	6.05
9.2	7.2	8.52	6.52
10.2	8.2	8.89	6.89
10.7	8.7	9.45	7.45
11.2	9.2	9.91	7.91
11.7	9.7	10.37	8.37
12.2	10.2	10.84	8.84
12.7	10.7	11.30	9.30
13.2	11.2	11.77	9.77
13.7	11.7	12.23	10.23
