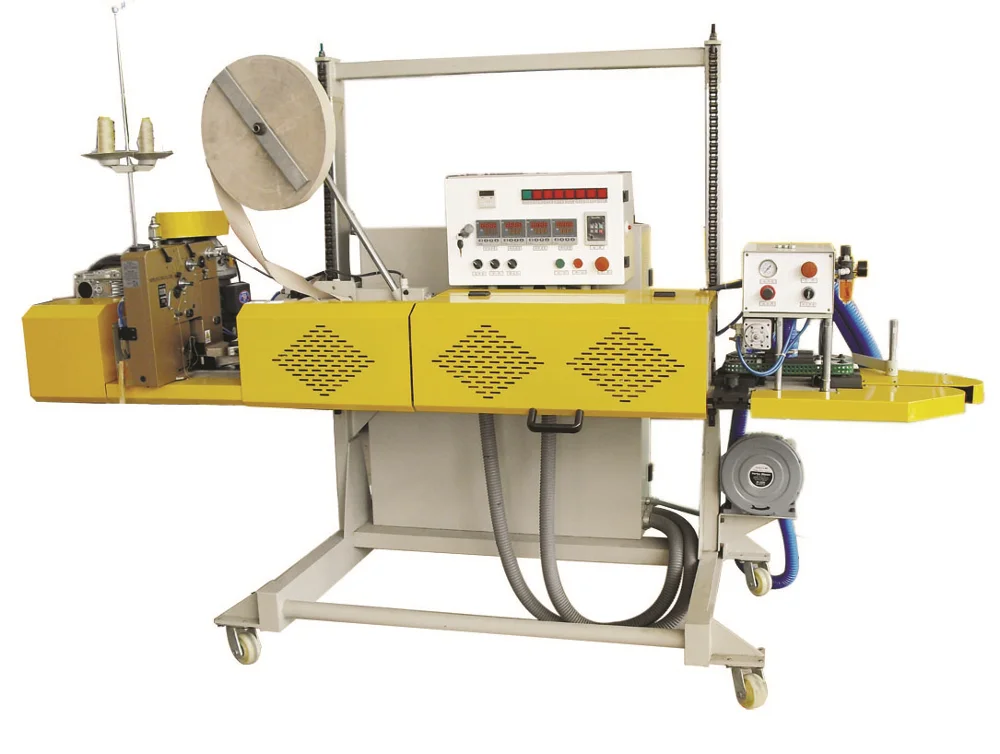

automatic bag closer
- Category: >>>
- Supplier: Shanghai Jinbao Packaging Machinery Co. Ltd.
Share on (62519534737):
Product Overview
Description
Description
JBF-Z series automatic heavy-duty plastic bags sealing performance quality, efficient, continuous seal thick PE or PP plastic bags, and paper-plastic composite bags, plastic bags; widely used in chemical raw materials, pharmaceutical raw materials, food, feed and food packaging industries.
This series based on bags of different materials, thickness, and production capacity, select the applicable JBF-ZA, JBF-ZB, ZBF-ZC other models.
This series with PTFE (TEFLON) sealing tape, the surface smooth, easy adhesions, sealing quality. Device is equipped with a dust collector bag and trimming device, packaging sealing aesthetics and stability.
Technical Parameter | |
Model | JBF-ZC |
Packing bag type | 3 layer paper bag, PP Lamia on Bag, tape over bag |
Sealing type | Heating+sealing bag slip |

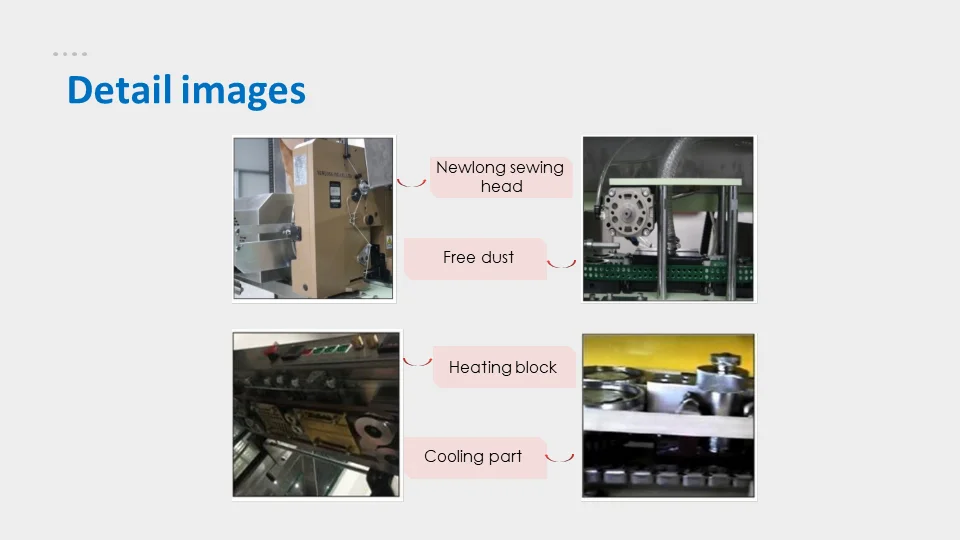

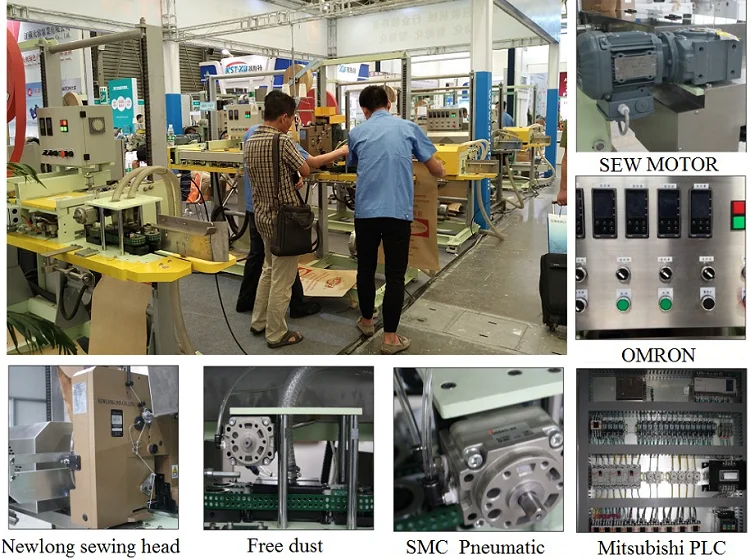

Sewing head | Newlong DS-7 |
Packing speed | 7-10m/min |
Heating temperature | 0-400℃ |
Height adjustable | 800-1700mm |
Voltage | AC380V/50Hz |
Power | 4kw |
Machine weight | 500KG |
Machine dimension | 2850*1125*1880mm |
Main features | |

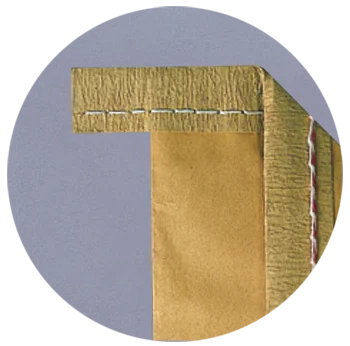

One-lined closure of paper bag
| Trimming, stitching, heat-sealing(linner PE), and heatseal-tape sealing can be done all at on-lined and automatic process. |
Simple adjustment and high performance
| Easy to install and simple to maintain. Efficient and automatic to operate. Advanced technique embodled in its function. |
Eight standard models for a wider application
| Wider choice to suit bag specifications and products. Eight standard models plus optional items are available. |
Easy control of heater bar temperature
| Easy to adjust temperature and pressure of heater bar, so that no extra time required when to change bag thickness. |
High level of sealed and stitched closure
| Superior at a sift, dust, and insect proof. Products filled in bag can be completely protected. |
