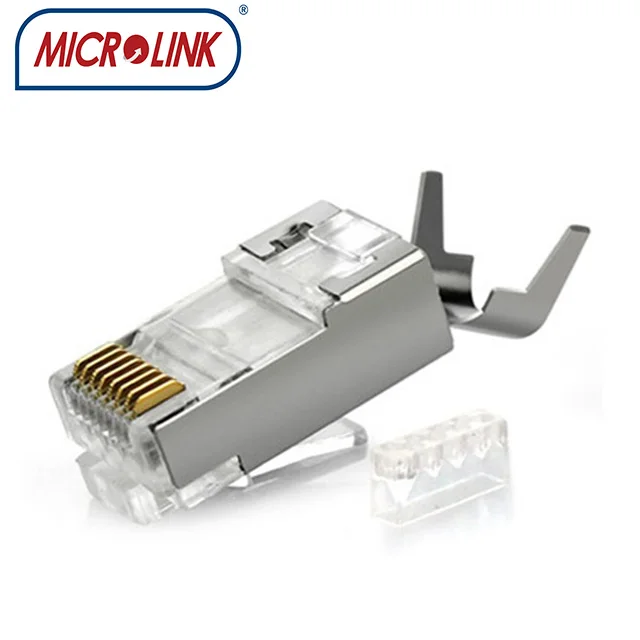

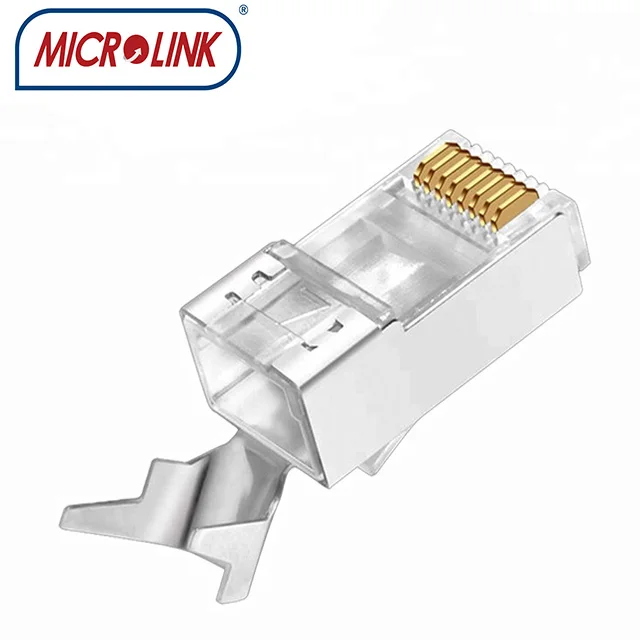

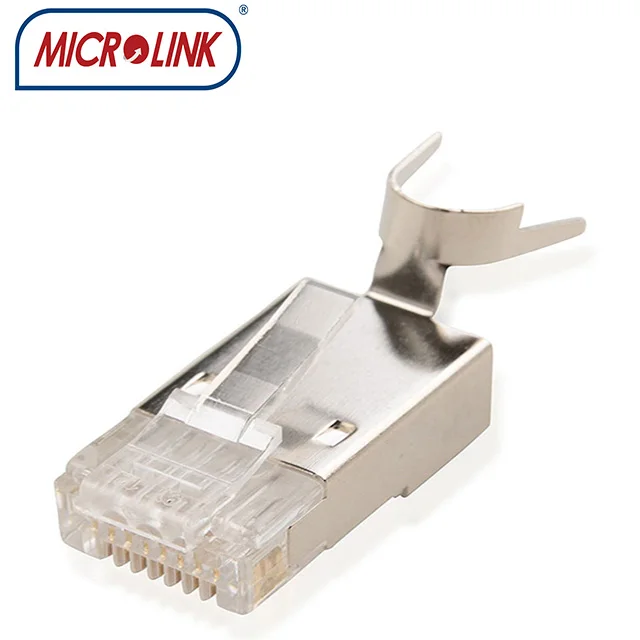

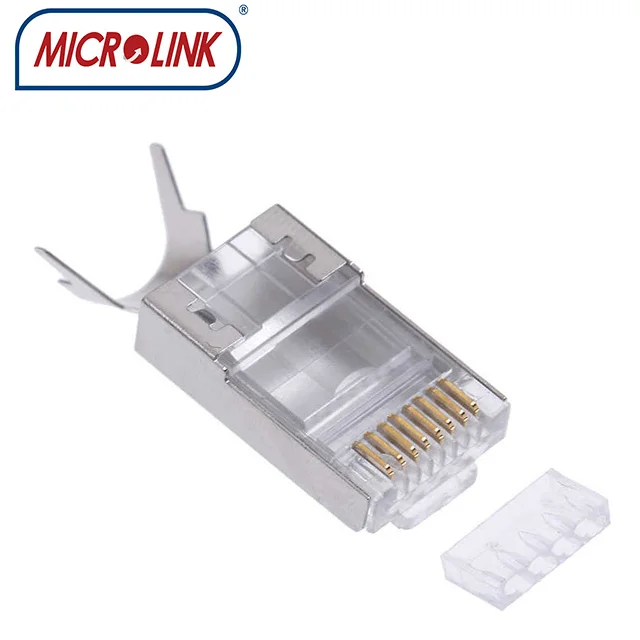

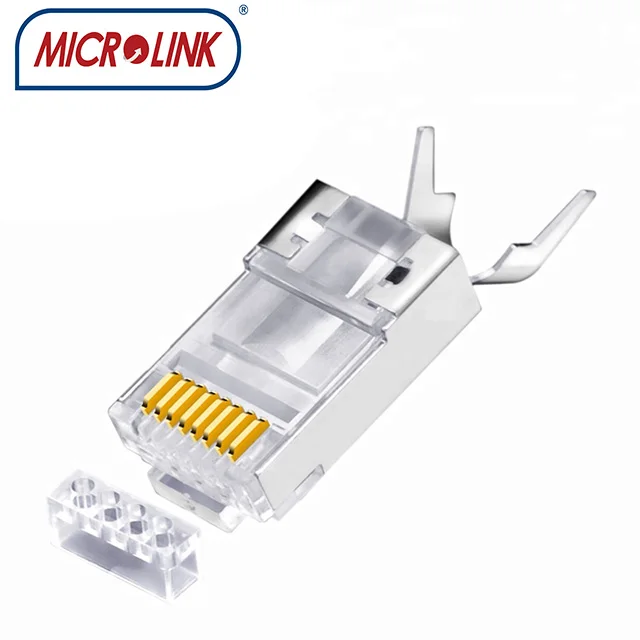

male 8p8c cat7 rj45 STP shielded connector plug rj45 cat7 modular plug
- Category: Connectors & Terminals >>>
- Supplier: Microlink,Electronics,Co.,Ltd.
Share on:
Product Overview
Description
male 8p8c cat7 rj45 STP shielded connector plug rj45 cat7 modular plug
Product Description
FEATURE
Apply to Cat6A/ Cat7 cabling
T568A&T568B both wiring marked
4up 4down wire cross hole design for better data transferring
Transparent Housing color customize
Inner wire OD 1.60mm,1.45mm, 1.30mm , 1.20mm, 1.15mm optional for option
Phosphor bronze contact plated with 80u nickel and 3~50u gold
Compatible with both 110 & Krone punch down tools
In compliance with UL E136825, IEC 60603-7 ,FCC Part 68 standard
DATASHEET
Insert & withdraw Force | Insertion force | 20N max. | |||||||
Retention Strength | Retention Strength | ≥20pround(9.1kg) | |||||||
Life Cycle | Life Cycle | 1500 mating cycles min. | |||||||
Rated Current | 250 VAC @2 Amps | ||||||||
Contact Resistance | 20m Ω Max | ||||||||
Insulation Resistance | 500M Ω Min | ||||||||
Contact Gold Plating | Fu" / 3u" / 6u" / 15u" / 30u" / 50u" optional | ||||||||
Operating Temperature | Operating Temperature | -10℃ to 60℃. (ISO/IEC 11801, ANSI/TIA/EIA 568 C.2) | |||||||
Standard | UL E136825, IEC 60603-7 ,FCC Part 68 | ||||||||
Detailed Images
Packing & Delivery
Related Products
HYA
HYACT
HYV
Our Factory
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer, designer and distributor.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it depends on order quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight which is refundable from an official order. For our regular clients, we bear sample cost and delivery freight.
Q: Do you offer OEM & ODM service
Yes, we can print your LOGO on RJ45 plug and cable and package as per demand for bulk order.
Q: What is your terms of payment ?
A: Payment less than 2000USD, 100% in advance. Paymen more than 2000USD, 30% T/T in advance ,balance before shipment.Also we accept L/C at sight. Other payment ways are negotiable.If you have another question, pls feel free to contact us as below:
Q: What about shipment?
A: we have long term cooperation with premium logistic forwarders, who can offer fast delivery at low freight rate for shipment like express, post, air cargo, ocean cargo, door to door DDP &DDU.
