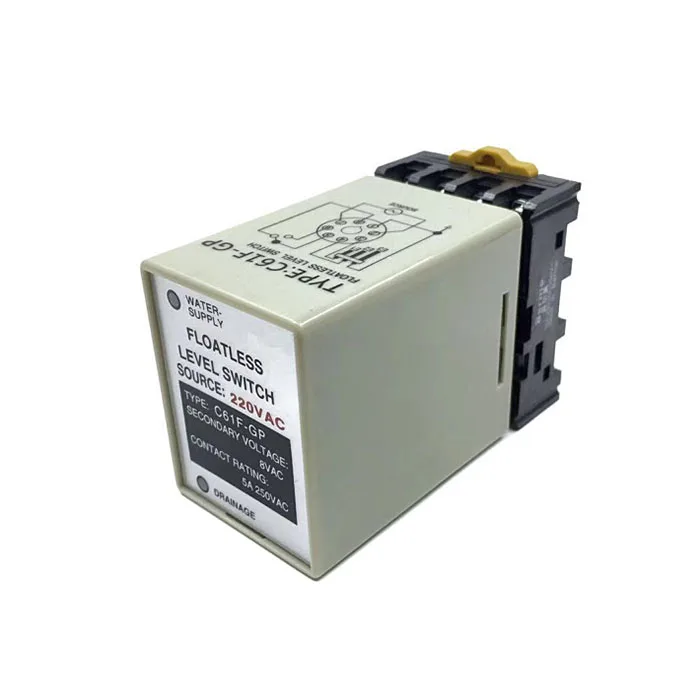

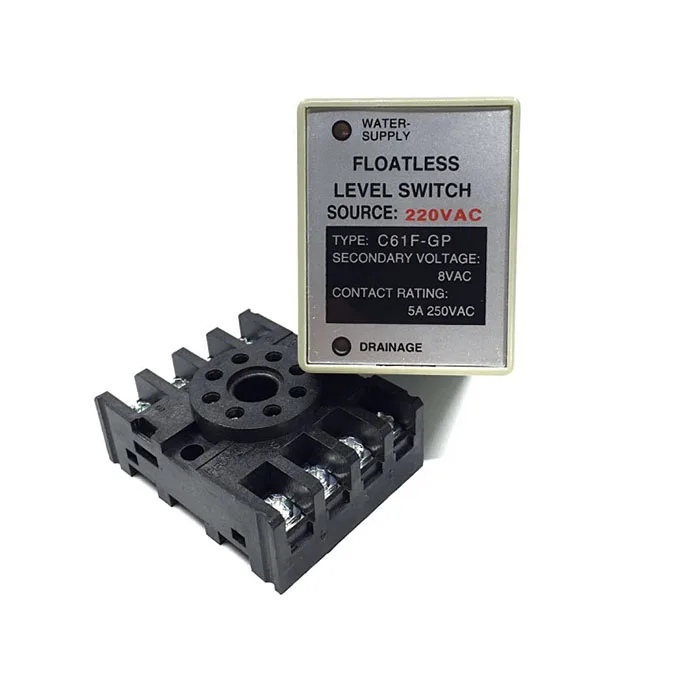

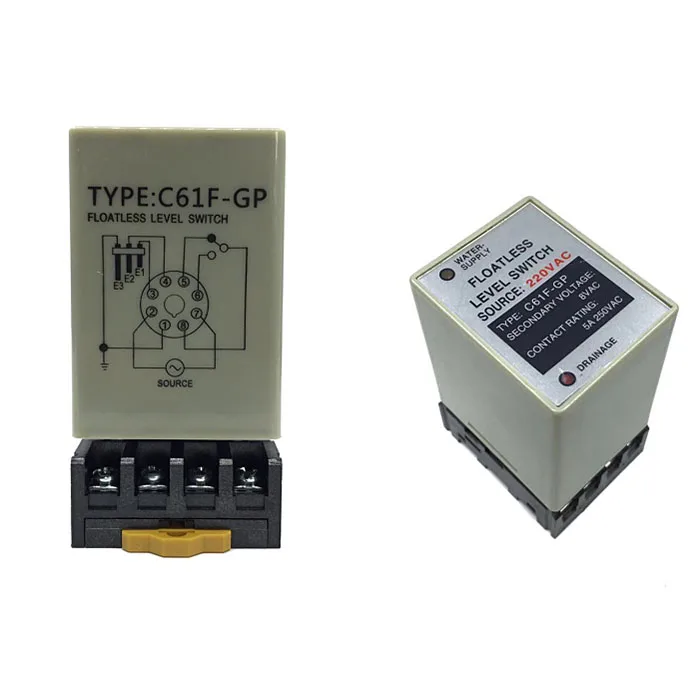

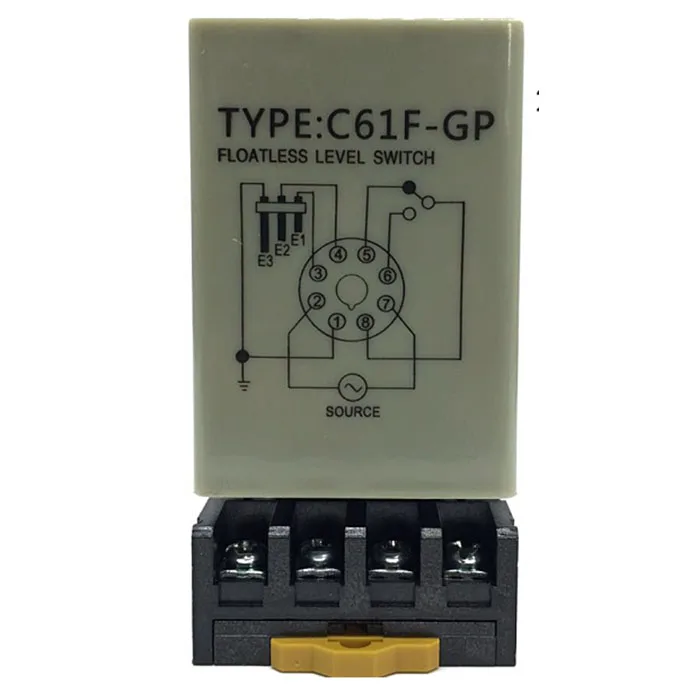

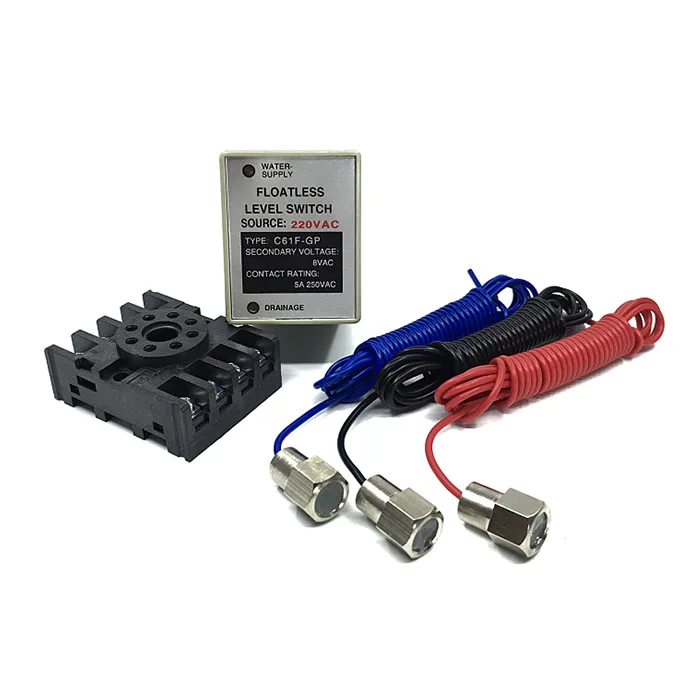

Automatic level relay C61F GP water level controller
- Category: >>>
- Supplier: Yueqing Tianen Electric Factory
Share on (62519638056):
Product Overview
Description
Product Description
| Model number | C61F-GP |
| Rated supply voltage | 110, 220Vac, 50/60Hz; 12Vdc |
| Operational voltage range | 85% to 110% of rated voltage |
| Interelectrode voltage | 8Vac |
| Interelectrode operate resistance | 0 to approx. 4kΩ |
| Interelectrode release resistance | Approx. 15 k to ∞Ω |
| Response time | Operate: 80 ms max; Release: 160 ms max. |
| Contact rating | 5A at 250Vac |
| Life expectancy | Mechanical—5x106; Electrical—1x105 |
| Insulation resistance | 100 MΩ min. (at 500 Vdc) |
| Dielectric strength | 1500Vac, 50/60 Hz for 1 min |
| Power consumption | Approx. 3.2 VA max |
| Cable length | 1Km max |
| External dimensions (HxWxD) | 61x49x70mm |
| Operational Temperature | -10 to +55°C |
| Operational humidity | 85% RH max |
| Alias name | C61F-GP floatless level controller |
