Xilin 1500kg 1.5ton 3300lbs capacity electric walkie pallet truck
- Category: >>>
- Supplier: Ningbo Ruyi Joint Stock Co. Ltd.
Share on (62519695735):
Product Overview
Description
Xilin electric walkie pallet truck 1500kg 1.5ton 3300lbs capacity
Advantages:
* With smallest turning radius 1320mm-1389mm (width 520/550/685mm)
* DC Brushless motor with high electric efficiency, maintenance free.
* Full sealed battery free to maintain, big capacity high-intensitive use.
* Offers option of low driving speed when handle at upright position, reduce turning space greatly. (option for Germany Frei handle)
* High travel speed is up to 5.3-5.8km/h, improve productive efficiency.
* Floating balance wheel supports automatic height-adjusting.
* Horizontal drive wheel provides convenient replacement.
* DC Brushless motor with high electric efficiency, maintenance free.
* Full sealed battery free to maintain, big capacity high-intensitive use.
* Offers option of low driving speed when handle at upright position, reduce turning space greatly. (option for Germany Frei handle)
* High travel speed is up to 5.3-5.8km/h, improve productive efficiency.
* Floating balance wheel supports automatic height-adjusting.
* Horizontal drive wheel provides convenient replacement.
Standard Features
* RUYI new type Tiller Head with Max speed limit button.
* Emergency stop & belly button.
* BDI and hour meter.
* Casters to balance stability.
* Sealed battery.
* Brushless Horizontal motor.
* Built-in Charger.
* Exist roller.
* Emergency stop & belly button.
* BDI and hour meter.
* Casters to balance stability.
* Sealed battery.
* Brushless Horizontal motor.
* Built-in Charger.
* Exist roller.
Option
* Germany FREI Tiller Head.
* External charger.
* Fork width and length (size).
* Load backrest.
* External charger.
* Fork width and length (size).
* Load backrest.

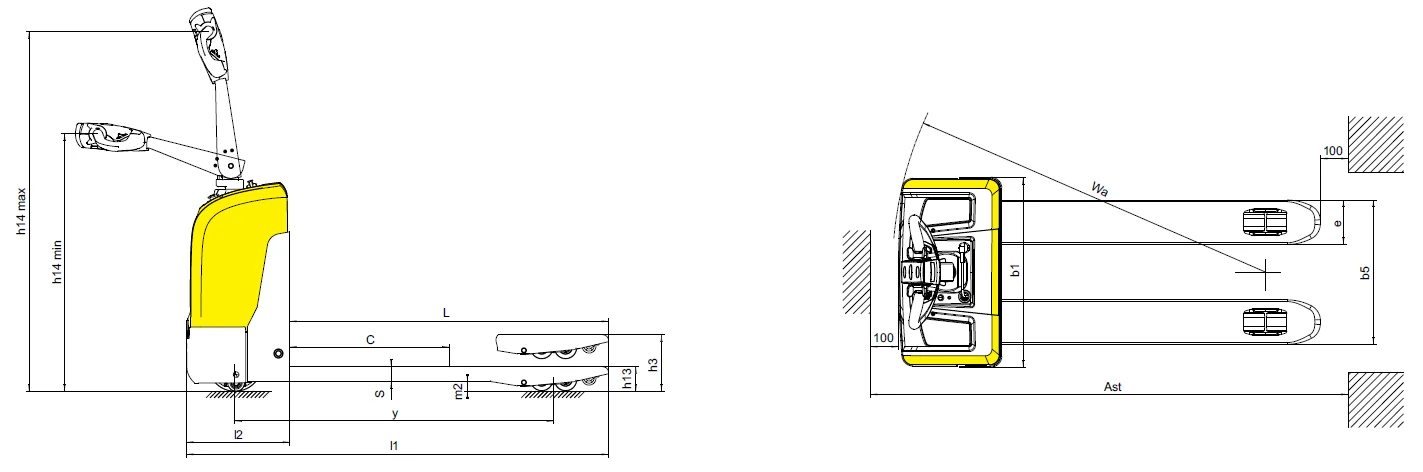

Model | CBD15W | CBD18W | CBD20W | ||
Capacity | (kg) | 1500 | 1800 | 2000 | |
Load centre distance | c | (mm) | 600 | 600 | 600 |
Fork height, lowered | h13 | (mm) | 85/75 | 85/75 | 85/75 |
Max. lift height | h3 | (mm) | 190/180 | 190/180 | 190/180 |
Height of tiller in drive position Min/Max. | h14 | (mm) | 950/1310 | 950/1310 | 950/1310 |
Overall length | l1 | (mm) | 1525/1595 | 1525/1595 | 1525/1595 |
Length to face of forks | l2 | (mm) | 375 | 375 | 375 |
Overall width | b1 | (mm) | 685 | 685 | 685 |
Fork dimensions | s/e/l | (mm) | 53/160/1150(1220) | 53/160/1150(1220) | 53/160/1150(1220) |
Width overall forks | b5 | (mm) | 520/550/685 | 520/550/685 | 520/550/685 |
Aisle width for pallets 1000x1200lengthways | Ast | (mm) | 2102/2164 | 2102/2184 | 2102/2184 |
Aisle width for pallets 800x1200lengthways | Ast | (mm) | 2005/2035 | 2005/2035 | 2005/2035 |
Turning radius | Wa | (mm) | 1347/1415 | 1347/1415 | 1347/1415 |
Travel speed, laden/unladen | Km/h | 5.3/5.8 | 4.5/5 | 4.5/5 | |
Battery Voltage, normal capacity K5 | V/Ah | 24/105 | 24/105 | 24/105 | |
Truck weight | (kg) | 240 | 250 | 250 |
Q1: Are you a factory?
A1: Of course. Ningbo Ruyi Joint Stock Co. Ltd., established in 1985, is a national hi-tech enterprise, which owns the unique combination of scientific research, development, production, sale and service.
A1: Of course. Ningbo Ruyi Joint Stock Co. Ltd., established in 1985, is a national hi-tech enterprise, which owns the unique combination of scientific research, development, production, sale and service.
Q2: Can Ruyi provide customized products? OEM products or ODM products?
A2: Yes, Ruyi can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.
Q3: What's the specification of the chargers?
A3: Ruyi have all kinds of the chargers and welcome the customers to custom-made.
Q4: How about the delivery time?
A4: Usually Ruyi producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
Q5: Do you have agent or representative abroad?
A5: Yes. We have two branches in the US and Russia. We have two warehouses are located in Los Angeles and Chicago with products in stock and ready to ship. We also have Xilin distributors agent in Norway, Thailand, Japan, Vietnam and Malaysia. If you are interesting to be our agent and enjoy more price. Pls contact us then we can discuss more detailed.
Q6: Can we print the LOGO on products?
A6: Yes, the OEM is available with the permission of our customers.
Q7: What is your payment term?
A7: T/T or L/C, if you want any other way, please contact us.
Q8: What can I get from cooperating with Ruyi?
A8: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
A2: Yes, Ruyi can provide customized products according to your requirement. Both OEM and ODM are acceptable. We do a lot ofnon-standard products, welcome your special custom-made.
Q3: What's the specification of the chargers?
A3: Ruyi have all kinds of the chargers and welcome the customers to custom-made.
Q4: How about the delivery time?
A4: Usually Ruyi producing time is 15-20 working days after we receive the advanced payment. For some standard products, we have most in stock and could delivery immediately.
Q5: Do you have agent or representative abroad?
A5: Yes. We have two branches in the US and Russia. We have two warehouses are located in Los Angeles and Chicago with products in stock and ready to ship. We also have Xilin distributors agent in Norway, Thailand, Japan, Vietnam and Malaysia. If you are interesting to be our agent and enjoy more price. Pls contact us then we can discuss more detailed.
Q6: Can we print the LOGO on products?
A6: Yes, the OEM is available with the permission of our customers.
Q7: What is your payment term?
A7: T/T or L/C, if you want any other way, please contact us.
Q8: What can I get from cooperating with Ruyi?
A8: 1. Unique products, with customized service.
2. Timely production and delivery, time is money.
3. Market protection service, long term business strategy.
