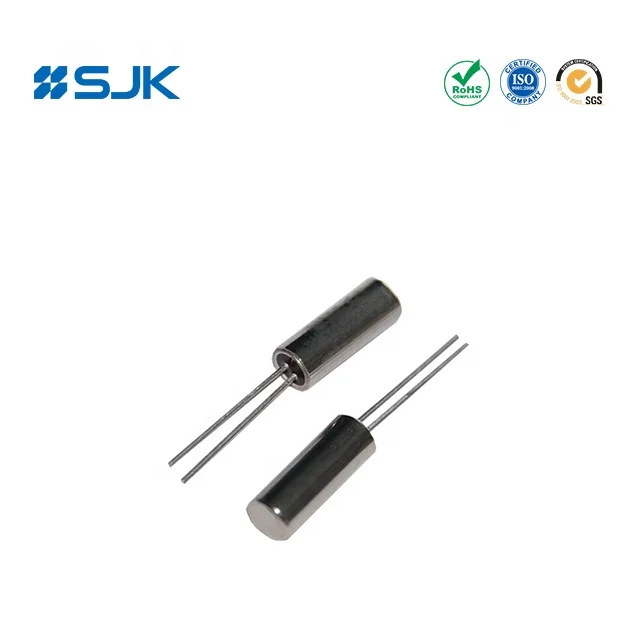

SJK DIP Through hold Quartz crystal Series 6K 32.768KHz

Product Overview

Description

6K Series kHz Crystal Unit

Model: 6K Series (6K6/6K8 Series kHz Crystal Unit) Frequency range: 32.768kHz (30~1350kHz) Frequency tolerance: ±20ppm Size: 2×6/3×8mm Load capacitance: 12.5pF, or specify Applications: Smart meters, IoT,Consumer products, PC, etc



Specifications and Dimensions

Features of 6K Series kHz Crystal Unit:

Tuning fork crystal of lead formed heatresistance

Frequency range from 30kHz to 1350kHz

Small size with 2.0×6.0 and 3.0×8.0 mm

High reliable environmental performance

Low power consuming

Application for Clock, Smart meters, IoT, Consumer products, PC, MCU, etc

RoHS Compliant

Electronic Specifications Of 6K Series kHz Crystal Unit:

Item/Type	6K6/6K8 Series (6K6/6K8 Series kHz Crystal Unit)
Frequency Range	32.768kHz (30~1350 kHz)
Frequency Tolerance	±20ppm, or specify
Load Capacitance	6.0~12.5pF, or specify
Operating Temperature	-20~+70℃, or specify
Storage Temperature	-55~+125℃
Drive Level	1.0μW Max.
Turnover Temperature	±25℃±5℃
Parabolic Coefficient	(-0.034±0.006)×10-6/℃
Shunt Capacitance	1.5pF Typ.
Aging (at25℃)	±3ppm/Year Max.
Packing Unit	1000pcs.

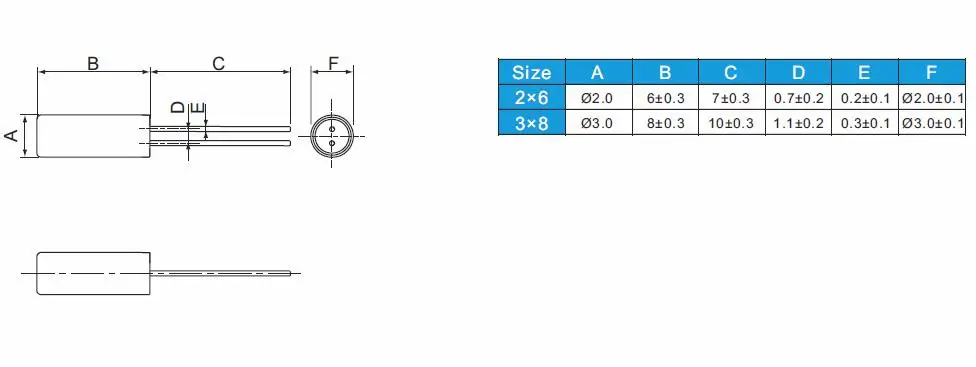

Dimensions[mm]









REMARK:SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER FOR PDF FILE.
