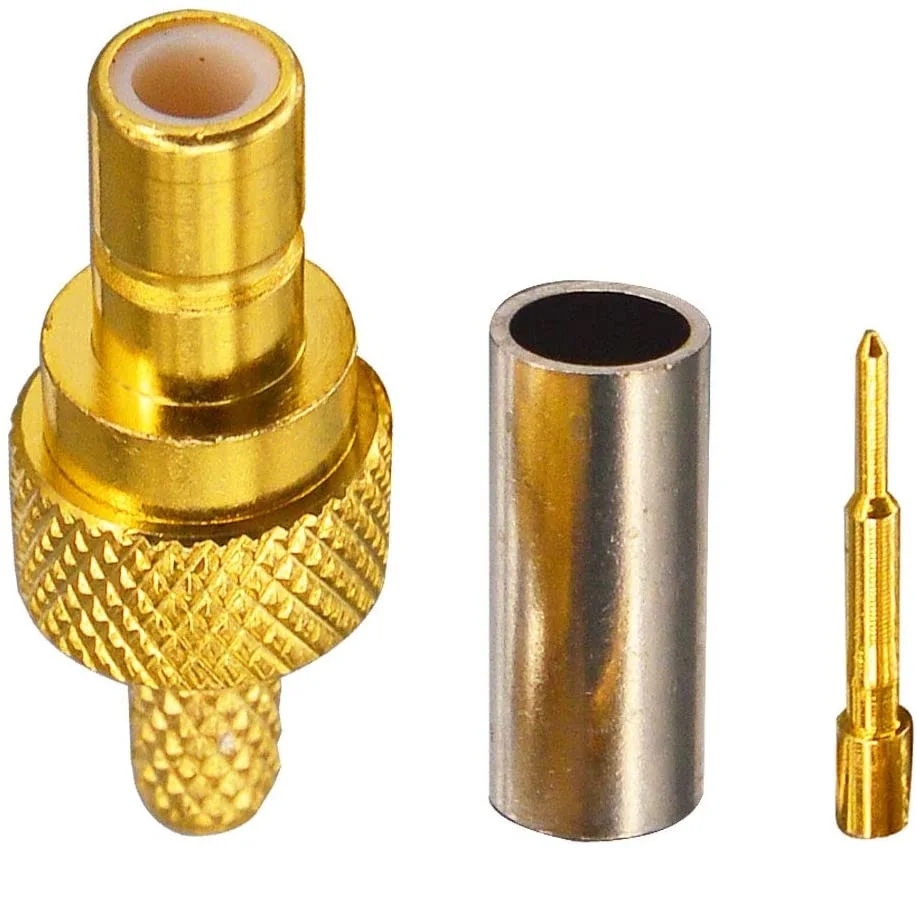

50 Ohm SMB Male Coaxial Connector

Product Overview

Description

SMB (SubMiniature version B) connectors are coaxial RF connectors developed in the 1960s. SMB connectors are smaller than SMA connectors.

They feature a snap-on coupling and are available in either 50 Ω or 75 Ω impedance. They offer excellent electrical performance from DC to 4 GHz.

An SMB jack has a male center pin, while an SMB plug has a female basket.

Connectors are available for two SMB cable sizes:

1. Cable 2.6/50+75 S (3 mm outer / 1.7 mm inner diameter) and


2. Cable 2/50 S (2.2 mm outer / 1 mm inner diameter)
