Plastic children toys making machinery equipment plastic toy injection molding machine robot arm

Product Application

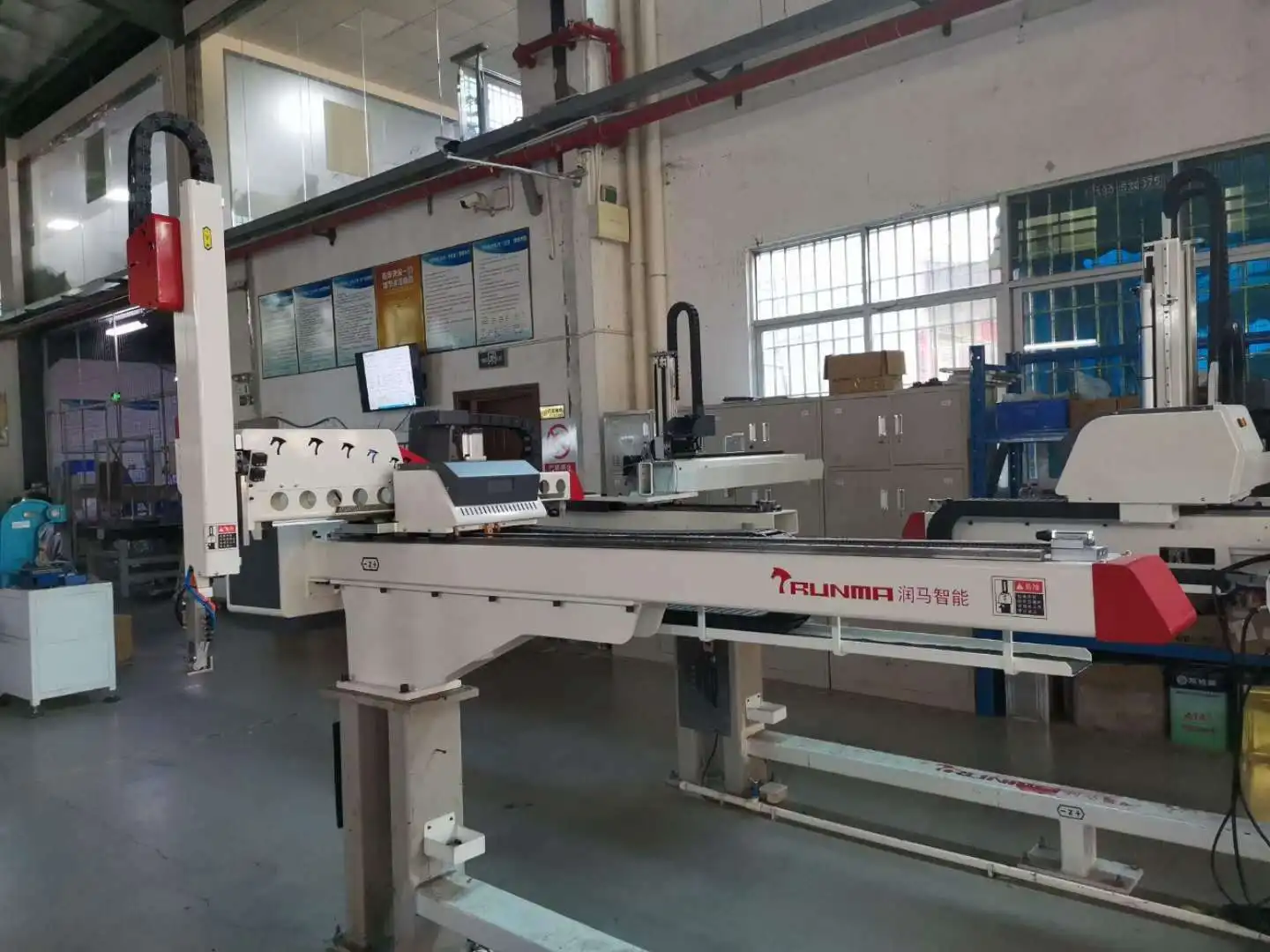

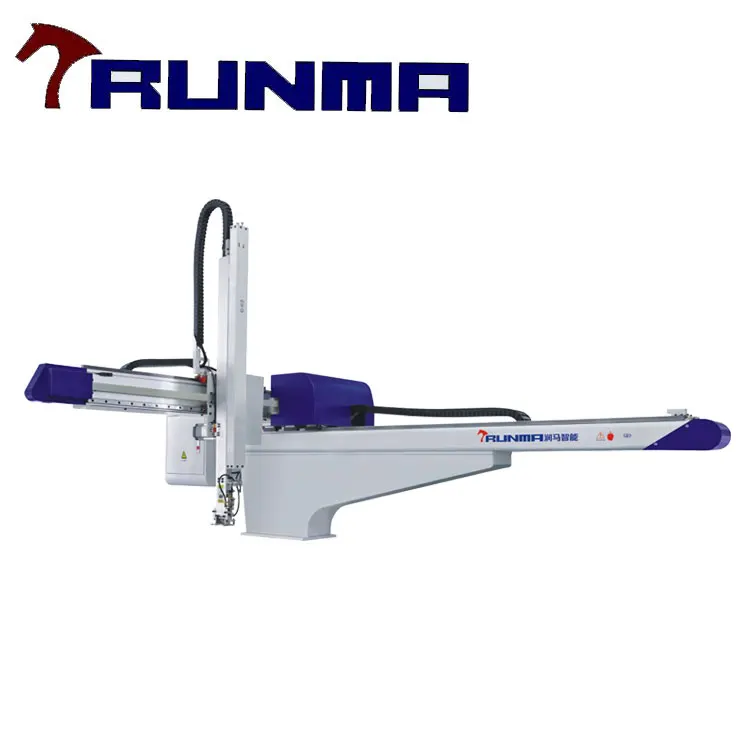

Medium full-servo cross-traveling robot series is mainly applied to take-out of finished products from 250-700T Horizontal injection molding machine, it uses single-cut arm, three-axes of X, Y, Z has AC servo motor driven mode, it is equipped with Japan THK low noise sliding track, quiet and smooth, and has standard configuration.

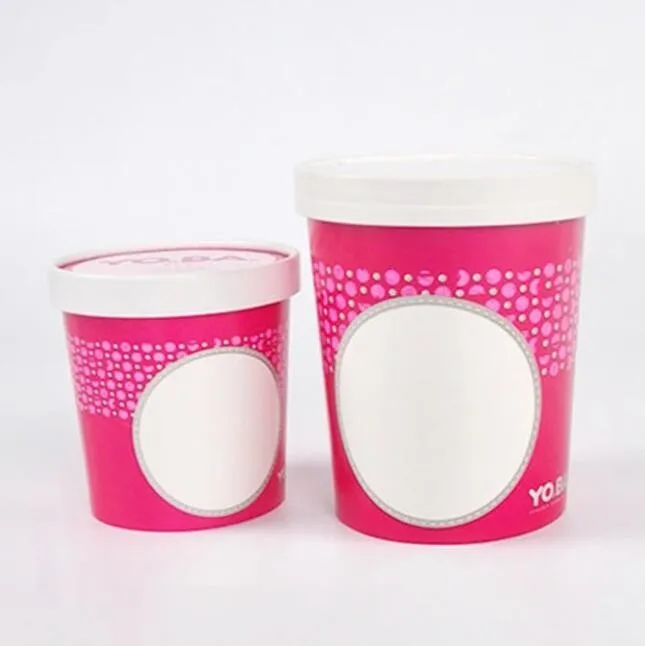

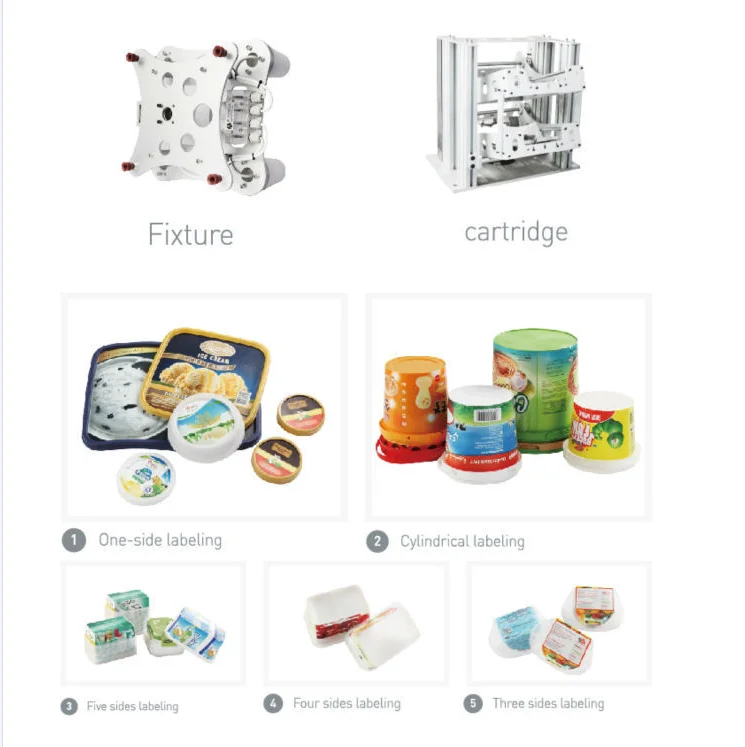

In Molding Labeling
1.1.(IML system) consists of three stations：
       1、N series manipulator
       2、Supply system（label station）
       3、Buried out of the fixture
1.2.After the equipment is commissioned without manual operation, only need to fill the label on time and products, this production method to improve product quality, greatly reduce the work, saving workers wages and improve efficiency。
1.3.Manufacturing specification：
        Voltage：AC 220V/50~60HZ
       Air pressure：0.5～0.7MP
1.4.Equipment match with national safety production standards

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

Driver Parts

Name: AC servo motor

Brand: DELTA

Original: Taiwan

Two Axis robot arm - Accessory

Name: Linear guideway
Original: PMI
Original: Taiwan

One Axis robot arm - Accessory

Name: Control System
Brand: Runma
Original: China

-Color screen, single-sheet multi-line display, making it easy for users to set parameters and signal monitoring
-32-bit double-CPU control, fast action response, smoother page switching
-Open program teaching mode, easy to learn, provide common fixed programs, users can also self teach a variety of complex mold processes.
-Ac servo direction can have multi-point placement, up to 99 sets.

Three or Five Axis robot arm - Accessory

Name: Control System
Brand: Runma
Original: China
-8-inch color touch screen hand controller, more simle, convenient, and user-friendly
-Open teaching way can easily realize embedding, stacking and other process requirements, and has assisting action with auxiliary equipment
-3-axis linkage function can plan a variety of complex take-out paths.
-Position setting can be accurately set with knob pulse spinner.
