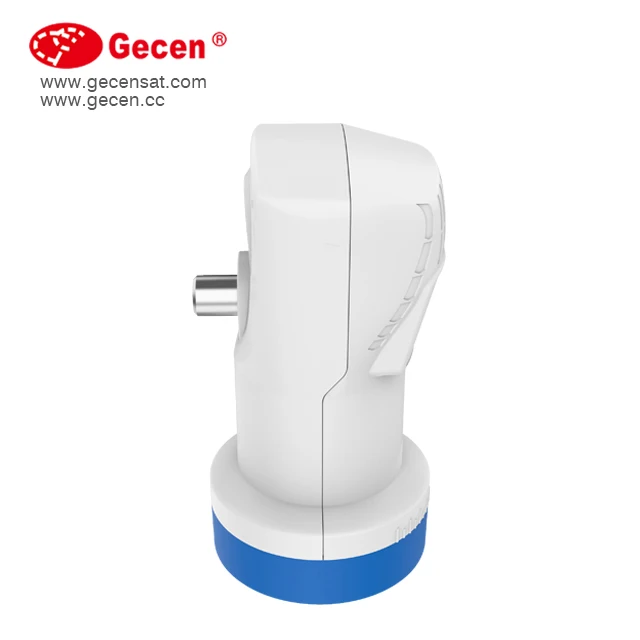

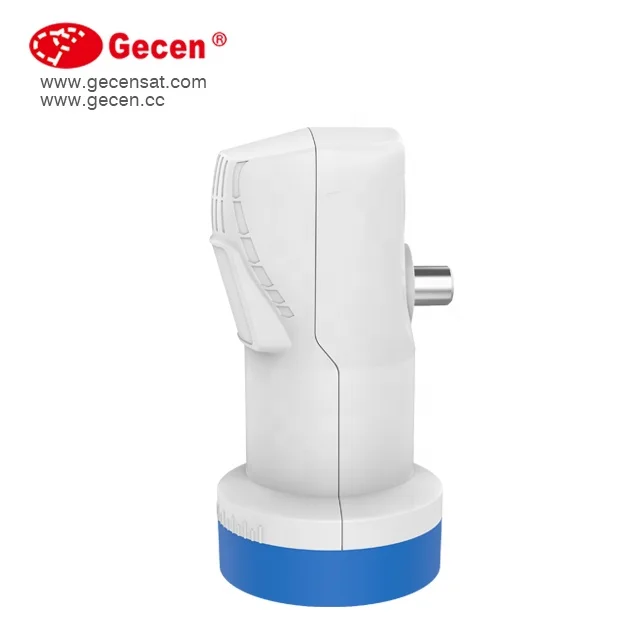

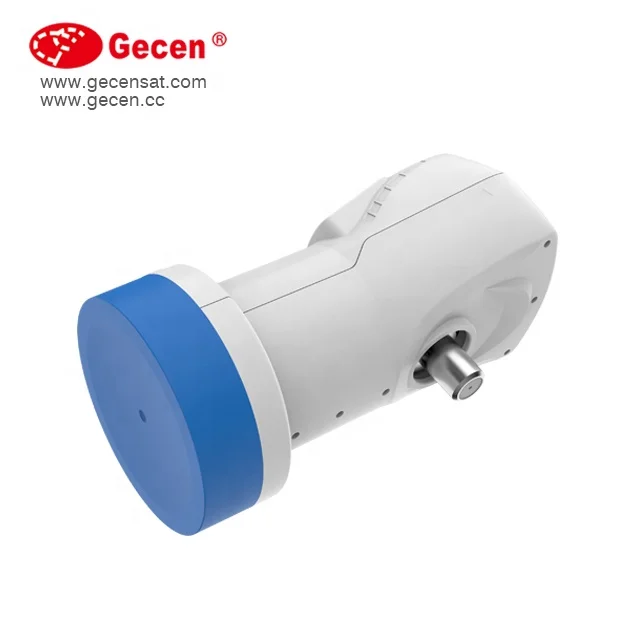

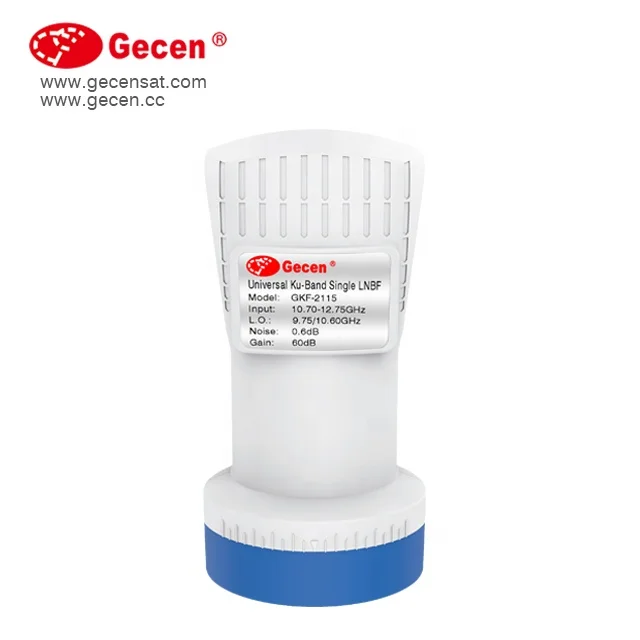

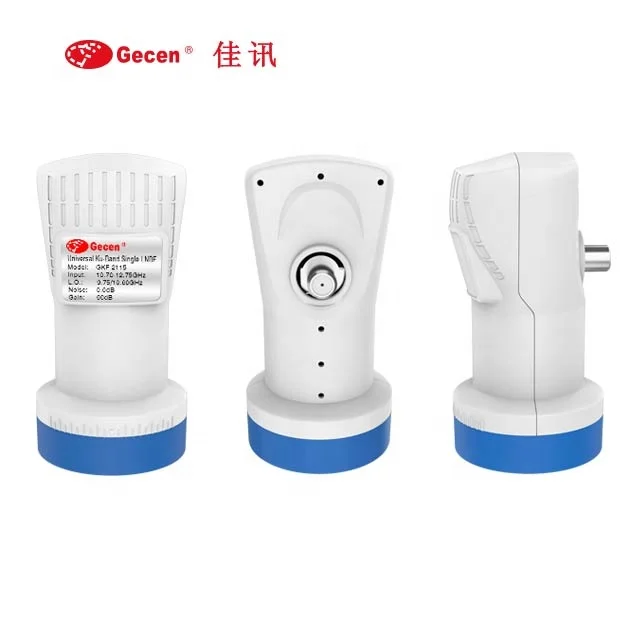

GKF 2115 high quality universal ku band single LNB LNBF For Satellite tv receiver
- Category: >>>
- Supplier: Zhuhai Gecen Technology Co. Ltd.
Share on (62520328867):
Product Overview
Description
Product Description

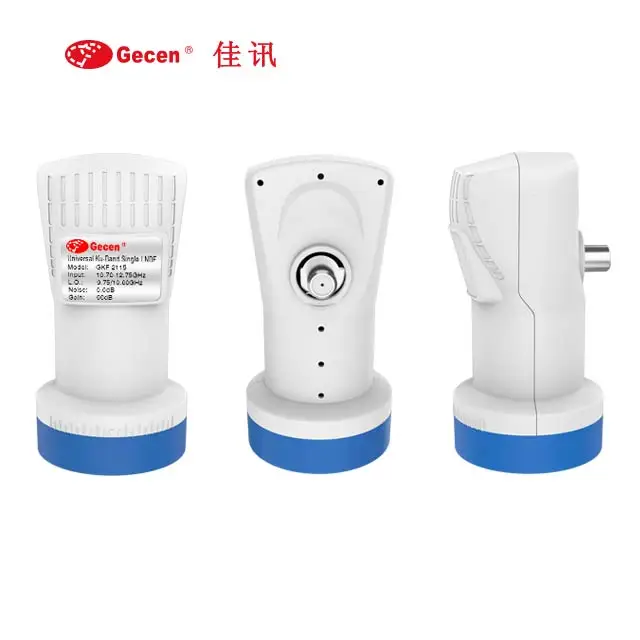

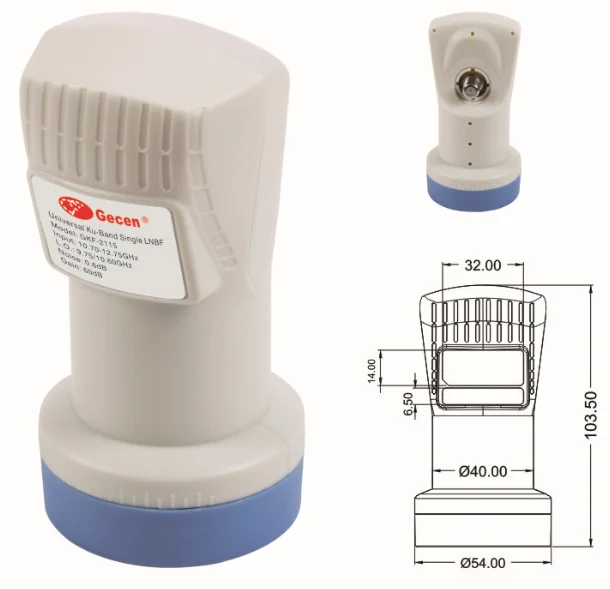

Product Name： Universal Ku-Band Single LNBF
Model：GKF-2115
Features： Low noise figure
Digital ready
Low power consumption
Easy installation
High quality weather protection
Model：GKF-2115
Features： Low noise figure
Digital ready
Low power consumption
Easy installation
High quality weather protection
• Superior Phase Noise performance, DVB-S2 (HDTV) compliant
• Low Noise Figure
• Higher Conversion Gain
• Excellent Cross Polarization Isolation
• Ultimate Reliability
• High quality weather protection
• Low Noise Figure
• Higher Conversion Gain
• Excellent Cross Polarization Isolation
• Ultimate Reliability
• High quality weather protection
Item | Specification | Item | Specification |
Input Frequency Range | Low Band:10.70~11.70GHz | Gain Flatness | ±0.5dB/26MHz |
High Band:11.70~12.75GHz | Cross POL. Isolation | 25dB(Typ.) | |
Output Frequency Range | Low Band:950~1950MHz | Image Rejection | 40dB(Min.) |
High Band:1100~2150MHz | Output VSWR | 2.0:1(Max.) | |
L.O. Frequency | Low Band:9.75GHz | P1dB | 0dBm (Min.) |
High Band:10.60GHz | DC Current Consumption | 80mA(Typ.) | |
L.O. Frequency Stability | ±1.0MHz (Max.)@+25℃ | Low/High Band Switching | Low Band:0Hz |
±2.0 MHz (Max.)@-30℃~+70℃ | High Band:22KHz±4KHz | ||
L.O. Phase Noise | -60dBc/Hz@1KHz | POL. Switching Voltage | 10.5~14.0V @Vertical |
-80dBc/Hz@10KHz | 16.0~20.0V @Horizontal | ||
-100dBc/Hz@100KHz | Relative Humidity | 0%~95% | |
Conversion Gain | 60dB(Typ.) | Operating Temperature | -30℃~+70℃ |
Noise Figure | 0.1dB(Typ.) | Connector Type | 75Ω Female Connector |
Product Usage

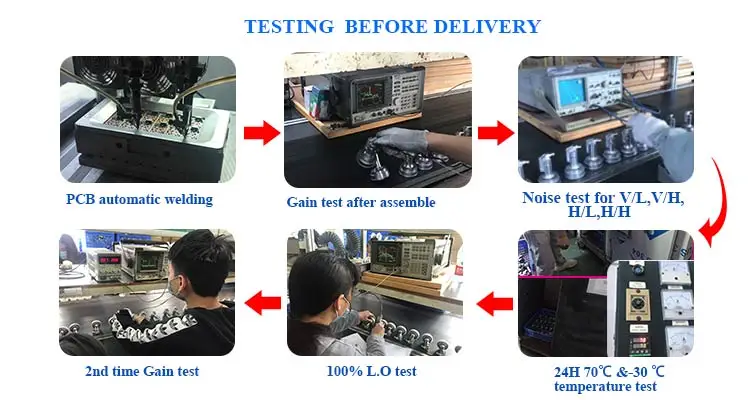

Production
Packing&Shipping
Packing: white box, gift box, OEM box, we will try our best to satisfy with you.
Delivery: DHL, TNT,UPS and so on, as you like.
Delivery: DHL, TNT,UPS and so on, as you like.
Company Introduction
ZHUHAI GECEN TECHNOLOGY Co., Ltd is a leading manufacturer specialized in High Definition SATV & CATV reception products for many years in Zhuhai, China. The main products include HD DVB-S/S2/T/T2/T2+CI receivers, digital satellite finders, LNB.GECEN is located in Technology Innovation Coast Hi-tech Zone Zhuhai Guangdong China, a modernized factory with an area of 8808 square meters. With more than 500 workers for 12 production lines, and 40 engineers for R&D team, 20 engineers for QC group, GECEN has extensive experience in production and export in this line, with good brand reputation. Market all over the world mainly Middle-east, Southern Asia, East Europe, North America. Customer service comes first. OEM and ODM are welcome. We expect our products will provide you with the utmost in performance and reliability.
Exhibition
The company participates in many exhibitions every year and looks forward to meeting you someday!

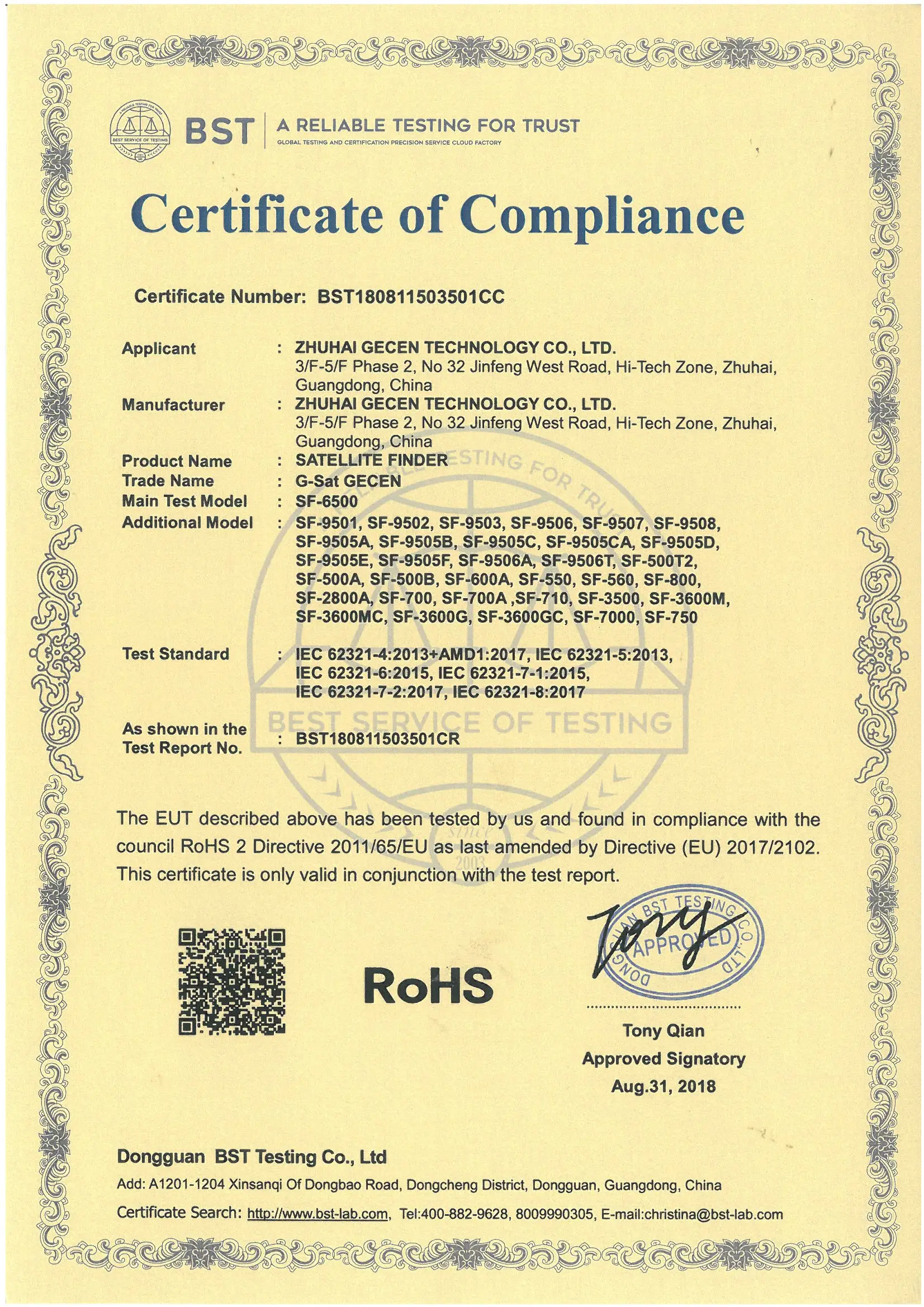

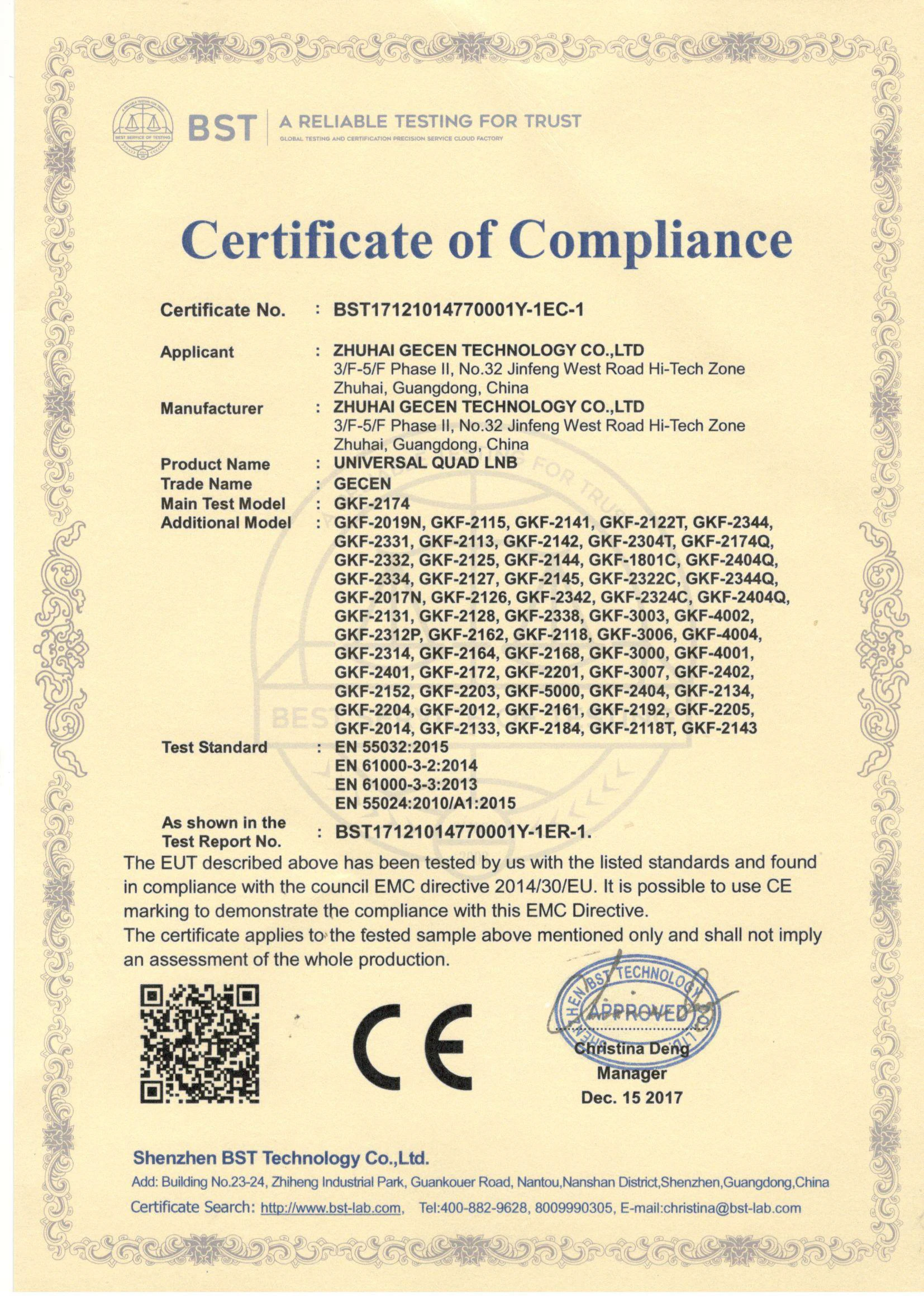

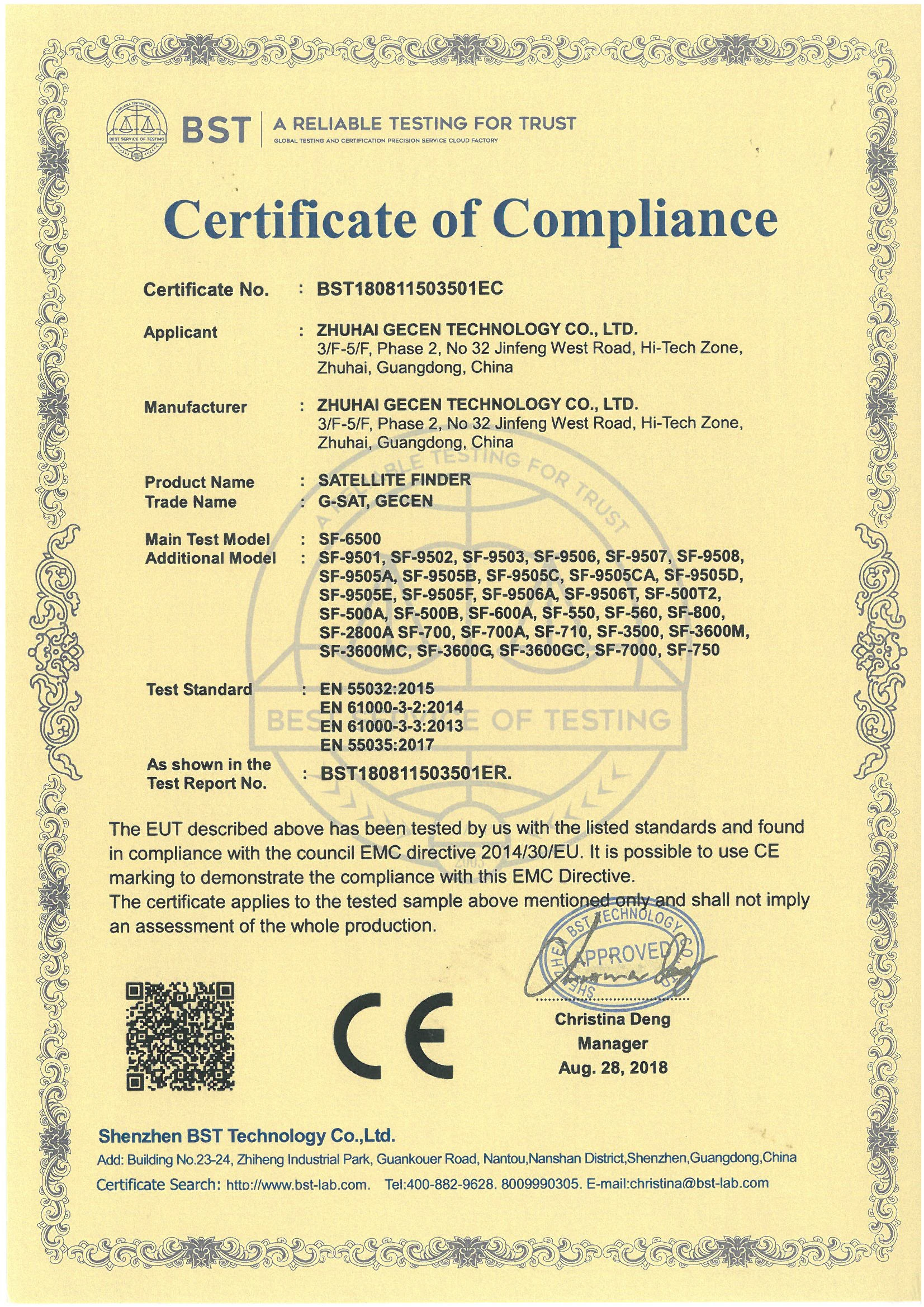

Certification

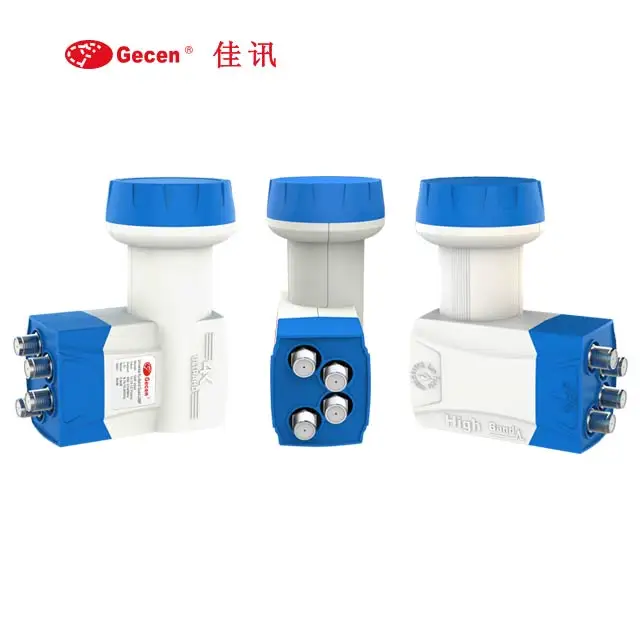

Recommend Products
FAQ
Q: Factory? | A: Yes, We have our own factory, which has more than 20,000 square meters. |
Q: Where is your factory located? | A: Our factory is located in No.2 keji 3rd Road,Technology Innovation Coast, Hi-tech Zone, Zhuhai, Guangdong, China |
Q: Which shipping service you will use for my goods ? | A: We used DHL,Fedex,UPS,TNT,EMS as customer like. |
Q: How does your factory do regarding quality control? | A: Quality is priority. QC department with professional quality assurance specialist attach great importance to quality controlling from the very beginning to the very end.Each product undergoes rigorous quality inspection before leaving the factory. |
Q: What will u company do with defected product? | A: For all our products, 1-5years warranty has been provided, any problems during this period, we will take full responsibility if the product have any quality problem. |
Q:Which shipping service you will use for my goods ? | A: We used DHL,Fedex,UPS,TNT,EMS as customer like. |
