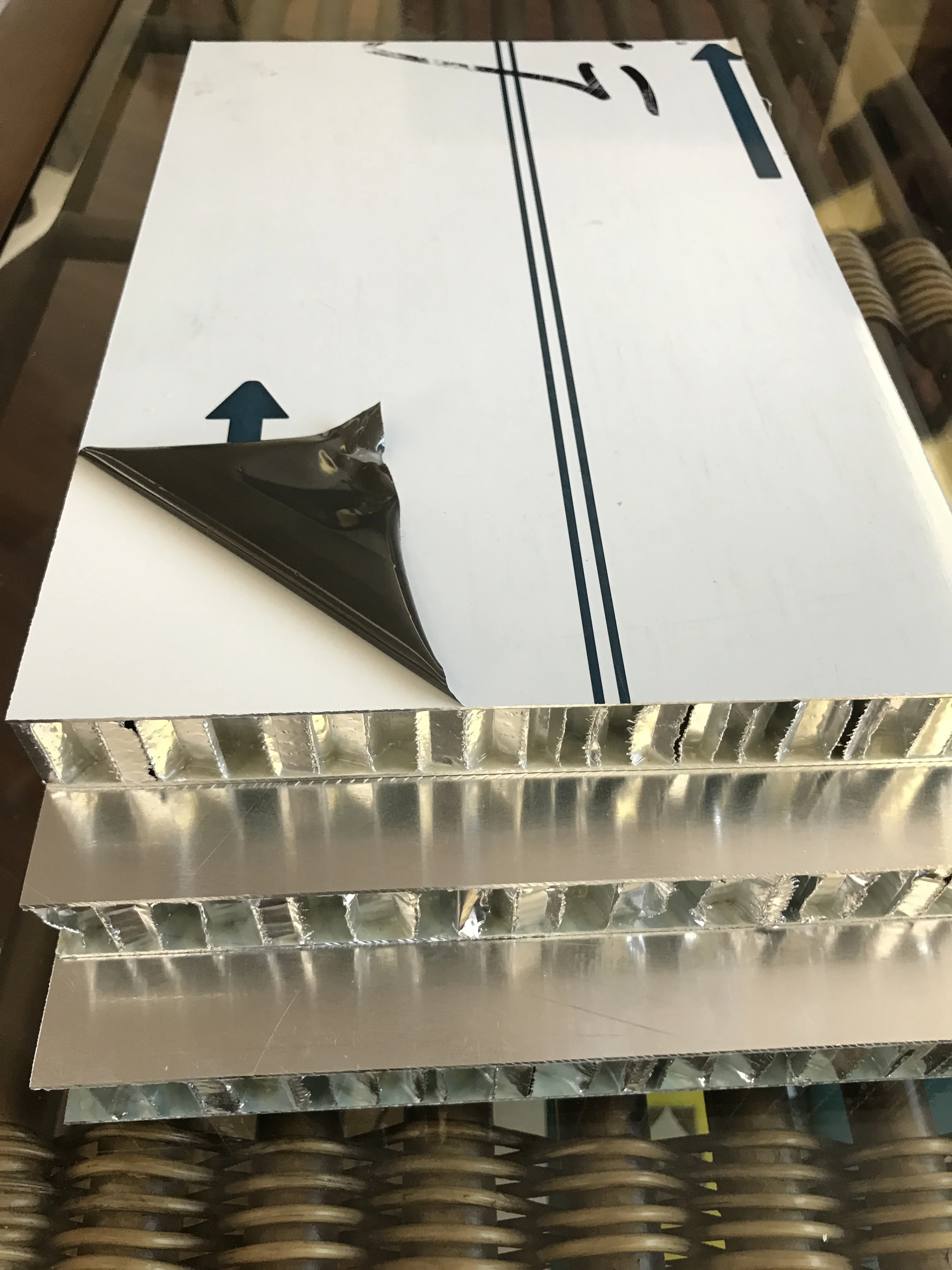

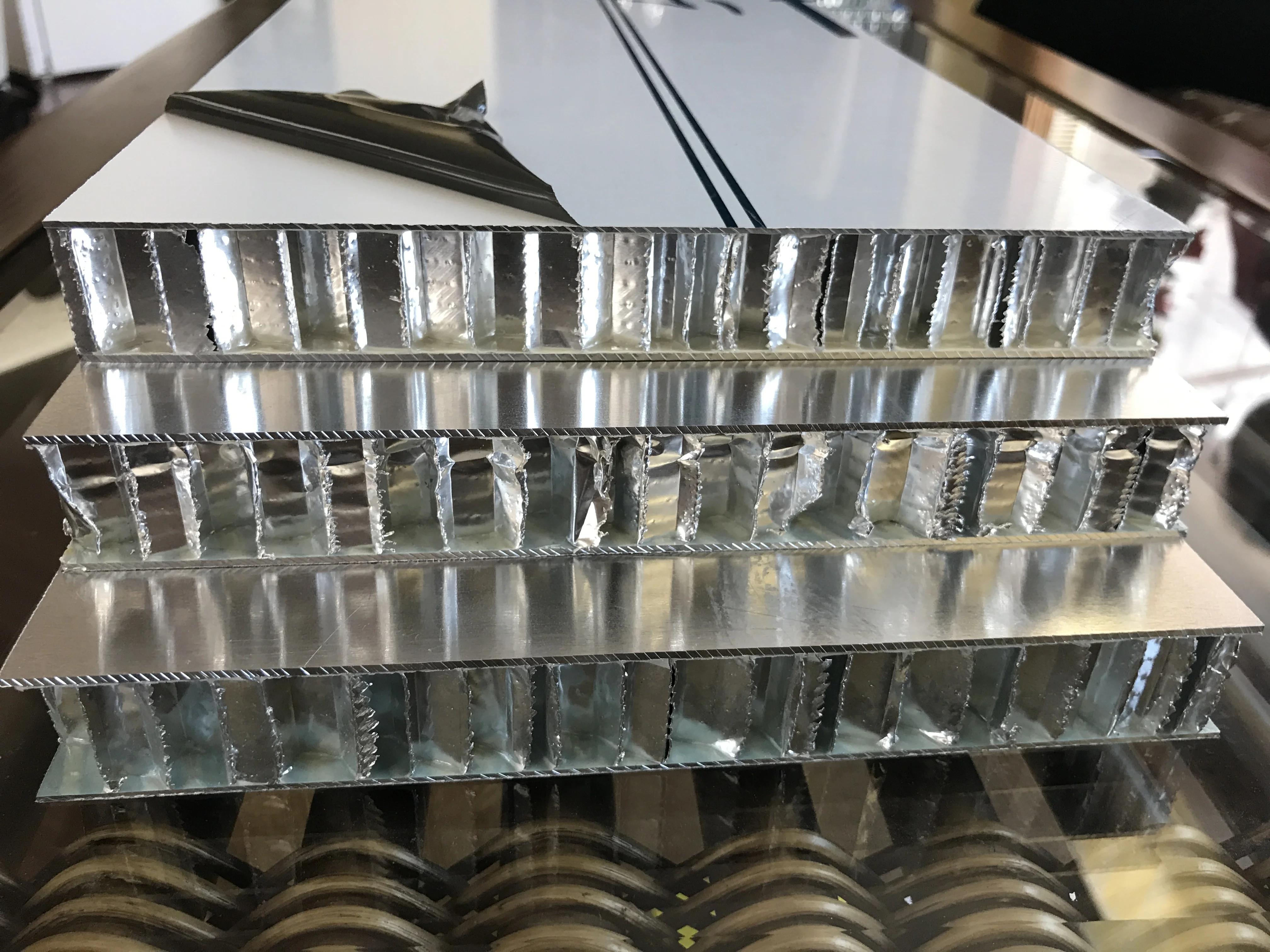

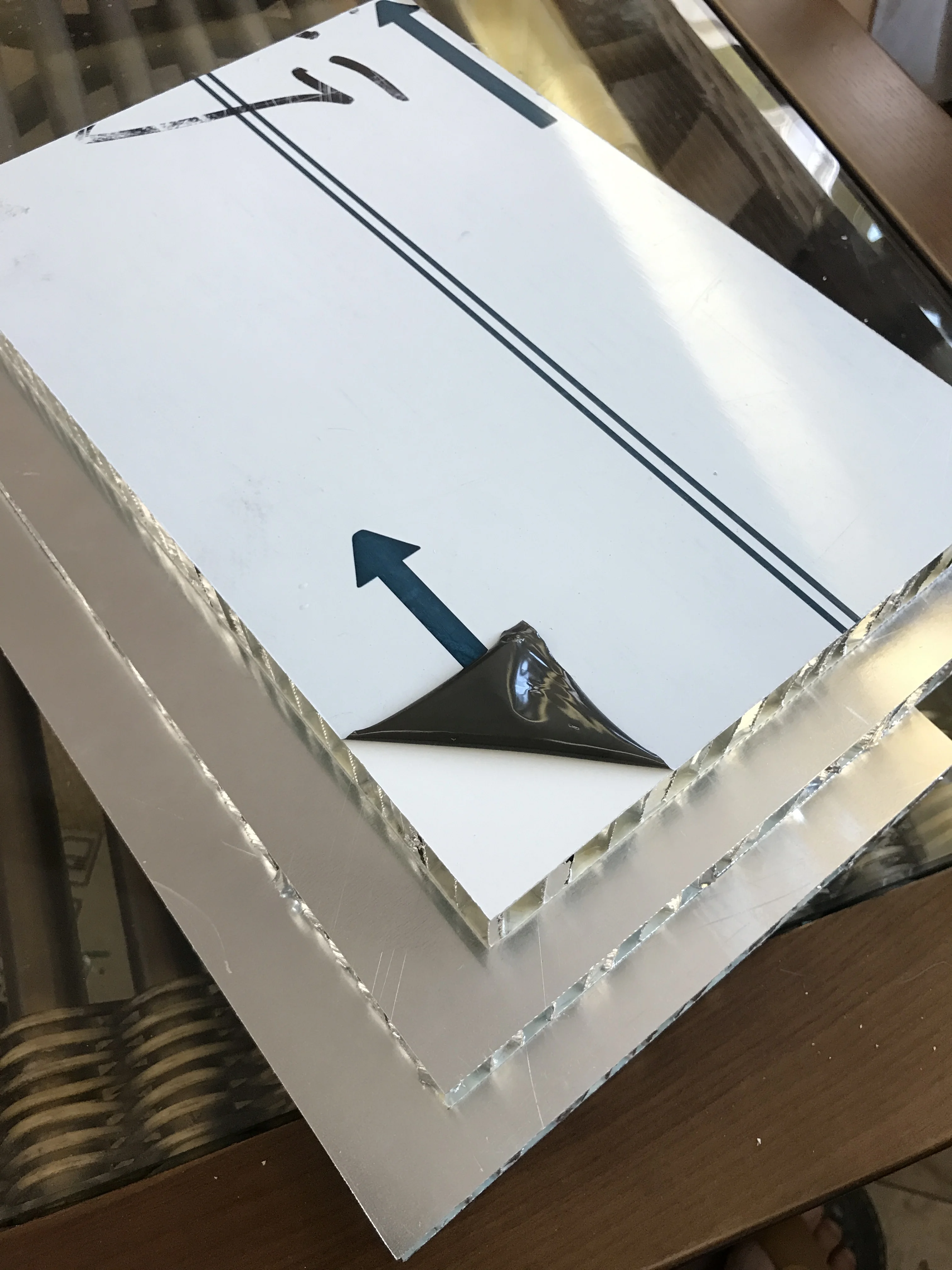

High quality custom color no coating aluminum alloy honeycomb sandwich panel
- Category: >>>
- Supplier: Foshan Onebond Building Materials Co. Ltd.
Share on (62520396797):
Product Overview
Description
Product Description
Product Description
Aluminum honeycomb panels of ONEBOND brand are mainly used for the decoration of the external walls of high-rises ther military field. These products are made of high-quality raw materials, and processed with high precision.
ONEBOND aluminum honeycomb panels are made of high-quality imported raw materials, precision. Its surface employs the advanced techique of fluorocarbon acquer pre-coating, which can keep the color unchanged for 20 years and its durability has been promised.
size: standard size 1200*2400mm
Max width:2400mm
Max length:150000mm
Max thickness:500mm （both sides aluminum thickness 0.5mm~2mm）
Technical Details of Honeycomb Panels | ||||||
Thickness | 20mm | 24mm | ||||
Facing Aluminum Skin | 1.00mm | |||||
Backing Aluminum Skin | 1.00mm | |||||
Weight (kg/m²) | 7.02 | 7.12 | ||||
Mechanics function of complex planking and surface planking | ||||||
Inertia rectangle (cm⁴/m) | 19.85 | 31.67 | ||||
Measurement of cutting W (cm³/m) | 19 | 24 | ||||
Hardness of complex planking | 139000 | 2217000 | ||||
Aluminum profile surface planking | AA5754 (ALMg3) | |||||
Changeable measurement (N/mm²) | 70000 | |||||
Tensile strength of surface planking (N/mm²) | Rm≥220 | |||||
0.25 Power of Bending (N/mm²) | Rp0.2≥130 | |||||
Extending rate (EN485-2:1994) | A50≥8 | |||||
Hot expanding of aluminum | 2.4mm/m。When the temperature discrepancy is 100℃ | |||||
Surface decoration layer | ||||||
Luminosity (Original Data) | PVDF Spray and bake paint | |||||
Hardness of pencil | 30-40% | |||||
Pith of honeycomb | HB-F | |||||
Size of honeycomb density | 1/4'' 6.3mm | |||||
Aluminum honeycomb density | About 80kg/m³ | |||||
Strength of pressure-resistant (MILL-STD-401) | 4N/mm² | |||||
Funtion of acoustics | ||||||
Data of sound sucking as | 0.05 | |||||
Indicator of sound separating (according to ISO717-RM) | 23 | 25 | ||||
Function of heating | ||||||
Data of heating duiding (w/m²k) | 2.25 | 2.7 | ||||
Data of heating preventing R(1/m)(m²k/w) | 0.0089 | 0.0093 | ||||
Data of heating passing U (k) (w/m²k) | 5.59 | 5.575 | ||||
\t\t\t\t\t\t\t\t\tProducts Properties \t\t\t\t\t\t\t
Main Features
1) Sound Insulating, Heat Insulation, Heat Preservation ；
2) Fireproofing Properties ；
3) Super Flatness and Rigidity ；
4) Moisture resistance ；
5) Light weight and energy saving ；
6) Environmental ；
7) Corrosion Resistant ；
8) Easy installation；
\t\t\t\t\t\t\t\t\tProducts Application \t\t\t\t\t\t\t
Curtain wall; Interior decoration; Roof material; Decoration material for lift and elevator; Train and high speed subway; Decoration material for luxury ship and vehicle.etc.
Any size, any shape, we try our best to provide to you best product with best survice.
\t\t\t\t\t\t\t\t\tProduct Certificate \t\t\t\t\t\t\t
Package & Delivery
Delivery time:
Im commonly, after confirm size, color and deposit, production time needs 7~15days.
If need to order aluminum roll, production time is 25days.
Package.
According to products size to make exact plywood package size, with bandage to fix. Professional export plywood case.
