SJK SMD 2016 Quartz crystal Series 7F HOT 25.000MHz

Product Overview

Description

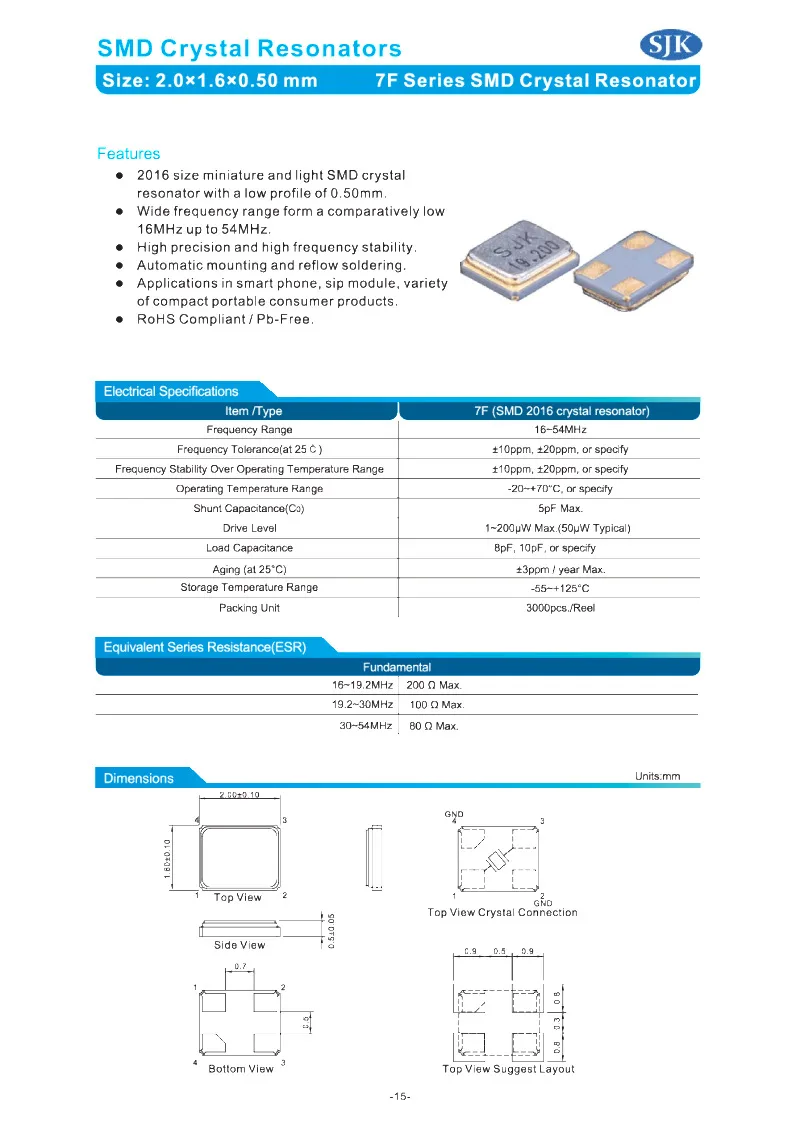

Model Number	SJK-7F25000MBZ2230B3	Brand Name	SJK
Series	7F	Package/Case	SMD2016
Frequency	25.000MHz	CL	20pF
Frequency Tolerance (25±3℃)Min	-20ppm	Frequency Tolerance(25±3℃)Max	+20ppm
Operating Temperature Min	-20℃	Operating Temperature Max	+70℃
Frequency Stability vs.Temperature Min	-30ppm	Frequency Stability vs.Temperature Max	+30ppm
L x W/Size	2.0 x 1.6mm	Height	0.50mm
Cut Type	AT Cut	Overtone	Fundamental
E.S.R	100Ω	Shunt Capacitance(C0)	5.0pF
Storage Temperature	-55~+125℃	Output Wave	Sine Wave
Drive Level	50μW	Aging	±3.0ppm/year
Lead Quantity	4Pin	Encapsulation technology	Seam Sealing

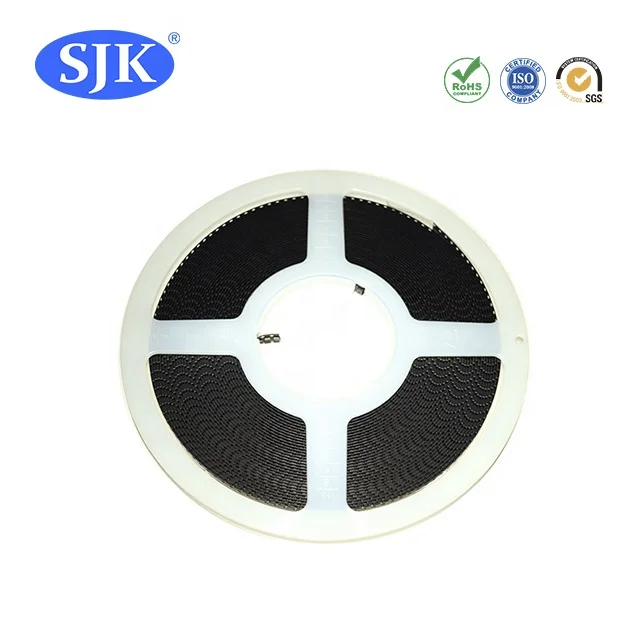

MPQ	3000pcs	Package type	Tape/Reel
Mounting type	SMT	Pb Free	Yes
Application level	Consumer	Partlife Cycle Code	Active
Material	Quartz Crystal	Insulation Resistance	500MΩ @ DC100V
Country of Origin	China	MFG	SHENZHEN CRYSTAL TECHNOLOGY INDUSTRIAL CO.,LTD
Business Code	0B	Special Requirement	No Special
