Product Overview
Description
1/4 Port Size Pneumatic Air Filter AW2000-02D SMC Air Filter Pneumatic With Auto Drain
Product Description
Ordering Code
AW 2000 - 02 D
Model Size Port size Drain type
Regulator 2000 01: 1/8'' Ni:Manual drain
3000 02: 1/4'' D:Automatic drain
4000 03: 3/8''
5000 04: 1/2''
06: 3/4''
10: 1''
Specification
| Model | AW2000-01 (D) | AW2000-02 (D) | AW3000-02 (D) | AW3000-03 (D) | AW4000-04 (D) | AW4000-06 (D) | AW5000-06 (D) | AW5000-10 (D) | |
| Port size RC(PT) | 1/8'' | 1/4'' | 1/4'' | 3/8'' | 1/2'' | 3/4'' | 3/4'' | 1/4'' | |
| Pressure gauge port size | 1/8'' | 1/8'' | 1/8'' | 1/8'' | 1/4'' | 1/4'' | 1/4'' | 1/4'' | |
| Flow rate(L/Min) | 550 | 550 | 2000 | 2000 | 4000 | 4500 | 5500 | 5500 | |
| Pressure gauge | Y40-01Z | Y50-02Z | |||||||
| Adjustable Pressure range | 0.05~0.85Mpa | ||||||||
| Ambient & fluid temperature | 5~60°C | ||||||||
| Main parts material | Body | Aluminum alloy | |||||||
| Bowl | PC | ||||||||
| Bowl guard | AW2000:without AW3000~AW5000:with(lron) | ||||||||

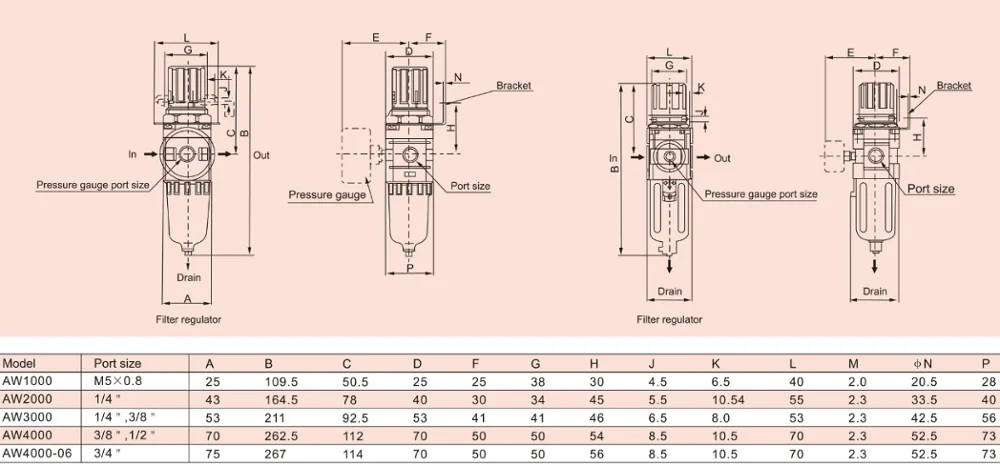

Dimension
Product Details
Main Product
Company Information
Our Service
FAQ
Q: What is your MOQ?
A: 5pcs for MOQ.
Q: What is your packing?
A: Each F.R.L by one box packing with protection.
Q: What is your quality?
A: Sample will tell you what you want.
Q: What is your warranty?
A: One year under normally used.
Q: Can you do OEM?
A: Yes, we can.
