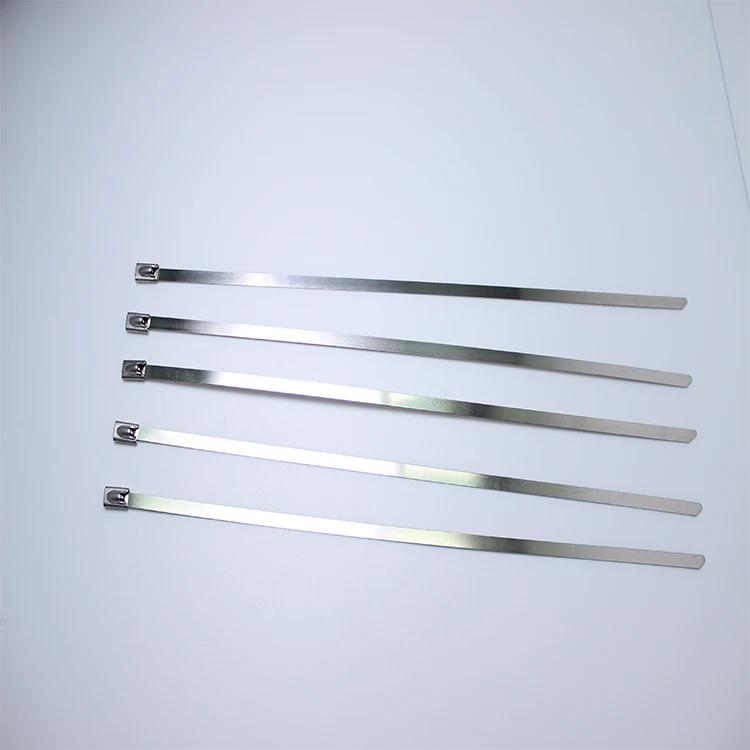

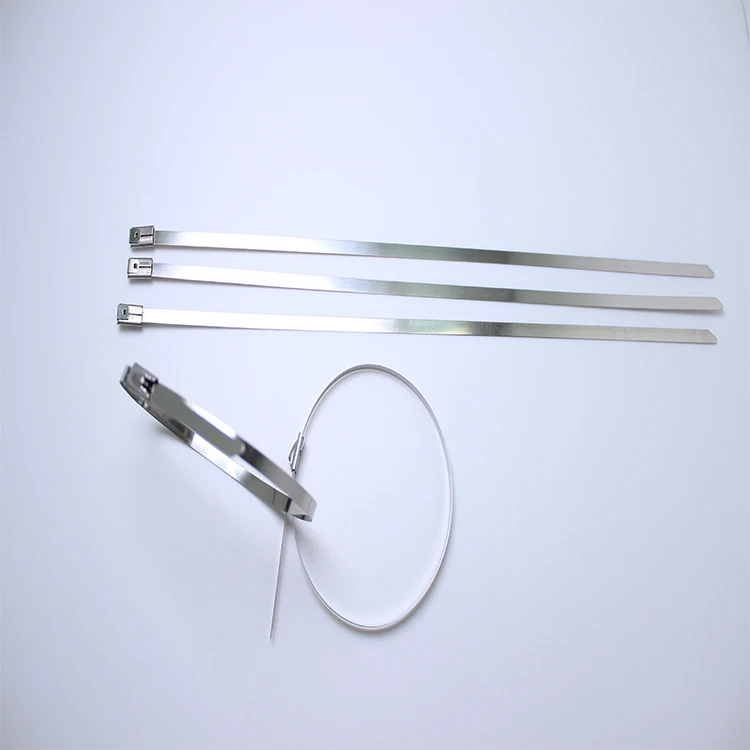

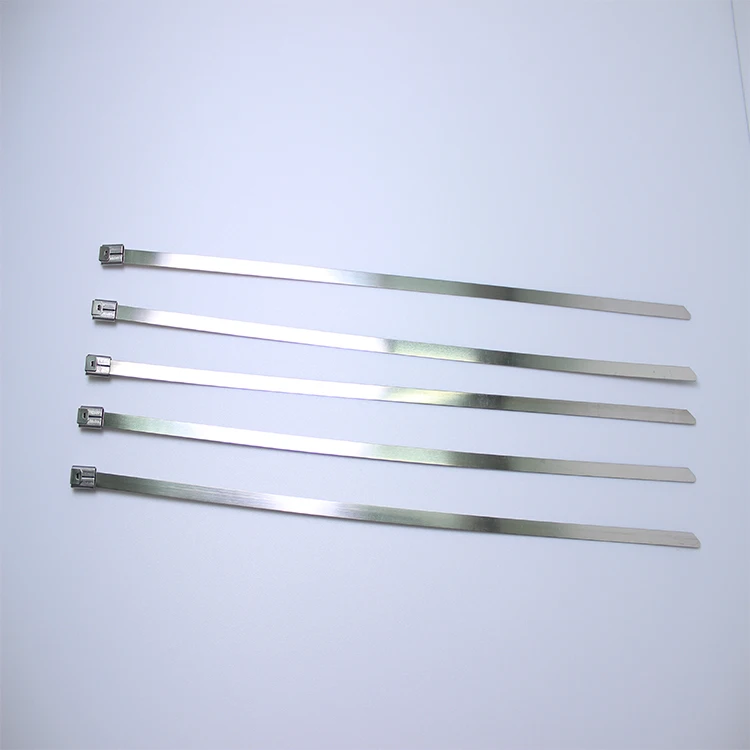

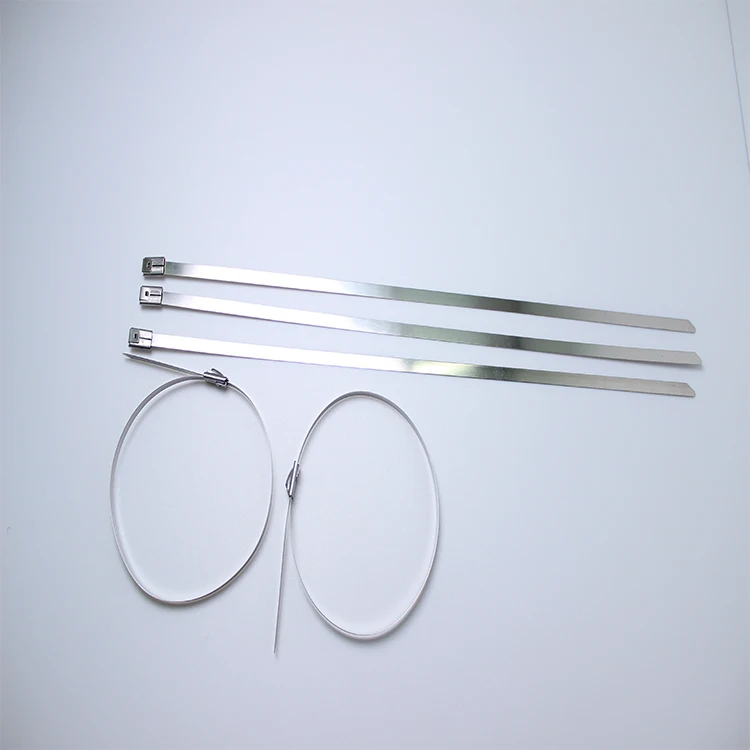

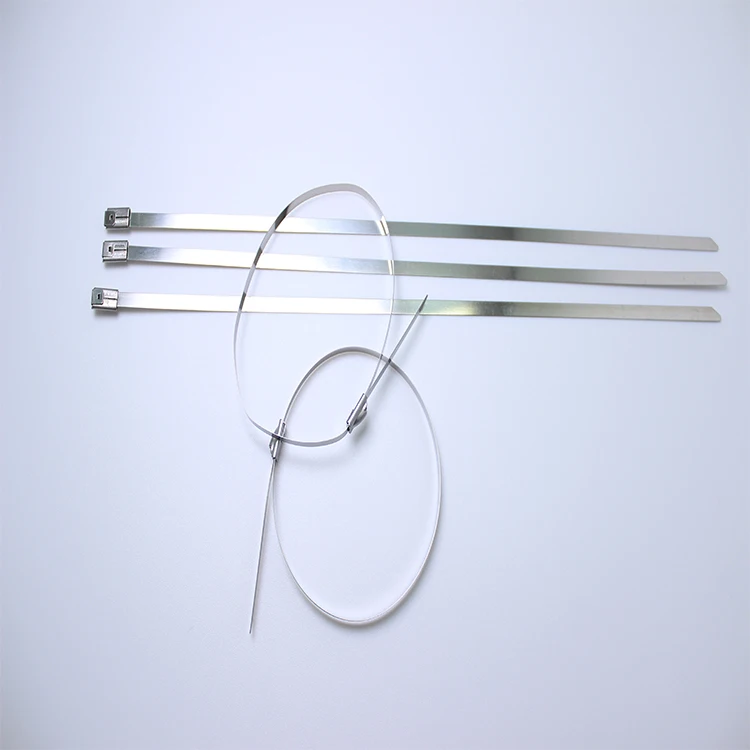

Heavy Duty Stainless Steel Cable Zip Tie Ball Lock Type 5MM Width
- Category: >>>
- Supplier: Wenzhou Longhua Daily Electron Co. Ltd.
Share on (62520475461):
Product Overview
Description
Self-locking head design speeds installation and locks into place at any length along tie body | UL94-V2 | |
Provides a strong,durable method of cable bunding | 2.7%-2.8%(23℃-50%RH) | |
Can be used in a wide range of indoor,outdoor,and underground | -40℃-------+85℃ | |
Smooth surfaces and rounded edges assures cable protection and worker safety | -10℃ | |
Provide the ultimate support for network cables | +110℃ | |
Material: | UL,CE,TUV,DNV,ROHS,PAHS,REACH | |
304 stainless steel for general-purpose applications | ||
316 stainless steel for the most corrosive environments | ||
Working Temperature:-80℃-+538℃ | ||
Min installation Temperature:-60℃ | ||
Any length is available | ||
Water absorption:none | ||
Flammability:non-flammable | ||
Ultraviolet resistance:excellent,chemical resistance:excellent | ||
UL(underwriters Laboratories):File E258930 based newest standard UL62275 | ||
Specification
Item NO. | Size(mm) | Size(inch) | Tensile Strength | Min Bundle Diameter(mm) | Max Bundle Diameter(mm) | Min Bundle Diameter(inch) | Max Bundle Diameter(inch) |
LH-SS-S-125-5 | 4.6x125 | 5.0 | 890N(200lb) | 15.00 | 38.00 | 0.59 | 1.49 |
LH-SS-S-150-6 | 4.6x150 | 6.0 | 890N(200lb) | 15.00 | 46.00 | 0.59 | 1.81 |
LH-SS-S-200-8 | 4.6x200 | 8.0 | 890N(200lb) | 15.00 | 61.90 | 0.59 | 2.43 |
LH-SS-S-260-10 | 4.6x260 | 10 | 890N(200lb) | 15.00 | 81.00 | 0.59 | 3.19 |
LH-SS-S-290-11 | 4.6x290 | 11.5 | 890N(200lb) | 15.00 | 90.60 | 0.59 | 3.56 |
LH-SS-S-360-14 | 4.6x360 | 14.0 | 890N(200lb) | 15.00 | 112.80 | 0.59 | 4.44 |
LH-SS-S-520-21 | 4.6x520 | 20.5 | 890N(200lb) | 15.00 | 163.80 | 0.59 | 6.45 |
LH-SS-S-680-27 | 4.6X680 | 27.0 | 890N(200lb) | 15.00 | 214.80 | 0.59 | 8.45 |
LH-SS-S-840-33 | 4.6X840 | 33.0 | 890N(200lb) | 15.00 | 265.70 | 0.59 | 10.46 |
LH-SS-H-200-8 | 7.9X200 | 8.0 | 1600N(350lb) | 15.00 | 61.90 | 0.59 | 2.43 |
LH-SS-H-260-10 | 7.9X260 | 10.0 | 1600N(350lb) | 15.00 | 81.00 | 0.59 | 3.19 |
LH-SS-H-290-11 | 7.9X290 | 11.5 | 1600N(350lb) | 15.00 | 90.60 | 0.59 | 3.56 |
LH-SS-H-360-14 | 7.9X360 | 14.0 | 1600N(350lb) | 15.00 | 112.80 | 0.59 | 4.44 |
LH-SS-H-520-21 | 7.9X520 | 20.5 | 1600N(350lb) | 15.00 | 163.80 | 0.59 | 6.45 |
LH-SS-S-680-27 | 7.9X680 | 27.0 | 1600N(350lb) | 15.00 | 214.80 | 0.59 | 8.45 |
LH-SS-S-840-33 | 7.9X840 | 33.0 | 1600N(350lb) | 15.00 | 265.70 | 0.59 | 10.46 |
LH-SS-EH-290-11 | 12X290 | 11.5 | 2300N(500lb) | 15.00 | 90.60 | 0.59 | 3.56 |
LH-SS-EH-360-14 | 12X360 | 14.0 | 2300N(500lb) | 15.00 | 112.80 | 0.59 | 4.44 |
LH-SS-EH-520-21 | 12X520 | 20.5 | 2300N(500lb) | 15.00 | 163.80 | 0.59 | 6.45 |
LH-SS-EH-680-27 | 12X680 | 27.0 | 2300N(500lb) | 15.00 | 214.80 | 0.59 | 8.45 |
LH-SS-EH-840-33 | 12X840 | 33.0 | 2300N(500lb) | 15.00 | 265.70 | 0.59 | 10.46 |
