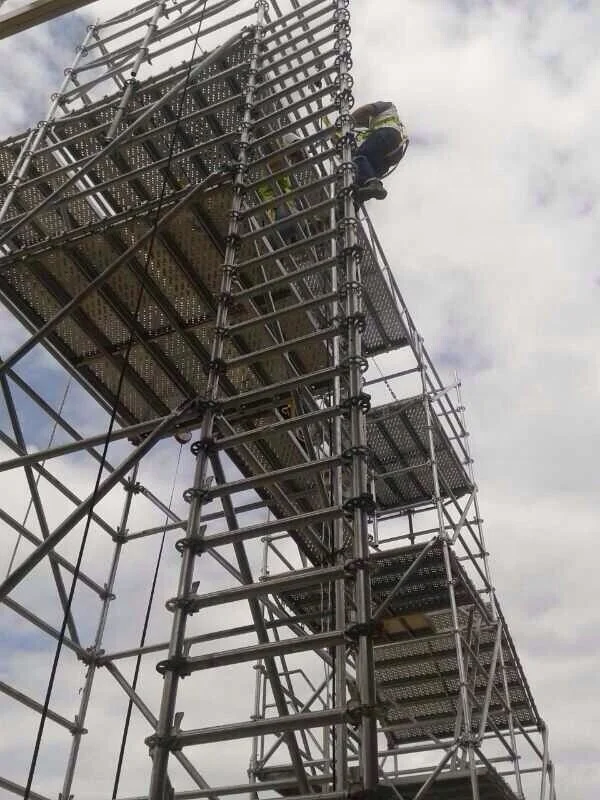

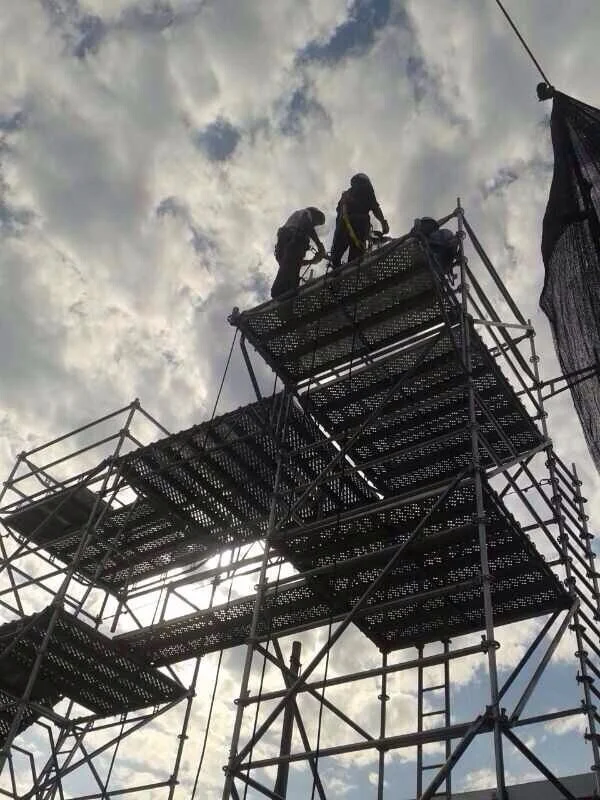

Allround Layher Ringlock Scaffolding System For Building Work
- Category: >>>
- Supplier: Changzhou Yueyang Machinery Co. Ltd.
Share on (62520564299):
Product Overview
Description
Product Description
● High Grade Steel takes heavy loading capacity, get to 6.6kN.
● Meet EN12811 and AS/NZ 1576 standards.
● Special design for aerial using, easy installation, less labour force, economic cost.
● More items for more possibilities.
● Hot dipped galvanized surface treatment for long use life.
● Aluminium ringlock scaffolding tower and more sizes can be customized.

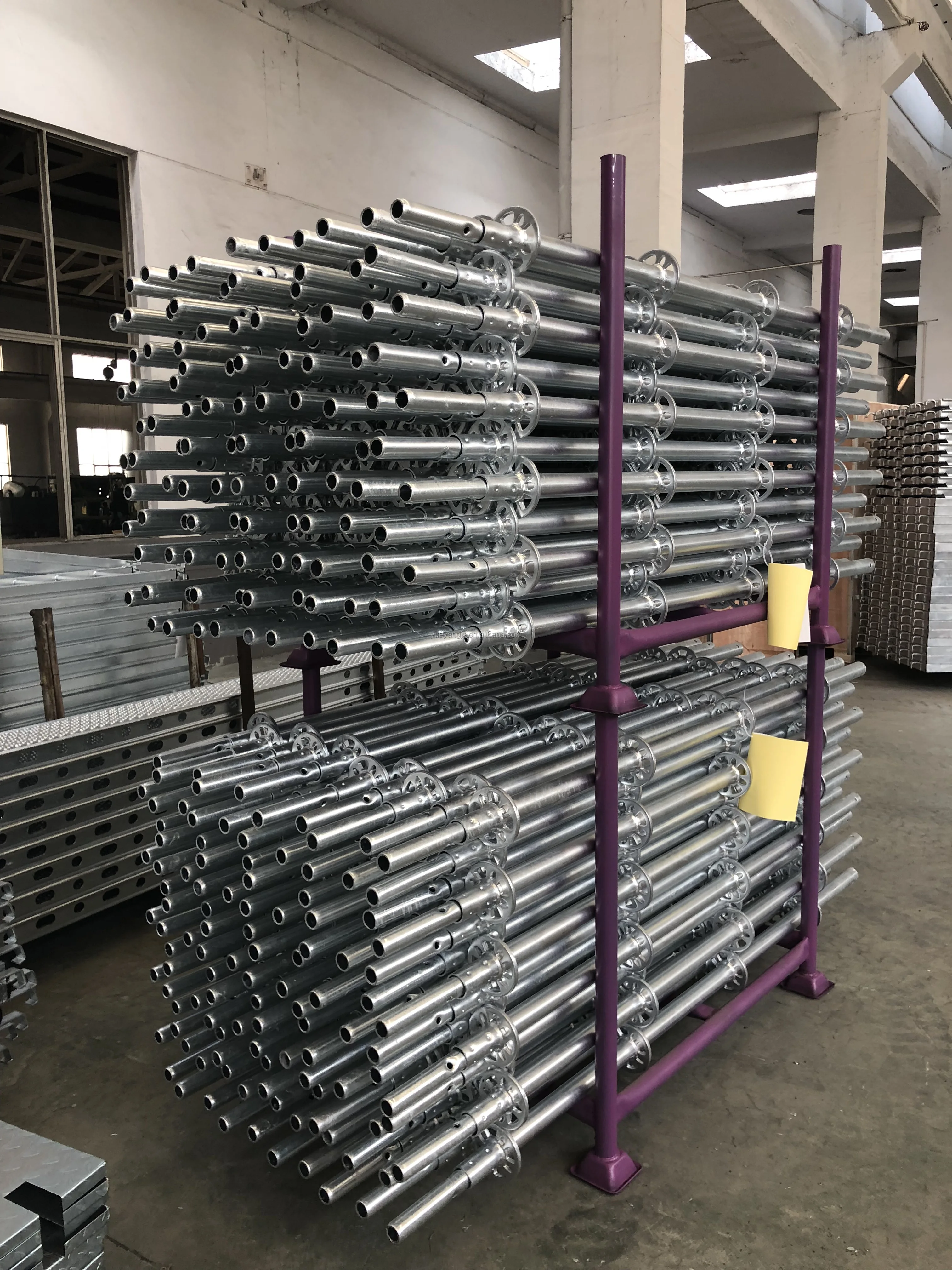

Item Name | Specification | Quantity |
Standard | 1.00m(H) Without Spigot 2.00m(H) With Spigot | 4 pcs 12 pcs |
Ledger | 1.40m(L) 2.07m(L) | 24 pcs 22 pcs |
Diagonal Brace | 1.40m(W)x2.00m(H) Field 2.07m(W)x2.00m(H) Field | 10 pcs 6 pcs |
Scaffolding Deck | 0.32m(W)x2.07m(L) | 8 pcs |
Alu-plywood deck w/ladder | 0.61m(W)x2.07m(H) | 3 pcs |
Base collar | 240mm(H) | 8 pcs |
Base Jack | 0.6m(H) | 8 pcs |
Lock Pin | Lock the standard | 12 pcs |
Detailed Images
▶Put adjustable base jack on the ground,
followed by the base collars, with the thinner tube downwards onto the adjustable base jack.
followed by the base collars, with the thinner tube downwards onto the adjustable base jack.
The recommended height for the adjustable base jack extension is 20 cm. Begin erecting at the ground’s highest point.
▶In the first bay connect the single ledger (A)m and single ledgers (B)m to the small holes of the base collars. Check the assembled frame and ensure that it is level and square.
Note: Anchor the base jack to the ground.
▶Place the standards 2.0m over the adjustable base jack onto the base collars.
▶ Install the second floor single ledgers at a 2m height (4 rosette spacings).
The specifications of Single ledgers follow the first floor bays.

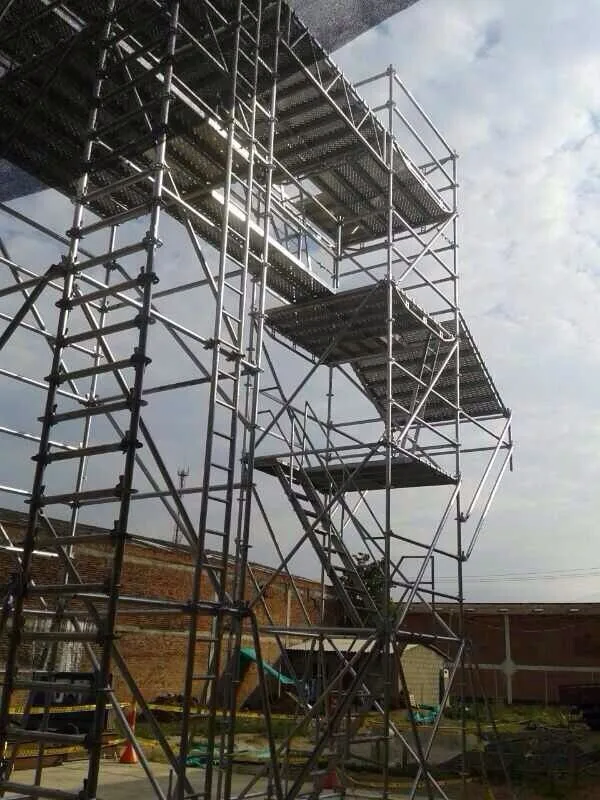

▶Put the stairway to the section you want at the 2.0m height.
▶Install the diagonal bracing according to plan.
Meanwhile, secure all the wedges of single ledgers and diagonal braces with hammer.
▶Install the internal handrail on to stair way.
▶ Installing the plank beside the stairway. Lock the planks to the single ledgers with the lock plate at the back of planks.
▶ Repeat the step 1-4 for upper section install.
TIP: When putting the standards on top of each other, turn them so that they can, (if necessary), be connected to one another with locking pins.
▶Install the second stairway from the second floor to third foor.
Repeat the step 5-6 to install the handrail and planks. Flow up with others parts as plan if have customize design.
Related Products
45 degree corner deck
90 degree corner deck
Intermediate Ledger and Customized alu-plywood deck
Aluminium Stair with internal and external handrail
Steel Toe Board
Aluminium Deck With Ladder

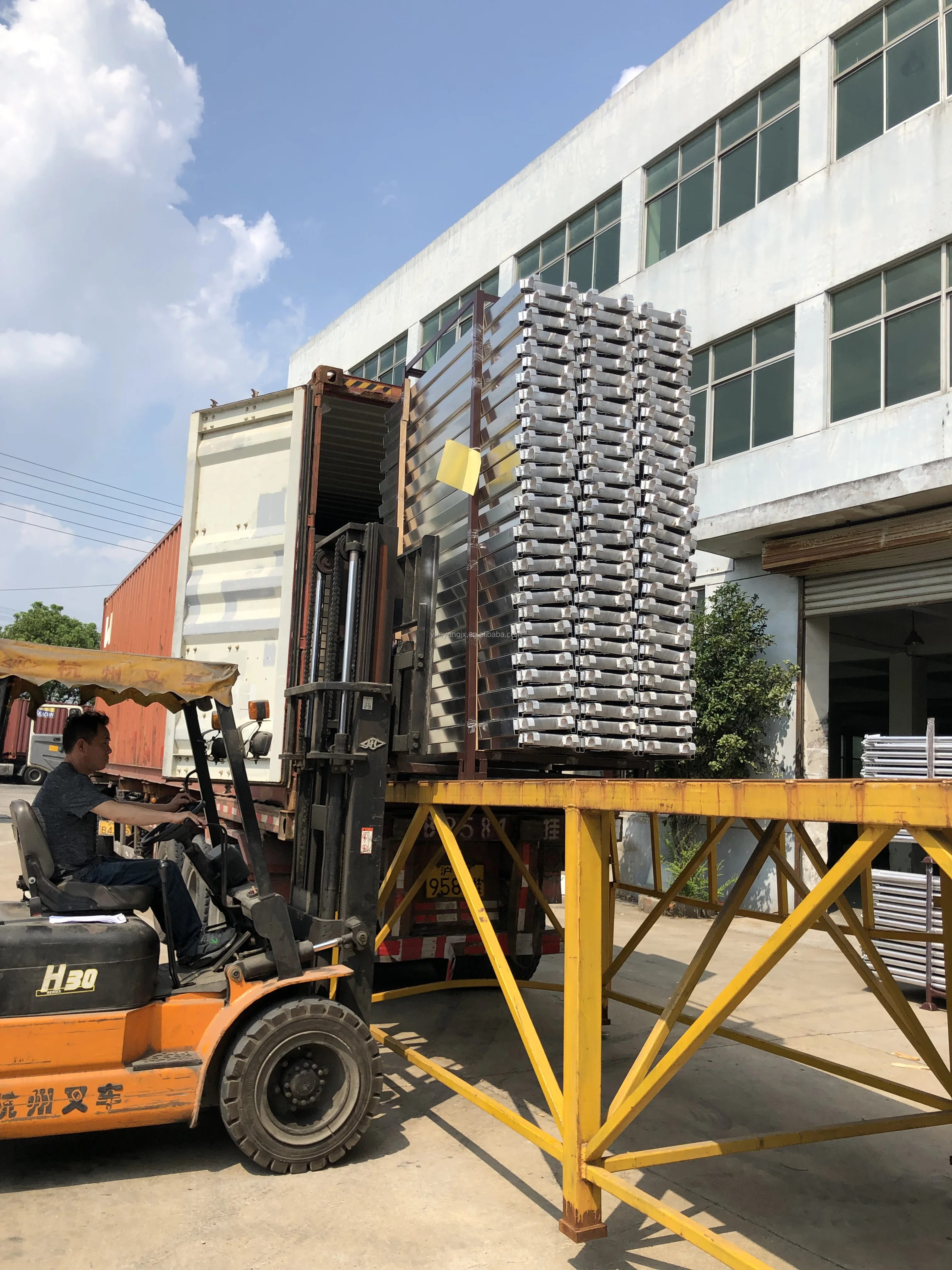

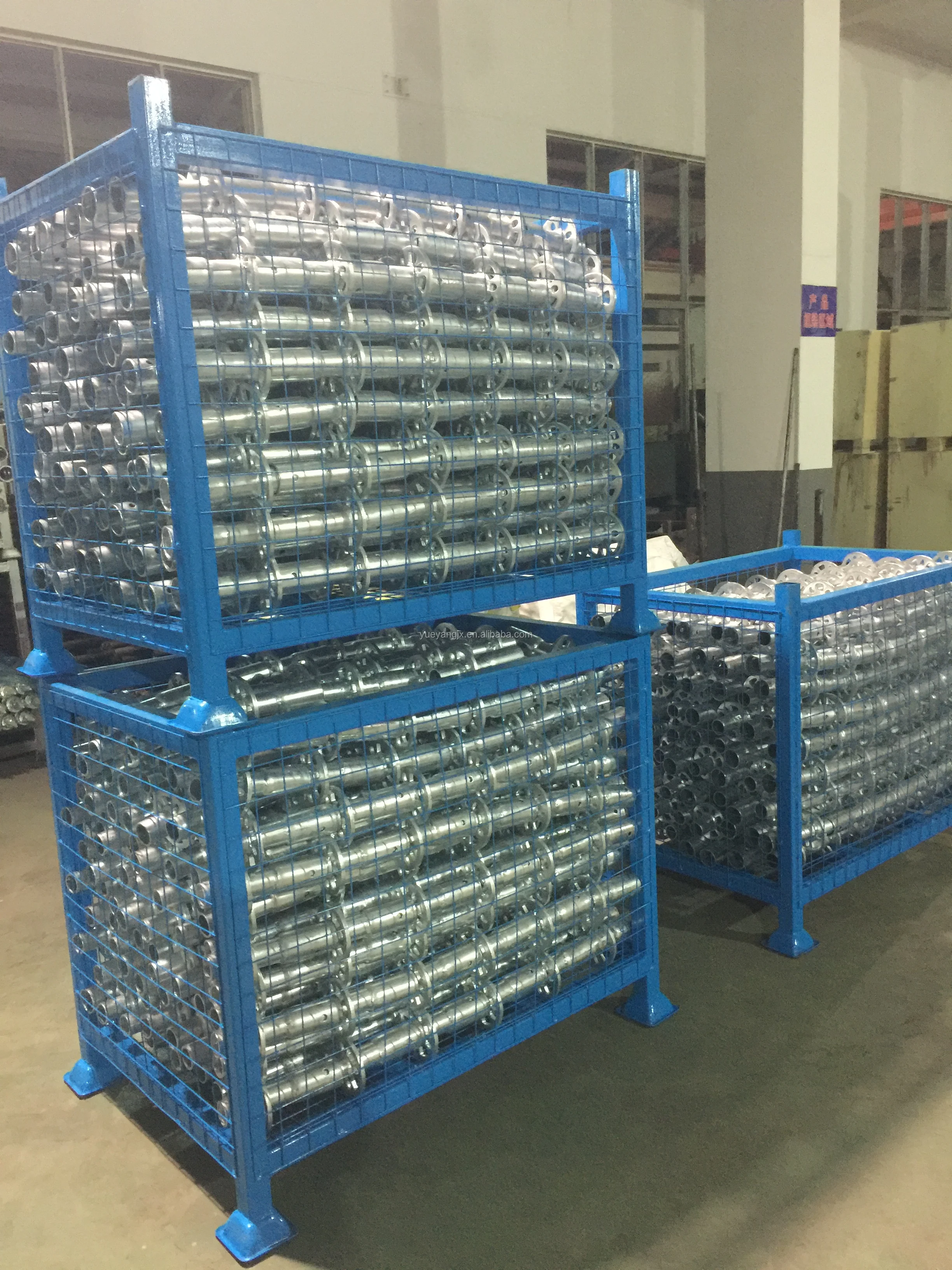

Packing & Shipping
Recommend Products
Company Profile
Established in 2004, Changzhou Yueyang Machinery Co., Ltd. is located in Changzhou City along the Taihu shore, covering an area of 13,000 square meters. We are near to Shanghai City and Nanjing City, enjoying convenient transportation access. We specialize in providing high quality scaffolding systems to foreign and domestic high-tech industries, such as civil construction, petrol-chemical plants and large shipbuilding projects etc.
