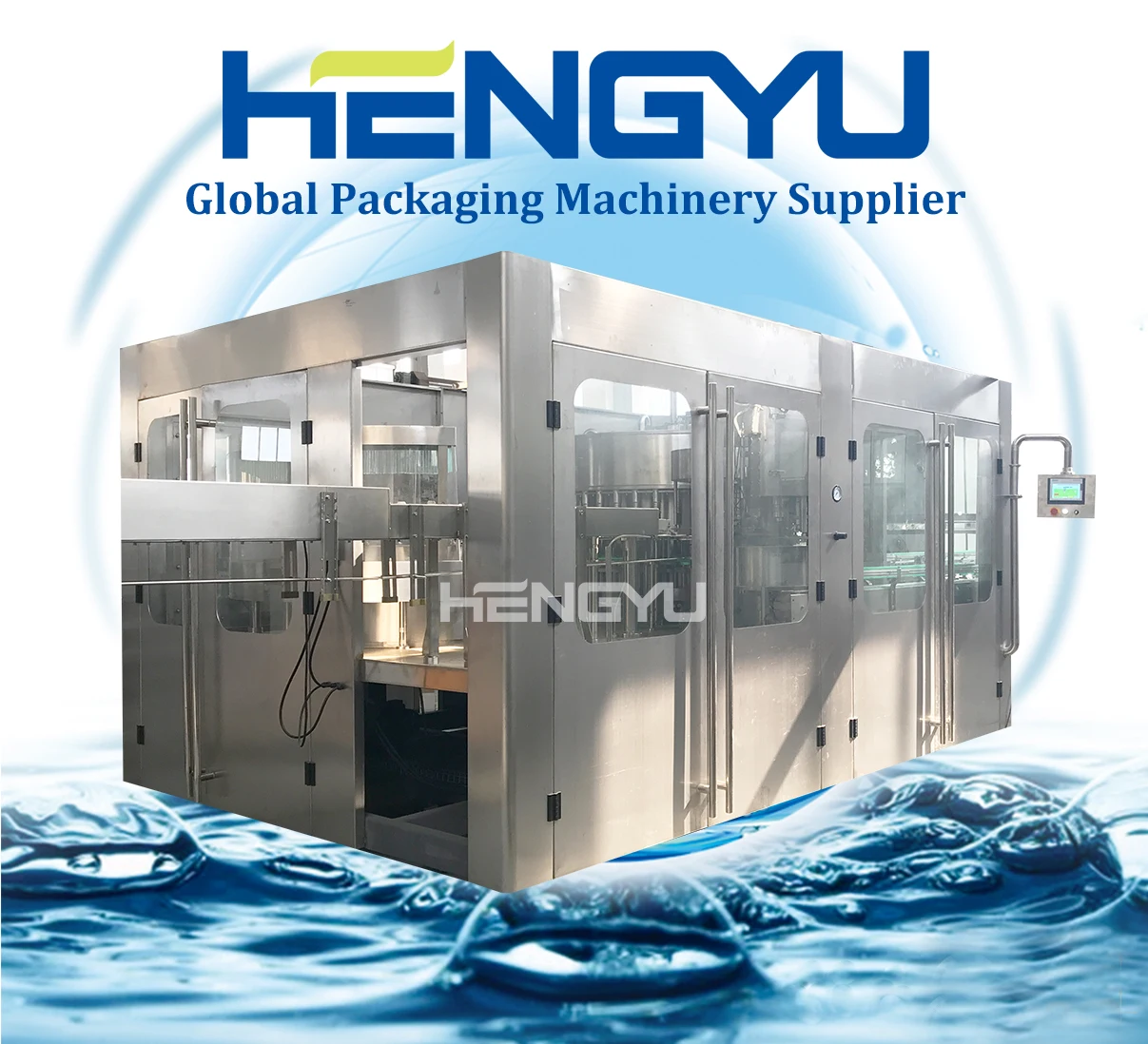

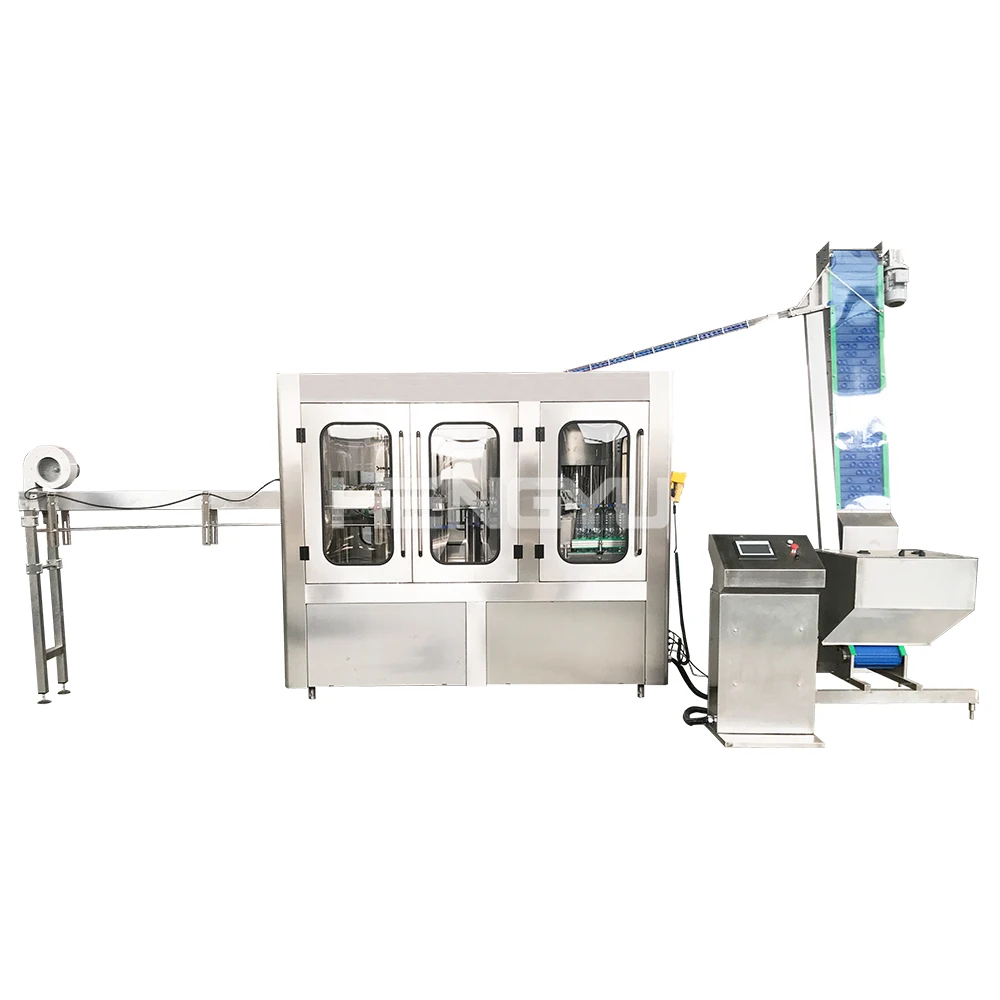

Semi automatic plastic bottle making machine mineral water filling project

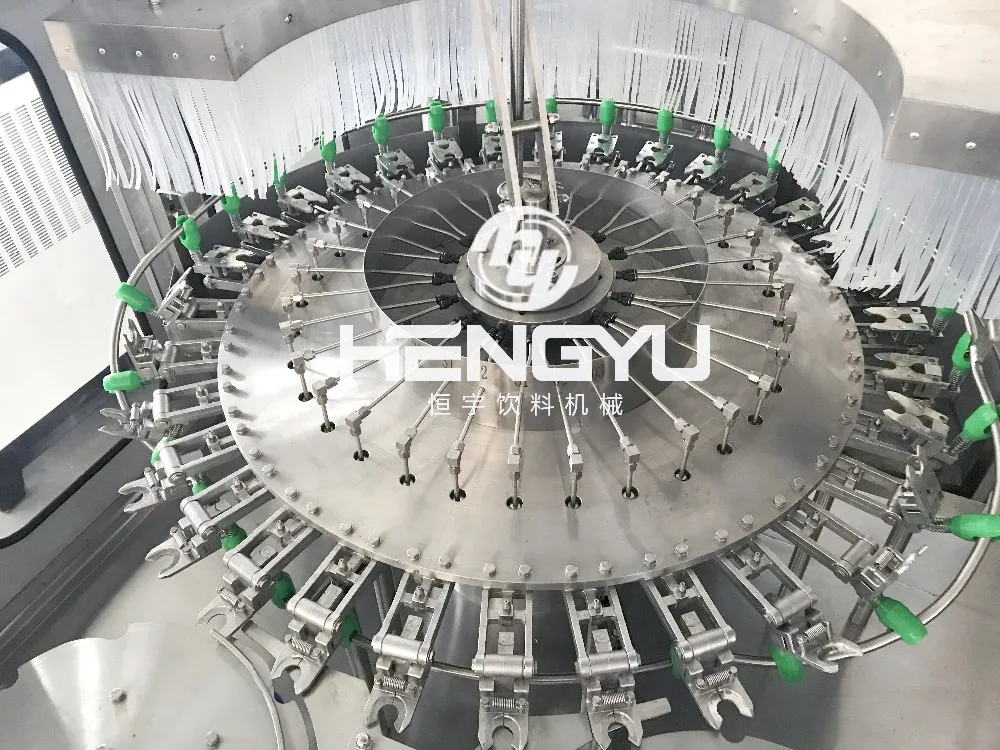

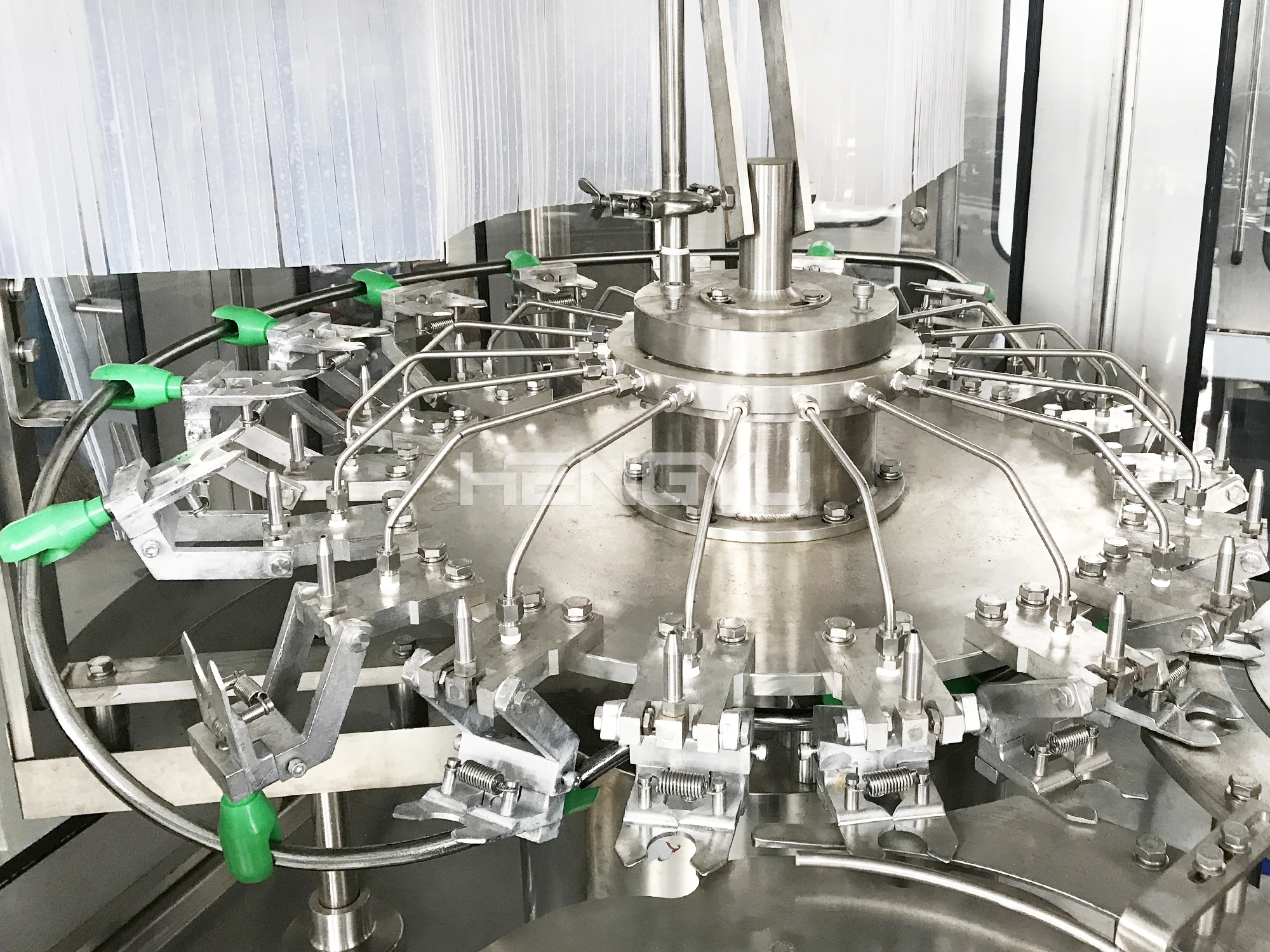

1)Into bottle way is air conveyor direct connection with Bottle dial .
2)All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .
3)304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
4)304/316 stainless steel washing pump make the machine more durable .

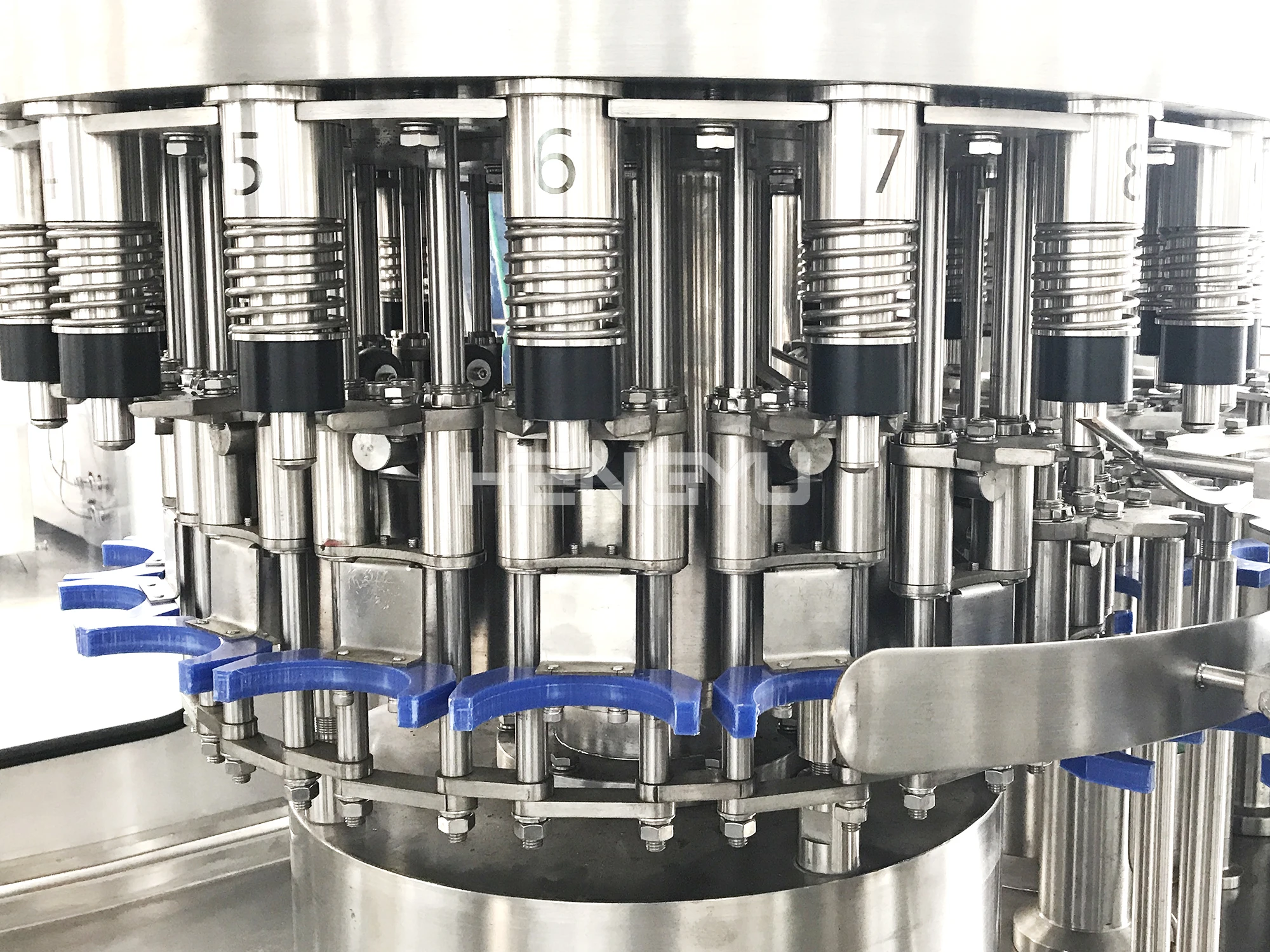

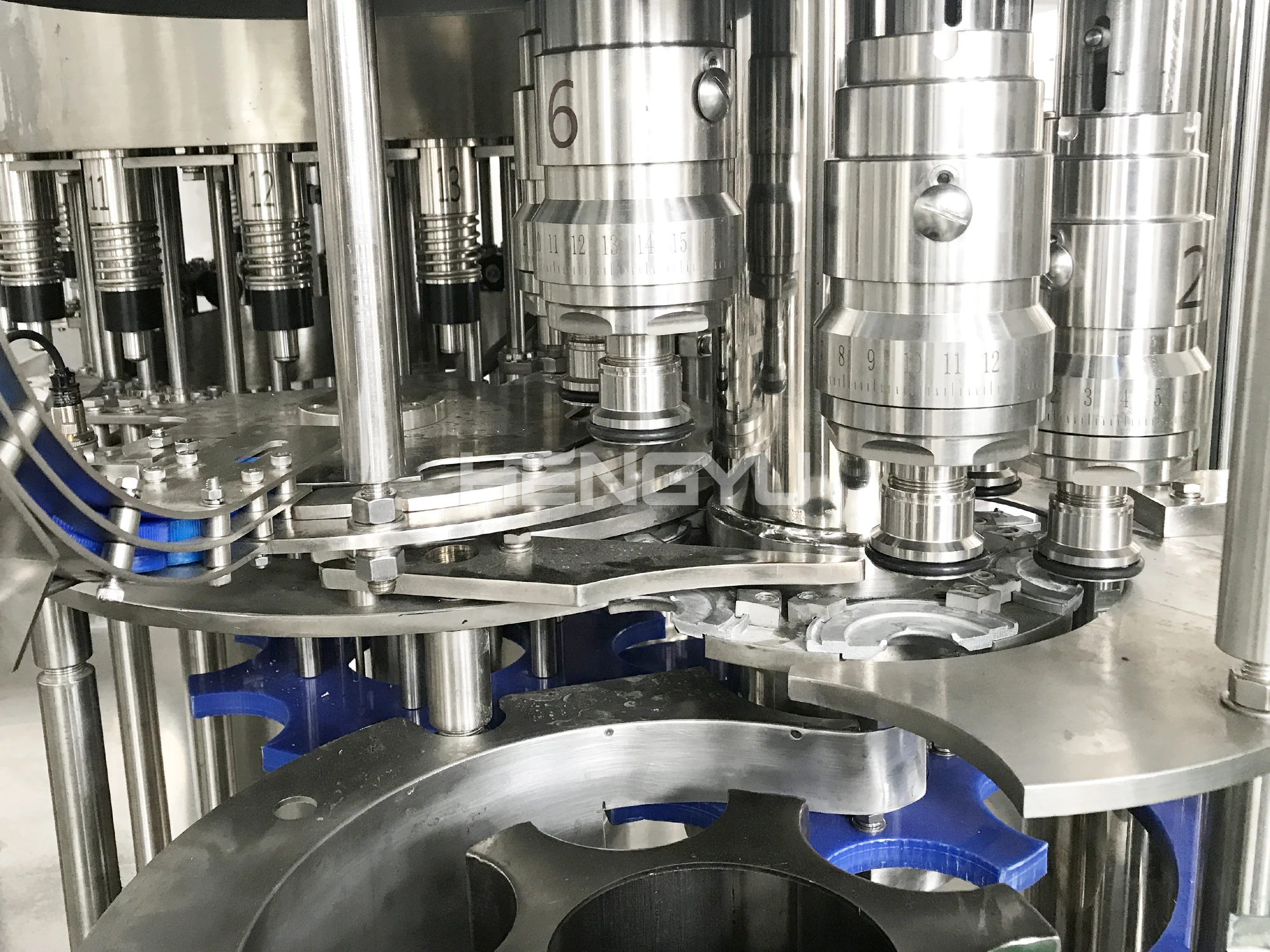

Filling heads.

1)304/316 Stainless steel high precision filling nozzle
2) Filling volume adjustable in fine rank, same liquid level after filling
3)All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
4) 304/316 stainless steel filling pump
5)Efficient spray nozzle rinse thoroughly and save water for flushing

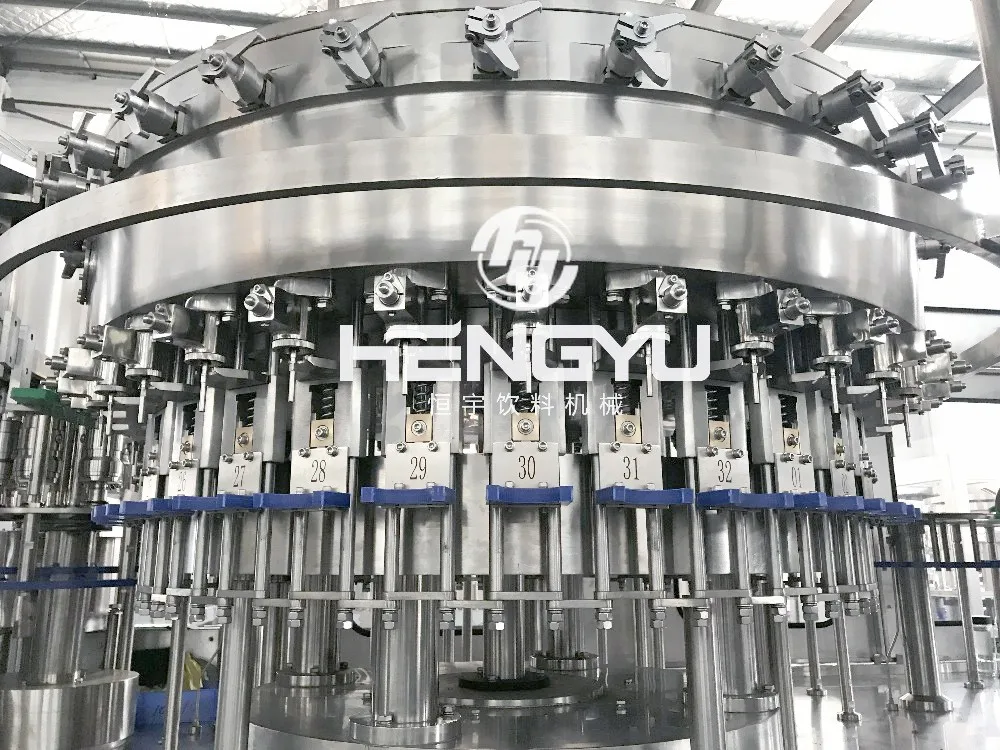

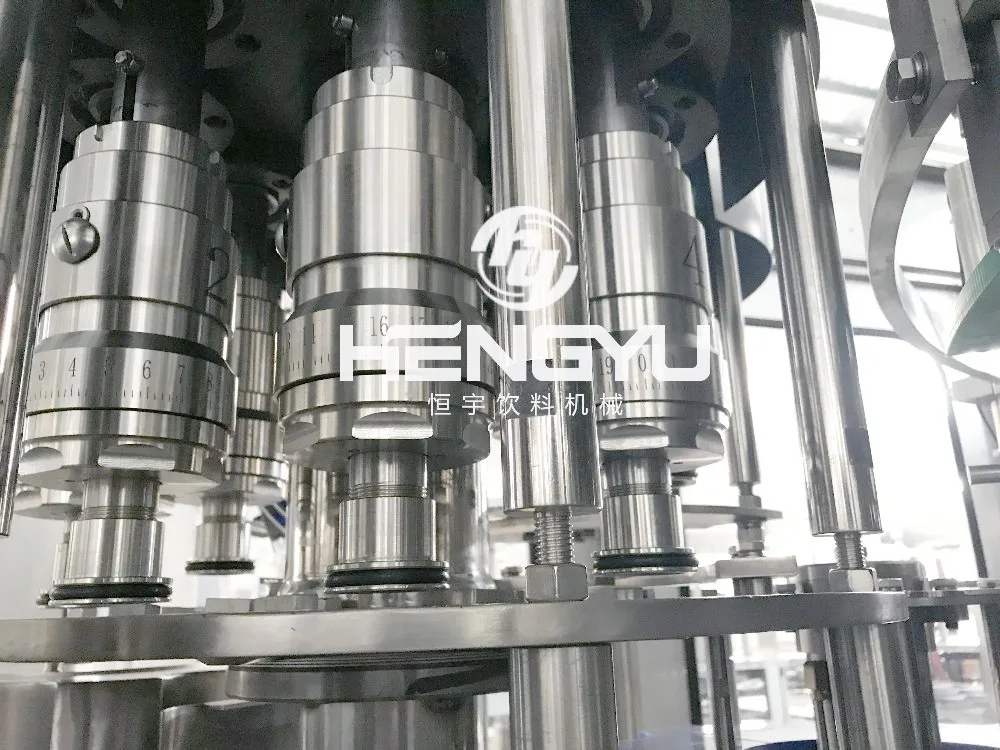

Capping heads.

1) Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
2)All 304/316 stainless steel construction
3)No bottle no capping
4)Automatic stop when lack of bottle
5)Capping effect is stable and reliable ,Defective rate ≤0.2% .

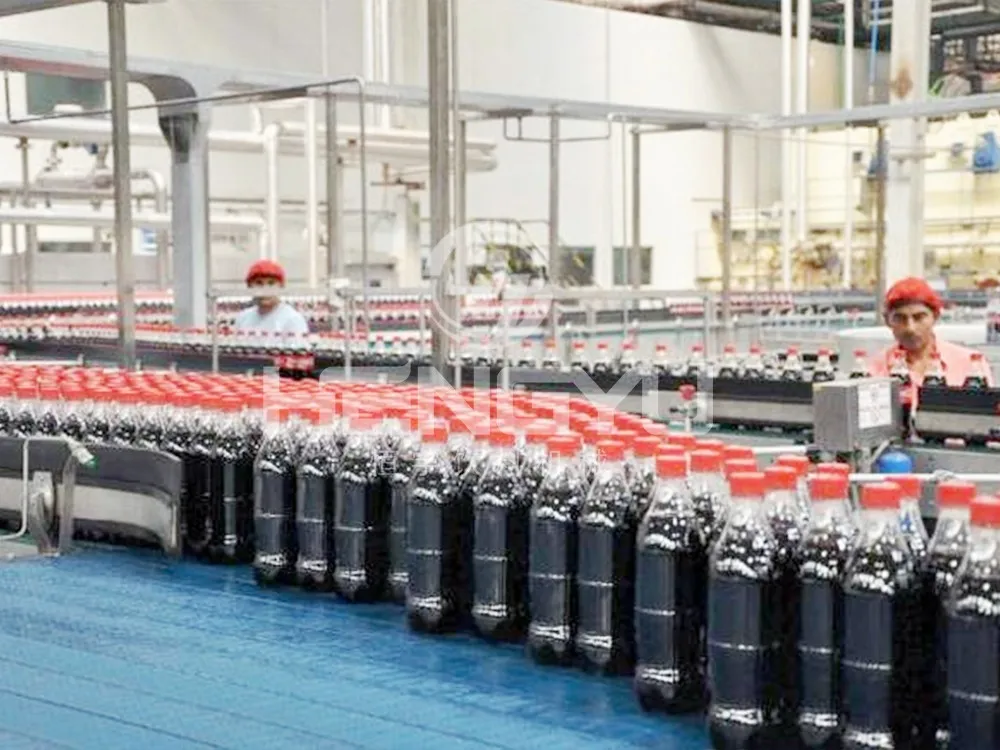

Flat conveyor.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Bottle Blowiing Part

1)Widely used to produce the carbonated bottle,mineral water bottle,pesticide bottle,oil bottle and cosmetics etc.
2)Suitable for producing PET plastic containers and bottles in all shapes.
3)With famous electrical components and have various capacities.

Carbonated Beverage Mixer

1. suitable beverage types: Cola and lemon.
2. mixing ratio range: 3:1 - 6:1
3. CO2 content: 4 times
4. volume: CO2 consumption of about 4 M3/h
5. CO2 supply pressure: 0.8-1 Mpa
6. CO2 Purity: 99.9%
7. consumption of ethylene glycol solution: water=30M3/h
8. ethylene glycol solution pressure: 1.0Mpa
9. ethylene glycol solution inlet temperature: -2 C.

Labeling Part
1)Heat shrink sleeve labeling machine
2)OPP Hot melt labeling machine
3)PVC label stick labeling machine
The running of complete machine is stable and at high speed with the use of imported servo control system.Using of special
bottle-distributing mechanism to avoid the materials being scrached and with which the machine can be adjusted and located quickly
to label bottles with any diameter without replacing accessories.

Packaging Part

1)PE film shrink wrapping machine
2)Half-tray shrink wrapping machine
3)Carton box packaging machine
It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished product.
