BMM910 высокий крутящий момент перфорированный полый вал оптовая продажа бесщеточный карданный двигатель для аэрофотосъемки Gopro
- Category: >>>
- Supplier: Changzhou Mcmaster Electrics Co. Ltd.
Share on (62520751232):
Product Overview
Description
Products Description

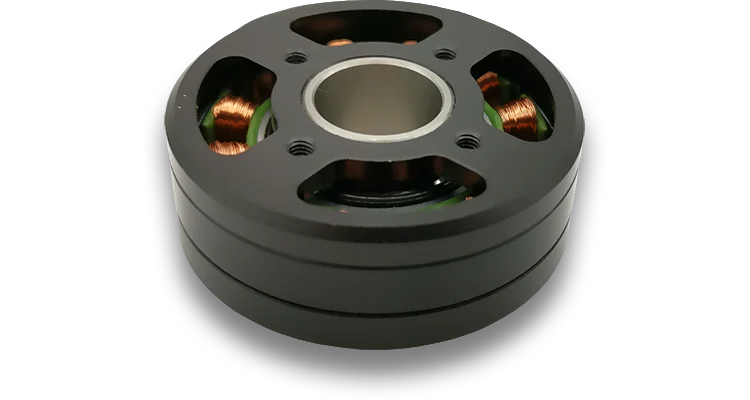

Gimbal Motor
Our Gimbal Motors are with diferent size, torque, voltage, which can meet different customers' requirements. Possible uses for Gimbal system, autonomous vehicles, Lidar and other applications with high precision and low speed. It is your choice which motor will work best for you.
Product Specification
We can provide customization service!
Product size is for reference only, our products accept customization, If there is any questions, please contact us at any time!
Model | KV | Winding Turns | Voltage (V) | Wire (mm) | Camera Range | magnet pole pairs | stator slots | Winding resistance (ohms) | Weight Approx (g) |
CURRENT (A) | SPEED (r/min) | CURRENT (A) | SPEED (r/min) | ||||||
D2208 | 90 | 70 | 11.1 | 0.16 | GO pro | 14 | 12 | 11.1 | 38 |
100 | 0.14 | 0.14 | 21.2 | 36 | |||||
D2804 | 100 | 11.1 | 0.19 | GO pro | 14 | 12 | 9.8 | 36 | |
D3504 | 170 | 90 | 14.8 | 0.16 | GO pro 4/Similar | 14 | 12 | 11.8 | 44 |
C2208 | 90 | 70 | 11.1 | 0.16 | GO pro | 14 | 12 | 11.1 | 38 |
100 | 11.1 | 0.14 | 0.14 | 21.2 | |||||
C2804A | 80 | 11.1 | 0.22 | Handheld Platform | 14 | 12 | 5.8 | 38 | |
C2804B | 80 | 11.1 | 0.22 | Handheld Platform | 14 | 12 | 5.8 | 38 | |
C2805 | 100 | 11.1 | 0.16 | GO pro 4 | 14 | 12 | 13.5 | 38 | |
130 | 14.8 | 0.14 | 0.14 | 22 | |||||
C3504 | 170 | 90 | 11.1 | 0.16 | GO pro 4/Similar | 14 | 12 | 10.4 | 44 |
E2804 | 110 | 11.1 | 0.2 | 3 axis Handheld Platform | 14 | 12 | 9.3 | 43 | |
E4108 | 130 | 22.2 | 0.15 | Nex 6/Similar | 14 | 12 | 17 | 90 |
Product packaging and delivery
