Monocrystalline silicon solar panel, China photovoltaic panel manufacturer,360W 365w 370w 375w 380w power
- Category: >>>
- Supplier: Xuzhou Hengda Electronic Co. Ltd.
Share on (62520794830):
Product Overview
Description
Product Description
HDM72
360W-380W
Monocrystalline PV module
360W-380W
Monocrystalline PV module
Mechanical Specification | ||
Cells Type | Mono 156.75×156.75mm | |
Weight | 22.5KG | |
Dimension(L×W×T) | 1956×991×40mm | |
Output Cables | TUV，Length900mm，4.0mm² | |
No.of Cells | 72(6×12) | |
Front Glass | 3.2mm High Transmission,Low Iron Tempered Glass | |
Frame | Anodised Aluminium | |
Junction box | IP67，3 Bypass Diodes | |
Connector | MC4 or MC4 Compactible | |
Packing Configuration | ||||||
Container | 20GP | 40GP | 40HC | |||
PCS per pallet | 27 | 27 | 27 | |||
PLT per container | 10 | 24 | 24 | |||
PCS per container | 270 | 648 | 696 | |||
Operating Parameters | ||
Maximum system voltage | DC1000V | |
Operating Temperature(℃) | -40 ~+85℃ | |
Maximum series fuse rating | 15A | |
Snow load,frontside | 5400Pa | |
Wind load，backside | 2400Pa | |
Nominal operating cell temperature (NOCT) | 45℃±2℃ | |
Application level | Class A | |
Electrical Characteristics (Standard Test Conditions) | ||||||||||
Module Type | HDM72-360 | HDM72-365 | HDM72-370 | HDM72-375 | HDM72-380 | |||||
MaximumPower(Pmax) | 360W | 365W | 370W | 375W | 380W | |||||
Open- circuitVoltage（Voc） | 47.44V | 47.67V | 47.81V | 47.93V | 48.06V | |||||
Maximum PowerVoltage（Vmp） | 39.01V | 39.38V | 39.40V | 39.45V | 39.55V | |||||
Short-circuit Current（Isc） | 9.77A | 9.84A | 9.89A | 9.95A | 10.11A | |||||
Maximum Power Current(Imp) | 9.23A | 9.27A | 9.41A | 9.51A | 9.61A | |||||
Module Efficiency(%) | 18.6% | 18.8% | 19.1% | 19.3% | 19.6% | |||||
PowerTolerance | 0～+5W | |||||||||
Temperature Coeffcient of Isc | 0.05%/℃ | |||||||||
Temperature Coeffcient of Voc | — 0.29%/℃ | |||||||||
Temperature Coeffcient of Pmax | — 0.39%/℃ | |||||||||
Standard Test Environment | Irradiance 1000w/m², Cell temperature 25℃, Spectrum AM1.5 | |||||||||
Details Images

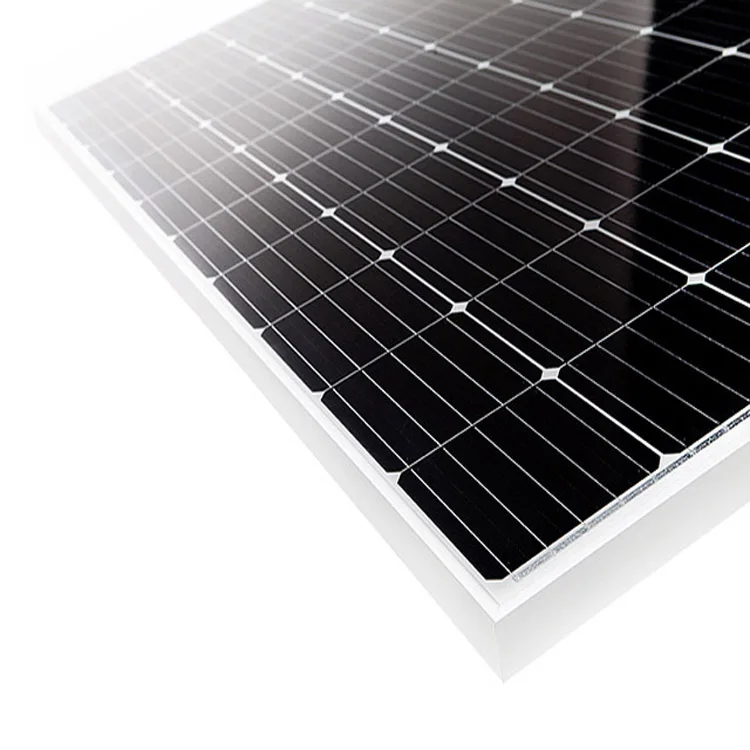

Glass
> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)

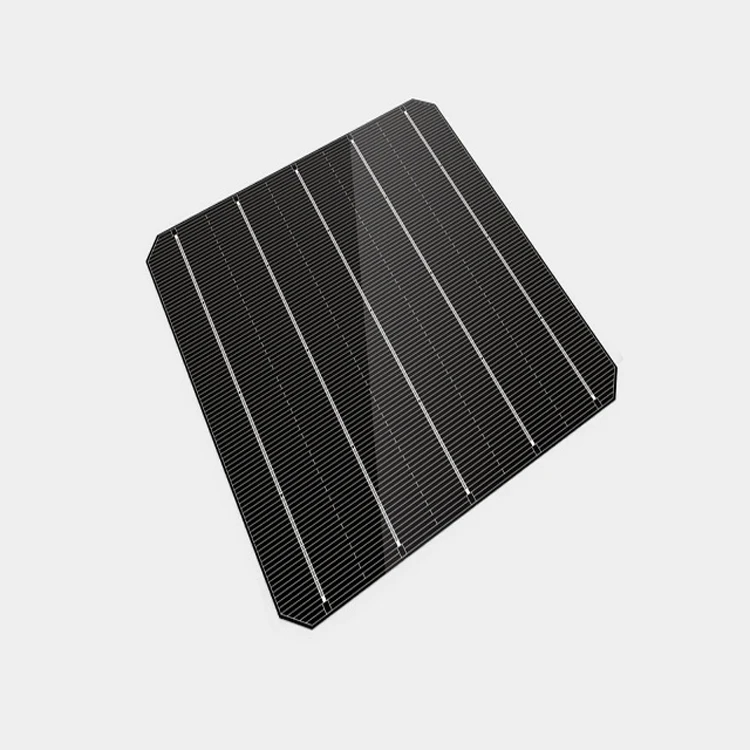

Solar Cell
> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID

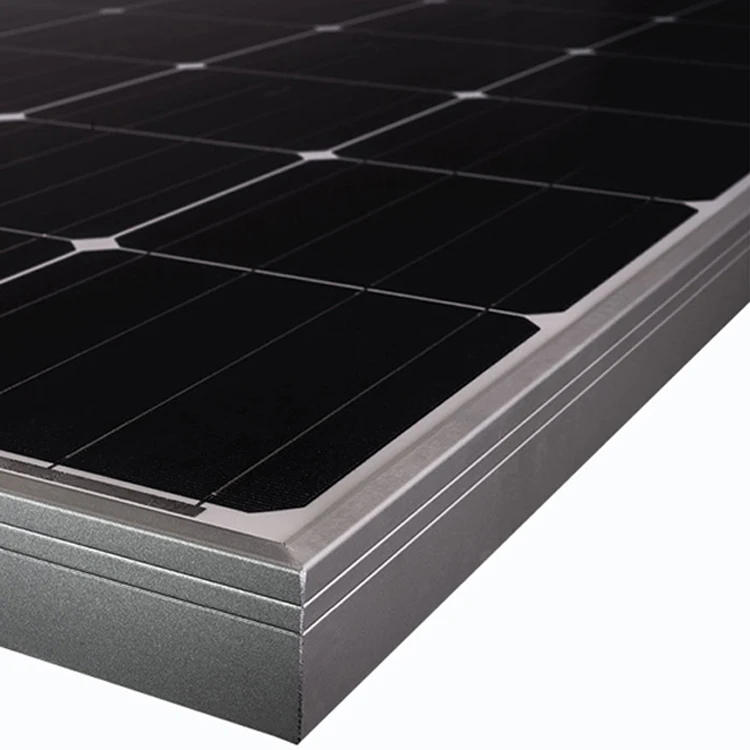

Frame
> Conventional frame
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection
> Silver or black frames are optional
> Boost bearing capability and prolong service life
> Serrated-clip design tensile strength
> Seal-lip designglue injection

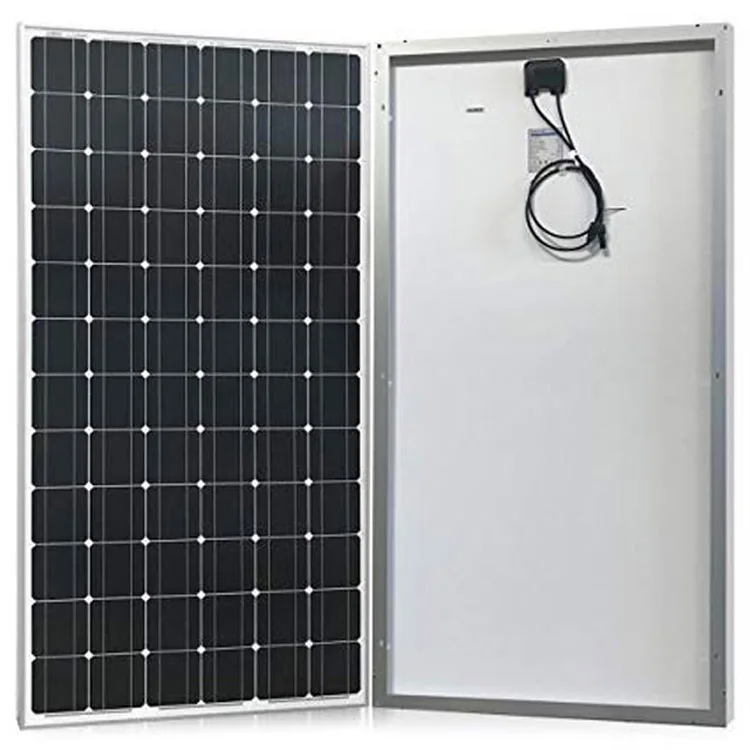

Junction Box
> Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
Packing & Delivery
By sea | Delivery from Shanghai or Ningbo seaport |
By air | Departure from Shanghai Pudong Airport |
By express | By TNT/DHL |
(72 cells panels)Container | 20GP | 40GP | 40HC |
Pcs/Pallet | 27 | 27 | 27 |
Pallets/Container | 10 | 24 | 24 |
Pcs/Container | 270 | 648 | 696 |
