SL 6001 Polyurethane foam leaking stoppage injection machine

Introduction of Injection machine

SL-6001 Adjustable polyurethane grouting pump high pressure Epoxy grouting machine is designed for structure injection leakage stoppage, crack strengthening with view to dismounting easily. It can stand high pressure. Its component won’t be out of shape even working in a high pressure condition. It can solve the difficulty of carrying because of heavy weight. It is the best choice for the professional leakage stoppage and crack strengthening constructers.

Parameters of Injection machine

Adjustable High pressure injection pump

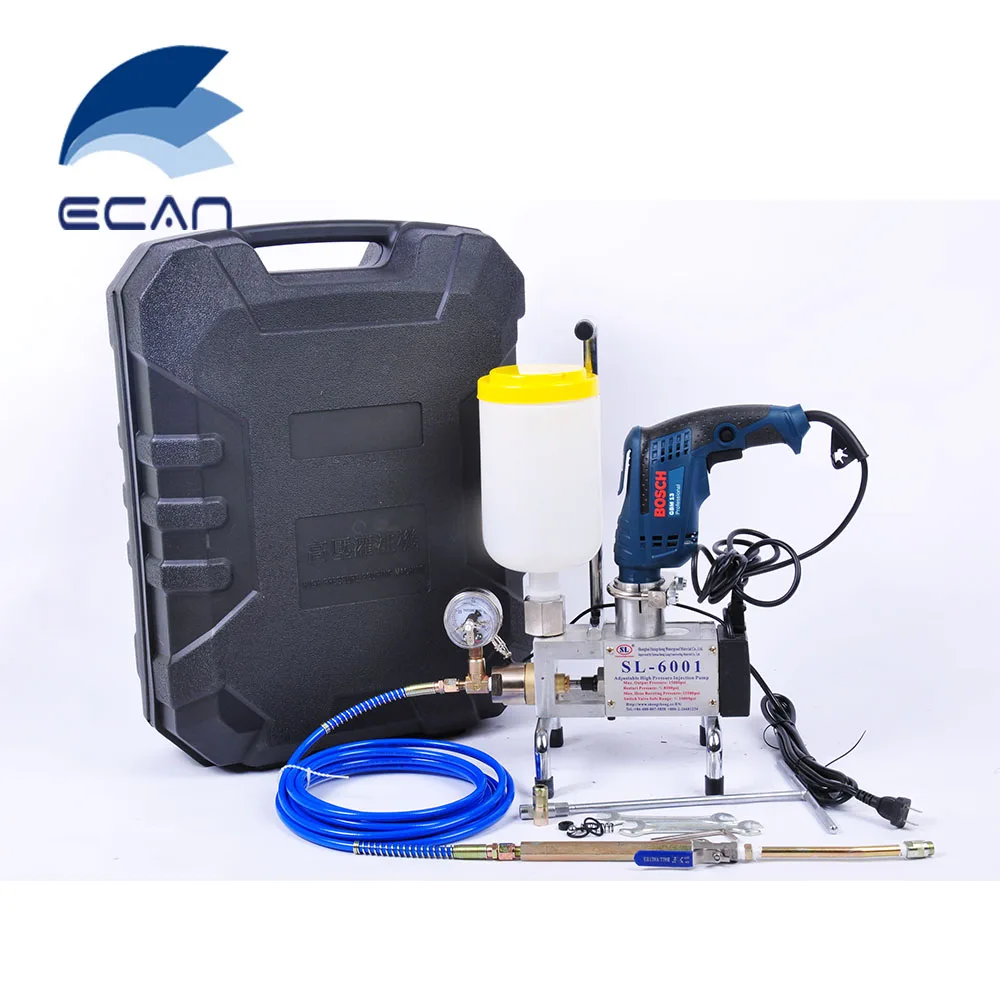

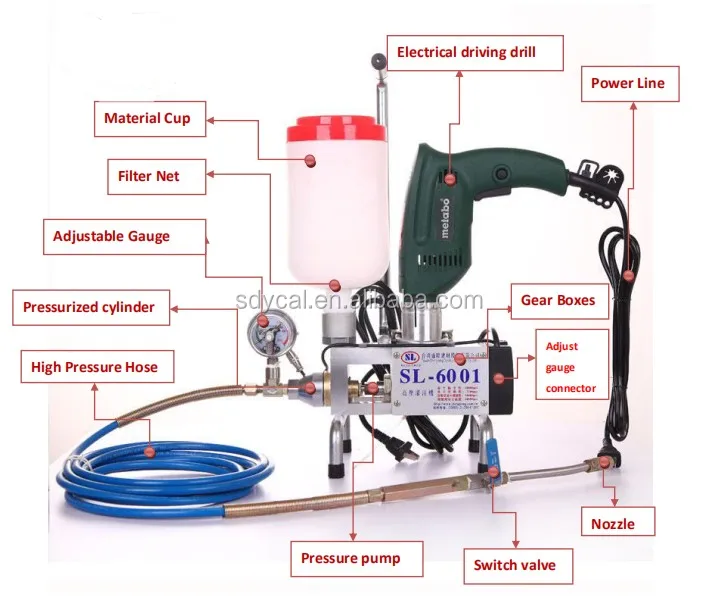

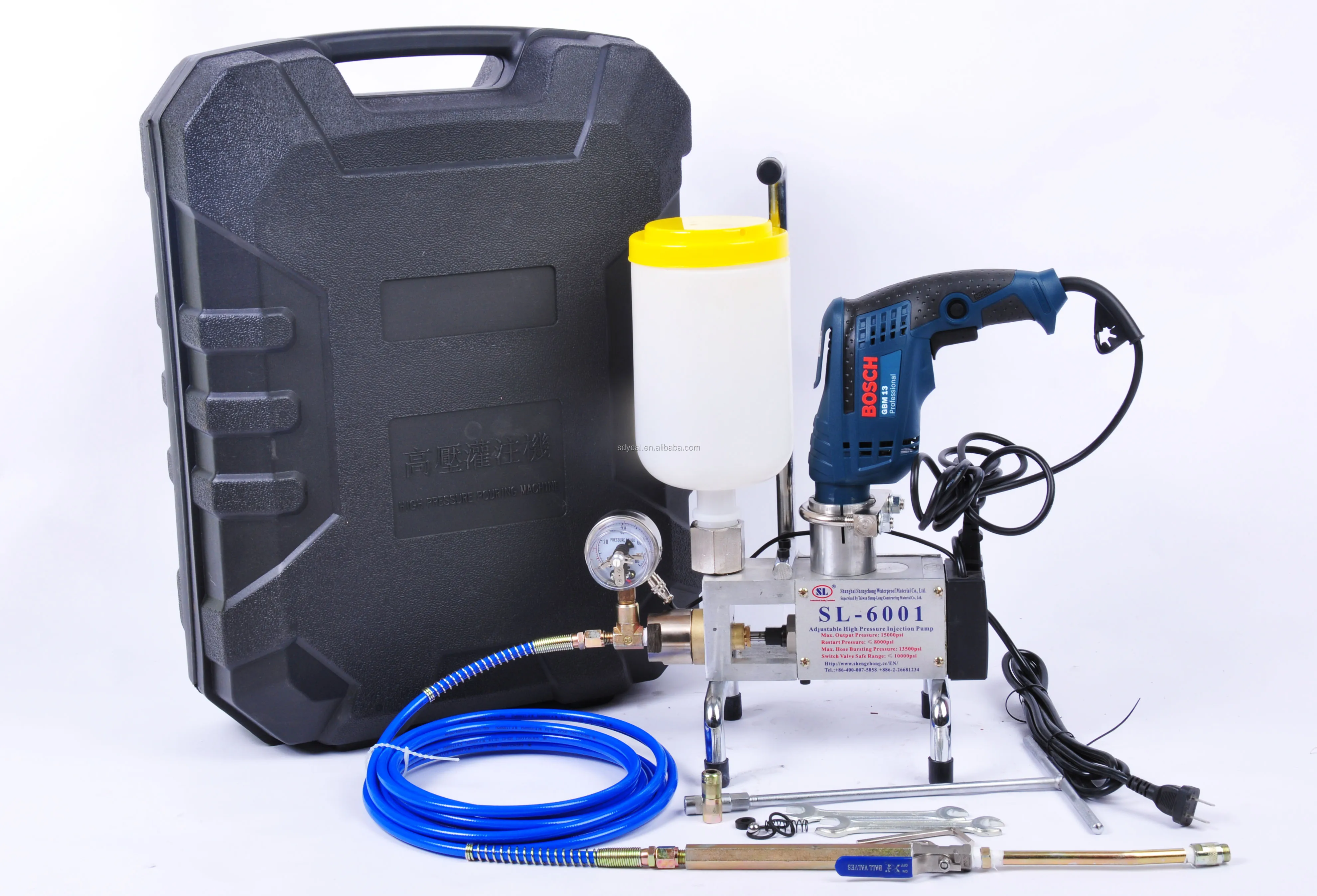

Standard equipped:
Body 1set
SL Material cup 1PC
5M blue high pressure hose 1PC Max. Burst
pressure up to 13500Psi.
Bosch220V 600w drill 1PC(can change to 110v
Metabo drill)
Filter net 1PC/Switch value 1PC

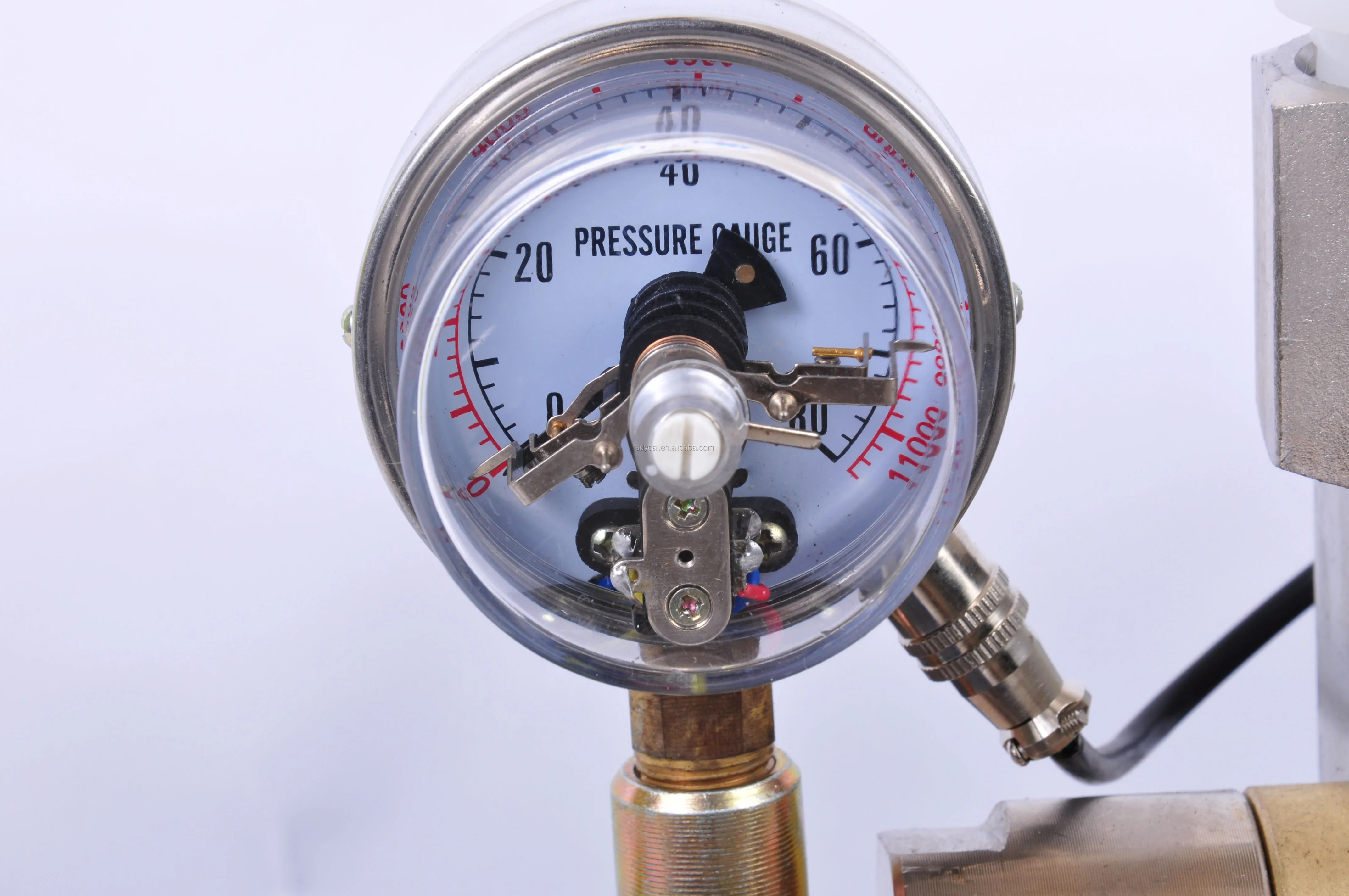

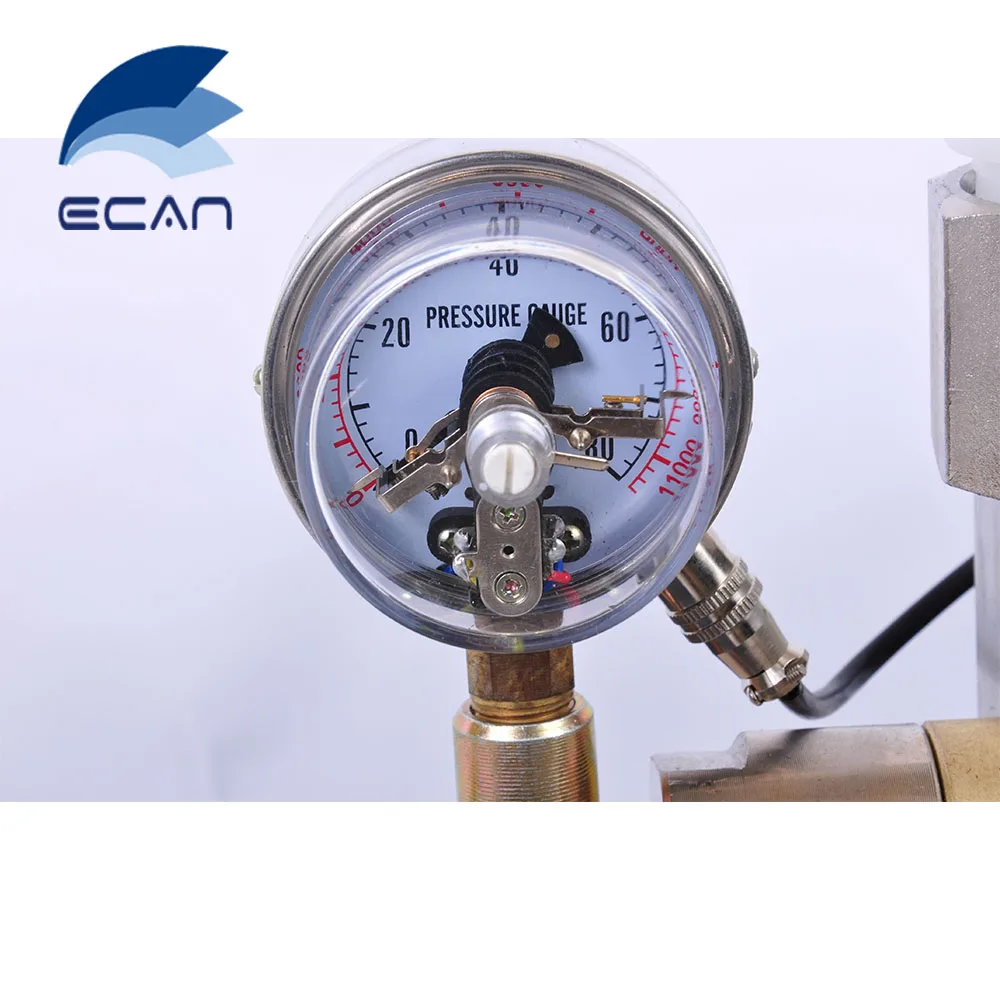

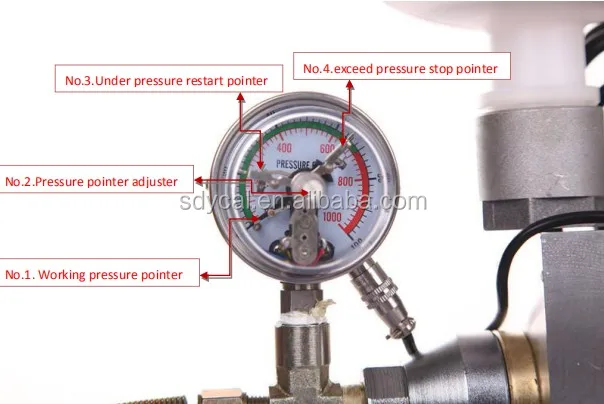

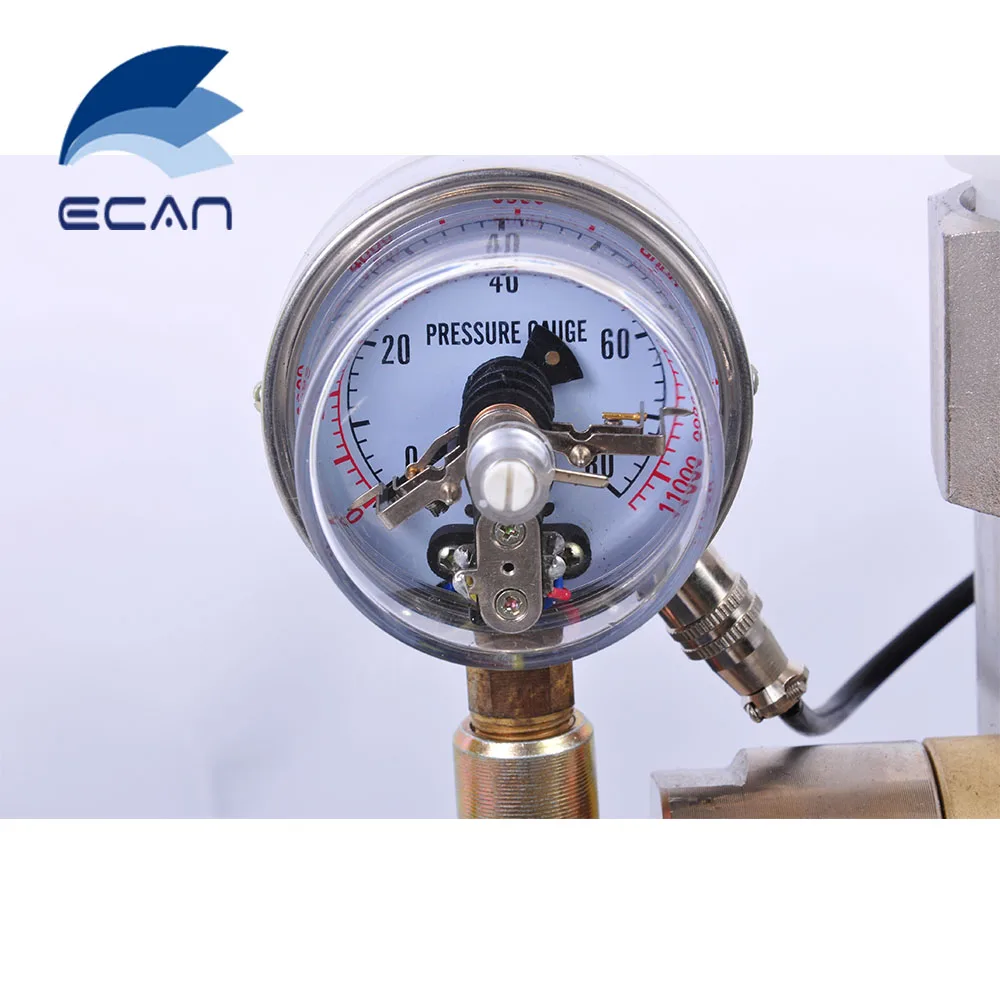

Adjustable High-pressure Gauge 11000Psi 1PC
Spare Parts:1 pc nozzle, 10pcs rubber of nozzle,1
set seal assembly,1 pc T wrench, 1 set of Toolkit.
Specification:
Maximum output pressure: 15000psi
Pressure of starting again: ≤ 7500psi
Max blast pressure of hose:13500psi
Safe range of switch valve: ≤10000psi,
Other Information
Packing:1 set/Plastic case.
Packing size:48*23*61CM=0.067CBM
G.W.:11.24kgs, N.W.:8.1kgs, Cubic Weight: 13.5kgs
H.S Code:8479899990

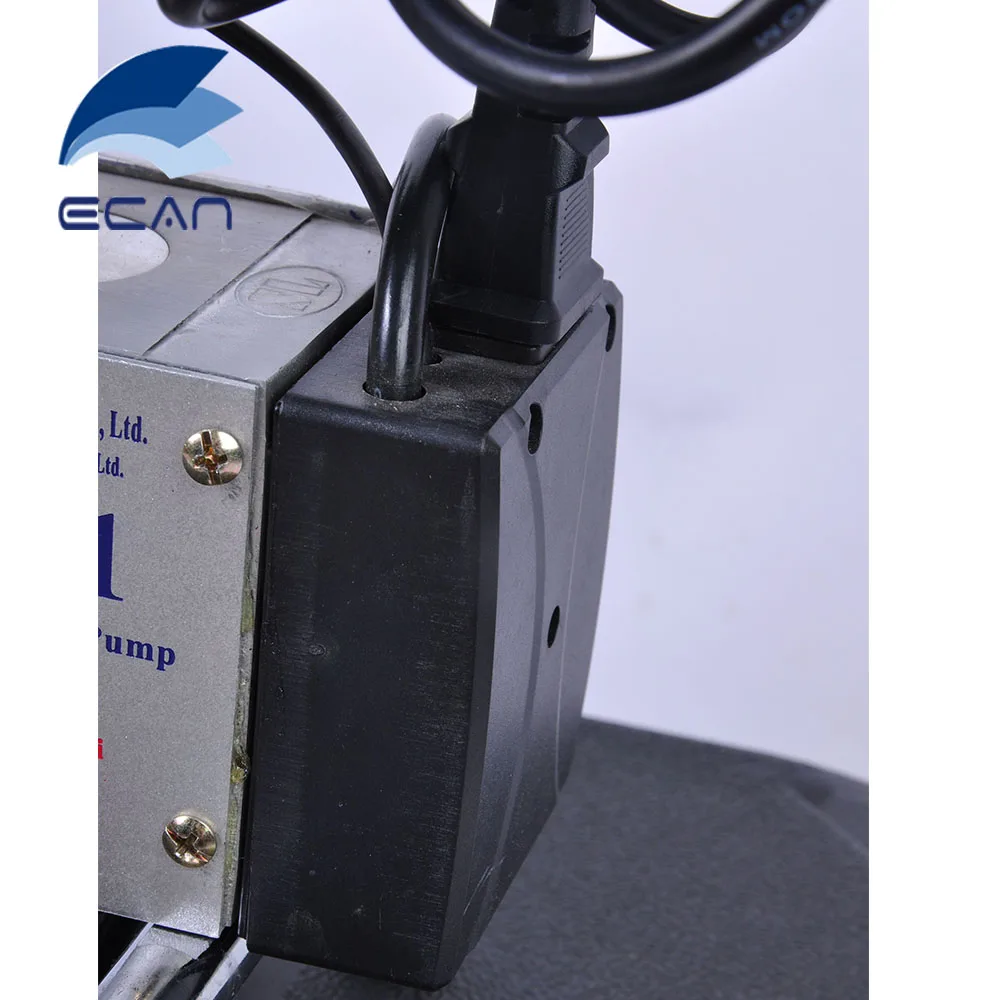

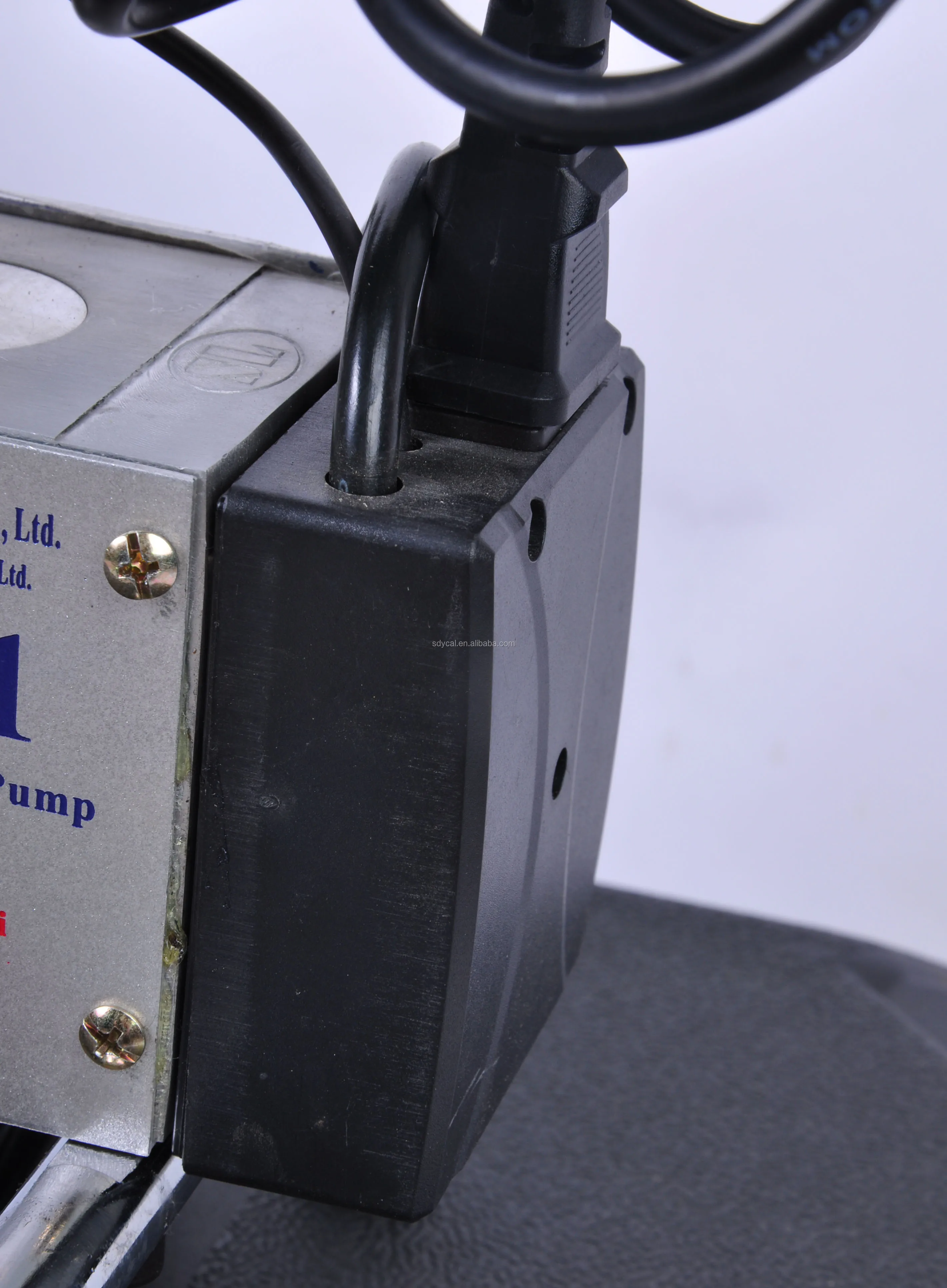

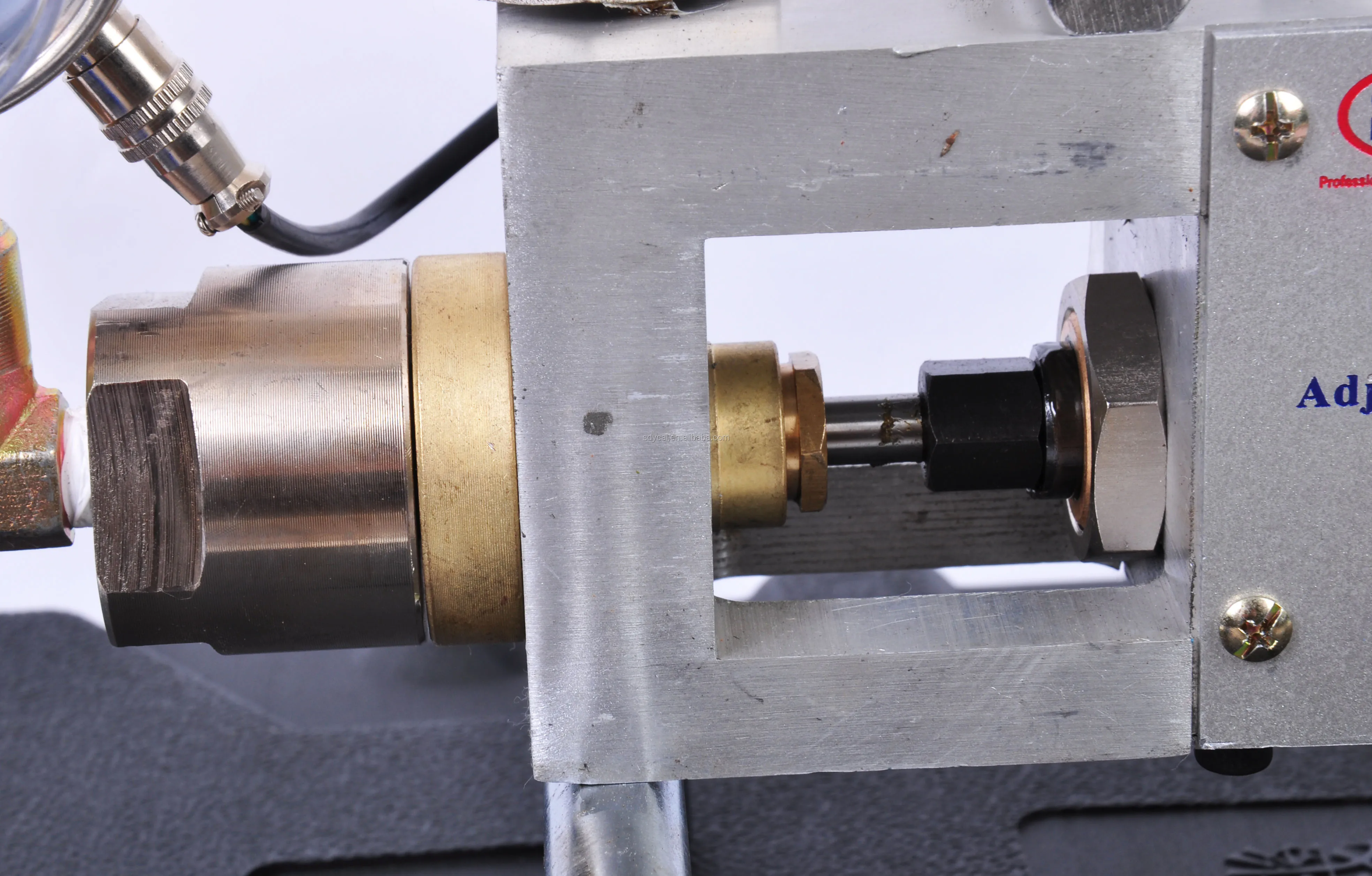

Images of Injection machine
