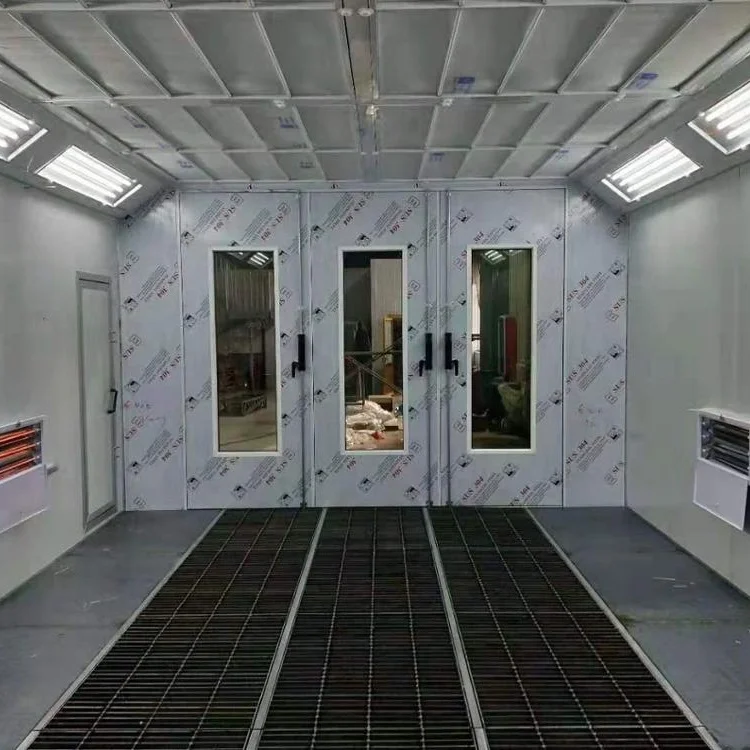

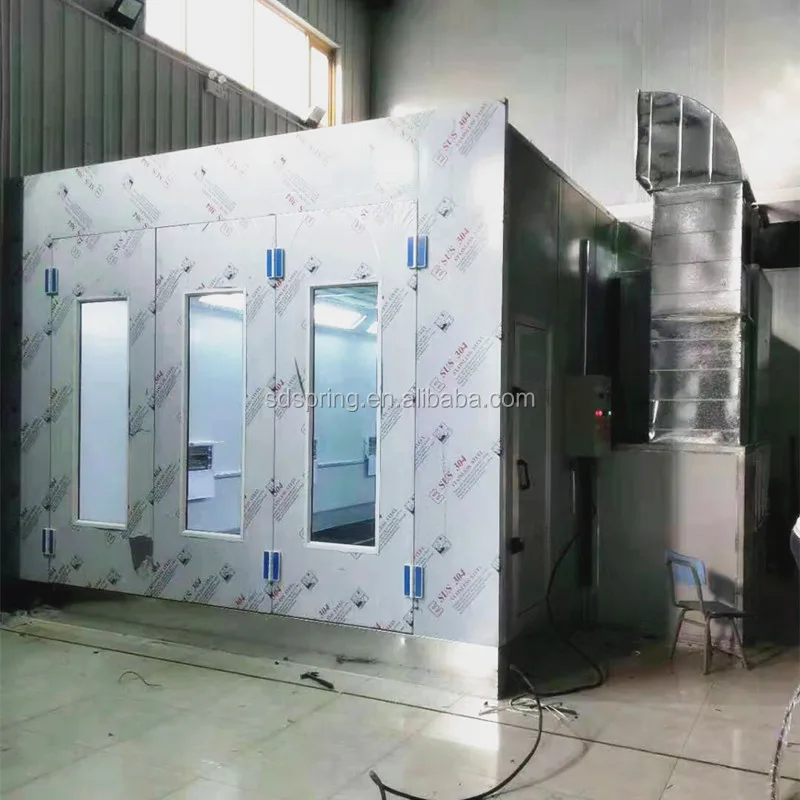

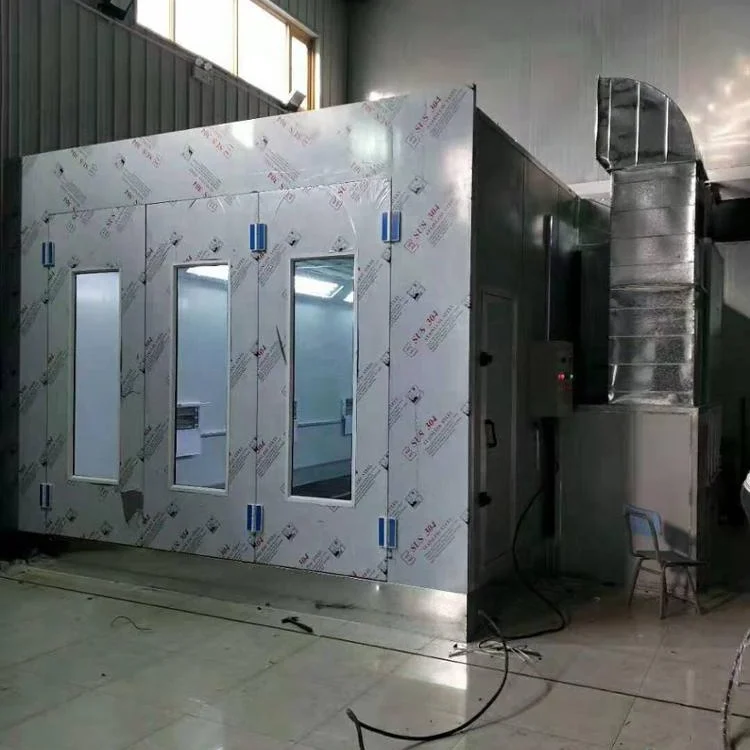

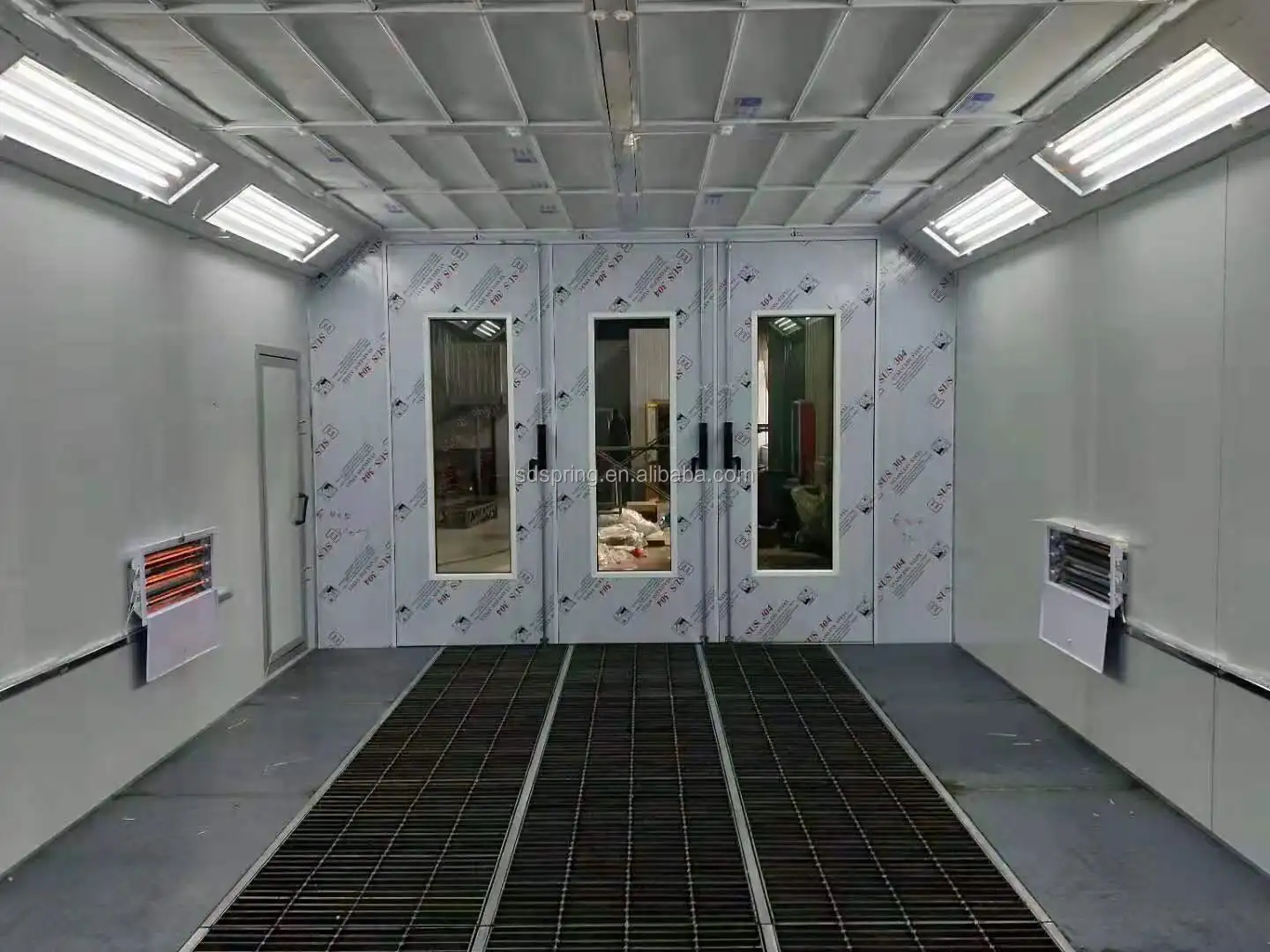

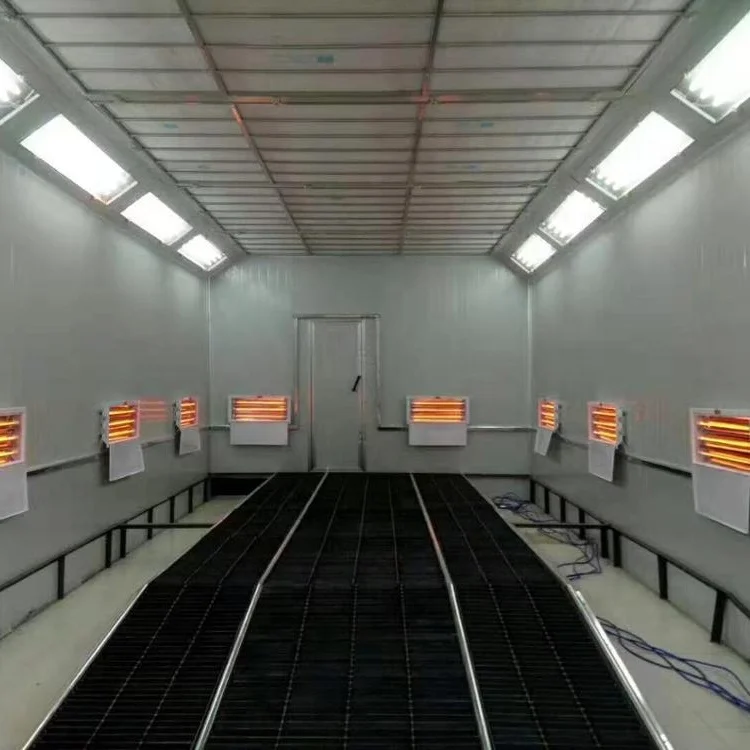

Car paint spray booth with low price
- Category: >>>
- Supplier: Jinan Spring Technology Co. Ltd.
Share on (62520826090):
Product Overview
Description
Product Description
Specification of Spray booth(SP-8200) | |
Inside dimension | 6900×3900×2650mm(L×W×H) |
Outside dimension | 7000×5350×3400mm(L×W×H) |

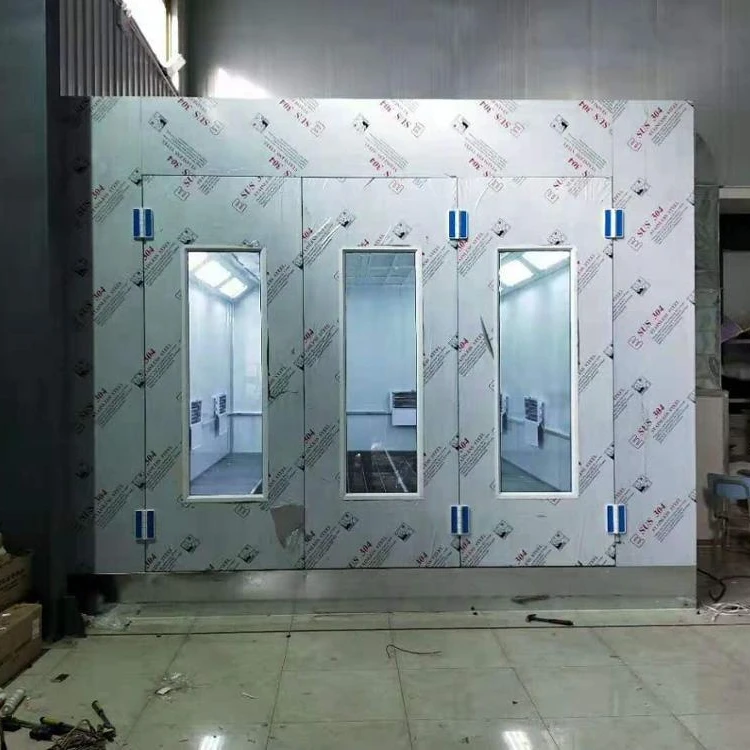

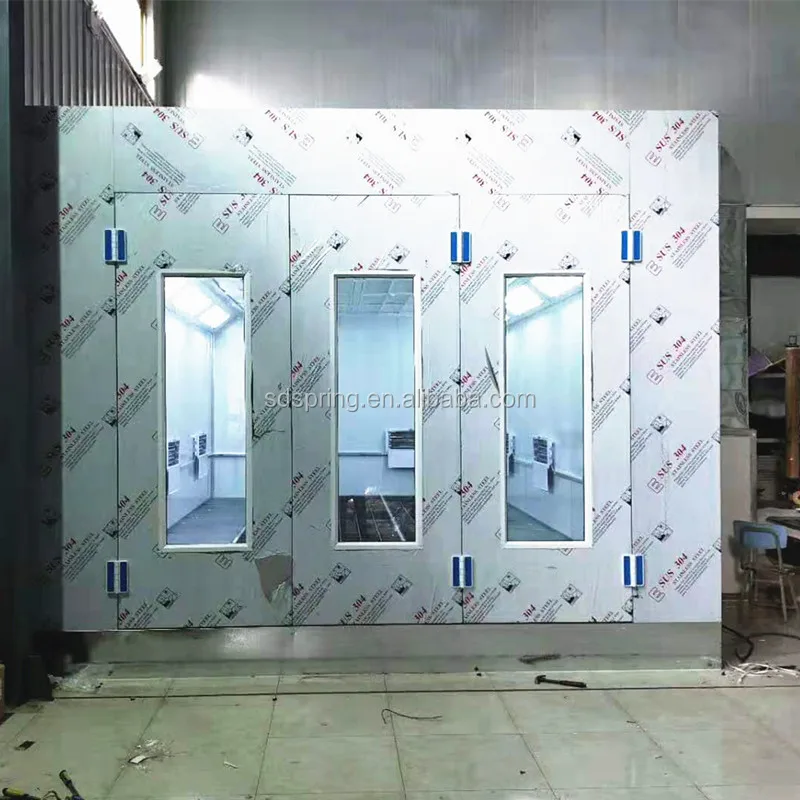

Main door | 3-folds,3000×2600mm (W×H) |
Personal door | 1 unit,650×1800mm(W×H) |
Wall panels | EPS with double-ply plate,tongue and groove construction,thickness:50mm |

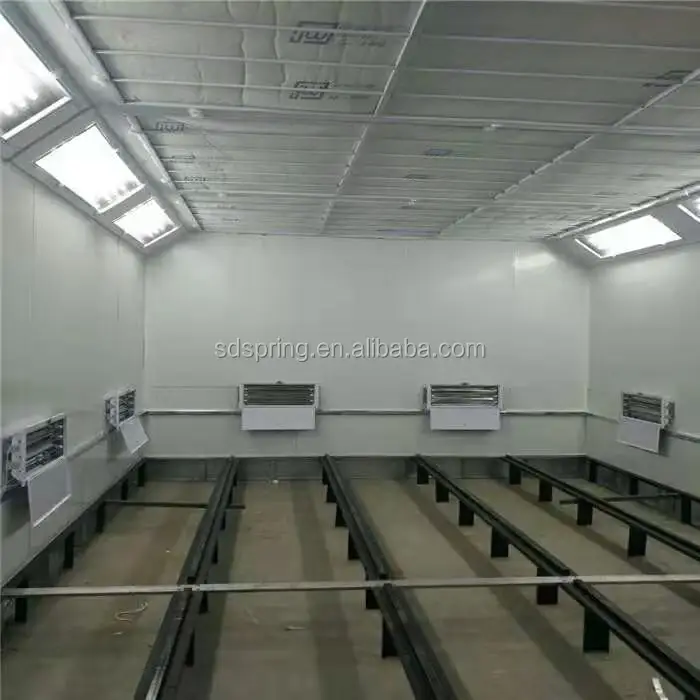

Basement and floor | Galvanized steel assemble, height is 300mm,3 rows of grilles and 2 rows of indented plates, 2 pcs ramps,970×2000mm(W×L) |
Lighting | Ceiling lights:8 units×3pcs=24pcs×36W;side lights: 6 units×2pcs=12pcs×36W |
Generator setting type | Side upper intake air, quadrate steel frame, coated steel |
Intake air fan | 2×4KW double-intake centrifugal fans, air capacity:24000m³/h |
Exhaust air fan | 1×2.2KW axial fan,air capacity:14500m³/h |

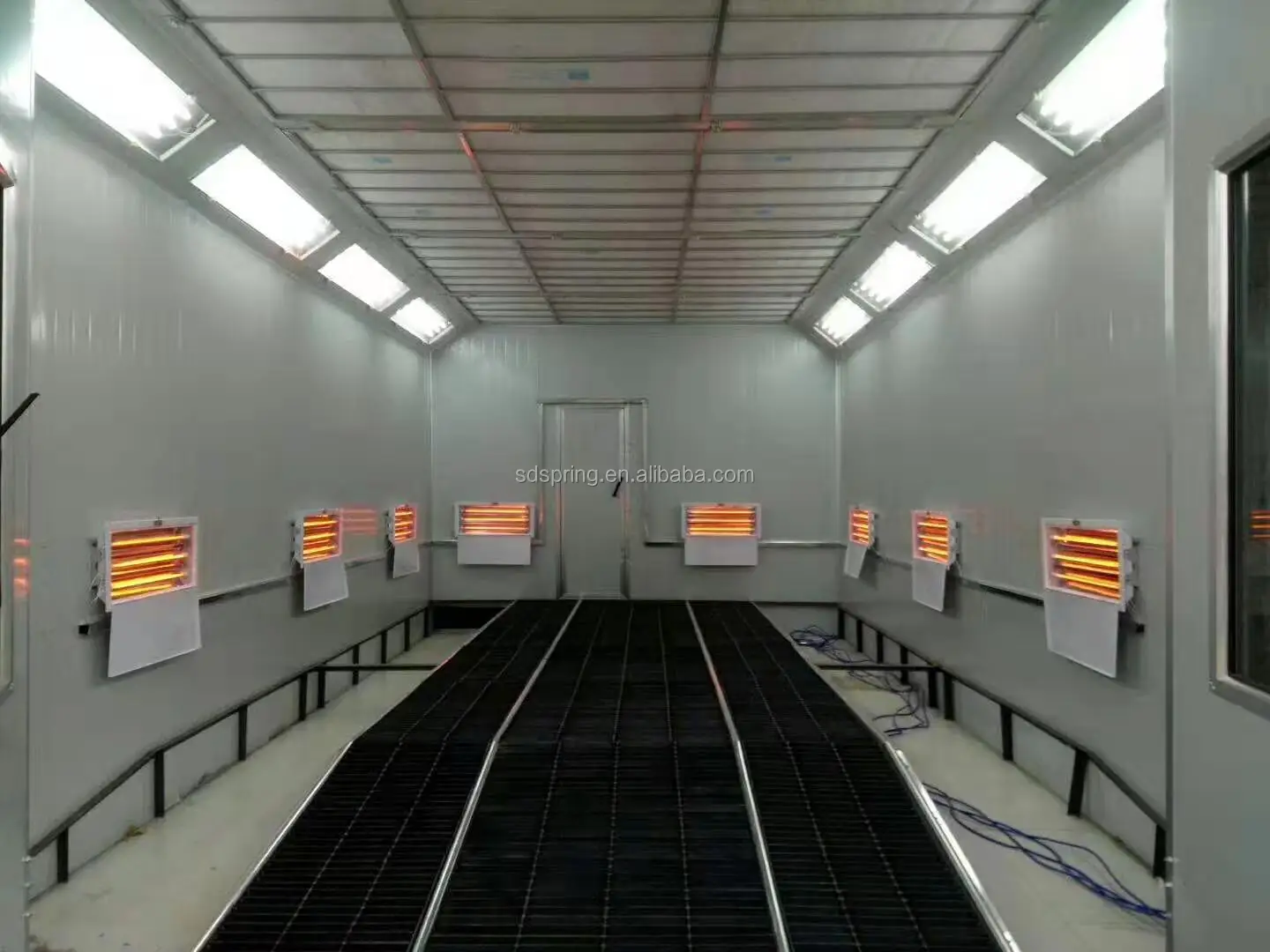

Heating system | Using infrared heating system, 24 1kw heating tubes are arranged on both sides of the house, the total power is 30kw, Controlled by group contactor, maximum working temperature: 80 ° C, heating rate (20-80 ° C): 15-20 minutes. |
Filter system | Initial effect filter cotton, G2 grade, filtration effect >83%, top high efficiency filter cotton, EU5 grade high efficiency filtration, filtration effect >98% |
Control system | Lighting switch, spraying, risen-temperature spraying, baking temperature controller, time setting, emergency stop indicator |
Total power | 45KW,380V/50hz,3ph |
FAQ
What is the order process?
1. Please tell us the product you need,such the Load capacity,Voltage(220V,380V,415V),1 or 2 or 3 phase,the equipment color if you have requirments.
2. Confirm every detail after our good communication.
3. Start the order by Alibaba Trade Assurance, or we will make Proforma Invoice for you to pay.
4. You arrange the payment and send bank slip to us.
5. We arrange the production and deliver to you.
6. We send you the shipping documents by DHL or email.
7. When arrive at your sea port, you get the goods against the shipping documents.
Frequently Asked Questions | |
Q | How can I make my payment secure? |
A | You can pay by Alibaba Trade Assurance. You will get 100% payment protection, 100% production quality production, 100% on-time shipment protection. |
Q | What is your payment terms? |
A | We accept Alibaba Trade Assurance, TT, LC, Western Union, etc. |
Q | How long can I get the goods? |
A | Our lead time is 20 days after order. The shipping time on the sea is around 30 days. So you will receive the goods around 50 days. |
Q | Can I buy your machine in my country? |
A | Yes, if we have distributor in your country, you can buy directly from them. This is better, you can get service locally. If we don’t have distributor in your country, you need to buy from us. |
Q | Where can you deliver for me? |
A | We usually deliver to your sea port. If you don’t know your sea port, you can tell me your address. We will check the nearest sea port we can deliver to you. |
Q | How much is the shipping fee? |
A | Please tell us the models and quantity of each model you need, we will check the latest shipping fee. |
Q | If I pay machine and shipping, do I still need to pay any fee at my side? |
A | Yes, you also need to pay customs fee and tax. You can check local custom office or import agent for exact value. |
Q | Can you deliver to my address directly? |
A | Yes, we can. |
Q | What is your warranty? How can I get spare parts? |
A | Our warranty is one year. We will provide you spare parts freely by DHL. |
Q | Can you provide the voltage of my country? |
A | Yes, we can. We have sold our products in over 50 different countries all over the world. We can offer all the different voltages in different countries. |
