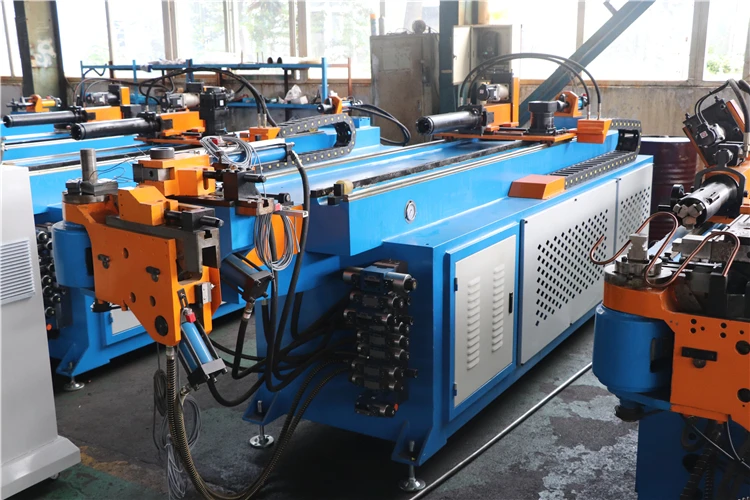

DW50CNC tube bending machine price manufacturer for sale
| Model | DW50CNC×2A-1S |
| DW50CNC×3A-1S | |
| Maximum bending pipe diameter x thickness | Φ50mm×3mm |
| Maximum bending radius | R250mm |
| Minimum bending radius | According to the pipediameter |
| The largest bending angle | 190° |
| Maximum feeding length | 3000mm |
| Feeding method | Direct feeding/Clamping feeding/ |
| Working speed | Max85°/s |
| Max200°/s | |
| Max 1000mm/s | |
| Accuracy | ±0.1° |
| ±0.1° | |
| ±0.1mm | |
| Information inputting method | 1.Axis(X Y Z) 2.Working value(Y B C) 3.CAD read |
| Bending method | 1.Servo bending:7KW (more than 3 axis) 2.hydraulic bending |
| Number of elbow bending pipe | 1.16 pieces (PLC type) 2.45 pieces (Industrial PC type) |
| Number of storable parts | 1.1000 groups(PLC type)2.2 million groups (Industrial PC type) |
| Motor power | 5.5kw |
| Max hydraulic pressure | 12MPa |
| Weight of machine | 2500Kg |
| Measurement size of machine | 5000×1300×1500mm |
Features
1.The machine adopt plc contol, and numercial control module, man-machine inteface dialoge operation Setup is simple easy..
2.The freedom to choose, manual, semi-automatic and fully automatic, slow corners slow core pulling function.
3.Feeding(Y), angle(B) for the servo control pipe(C) is driven by hydraulic or servo drive.
4.The program setting, each file can be set to 20 automatic feeding, automatic angle and 20 bending angle, can store 100 groups file memory.
5.Processing feed, angle, bend now value display touch screen mobile controller in the machining process, also can set the operation of full cycle step action, semi cycle operation,
6.With functions of automatic error detection and fault, when there is any abnormal action or any danger exists when the machine will stop immediately sends out the different alarm, diplay fault cause, help operators in troubleshooting
