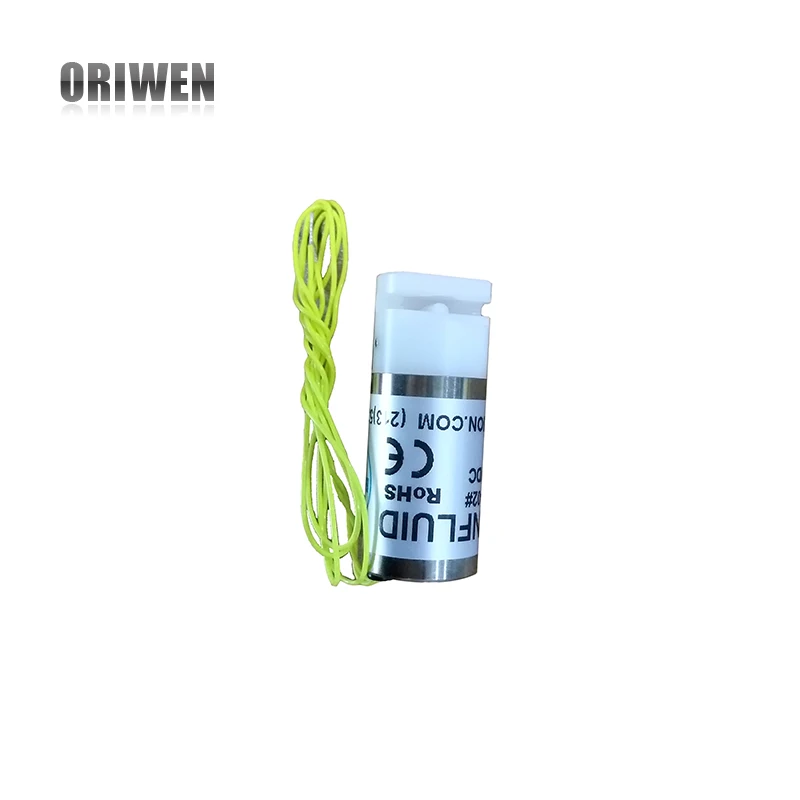

Small 24VDC NC Normally Closed Pinch Valve for Medical Electrolyte Analyzers

Product Overview

Description

Small 24VDC NC Normally Closed Pinch Valve for Medical Electrolyte Analyzers



Solenoid pinch valve (referred to as pinch valve) is driven by solenoid coil, controlling the opening and closing through squeezing or releasing the flexible tubing. Only the easily replaceable tubing contacts with the fluid. This means that this pinch valve is ideal for those applications requiring frequent changes of the flow path. Compared with other types of solenoid valves, pinch valves are more economic and have no cross-contamination.

This series pinch valves are widely used in the areas of medical devices, clinical diagnostics, analytical chemistry, water quality, food and beverage industry, etc.

Features & Advantages

1. Long service life (valve 20,000,000 times, tubing more than 500,000 times);

2. Perfect close pressure guaranteed for each pinch valve when leaving factory.

3. Low consumption and high heat dissipation rate (energy-saving chip provided);

4. Easy and reliable fixed, no resistance to flow;

5. Zero dead volume, effectively prevent cross contamination;

6. Multiple tubings adapted to different requirements of anti-corrosion (chemical resistance).

7. Teflon coating on the wire surface.

8. More cost-savings valves of high reliability.



About TubingAbout Tubing and Mounting Options

•To ensure stable and durable performance, insert the tubing into the grooves when in use.

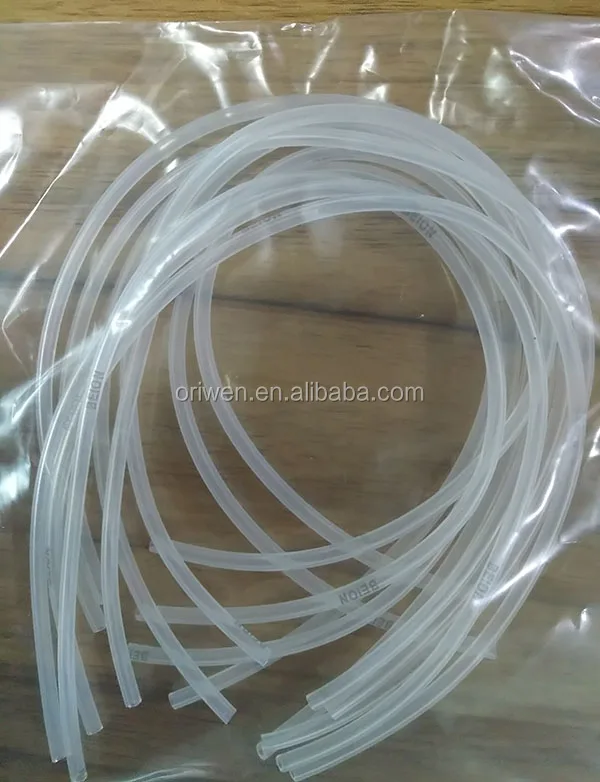

•Qualified tubing materials: Silicone tubings / Pharmed®BPT;

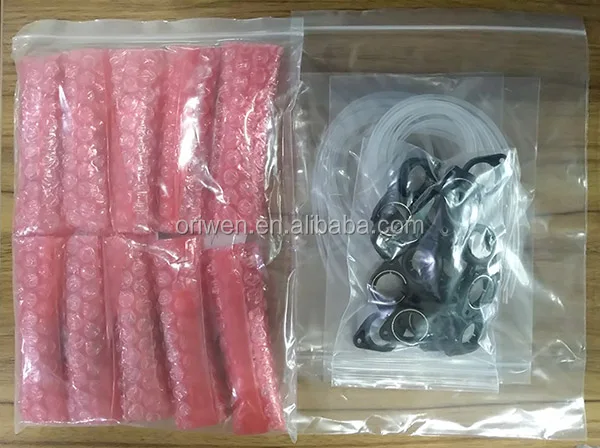

•For 2way solenoid pinch valve, 30cm long tubing supplied;

•For 3way solenoid pinch valve, 2pcs of 15cm long tubing supplied;

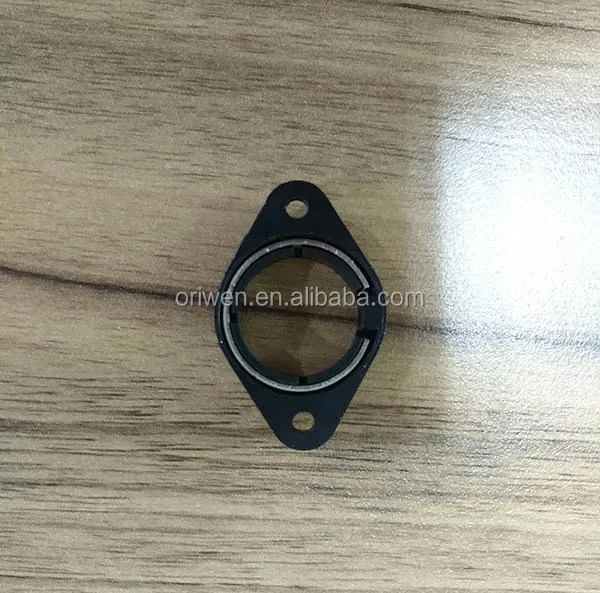

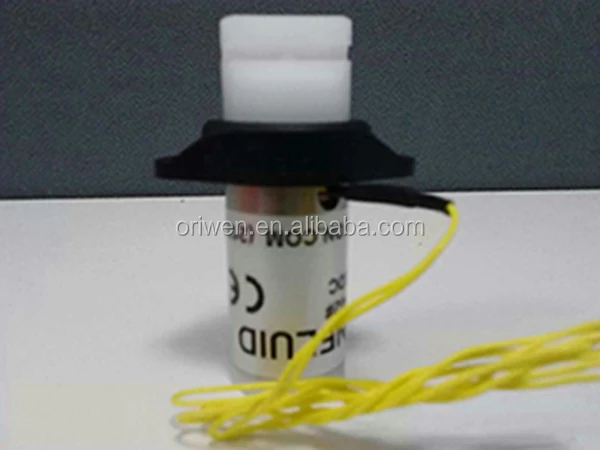

•Mounting Flange (Polyethylene)/ Mounting Ring (Aluminum)/ Mounting Clip (Spring Steel)

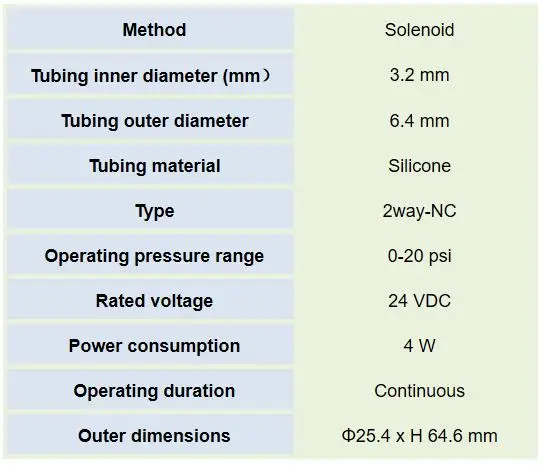

Product Specifications





Voltage	12/24volt DC solenoid
Type	Normally Closed (NC)
	Normally Open (NO)
	3-way (NC/NO)
Tube	As required



Model:24VDC Normally Closed NC Pinch Valve
