Electric truck cargo van cargo 4 roues voiture cargo truck electric
- Category: >>>
- Supplier: Qingzhou Runhorse Holding Co. Ltd.
Share on (62521164222):
Product Overview
Description
Electric truck cargo van cargo 4 roues voiture cargo truck electric
Eco-Green Fashionable Simple Reliable
Parameter
| Configuration | Item | J2-F | |
| Parameter | L*W*H (mm) | 3600*1340*1770 | |
| Axle base(mm) | 2385 | ||
| Wheel base(F/R)(mm) | 1015/1195 | ||
| Max. Speed(km/h) | ≥52 | ||
| Max.distance (km) | ≥130 | ||
| Capacity(person) | 1 | ||
| Curb weight(kg) | 530 | ||
| Rate load(kg) | 400 | ||
| cargo box(mm) | 1635*1150*1050 | ||
| Steering mode | Middle Steering | ||
| Power system | Motor | 60V 4000W | |
| Lithium battery | 100A·h Lithium iron phosphate battery | ||
| Charger system | Intelligent faster charger for lithium battery | ||
| Charging time | 2-3 hours | ||
| Brake system | Type | Hydraulic system | |
| Front | Disc | ||
| Rear | Drum | ||
| Suspension system | Front | McPherson Independent Suspension | |
| Rear | Spiral Spring Integral Suspension | ||
| Wheel suspension | Tyre | Front 135/70-12 Rear145/70-12 | |
| Wheel hub | Wheel Hub Aluminum Alloy Hub | ||
| Function device | Mutil media | MP5+rearview camera | |
| Electric heater | 60V400W | ||
| Central lock | Auto Level | ||
| One Button Start | Auto Level | ||
| Electric door and window | 2 | ||
| Skylight | Manual Operation | ||
| Air Conditioner | optional | ||
| Seats | Genuine Leather | ||
Last miles solution for city delivery&Logistics, Express, City Logistics and Supermarket Goods Transportation, cost-efficient under short-distance transportation.
Advantage:
1. CKD (Completely Knocked Down) assembly
Reduce and save customs duty& transportation cost
2. Car-sharing
Personal&Commercial APP, to manage and monitor all vehicles
3. Fast charger
within 2-3 hours under home charger, power consumption cost of each 100Km is less than 0.5$.
| Motor | AC motor, auto-hold function, powerful and water proof,lower noise, no carbon brush, maintenance-free, can improve the drive range. |
| Battery | Large-capacity, safety and long using life Lithium Iron Phosphate battery withBMS system. 2,000 times charging cycles(8-10 years) under working environment from -20 to 80 °C. Equipped with a fast charge ,to achieve full charge within 2-3 hours. |
| Electronic Control System | Use En-power electric control system , reliable and water-proof, steadily current control makes motor output much stronger and higher efficiency. Adopt the first-class AC motor control algorithm to achieve accurate control of motor speed. |
| Front Windshield | 3C certified tempered and laminated glass Improve visual effect and safetyperformance. |

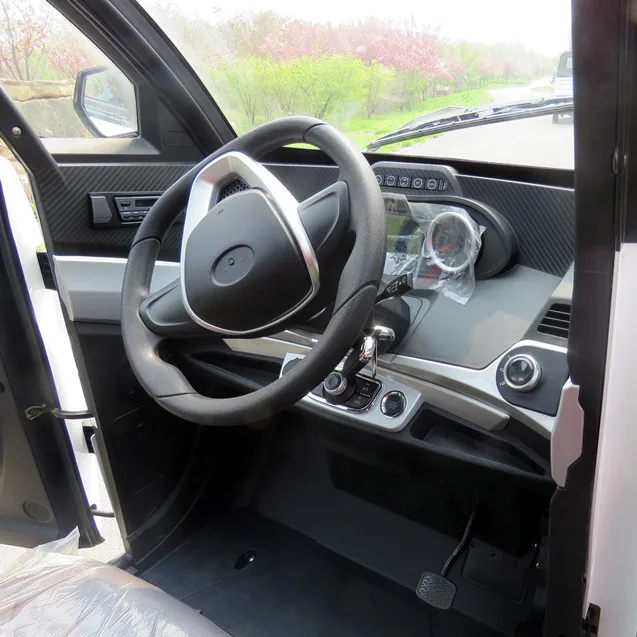

| Dashboard | LCD display, volt meter, power meter, kilometer and reverse camera, plus Bluetooth, MP5,USB connection. |
| Light System | Integral LED headlight , Turn lights, brake lights, reverse lights. Low power consumption and increase 50% more in light transmittance. |
| Plastic Cover | ABS resin , Luxury interior with sunroof. The most important mechanical properties of ABS have excellent comprehensive physical, impact resistance and toughness,Stability, two-thirds lighter weight than iron parts. |
| Brake System | Front-disc Rear-drum,two-circuit hydraulic brake, for the higher safety and stability. |
| Suspension System | The front axle and suspension are independent suspensions, simple structure and excellent stability. The integrated rear axle, axle housing welded by seamless steel tube, lower noise,more durable and reliable. |
| Steering System | Use double output steering gear box to adjust the gap automatically. There is no dead angle when rotate, Operate will be more lighter. |
| Frame&Chassis | GB Standard Steel, the surface under pickling&Photostatting and corrosion-resistant treatment to ensure the excellent drive sense with stationary and solidity. |
| Seat | Adjustable seat,Genuine Leather + High Resilience PU for the comfortable and pleasant driving. |
| Tyre and Rim | Aluminum Wheels Hub, Vacuum Radial Tire. |
| Painting | Automobile-grade,Computer Painting Mixing, Robot-painting. |

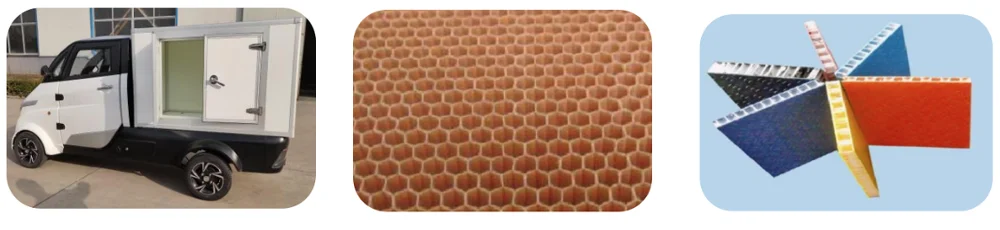

| Cargo Box-- Cellular panel: | As special structure, with comprehensive strength,bending resistance, excellent properties such as electrical insulation, corrosion resistance and high temperature resistance. 70-90%lighter than solid palate. |

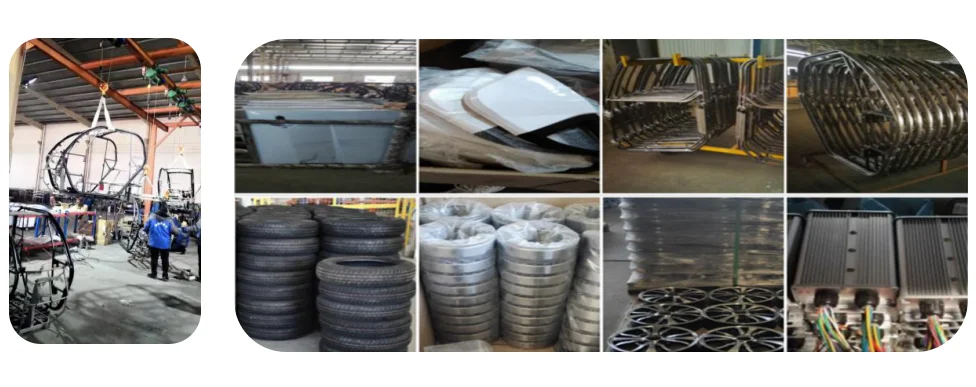

Runhorse Holding Co.,Ltd. was founded in 2001,dedicated to producing new energy electric vehicles. It covers an area of 270,000 m2 with 700 employees, including 50 senior engineers, with 4 assembly lines for heavy-duty motorcycles, 2 cathodic electrophoresis coating lines, 2 motorcycle inspection lines for all models, 2 automatic paint lines, 3 body welding lines, 2 frame production lines, and various testing equipment. All kinds of different products have been sold to more than 50 countries in the past several years.
--- CERTIFICATE ---
--- Customer Visit---
We warmly welcome you come to visit our factory for further business communicate
--- FAQ ---
Q1. Can I order different models to be one container?
A: Surely, different models can be fixed into one container.
Q2. What are your terms of payment?
A: T/T 40% as deposit, and 60% before delivery. Photos of the products and packages will be sent to you before you pay the balance.
Q3. Do you have products in stock?
A: Mostly no. All products are to be produced according to your order including samples.
Q4. How about your delivery time?
A: Generally, it takes 10 to 20 days to finish an order. Exact delivery time would be confirmed by further communication.
Q5. Can you produce according to the samples?
A: Yes, we can also produce according to technical drawing.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, 100% test before delivery is necessary to us.
Q8: What are your terms of packing?
A: Generally, we packing with neutral white foam and brown cartons. We can also pack as your requirement.
---OUR SERVICE ---
1. 24 hours online.
2. 1- year warranty for the whole car, 5- years warranty for the lithium battery.
3. Arrange technical man to training for dealers.
