Products Description
Maytech V2 MTSKR1905WF Fully Waterproof Remote for Esk8 Esurf Efoil RC Boat with 2 Layers Nanometer Coating Display Screen
Model No. | MTSKR1905WF | Signal Format | PWM (PPM) | ||
Waterproof Rank | Fully waterproof with 2 Layers Nanometers Coating | Mode | Esk8/Esurf | ||
Display Screen | Remote & Battery Power ; Throttle Percentage; Signal Strength; RPM; Current; Temp; Voltage; Speed; Distance (When work with VESC) | Double Source Power Supply | Accept 5V power by ESC built in BEC or extra 5V power | ||
Firmware Updatable | Yes | Control Pump | Yes | ||
Control Light | Yes | Set Safety Button | Yes | ||
Brake Button | Yes (Only Esk8) | Cruise Control | Yes (Only Esurf) | ||
Wireless Charing | Yes | Accessories | Receiver, wireless charging pad, 3pcs Dupond cable | ||
Customization | Logo, shape, screen, function can be customized | ||||
MTSKR1905WF PWM signal Range:
1. Esurf mode:
Zero position: 1ms;
Throttle button: 1-2ms, max throttle is 2ms; Brake button has no PWM signal output.
2. Esk8 mode:
ZERO position: 1.5ms;
Throttle button: 1.5-2ms, max throttle is 2ms;
Brake button: 1.5-1ms, max brake is 1ms.
Tips of Usage:
1. Wash the remote in freshwater after using in salt water.
2. The remote PCB is sealed by waterproof nano-coating and double protected by glue. The remote screen is sealed by waterproof
nano-coating, not glue. When use it in water, water will get in between the outside and inside screens. It won't influence using.
When you don't use it, please put it in dry place and it will dry slowly.
3. When charge the remote, please keep remote dry.
4. Receiver is not waterproof. Please put receiver in dry place.
5. Because each customer using situation is different, some customers may need replace the antenna with longer one . If you mount
the reciever deep in your board, recommend to change to a long 2.4ghz antenna and lead the antena near to your top cover of your
board for better signal.
6. When soldering, please pay attention that the two pins do not touch each other, otherwise it is easy to burn the receiver.
7. The extended antenna 1m and 3m PCBs are not waterproof.
1. Esurf mode:
Zero position: 1ms;
Throttle button: 1-2ms, max throttle is 2ms; Brake button has no PWM signal output.
2. Esk8 mode:
ZERO position: 1.5ms;
Throttle button: 1.5-2ms, max throttle is 2ms;
Brake button: 1.5-1ms, max brake is 1ms.
Tips of Usage:
1. Wash the remote in freshwater after using in salt water.
2. The remote PCB is sealed by waterproof nano-coating and double protected by glue. The remote screen is sealed by waterproof
nano-coating, not glue. When use it in water, water will get in between the outside and inside screens. It won't influence using.
When you don't use it, please put it in dry place and it will dry slowly.
3. When charge the remote, please keep remote dry.
4. Receiver is not waterproof. Please put receiver in dry place.
5. Because each customer using situation is different, some customers may need replace the antenna with longer one . If you mount
the reciever deep in your board, recommend to change to a long 2.4ghz antenna and lead the antena near to your top cover of your
board for better signal.
6. When soldering, please pay attention that the two pins do not touch each other, otherwise it is easy to burn the receiver.
7. The extended antenna 1m and 3m PCBs are not waterproof.

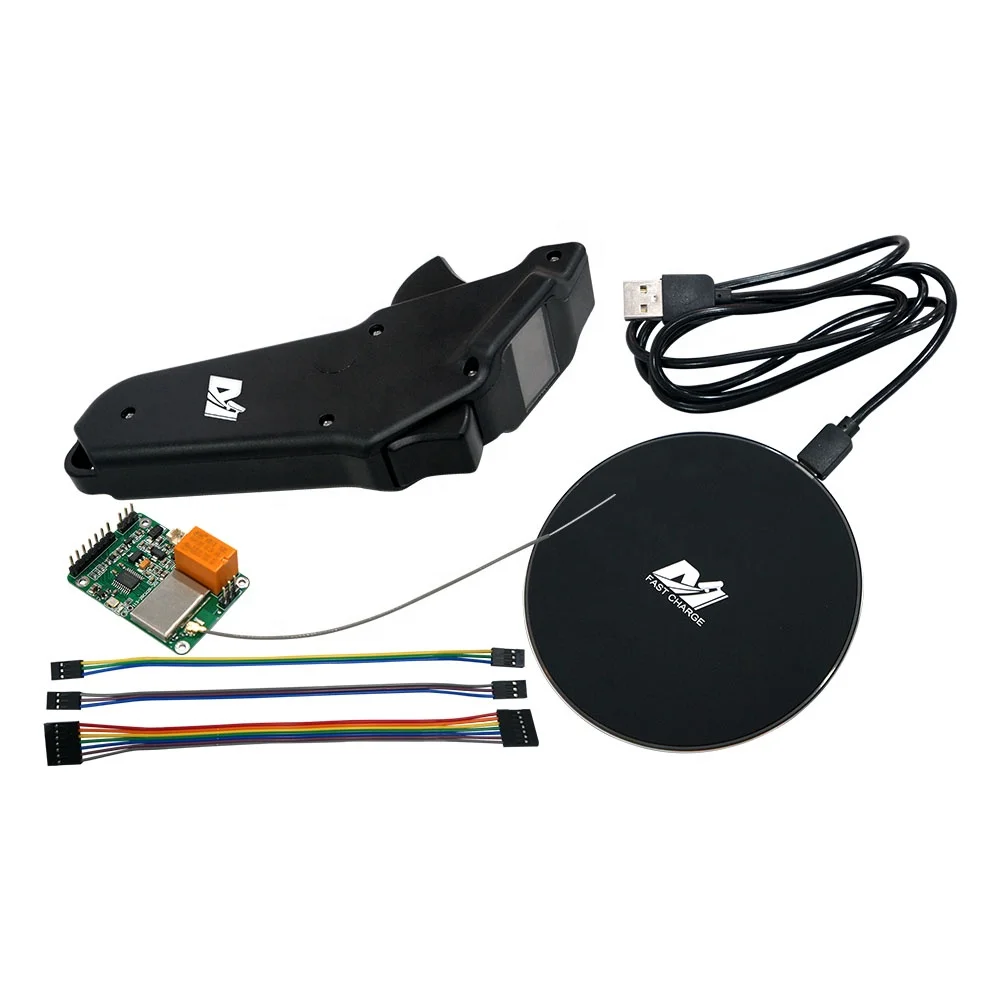

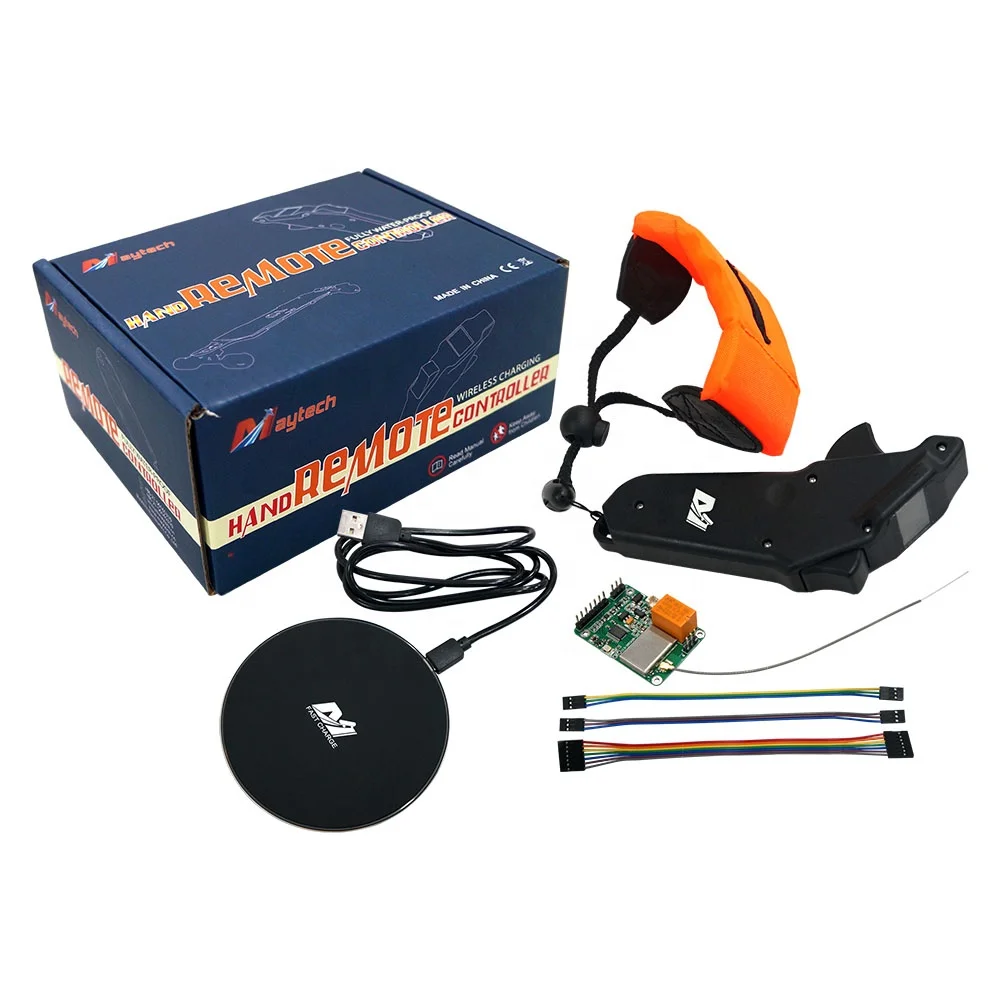

Accessories

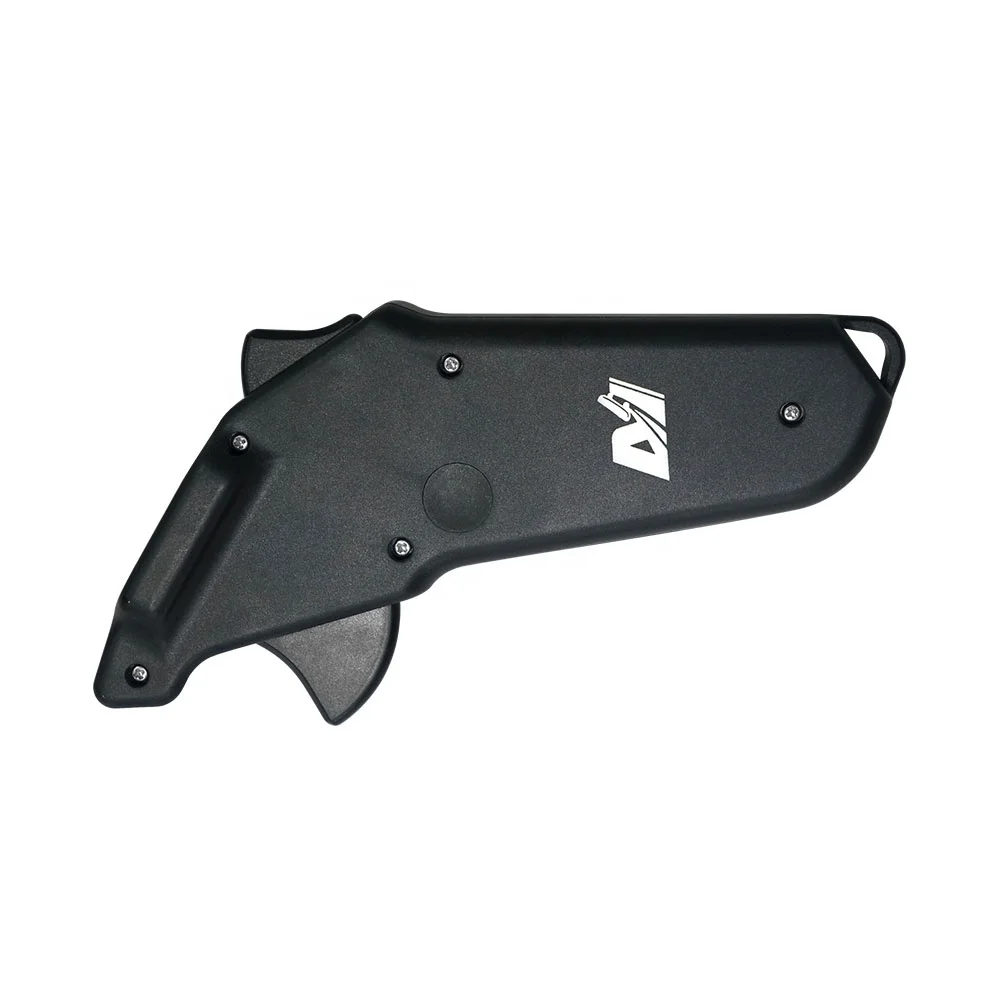

Remote
Receiver and Dupond Cable
Floating Belt
Wireless Charging Pad
We will send you PDF file of the user mannual to you after your order.
