Product Overview

Description

intelligent automatic paper pot seeder plates onion seeders transplanters vegetable tray seeding machine

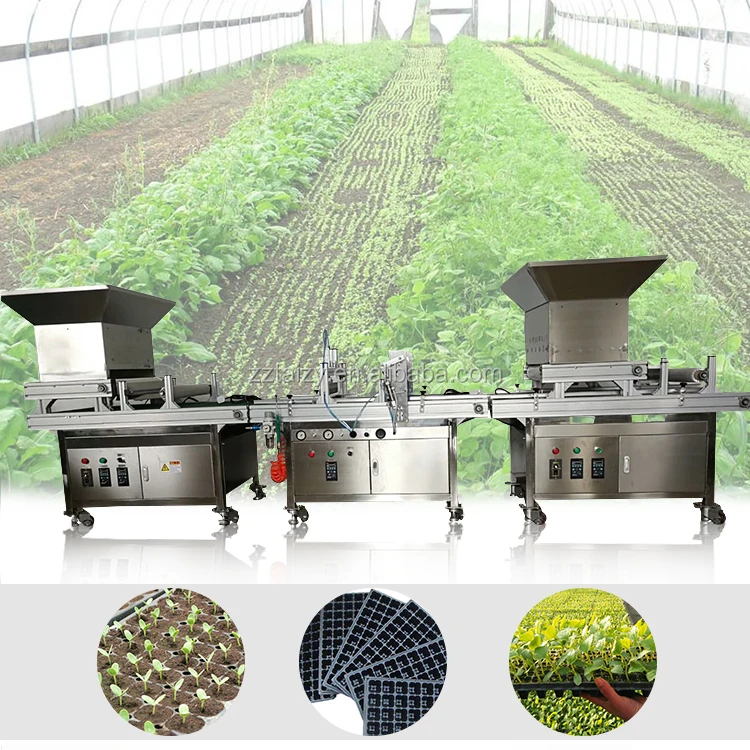

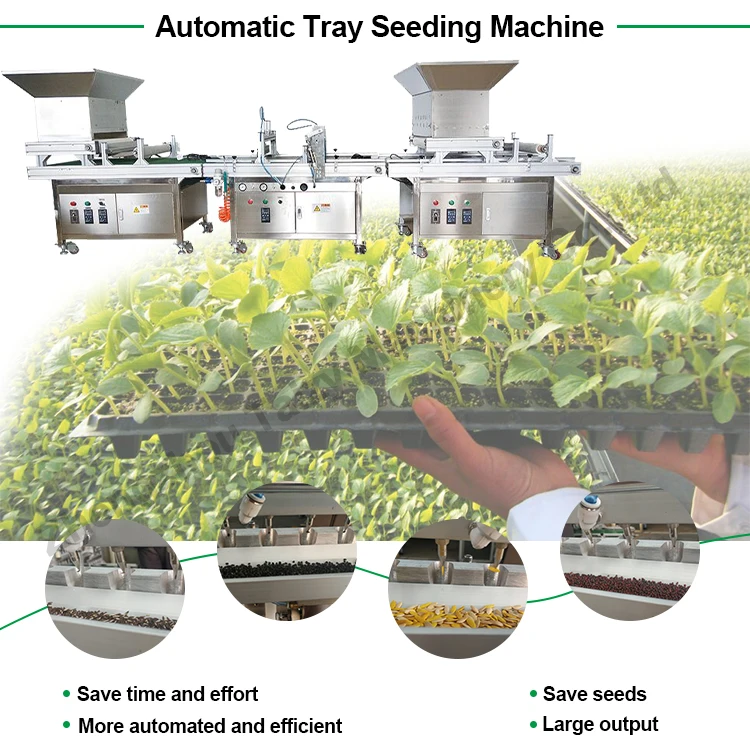

Introduction of automatic tray seeding machine



1.automatic nursery seeding machine is developed in accordance with the current status of vegetable and flower seedling production in various countries. It meets the needs of large and medium seedling production enterprises, agricultural production, private farms, and vegetable and flower production bases.



2.Compared with the traditional seedling method and automatic drum seeder, the intelligent automatic tray seeding machine reduces the proportion of invalid transplanting, saves costs, and is scientific and efficient.



3.The whole machine is made of stainless steel and the core component paper pot seeder plates is easy to operate. Users only need to provide a universal power source to work, and no maintenance staff is required. The machine is flexible in operation, simple in structure.

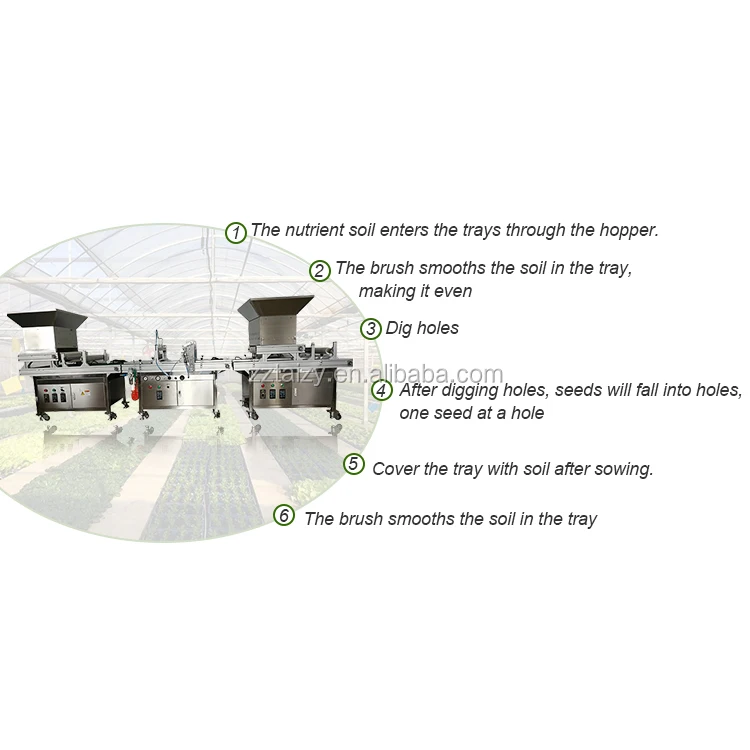

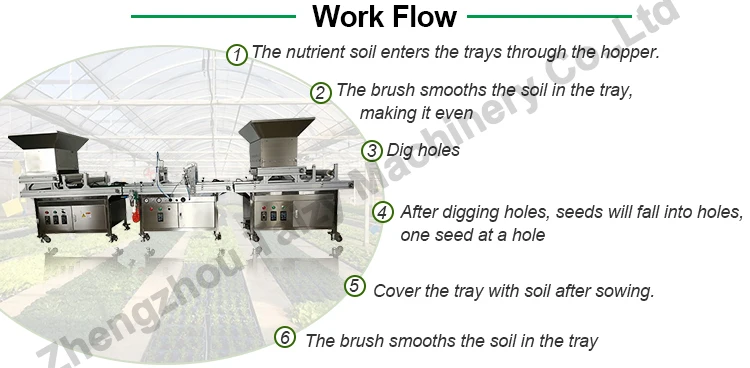

Substrate loading, burrowing, sowing and covering are completed in one time.

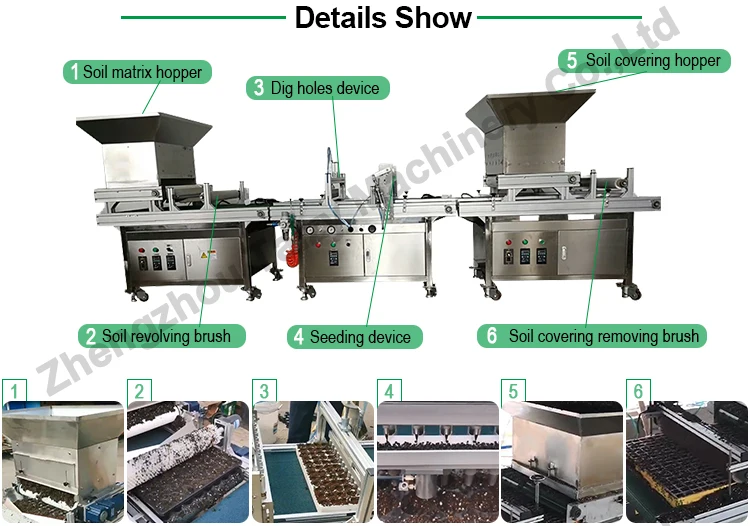

Structure of automatic tray seeding machine



1.matrix soil loading machine

The filling soil and conveying device is equipped with frequency conversion speed regulation system, which is exactly matched with the speed of the next process.This machine has an automatic photoelectric induction detection system, no tray,no putting soil.



2.seeding machine

This machine has an automatic photoelectric induction detection system, no disk, no seeding.



3.soil covering device

automatic photoelectric induction detection system,Automatically finish covering the soil.Simply adjust the upper and lower partitions to meet the required amount of soil cover.



Parameters of automatic tray seeding machine



Model	TZY-78-2
seeding speed	400-550trays/hour
Seeding Precision	>97%
principle	Electrical and air compressor
Size	3600*800*1300mm
Voltage	220V
Power	600W
Size for seed	0.3-12mm
The max Size for tray	540mm for width







Features of automatic tray seeding machine

1.automatic nursery seeding machine is committed to improving the efficiency of plug tray seedling sowing. Through rational design, greatly reducing labor costs in the production of seed nursery, and improving the quality of seed production.



2.This type of automatic nursery seeding machine adopts the one-button operating system,which completes soil laying, press holes and sowing. Simple, practical and fast.



3.This machine has a special seed recycling device so that the seeds are not wasted.



4.A watering device can be added to the back of the machine to complete the sprinkler work after the seed is covered with soil.



Application of automatic nursery seeding machine



1.the automatic nursery seeding machine is mainly used for seedling of vegetables and flowers in intensive and efficient farming. It can automatically and continuously finish the work of soiling,brushing, pressing,seedling and watering with matched speed.



2.This type of seedling machine is suitable for seeds between 0.3-12mm.

and we can test machine for you by buying seed Or you can offer seed and delivery to factory and then test machine.

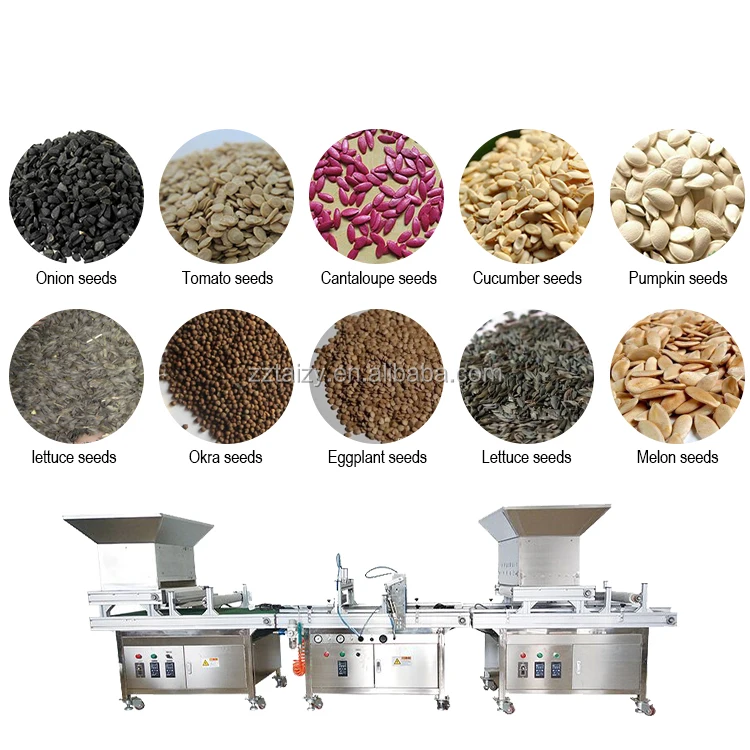

3.Meet your diverse needs,such as rape seed, onion seed, tomato seed, hemp seed, spanish blue flower seed, cucumber seed, watermelon seed, pumpkin seed, chili seed, daisy seed etc.



4.The shape of the seed is not limited, and the application range is wide.



5.Both plastic hard disk and soft disk can be used, and the working efficiency of the machine is 400-550 trays/hour.

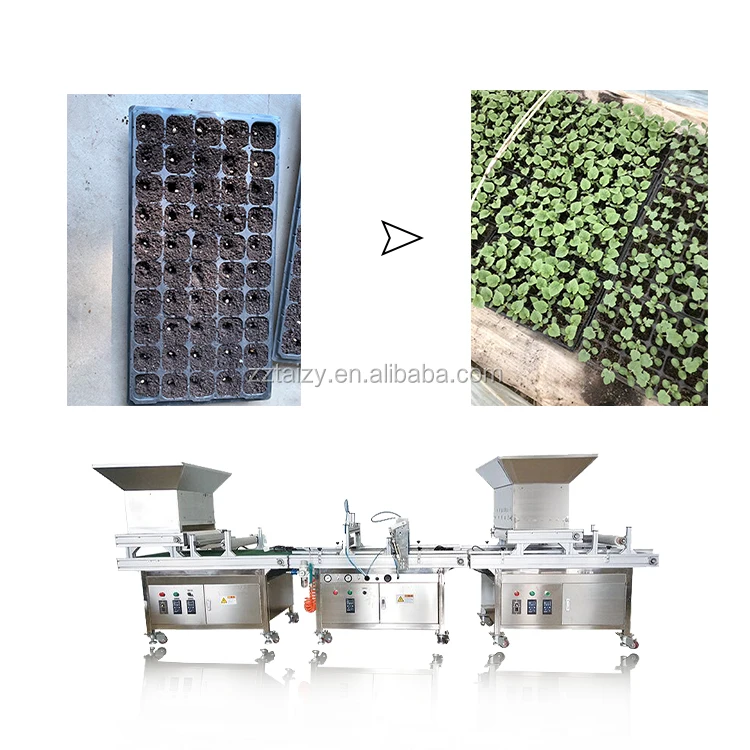

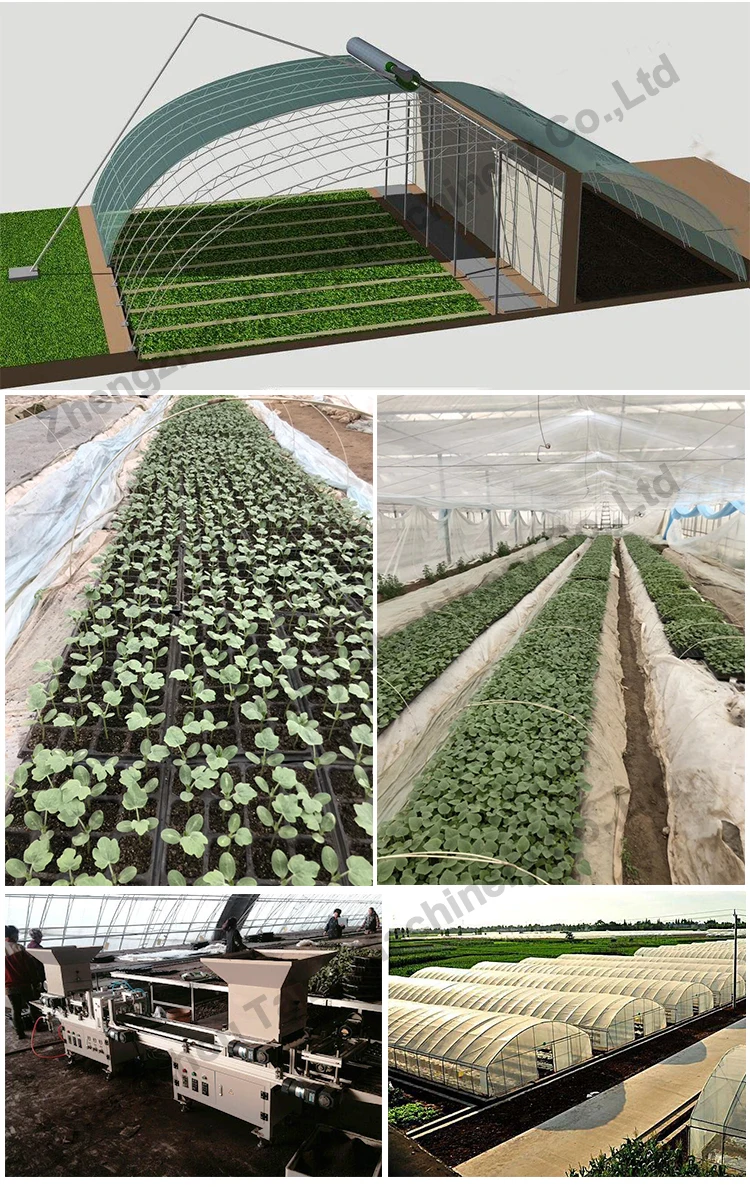

Seeding scene



After processing seed nursery sowing machine, people put the nursery at hoophouse and grow up about 1-3 month, and then work with transplanter machine to plant them into field.
