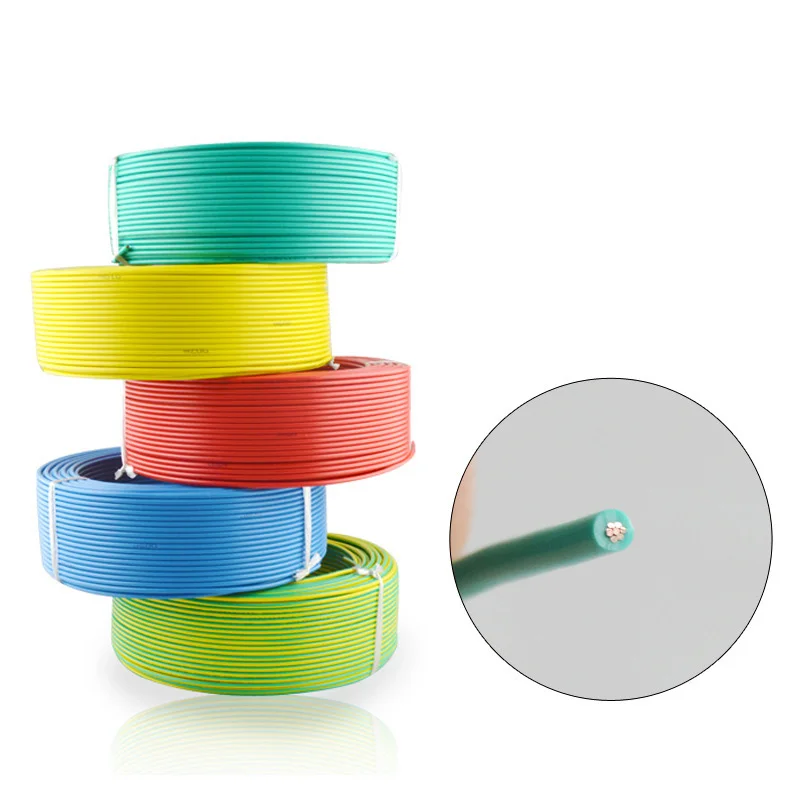

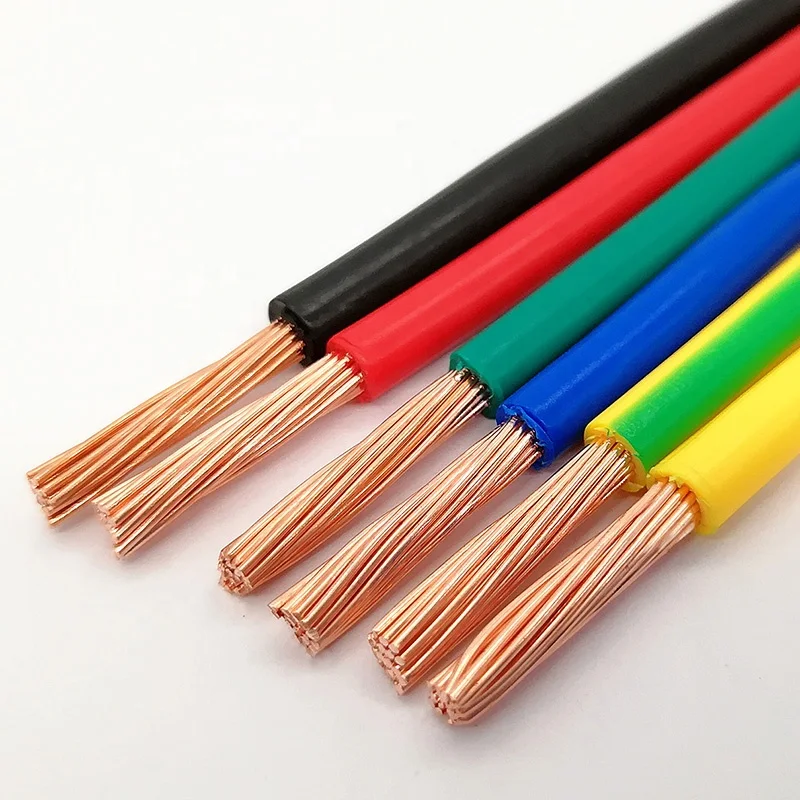

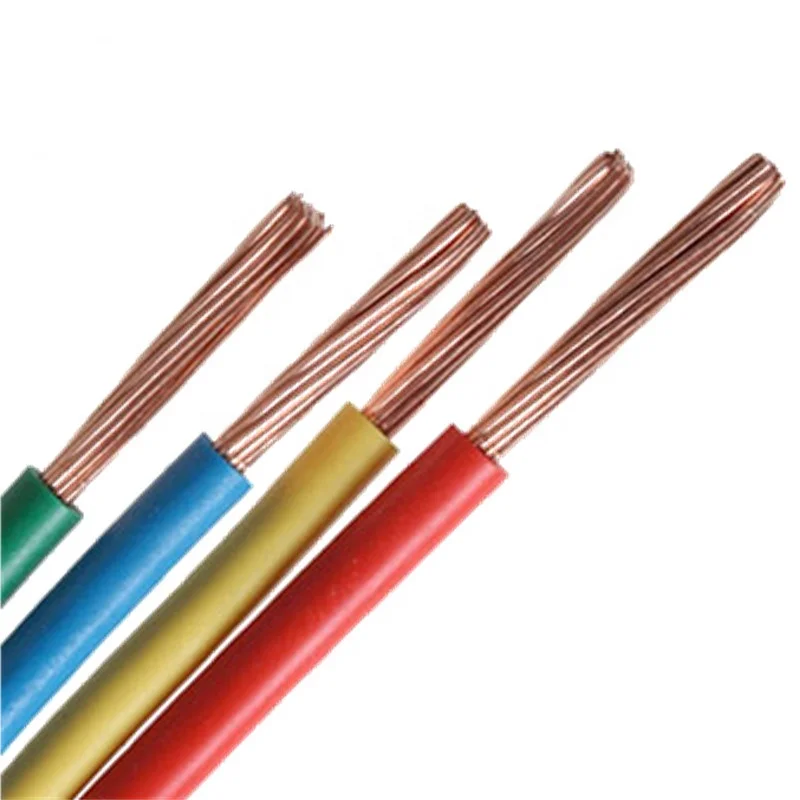

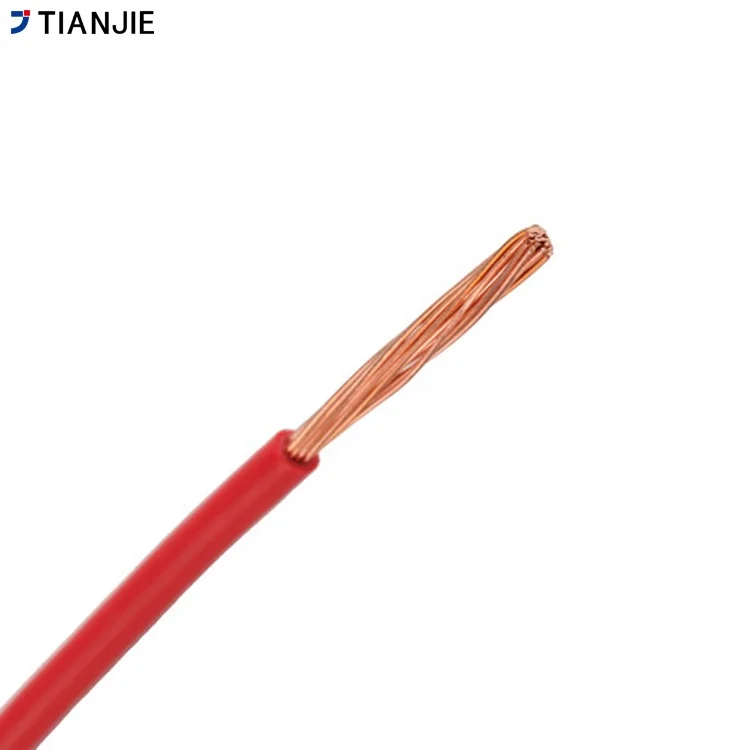

16mm2 BVR Stranded Copper Conductor PVC insulated electric cable CCC certified cable comply with gb/t5023.3 2008
- Category: >>>
- Supplier: Zhejiang Tianjie Industrial Corp.
Share on (62521272645):
Product Overview
Description
Details Images
Application:

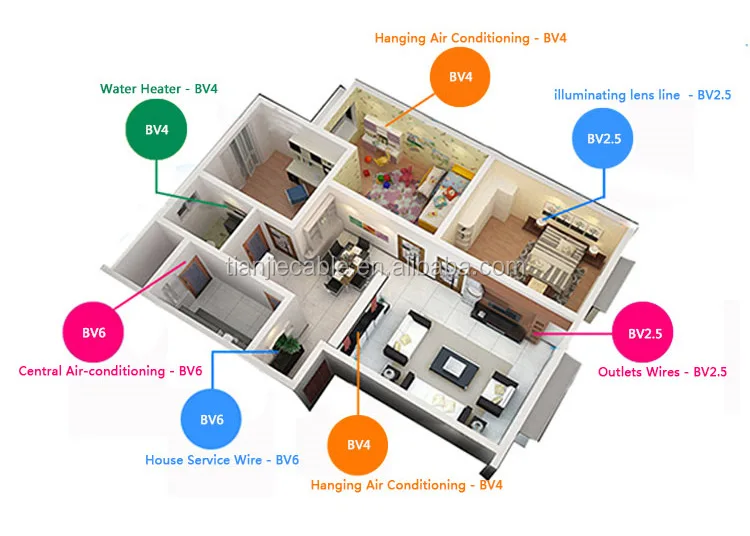

Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexiblerequired.
Copper conductor PVC insulated PVC sheathed round flexible connector cable (electrical wire)
Products Description

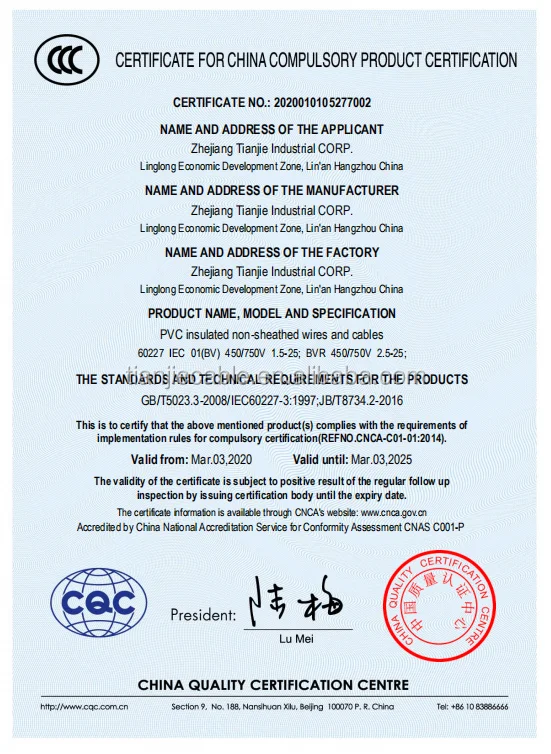

CCC certified products: PVC Insulated Flexible Cables and Wires.
60227 IEC 01(BV): 450/750V 1.5-25mm2
Flame retardant properties: IEC 60332-1
60227 IEC 01(BVR): 450/750V 2.5-25mm2
Rated Temperature:0°C to +70°C
Related Standards:
GB/T 5023.3-2008,IEC60227-3:1997,JB/T8734.2-2016
Flame retardant properties: IEC 60332-1
Packing method: 100m/roll or customized.

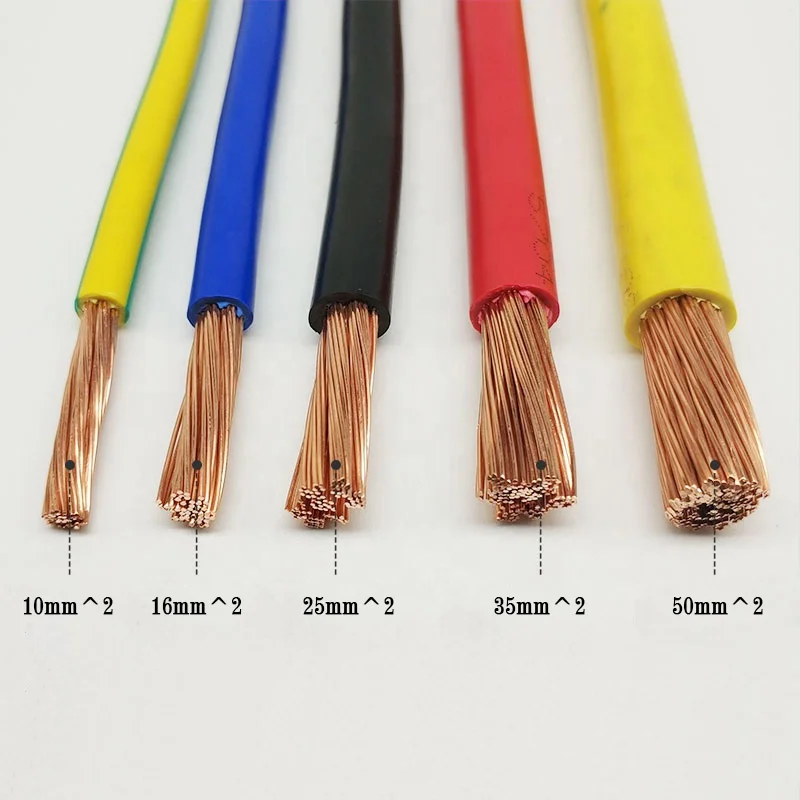

Area of Conductor | Conductors | (kg/km) | Maximun outer diameter | Max. Resistance at 20℃(Ohms/km) |
2.5 | 19/0.41 | 34.7 | 4.2 | 7.41 |
4 | 19/0.52 | 51.4 | 4.8 | 4.61 |
6 | 19/0.64 | 73.6 | 5.6 | 3.08 |
10 | 49/0.52 | 129 | 7.6 | 1.83 |
16 | 49/0.64 | 186 | 8.8 | 1.2 |
25 | 98/0.58 | 306 | 11 | 1.15 |
Recommend Products

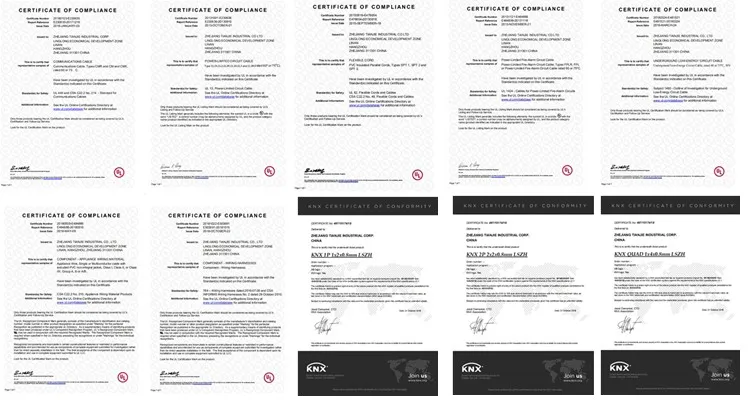

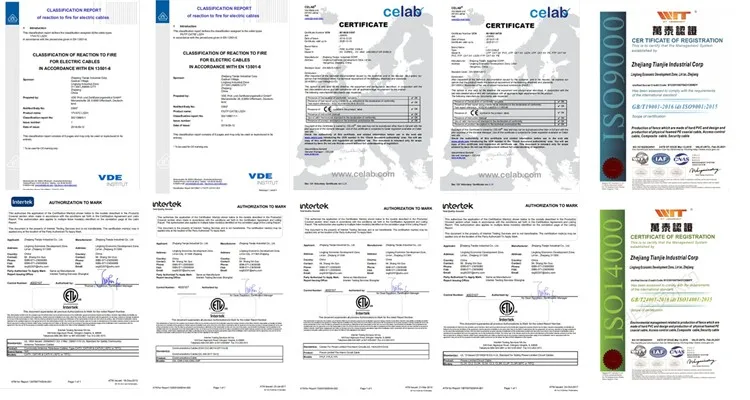

\t\t\t\t\t\t\t\t\tCERTIFICATES \t\t\t\t\t\t\t
